Open Source is Intrinsic to Bitcoin

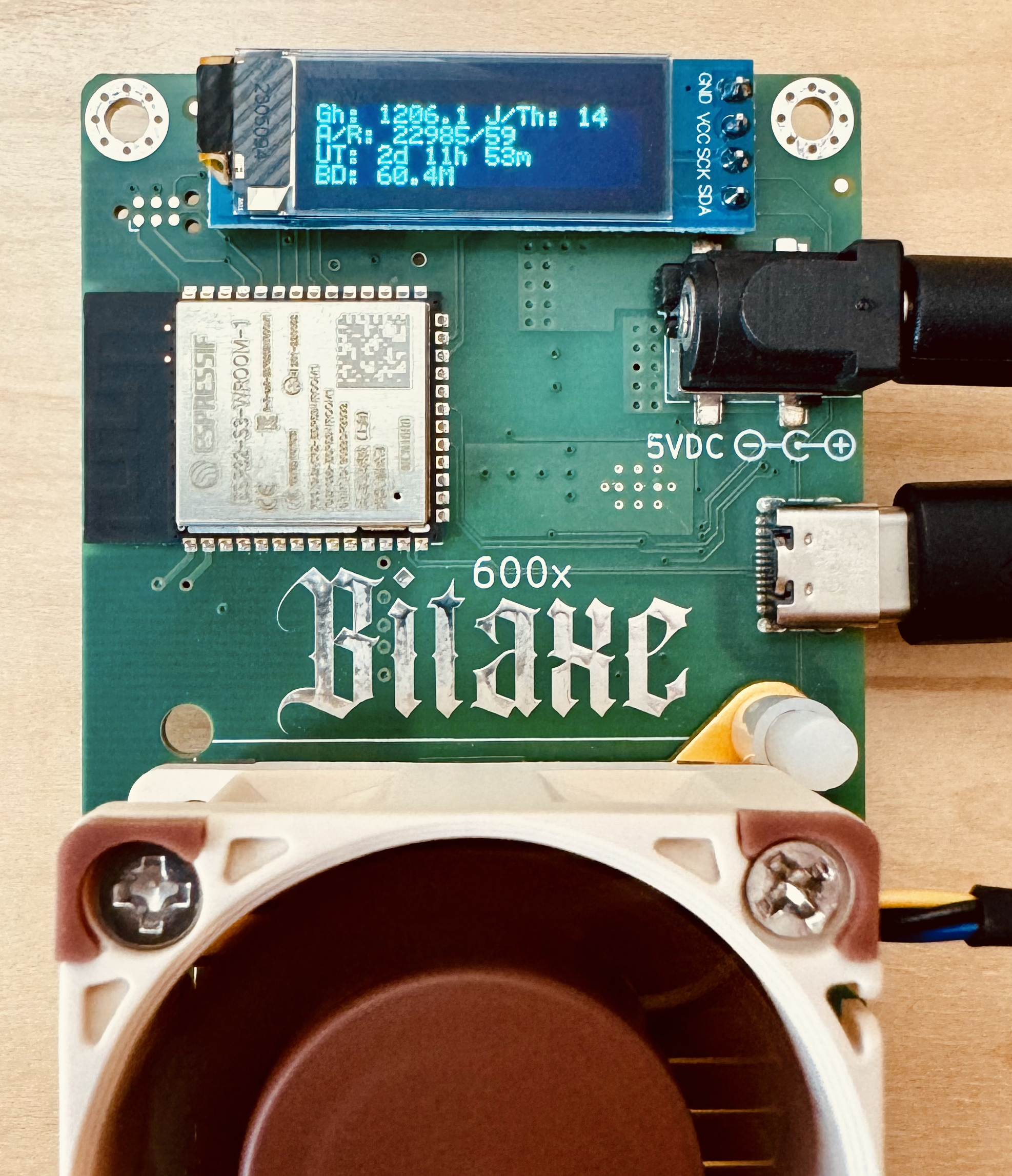

bitaxe is a fully open source Bitcoin ASIC miner aimed at decentralizing mining. bitaxeGamma is the 5th major revision of the bitaxe that now includes the BM1370 ASIC from the Antminer S21 Pro
At the heart of the bitaxeGamma is a BM1370 Bitcoin mining ASIC from the Antminer S21 Pro from Bitmain. It's not open source.
This repo contains all of the design files for the PCB. KiCAD software is used. There is a BOM file for all of the components that get soldered to the PCB.
Manufacturing Files dir. PCBs are 4-layer, 6mil trace/space and 0.3mm hole compatible. 1oz outer / 0.5oz inner layer thickness works well.There are a few other hardware components that are needed for a complete bitaxe.
