Boardoza HX711 24-Bit ADC Module
The HX711 24-Bit Analog-to-Digital Converter (ADC) Module is designed for precision load cell measurements, making it ideal for electronic weighing scales and industrial control applications. It features a low-noise programmable gain amplifier and supports two selectable differential input channels. The module operates with low power consumption, making it suitable for battery-powered applications.
Click here to purchase!

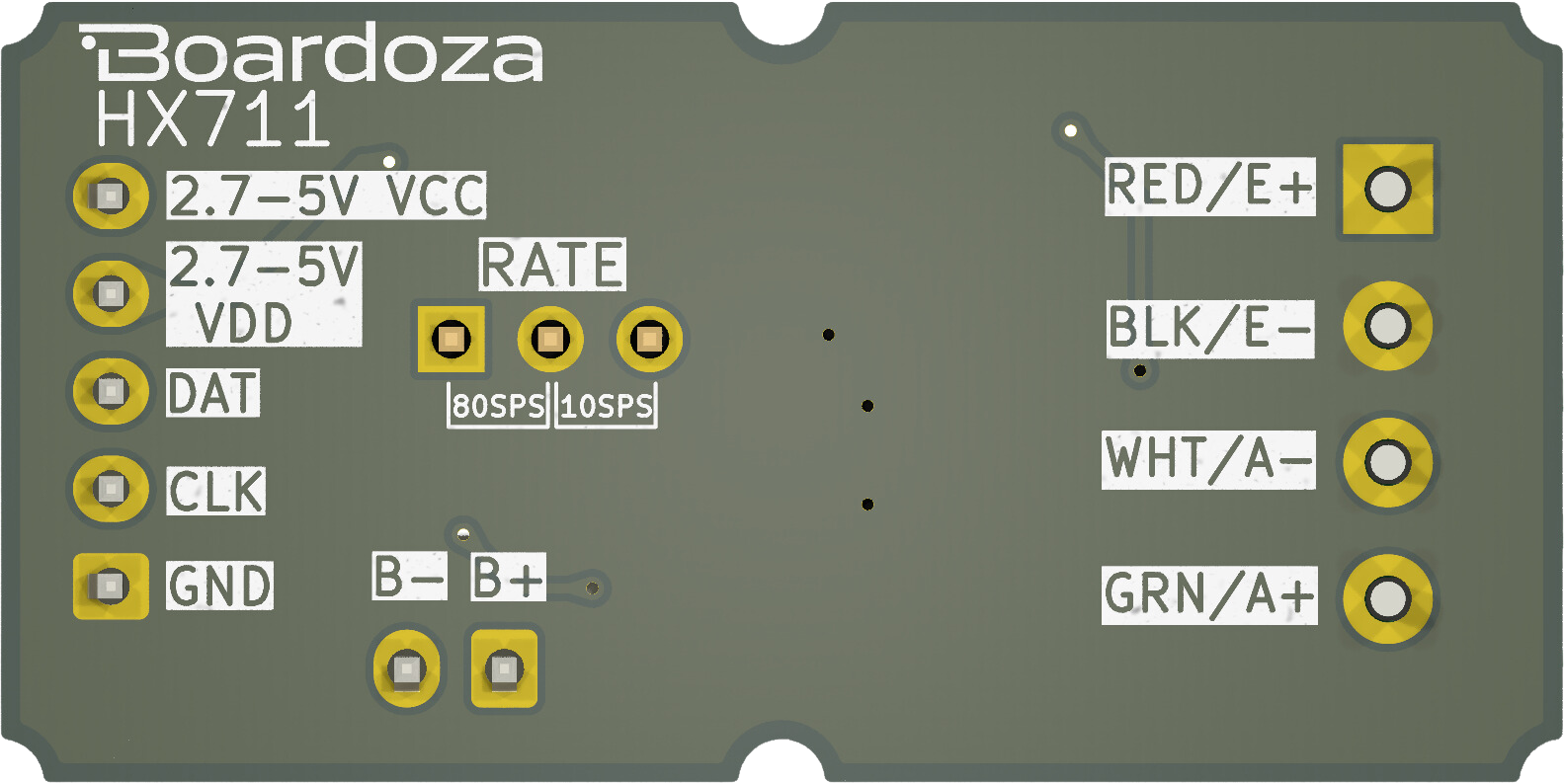

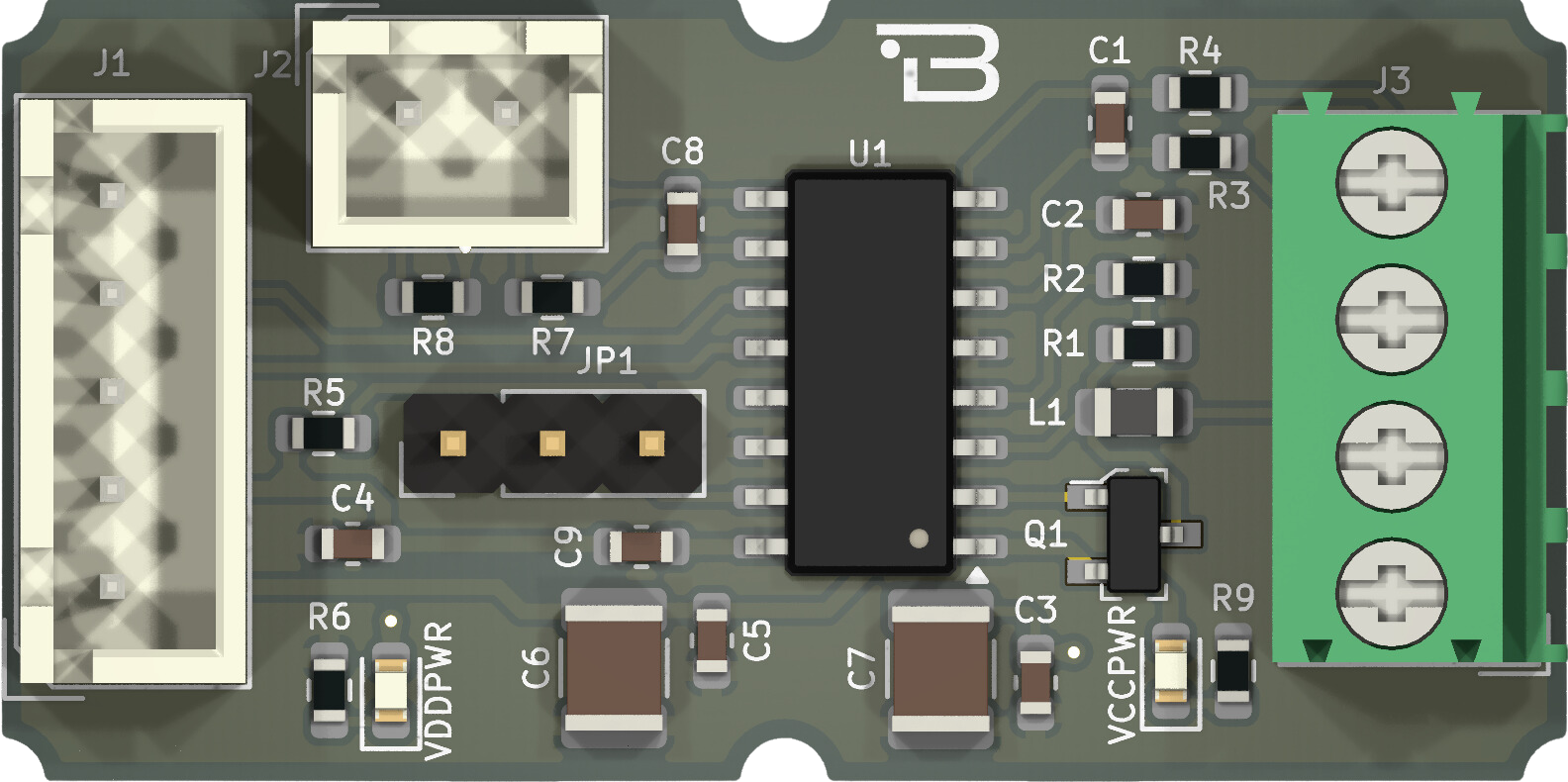

| Front Side | Back Side |
|---|---|
 |  |
Key Features
- 24-bit ADC designed for weigh scales and industrial applications.
- Two selectable differential input channels (To use channel B, R7(100R), R8(100R), and C8(100nF) must be populated).
- Low power consumption: <1.5mA in normal operation, <1µA in power-down mode.
- Integrated low-noise programmable gain amplifier.
- Selectable output data rates: 10SPS or 80SPS.
- Wide operating voltage range: 2.7V to 5.5V.
Technical Specifications
Input Voltage: 2.7V - 5.5V
Functions: 24-Bit ADC for load cells and weigh scales
Supply Current: 1.5mA
Operating Temperature: -40°C ~ +85°C
Board Dimensions: 20mm x 40mm
Board Pinout
J1 Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VCC | 2.7V - 5.5V Power Input |
| 2 | VDD | 2.7V - 5.5V Power Input |
| 3 | DAT | Serial Data Output |
| 4 | CLK | Serial Clock Input |
| 5 | GND | Ground |
J2 Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | B+ | Positive Signal (Second Channel) |
| 2 | B- | Negative Signal (Second Channel) |
J3 Connector (Load Cell Interface)
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | RED/E+ | + Excitation |
| 2 | BLK/E- | - Excitation |
| 3 | WHT/A- | - Signal |
| 4 | GRN/A+ | + Signal |
JP1 Jumper Settings
| Pin Configuration | Data Rate |
|---|---|
| 1-2 | 80 Samples per Second (SPS) |
| 2-3 | 10 Samples per Second (SPS) |

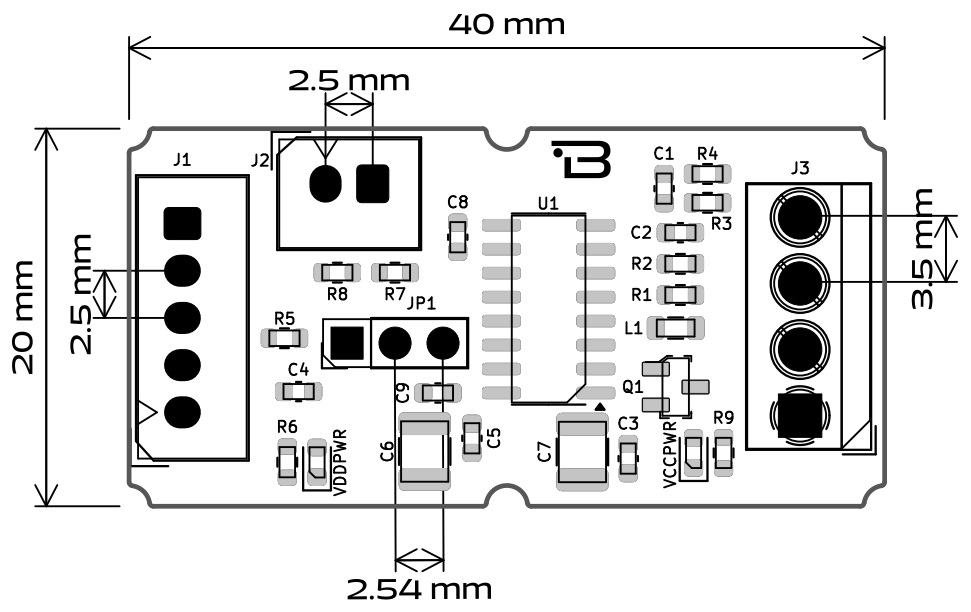

Board Dimensions
Step Files
Datasheet
Version History
- V1.0.0 - Initial Release
Support
- If you have any questions or need support, please contact [email protected]
License
Shield:
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
