Description

A module for the Flipper Zero to connect to the Gameboy via the link port

README

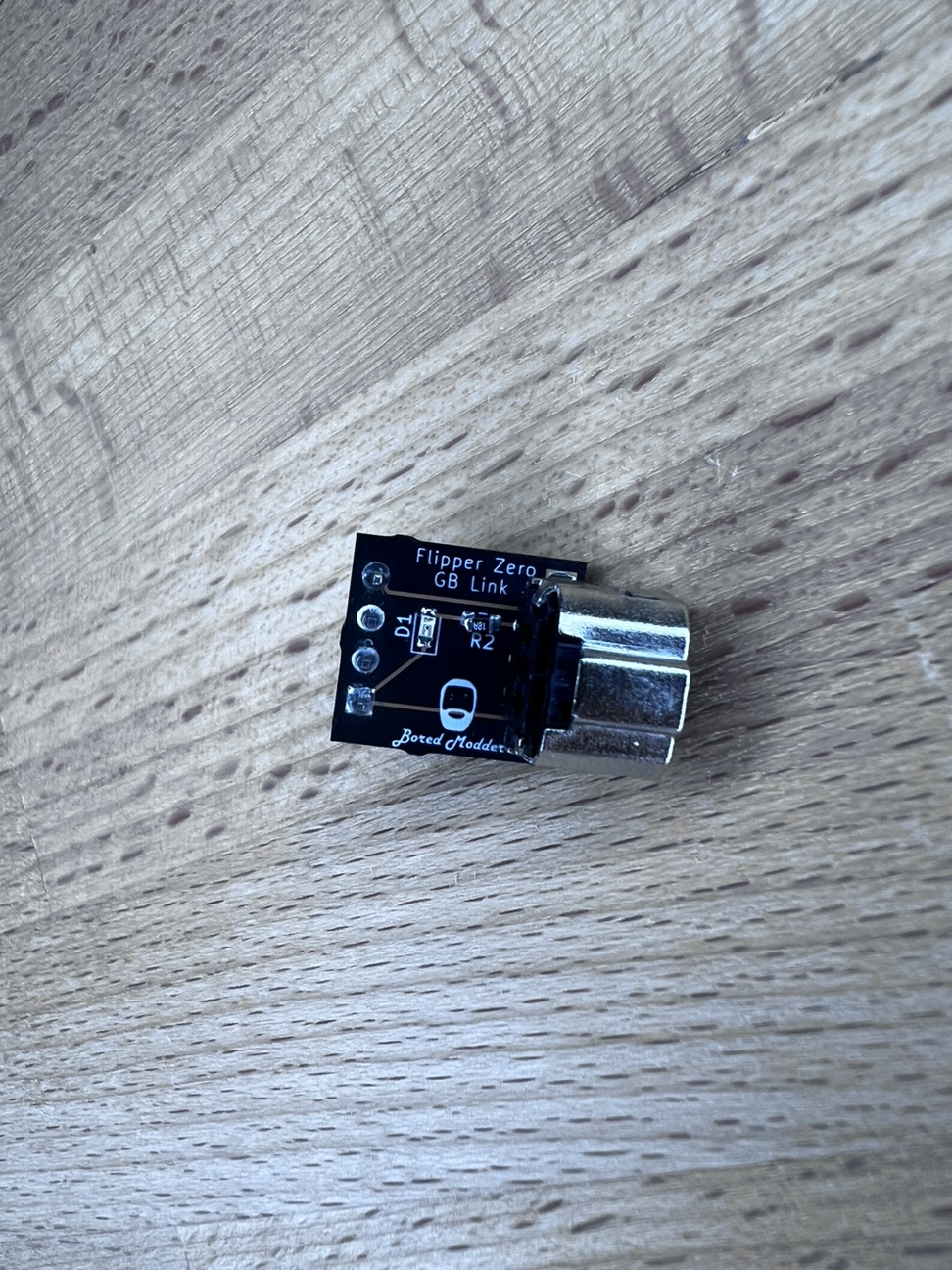

Flipper Zero: Gameboy Link Port Module

This is a module I worked on as a project to learn about PCB design, but to also learn about KiCAD, which is the program that was used to create this. I used GAME BOY Pokemon Trading MALVEKE to create this. Check is out because he is a way smarter guy than I.

If you want a simple way to get the PCB it is up in OshPark.

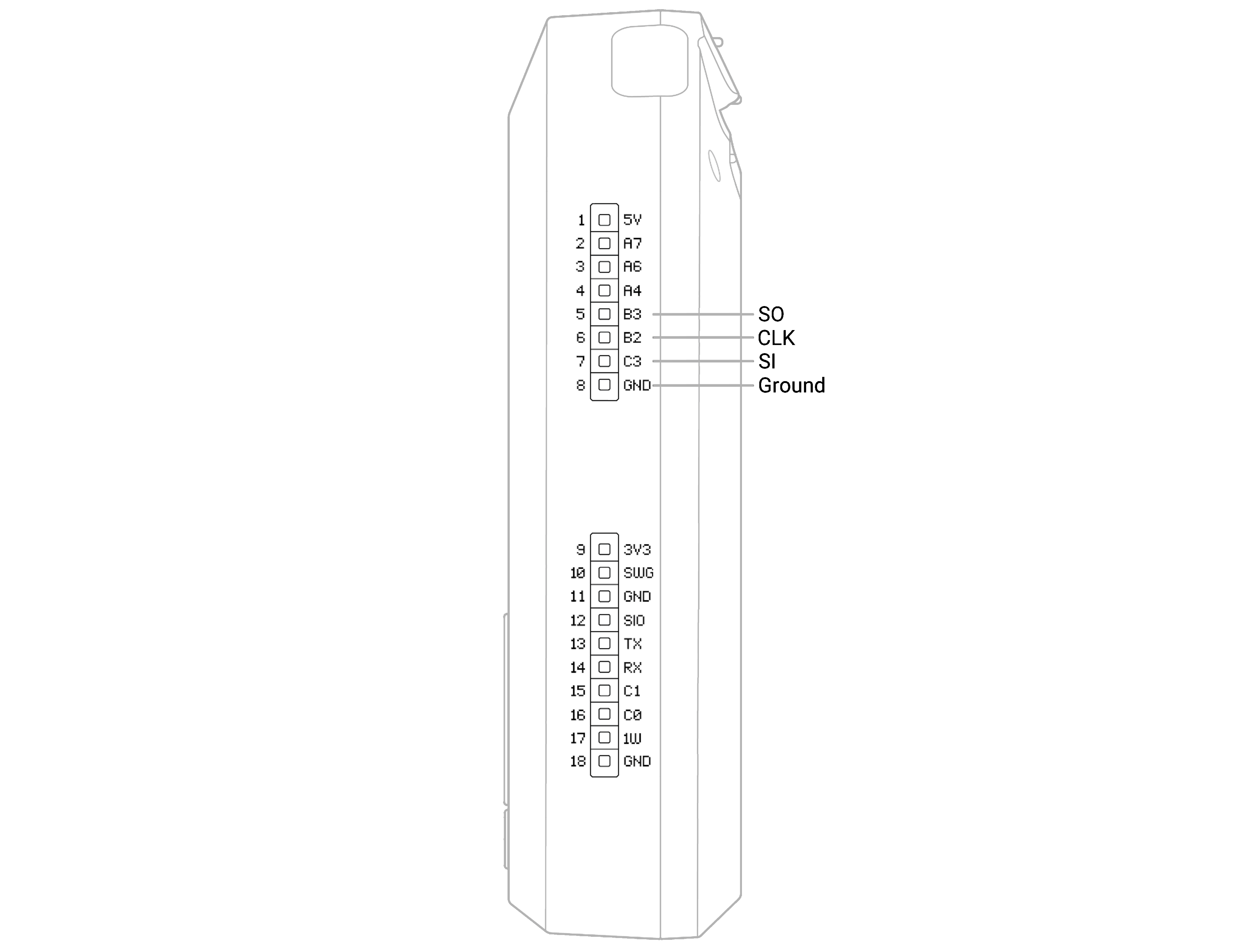

I use his GPIO layout so you will want to do the same on your flipper zero. If you use his Pokemon app in flipper.net then it will be the under "Select Pinout" > "Original".

Copied shamelessly off of his Github.

Cable Game Link (Socket)	Flipper Zero GPIO
6 (GND)	8 (GND)
5 (CLK)	6 (B2)
3 (SI)	7 (C3)
2 (SO)	5 (B3)

Bill of Materials (BOM)

Symbol	Material	Link
R1	Resistor - 3.3k OHM 1% 1/10W 0603 SMD	Link (Digikey)
R2	Resistor - 150 OHM 1% 1/10W 0603 SMD	Link (Digikey)
D1	LED - Clear Red 2.2V 0603 SMD	Link (Digikey)
J1	4 Pin Connector Header	Link (Digikey)
N/A	Gameboy Link Port	Link (AliExpress)
