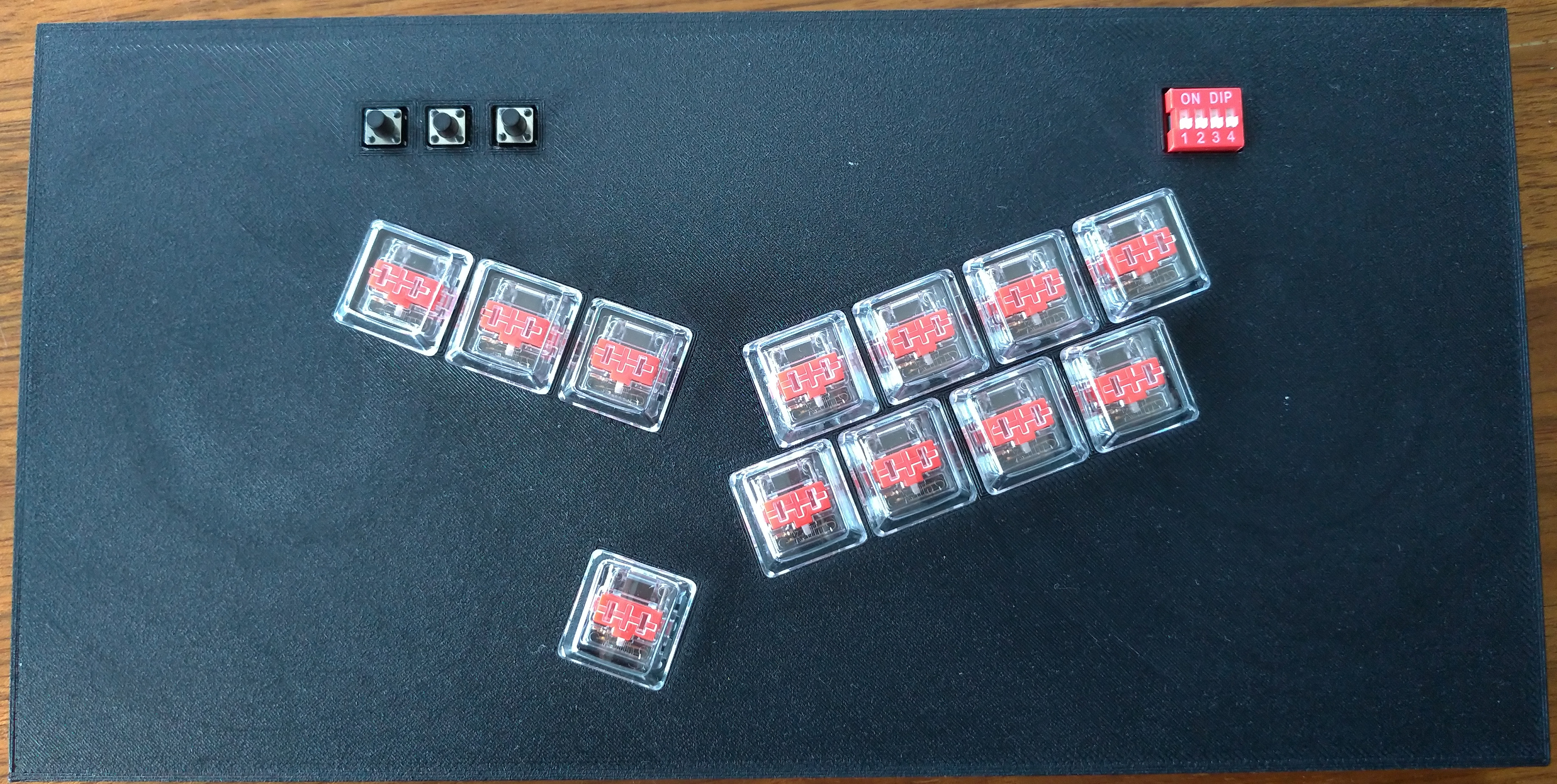

A custom button-only game controller for NS and PC.

README

The Nez-Oba software

This directory contains all parts of the Nez-Oba software.

  • Directory board/ includes an Arduino project in C++, which is the program running on the board and emulates a gamepad. The README there outlines the code's structure and functionality.

  • One of the libraries needed by the the Arduino project have to be patched to work with the used hardware. Directory libs/ includes patch a file to do so.

  • Directory data/ includes a sample mappings in YAML format. This includes several button-to-key-presses mappings that are useful to play 2D platformers on the Nintendo Switch or on a PC.

  • Directory nezoba includes the Python code implementing all of the functionality at the user's end, including a web-based GUI and a simple command-line interface to program the board. The READMEs there outline each package's functionality.

  • Directories src/remapper/ and test/remapper/ include the Python implementation of a simple interactive shell and its tests. The shell can be used to define the button mappings that will be uploaded to the controller. See the README in those directories for details about how the shell is implemented and tested.

  • The current directory's nez-sw.py is a Python script that can setup the Arduino compiler, install all dependencies, run the shell to define button mappings, and compile and deploy the controller software with the defined button mappings.

The rest of this document describes some low-level details mainly useful for future portability.

Environment

This software has been developed and tested on a GNU/Linux Ubuntu 22.04 system. It should work without issues on any other Linux system, and arguably also on other flavors of Unix. It should also be adjustable to work on Windows systems without major hassle; however, I didn't have a chance to test compatibility with that operating system, and I will probably never care to do it.

Portable Arduino frameworks

The board's software targets the Arduino ecosystem, and was written using the Arduino IDE. In order to compile and use it, you also need to install the Arduino framework.

The main app nezoba takes care of installing the framework with all dependencies under path $SYSTEM_DIR:

nezoba setup "$SYSTEM_DIR"

The outcome of successfully running the setup command is the command-line version of a portable IDE. This means that if you save the keep the content of $SYSTEM_DIR, you can use it to recompile and redeploy the controller software at any time in the future, even after some of the dependencies are no longer available.

If you prefer to have the full Arduino IDE (for instance, to debug changes of functionality in the software), below I describe the manual steps to do that. The setup command does exactly the same things but automatically and using the CLI version of the Arduino framework; therefore, the steps detailed below also serve as a documentation of the behavior of the setup command.

In turn, these instructions are derived from the NSGadget project, which I found to be the one with the clearest and up-to-date documentation among the several open-source projects that deal with Nintendo Gamepad emulation. I adapted and updated the NSGadget's setup to make it work with the MCP module and with my specific configuration.

Upload troubleshooting

When you deploy a mappings and the controller software onto a board, the final upload step is often the most delicate. Here's how to deal with common issues.

Plug in the board

Make sure that the board is plugged in to a USB port before uploading. You should see a port (usually, /dev/ttyACM0) pop up after the board is connected. There's no need to "activate" the board by pressing a button.

Port permissions

If you get an error Opening port at 1200bps: Permission denied, it probably means that your user doesn't have access to the right groups to access the port:

  • Check whether groups dialout and tty are among the user's groups:
groups
  • If they are not, add the user to the groups:
sudo usermod -a -G dialout,tty $USER
  • This change of groups only works after the next login. To add the user to the groups right away:
newgrp tty
newgrp dialout
  • If all else fails, you can try to change the permissions of the port:
sudo sudo chmod a+rw /dev/ttyACM0

Resetting the board

After the first upload of the modified firmware, it should also no longer be needed to reset the board to upload to it. Should you need to reset the board, double-click on the reset button before launching the upload. (The reset button is reachable from the little hole in the back of Nez-Oba's case. After you reset, the led should go from purple to green).

Portable Arduino IDE with dependencies

Here is the list of steps to setup a portable Arduino IDE with all dependencies to compile and deploy the nez-oba controller software.

  1. Download the Arduino IDE for your computer as a zip file arduino-ide.tar.xz.

  2. Install the IDE in portable mode to $INSTALL_TO, and launch it.

tar xvf arduino-ide.tar.xz
mv arduino-ide/ $INSTALL_TO
cd $INSTALL_TO
mkdir portable
./arduino

  1. Under File -> Preferences:

  2. Under Tools -> Board -> Boards Manager:

    • Install Arduino SAMD Boards version 1.8.12 (more recent versions should still work).

    • Install Adafruit SAMD Boards version 1.5.14 (more recent versions do not work with the NSGadget_HID library we'll use!).

  3. Restart the IDE.

  4. Download project https://github.com/NicoHood/HID version (tagged release) 2.8.3. This is the key library that performs controller emulation. This is a very actively maintained project (at the time of writing); more recent versions may work, but the patch that we'll apply has to be compatible with the changes.

    • Download the project as zip file, and install it in Arduino IDE by selecting the zip under Sketch -> Include Libraries -> Add .ZIP library.

    • After installing, download the other project https://github.com/gdsports/NSGadget_HID commit dfdcb35a07. This is an extension of the HID project that supports emulation of Nintendo Switch gamepads. (The project also has an installation script with Arduino CLI, but here we simply get the files that we are going to use.) More recent versions may also work, but if the HID API undergoes breaking changes we may have to also refactor our controller software.

    • Anyway, after downloading the NSGadget_HID project, copy the content of directories src/SingleReport and src/HID-APIs to the corresponding directories in the installed HID project (at $INSTALL_TO/portable/sketchbook/libraries/HID/). This should copy 4 files in total, 2 in each directory.

    • Edit file $INSTALL_TO/portable/sketchbook/libraries/HID/src/HID-Project.h by adding the following after #include "SingleReport/SingleGamepad.h":

      #include "SingleReport/SingleNSGamepad.h"

      Equivalently, patch it with file libs/HID-Project.h.patch. This modification includes the NSGadget_HID's extension headers into the HID library.

  5. Edit the SAMD boards file $INSTALL_TO/portable/packages/adafruit/hardware/samd/1.5.14/boards.txt so that the uploaded image will use vid and pid numbers that are recognized as a Nintendo-compatible gamepad:

    • Find the following two lines and comment them out with #:
    adafruit_trinket_m0.build.vid=0x239A
adafruit_trinket_m0.build.pid=0x801E
    • Add the following two lines just below the commented out lines:
    adafruit_trinket_m0.build.vid=0x0F0D
adafruit_trinket_m0.build.pid=0x00C1

  6. That's it! Now the portable Arduino IDE has all the dependencies and options needed to compile and install the nez-oba controller software. Remember to switch to Tools -> Board -> Adafruit SAMD -> Adafruit Trinket M0 before compiling.
