USB Event Packet protocol (LoRA) Stick

Original project dating back @ 2018 CircuitMaker USB-EVP-LoRa

Description

USB stick for Event Packet (over LoRa) with integrated antenna on ISM 868/915 bands.

Exposes a generic USB HID interface by MCP2210 directly enabling OS & driver agnostic access from userland.

It have a minimal BOM (bill of materials).

Specs:

• Smallest LoRa stick on the market by 1.6 x 4 cm
• Uses FCC and CE certified 100mW NiceRF module
• Own ceramic micro-antenna (VNA proved RF) for ISM band
• OS agnostic, opensource USB stack for windows, linux, android etc
• C / C++ frontend with various examples
• May support LPWAN networking (IPv6 over 802.15.4 mac layer), with third party kernel module

Can be used in any USB port realying packets over the air.

EU ISM band usage

• LoRa 868Mhz bands diagram

Design files

• See the design files available for Altium ®, CircuitMaker ®, KiCAD and Gerber format.

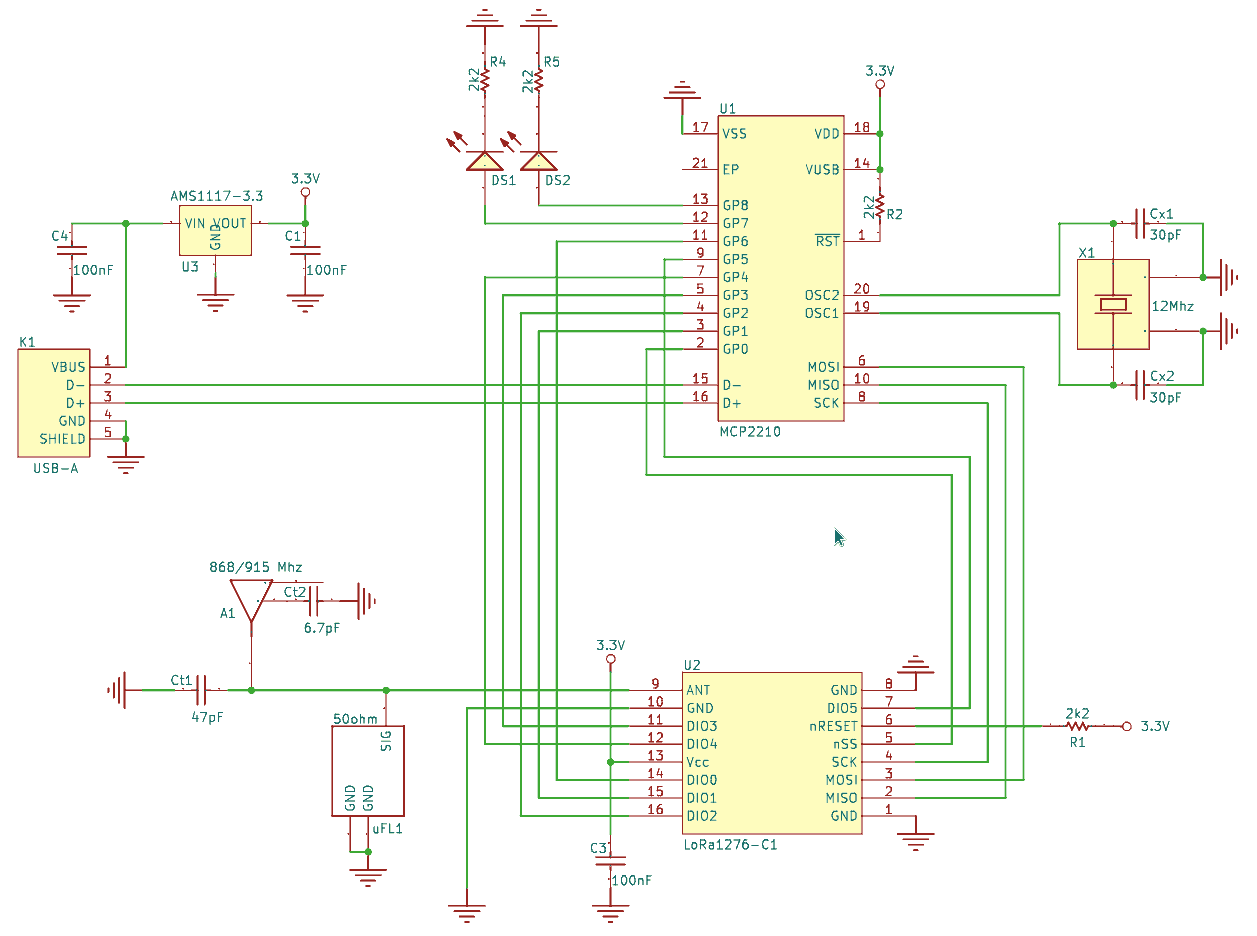

• Check schematic available as quick readable format.
• There is also an CircuitMaker ® online version available.

Software support

• See software section for configuration and support.

  $ ./bin/lora-receive /dev/hidraw4
  LoRa RX count #1 frame length = 14 rssi = -61 dB snr = 8 dB
  0x00000000 20 6C 6F 72 61 20 6D 65  73 73 61 67 65 00 |  A lora message.

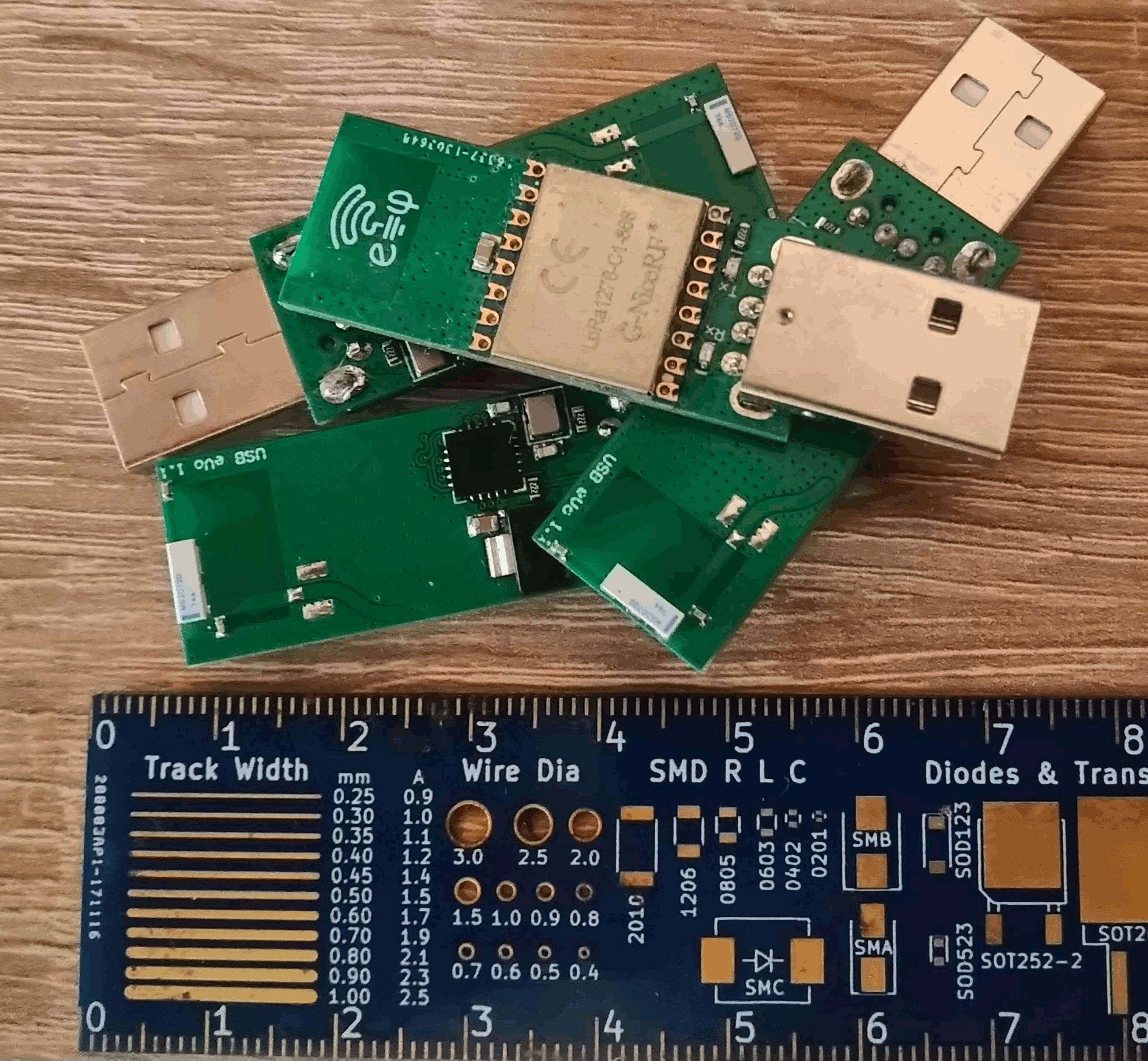

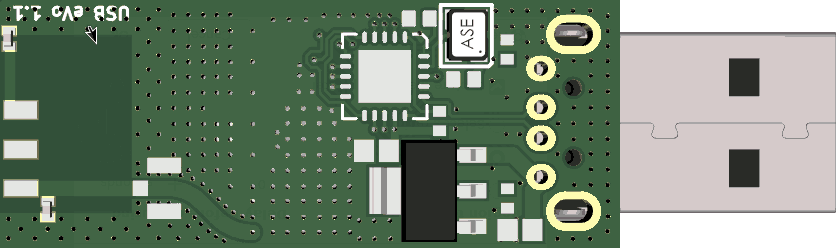

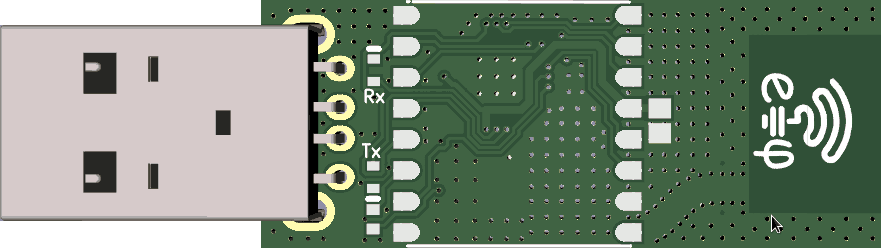

Board images
