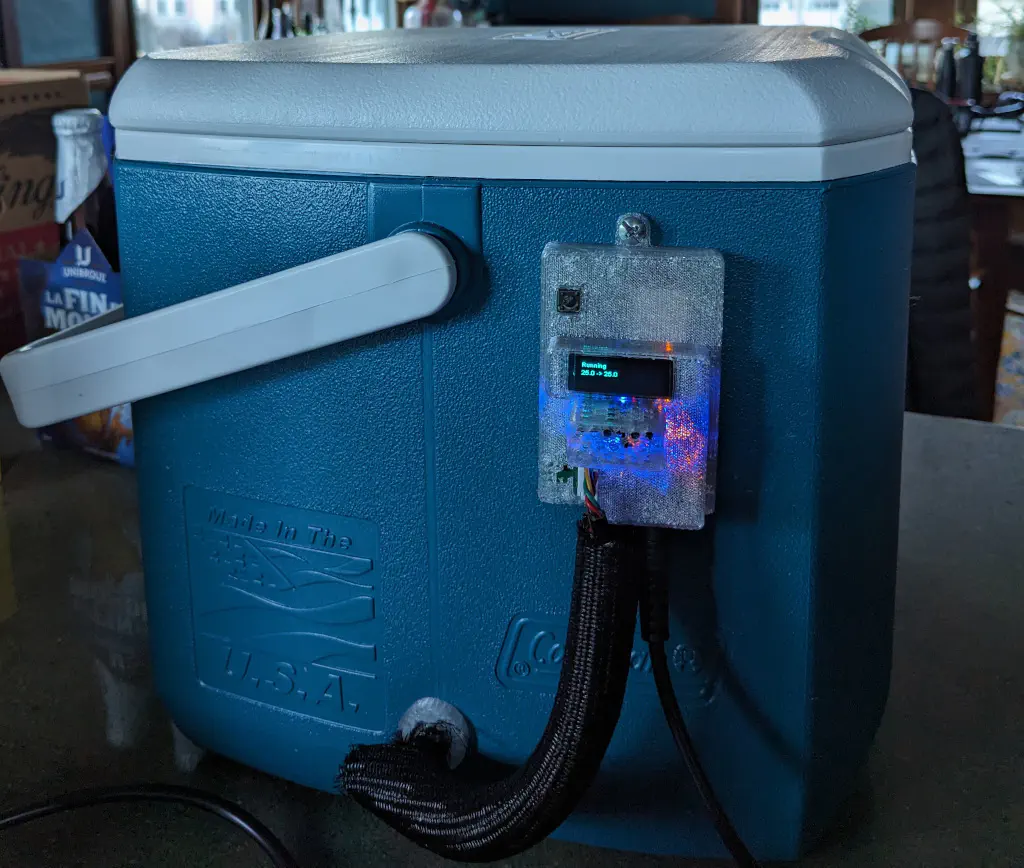

Dough133 is a temperature-controlled container for proofing and fermenting sourdough. It uses a small cooler and a PTC heater with a fan to heat the inside of the cooler. A PCBA with an ESP32 controls the power supplied to the heater to regulate the temperature of the enclosure.
This repository contains:
Instructions for the assembly of the device are in this are at my blog.
Please also see the other entries describing this project:
Components needed for making this device, along with links and approximate price as of September 2024:
| Item | Source | Approximate cost |
|---|---|---|
| Coleman 16 qt cooler | Amazon | $23 |
| PTC Air Heater 12V 100W | AliExpress | $7 |
| DC 12V 5A Power Supply | Amazon | $12 |

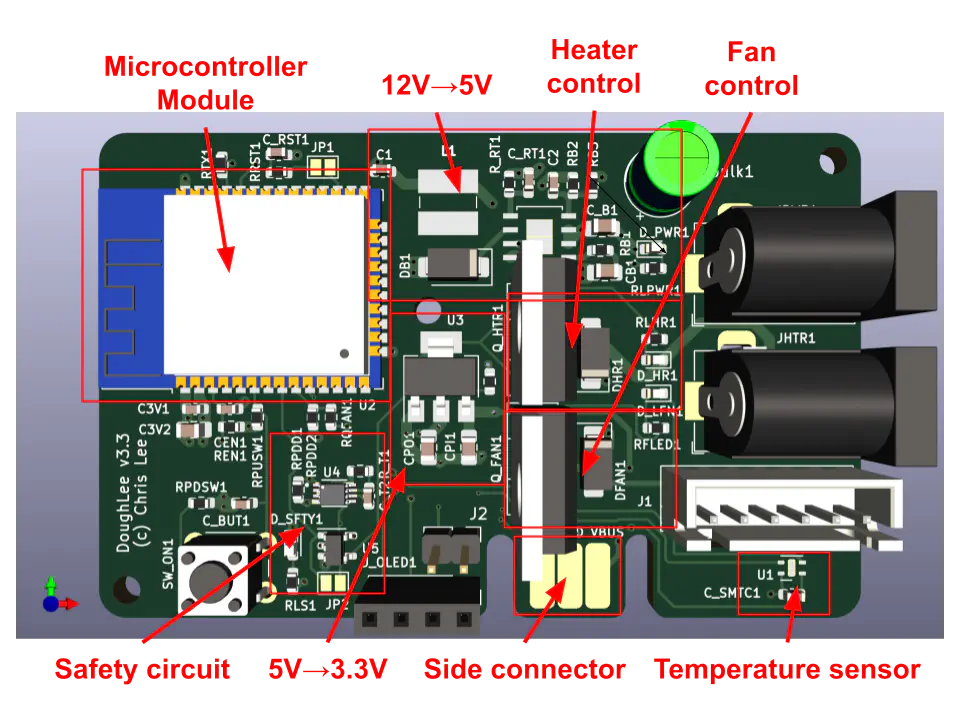

The circuit board design is in KiCAD/.
These require footprints in chl33_library and symbols in chl33_kicad_sym.
Designs for 3D-printable components are in scad/.
The EBox is based on the ProjectBox OpenSCAD system.
The heater mount secures the heater and temperature/humidity sensor inside the cooler.

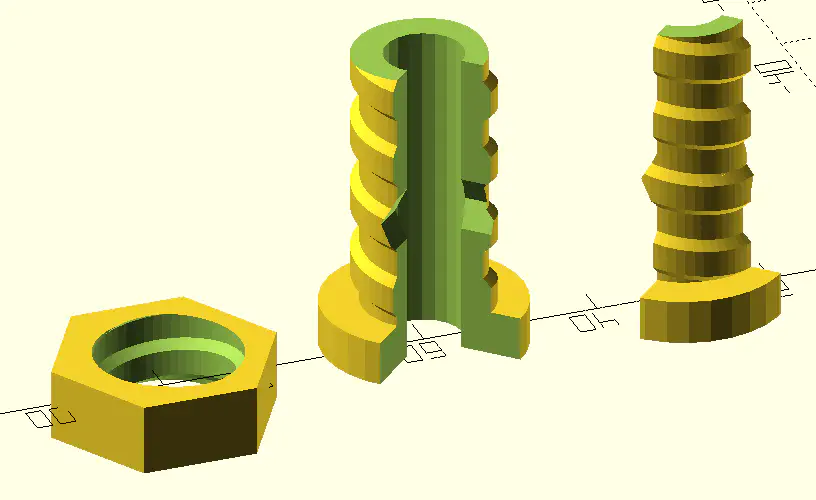

The Cooler plug helps avoid heat leaking through the hole through which wires run from the heater mount through the wall of the cooler to the EBox.
The software is based on the og3 library and built using PlatformIO.
The project uses ini files for local configuration and secrets. You need to create secrets.ini and secrets-usb.ini based on the provided examples.
General Secrets:
Copy secrets.ini.example to secrets.ini and configure:
[secrets]
udpLogTarget = 192, 168, 1, 100 ; Optional: IP for UDP logging
otaPassword = my_secure_password ; Password for Over-The-Air updates
Upload Configuration:
For USB flashing, copy secrets-usb.ini.example to secrets-usb.ini:
[secrets]
uploadProtocol = esptool
uploadPort = /dev/ttyUSB0 ; Check your specific port (e.g., COM3 on Windows)
uploadAuth =
uploadHostPort =
(For OTA updates later, you can use secrets-ota.ini)
pio run -t upload
pio device monitor
Once connected to WiFi, navigate to the device's IP address (displayed on the OLED).
Ensure your MQTT broker details are configured in the Web UI. The device will automatically appear in Home Assistant as a climate device (Thermostat) if MQTT discovery is enabled.
