README

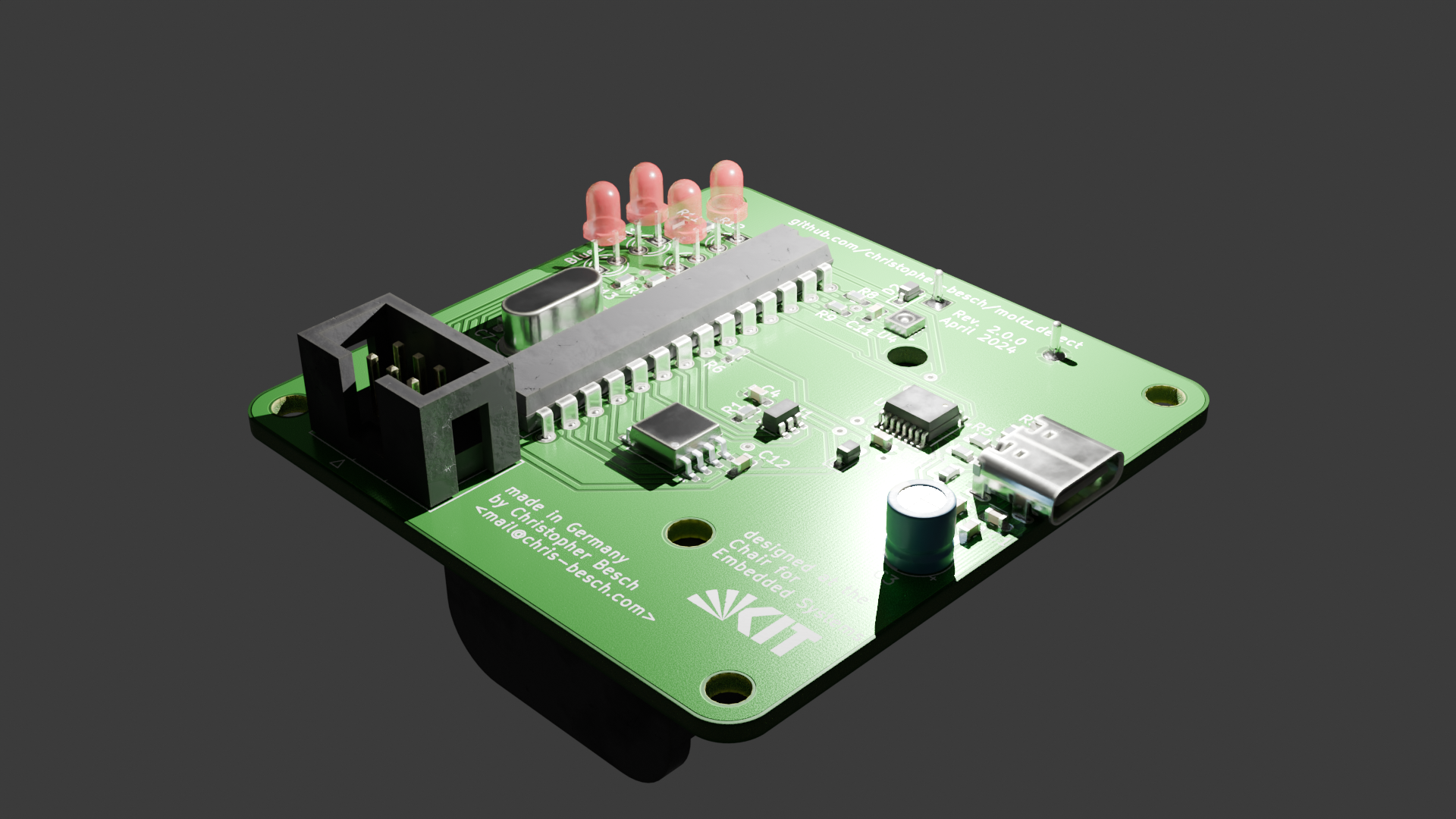

mold_detect

Warn residents of mold-friendly atmosphere and log opened windows.

This project is being developed in AVR_C on an Atmega328p. It provides:

  • Temperature, Humidity Logging (every minute with flash storage for two years)
  • LED warning to motivate the opening of windows or turnign on of heaters
  • Serial terminal via USB-C
  • ~5uA power consumption at 3V battery power

The PCB is designed in KiCad and manufactured by Aisler.
