README

Chilineko

Features

  • Single piece tray case
  • O-ring gasket mount (Friction fit)
  • Unified Daughterboard
  • QMK firmware and VIA
  • PCB designed with KiCAD 5.1.10

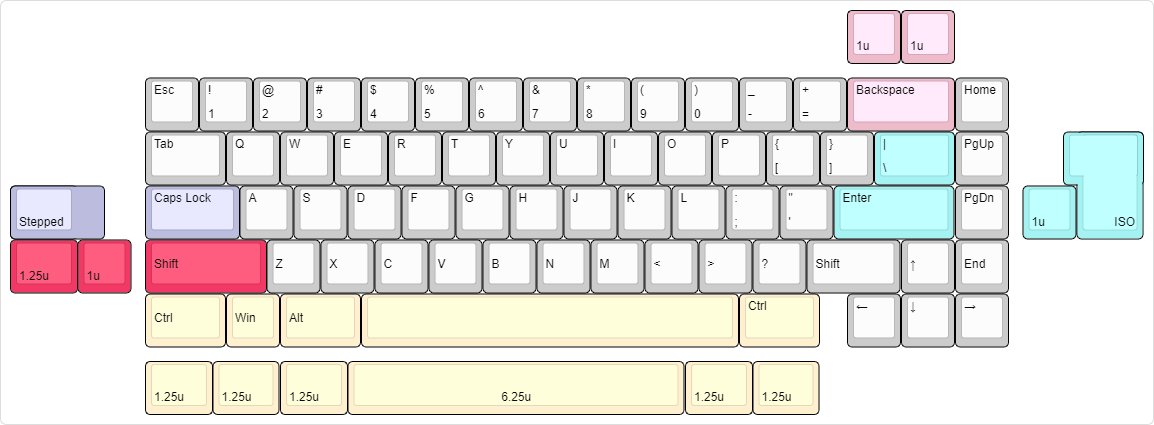

Layouts

Notes

  • All files are to be used at your own risk
  • As for stabilizers, only PCB snap-ins are supported

Read the files provided in the Resources section for further information.

Resources

  • Introductory document and PCB Order guide here
  • Personal KiCad Part Collection with already included components from most used one in keyboard here (already included as a submodule in this repository)
