README

LiPoSensor

This is a Li-Poly voltage sensor that connects to Frsky receivers or to flight controllers that support one of the Frsky telemetry protocols. This repository includes the Arduino source code and the KiCad PCB.

Compiling

You need Arduino >= 1.6.

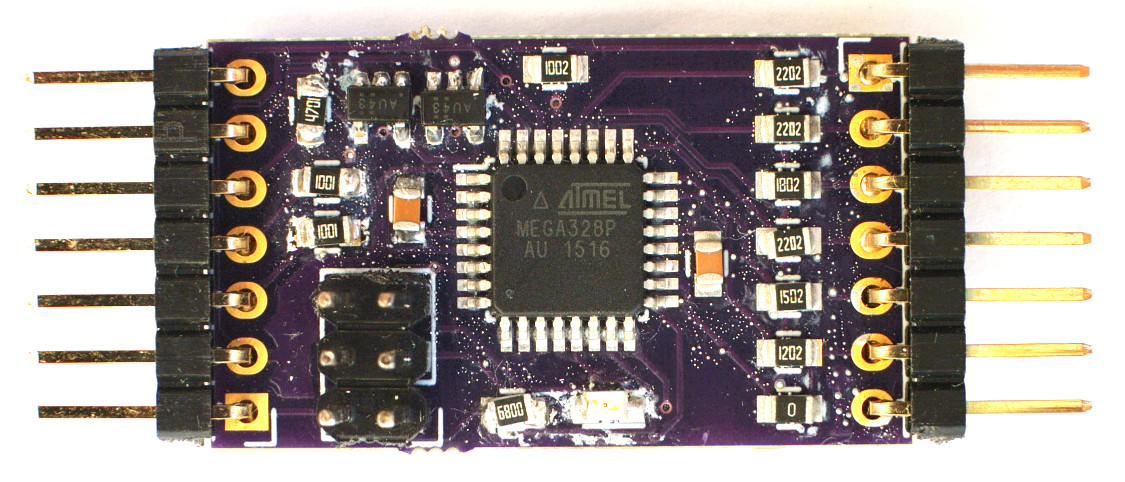

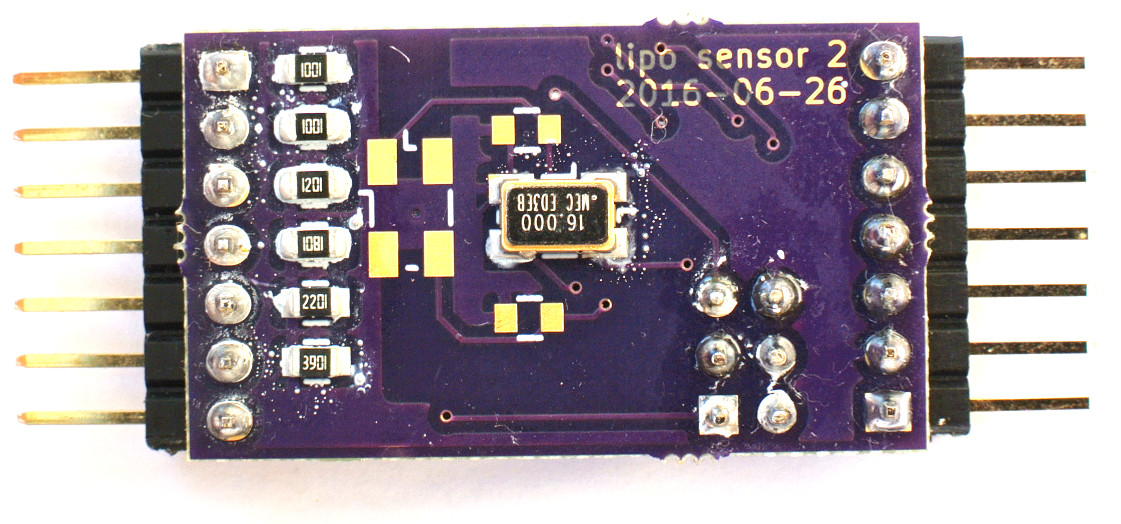

Board

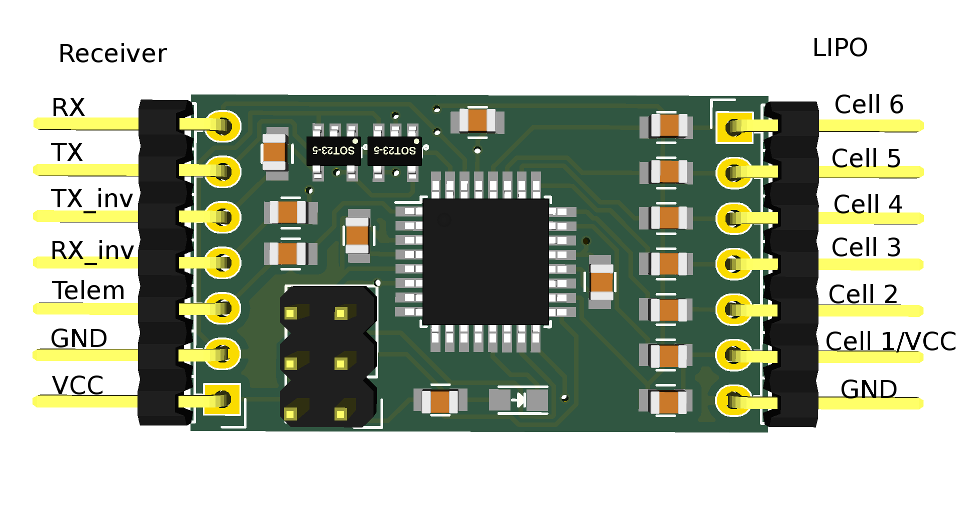

WARNING: DO NOT POWER THE BOARD FROM BOTH LIPO AND RECEIVER AS IT MIGHT CATCH FIRE

You need KiCad >= 4.0 to edit the PCB.

You can order the PCB from OSH Park:

Order from OSH Park
