README

VZ200

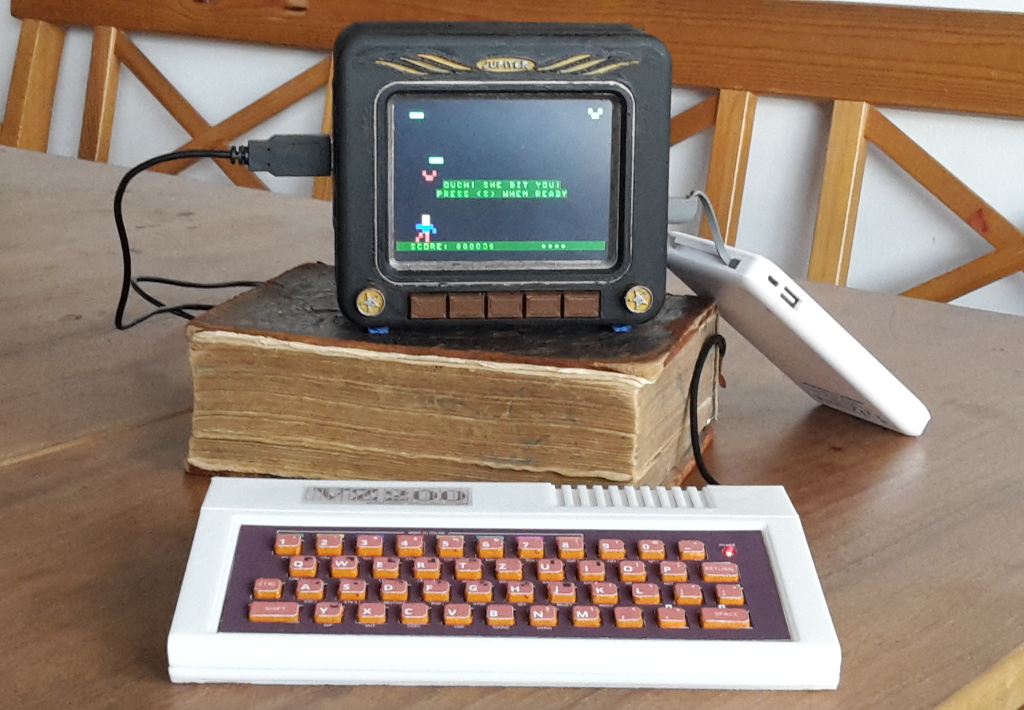

Nachbau eines VZ200-Color-Computers (1983)

Mit einem funktionstüchtigen Nachbau des "VZ200 Color Computer" von 1983 lassen wir die Welt der 8-Bit Computer wieder auferstehen.

Autoren: Jürgen Wahlmann & Christian Wahlmann

Dieses Repository dient der Verwaltung aller Sourcen, insbesondere

  • 3d-Modelle (Fusion360)
  • Platinenlayout (KiCad)
  • Grafiken für Tastatur- und Logo-Aufkleber
  • JemuVZ200-Emulator (Java-8 / Gradle)
  • VZ200 Companion App (Angular)

Dokumentation und Releases sind gehostet unter https://cwahlmann.github.io/vz200-remake
