Open-source, programmable ultrasonic mist maker kits — by shuang cai & David Yang at ByProduct Lab.
📖 Documentation · 🛒 Buy a kit · 📜 OSHWA certified US002742 · ✍️ Build story on Hackster
Most mist-maker circuits online are undocumented black boxes. This project fills that gap: tested reference circuits, full KiCad sources, an Arduino library, and honest notes about what went wrong along the way — so creators, educators, and engineers can explore mist as a material. First presented as a hands-on workshop at the Open Hardware Summit 2025.
| Board | Power | Best for | Status |
|---|---|---|---|
| Extension Kit | USB-C | First builds, desks, classrooms | V0.1 — hardware + firmware ready |
| Battery Kit | Li-Po + USB-C | Portable builds, installations | V0.3 — hardware + firmware ready |
| Block Kit | Li-Po + USB-C | Drop-in container UX, 14 LEDs | V0.1 — demoed at OHS 2026 |
| I2C MultiPack | TBD | Multi-emitter installations | In design |

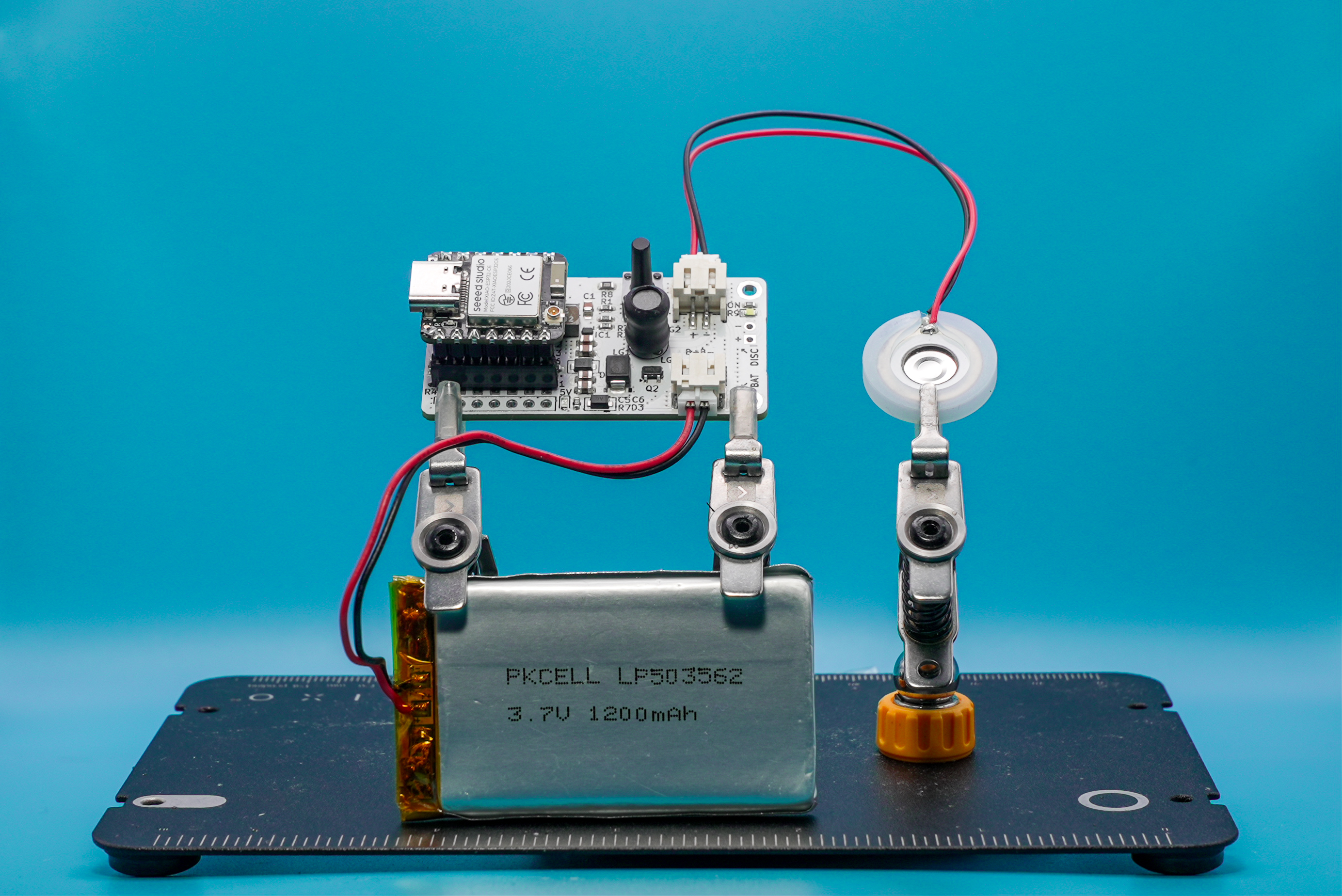

| Legacy V1.4 | USB / Li-Po | Reproducing the original workshop kit | Shipped, frozen |
Each variant folder has its own README with pin maps, an order-ready BOM + JLCPCB production files, and build instructions. Board-by-board guides with interactive schematics live on the documentation site.
MistBlink → MistDimming → WaterDetect →
WiFiPhoneControl (control it from your phone).firmware-examples/home-assistant/
joins Home Assistant with no code at all (ESPHome), or use the HomeAssistant_MQTT
library example.An ESP32 drives a piezo disc at its 108.7 kHz resonance through a MOSFET and a 3-legged tapped inductor — an autotransformer + LC tank that steps 5 V up to the ~80 Vpp the disc needs, while a current-sense amp lets the firmware detect the disc and the water level on one ADC pin. The full story — atomization science, why that strange inductor is everywhere in Shenzhen and nowhere at DigiKey, and a verified alternative circuit — is at docs.byproductlab.com/how-it-works.
| Path | Contents |
|---|---|
variants/<board>/ | Per-board KiCad project, BOM, production files, BringUp firmware, enclosure |
legacy/v1-4/ | The original workshop kit, preserved as documented (incl. duck & UFO enclosure STLs) |
firmware-examples/ | ESPHome / Home Assistant configs |
assets/ | Photos and media |
[!NOTE] Reproducing the legacy V1.4 board? It has a few quirks the V0.x boards designed away (power sequencing, upload-while-misting) — fixes are preserved on the Legacy V1.4 docs page.
[!WARNING] Water + electronics + time = biology. Use distilled or clean tap water, clean the container regularly, and let cotton wick sticks dry between uses. Never run a disc dry for long, and never drive the circuit without a disc attached. Full notes in the docs.
Open source under the MIT License, certified open source hardware (OSHWA US002742). Designed and tested by David Yang and shuang cai, inspired by community reverse-engineering and YouTube teardowns — full reference list in the docs.
Parts of the documentation were drafted with AI assistance; all technical content is validated against bench measurements and datasheets.
Contact: contact@byproductlab.com · @dav1dyang
