Description

USB-C Daughterboard for Leopold FC980c / FC980m

README

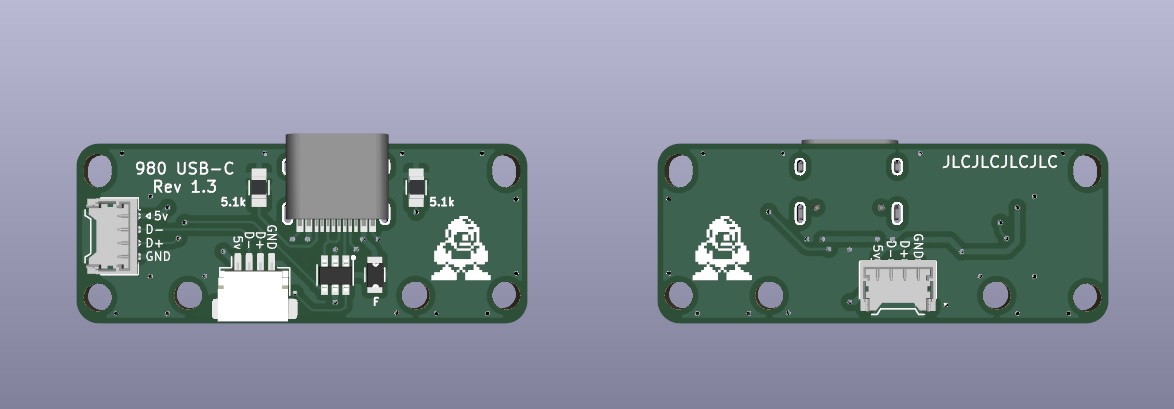

Replacement USB-C daughterboard for Leopold FC980c/FC980m, can be used with the stock case or Norbauer Heavy-9.

Uses Qwiic / JST SH or Pico-EZmate connector.

Note stock Leopold case requires filing USB opening and cable is tight.

Related project FC980c controller

Revision 1.3

• Added Molex Pico-Ezmate connector option. Note there are 2 of these one on the back that is optional.

BOM

LCSC part #	Description	Value	Package	Amount
C165948	USB		SMD/TH	1
C160404	Connector		SMD	1
C528030	Connector		SMD	1
C261942	Fuse		SMD	1
C27834	Resistor	5.1	SMD	2
C7519	ESD		SMD	1
C528030	Connector		SMD	2

Cable

This daughterboard uses a different connector then the OEM one. Suggest starting with an Adafruit 4424 cable so no crimping needs to be done.
