USB-C Daughterboard for Cooler Master Novatouch

README

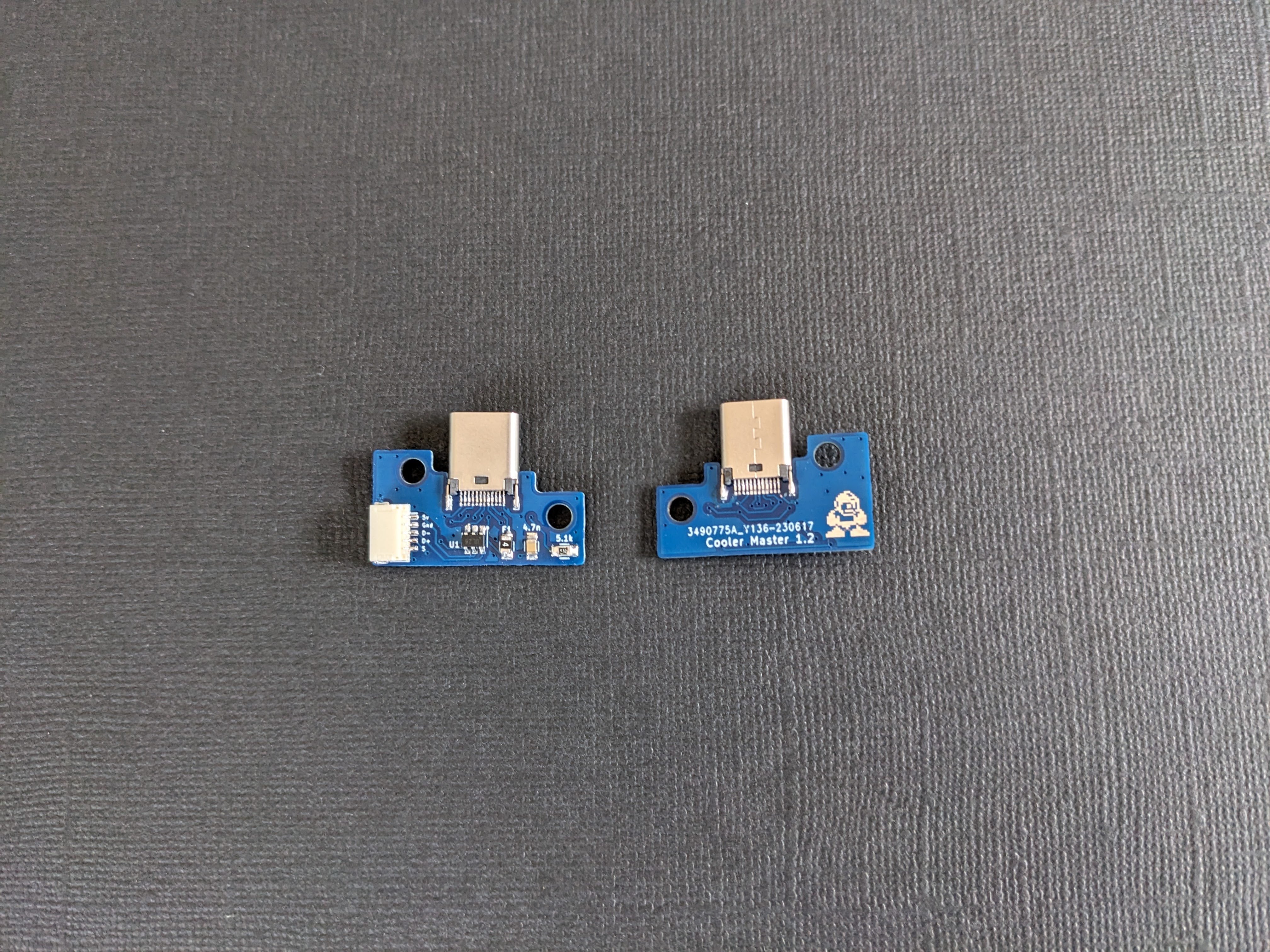

Cooler Master Novatouch Daughterboard USB-C

USB-C Daughterboard for Cooler Master Novatouch. Fits in the stock case without any changes. Also fits Norbatouch, Masterkeys Pro S & Rapid-i.

Update 2026: This version is suprior but can be difficult to obtain so built an alternative DIY option

Disclaimers

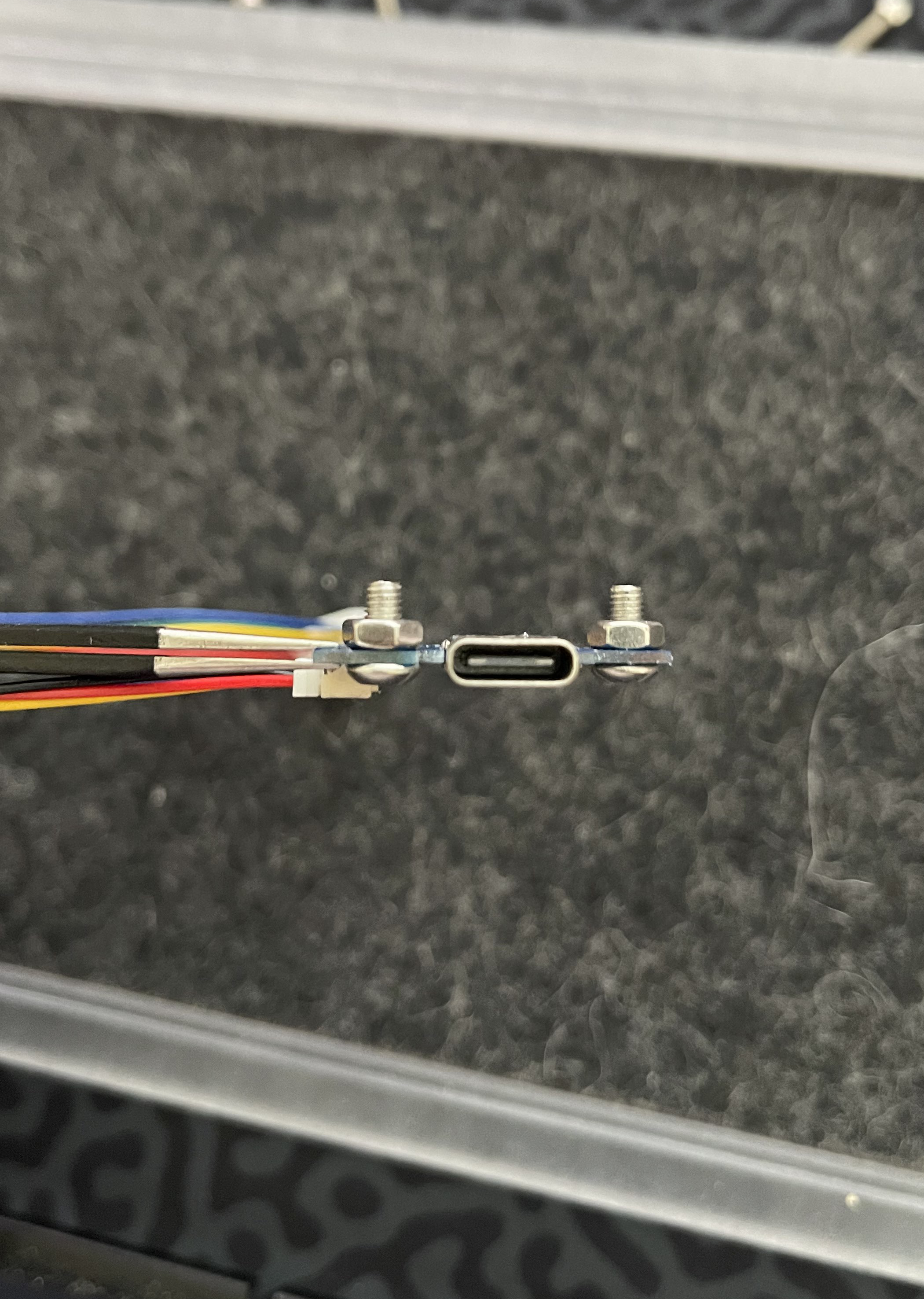

• Norbatouch compatible if using 2 m3 nuts as washers.
• Use at your own risk
• This will only give USB-C connection for the keyboard. Programmability requires a custom full PCB.

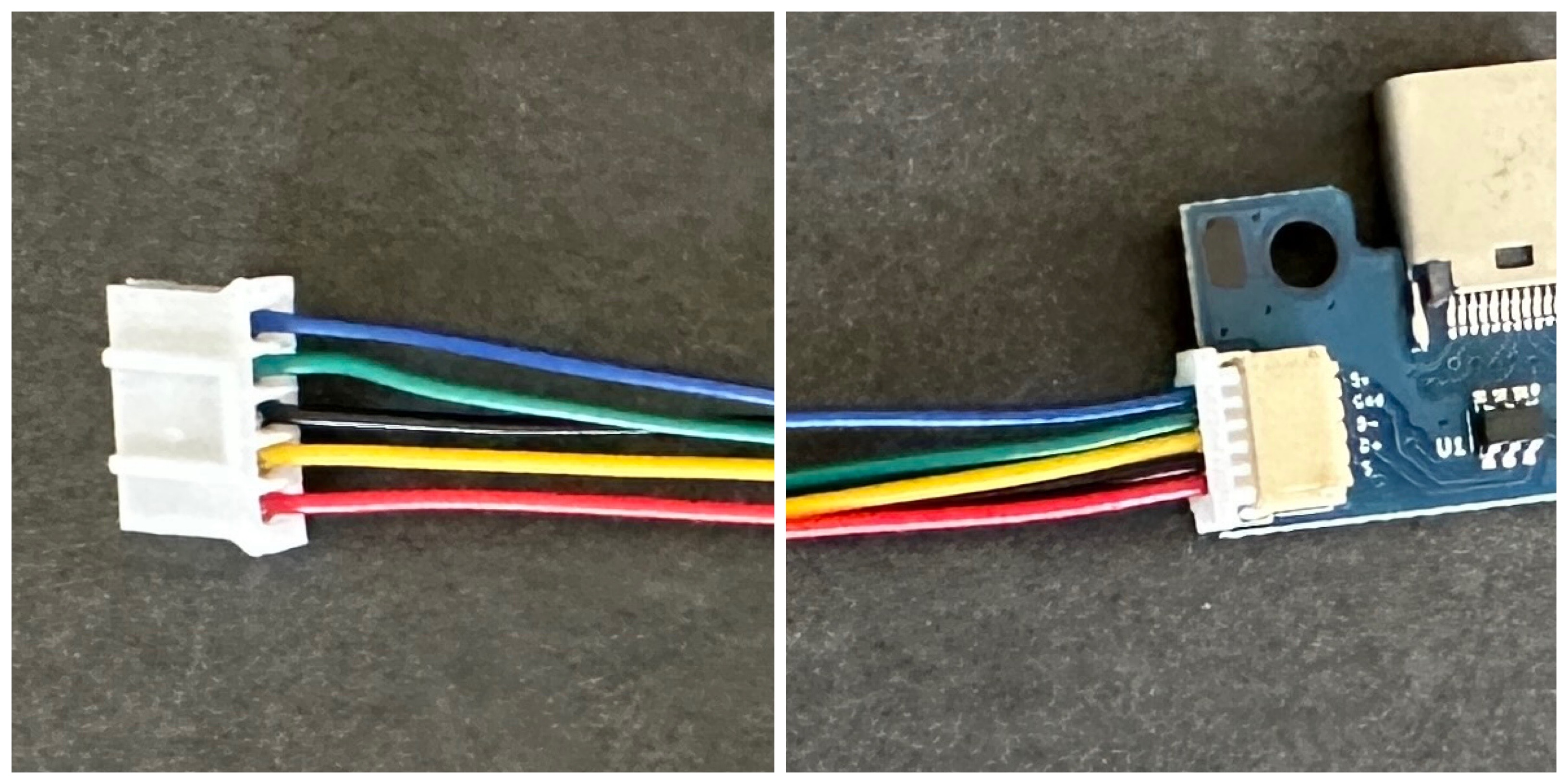

Cable

• JST SH to PH cable
• 5 pin
• 150mm long
• Good start cable
  • https://www.aliexpress.us/item/3256804552474270.html
  • "Same Direction" so only 2 wires need to be swapped after receiving. Plug in SH (small end) first. swap the D- and D+ wire on the PH end.
  • See pinout diagram

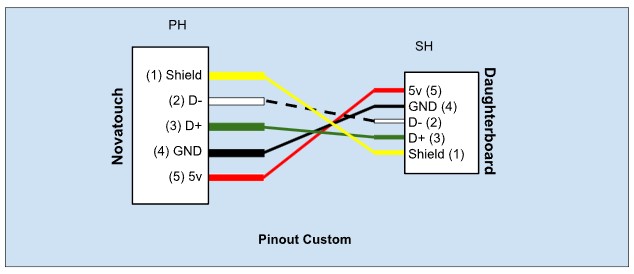

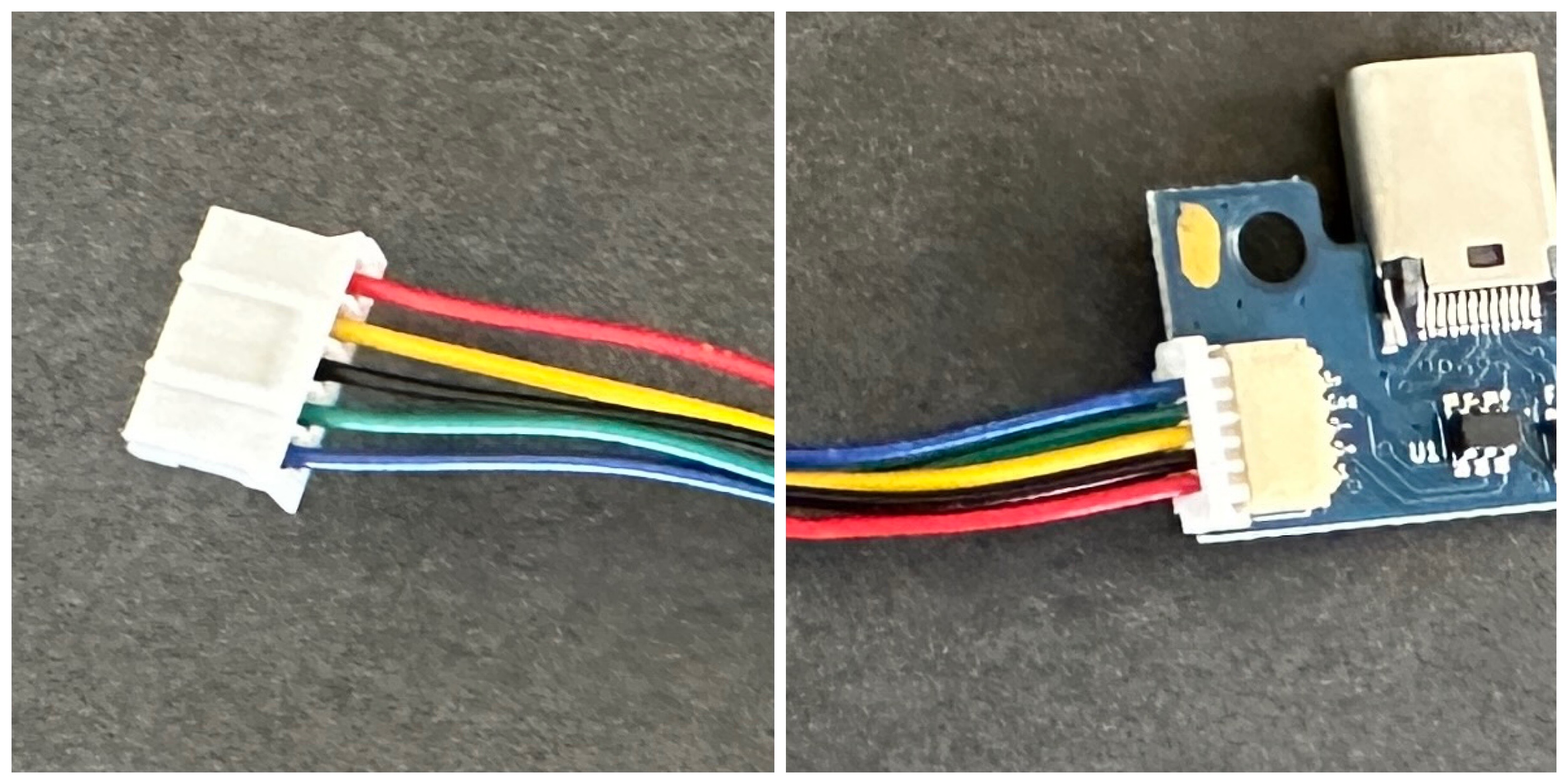

Novatouch Pinout

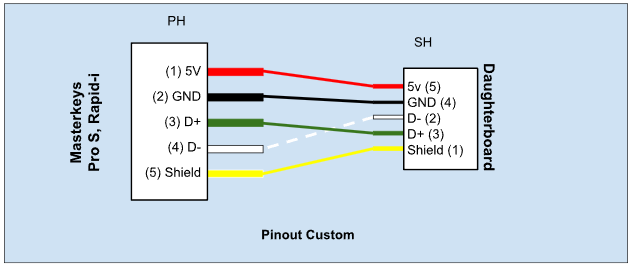

Masterkeys Pro S Pinout

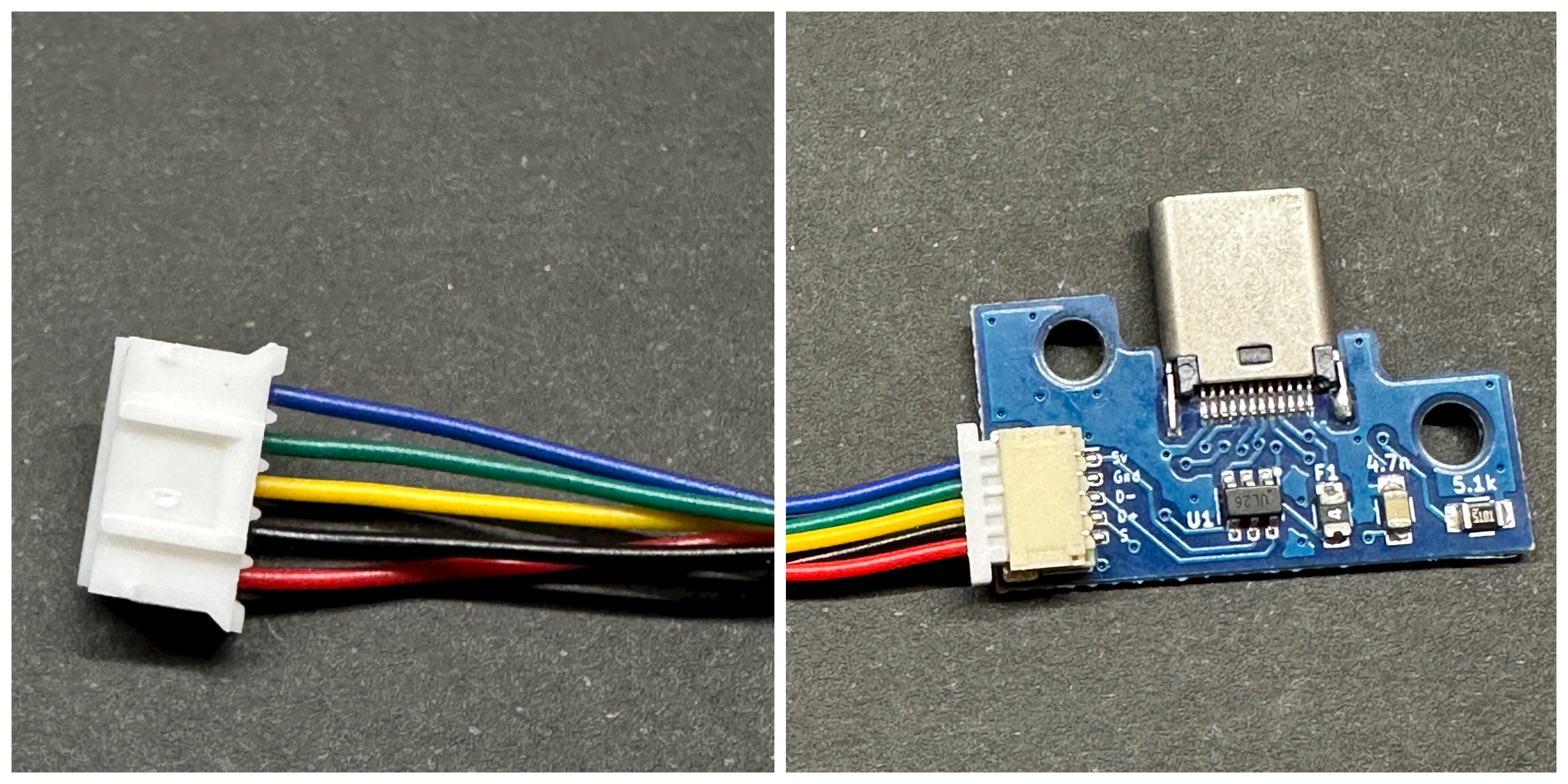

Rapid-i Pinout

Recommended Hardware

• M2 x 4mm wafer head screw/laptop screw. For mounting CMDB into stock Novatouch case. https://www.aliexpress.us/item/3256801240948974.html
• M3 x 0.5mm 6mm hex screw, 3mm hex nut. For mounting CMDB into Norbatouch. Add o-ring or washer if still sitting too low in port opening.
• Alternative 3d print riser

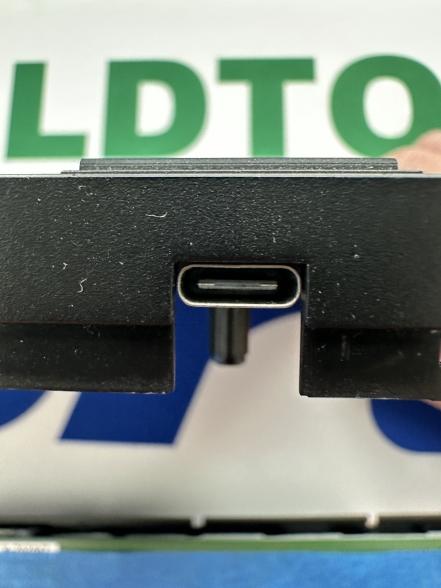

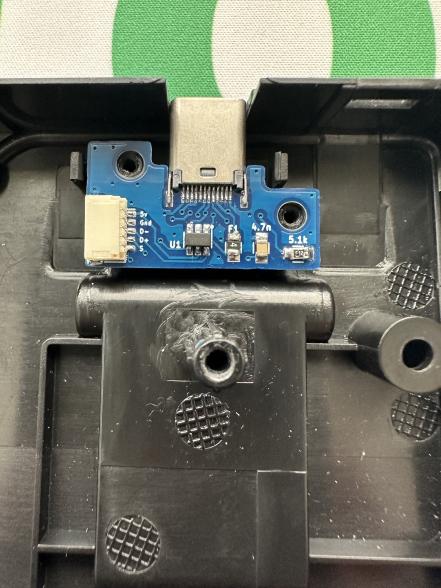

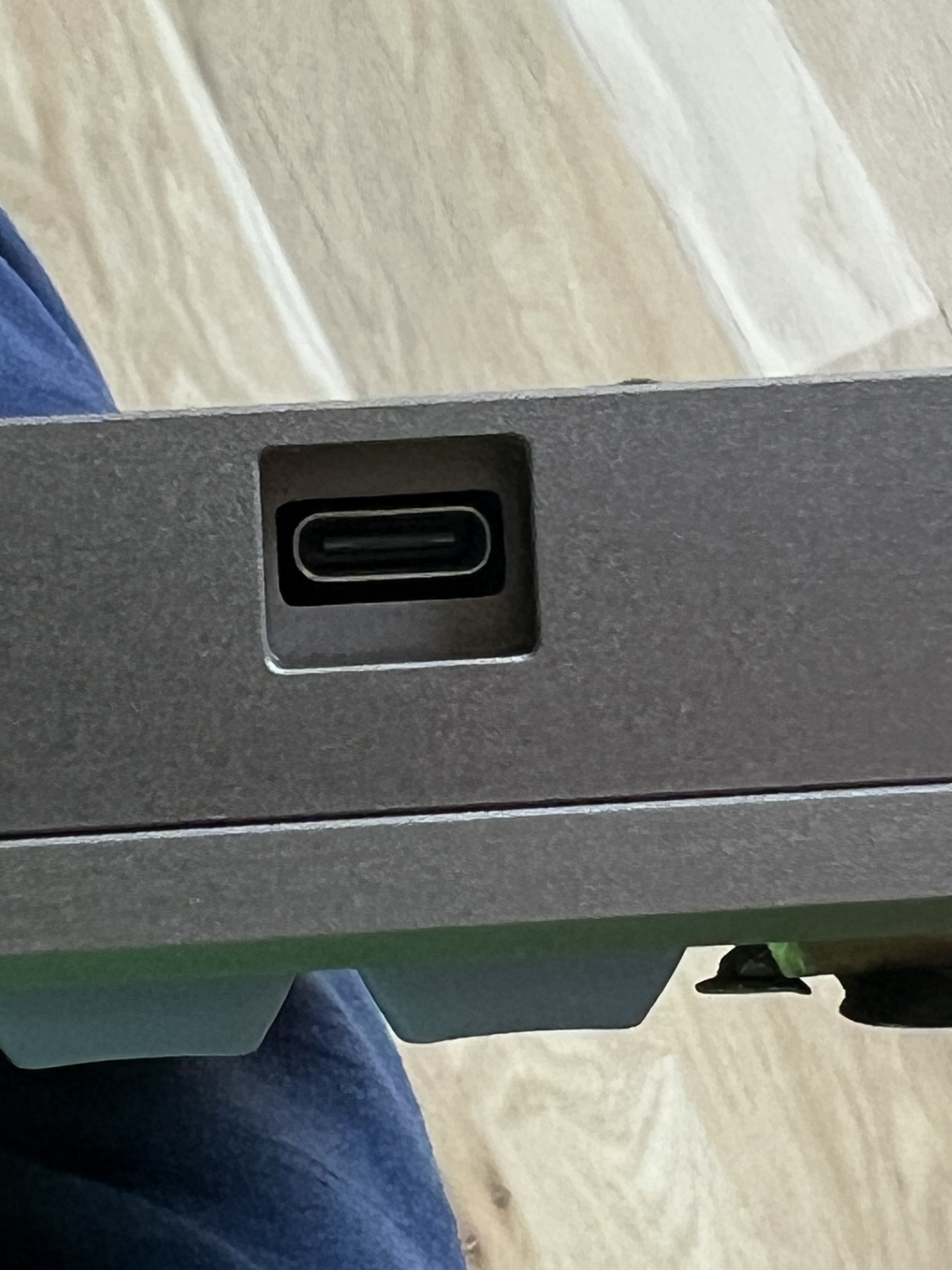

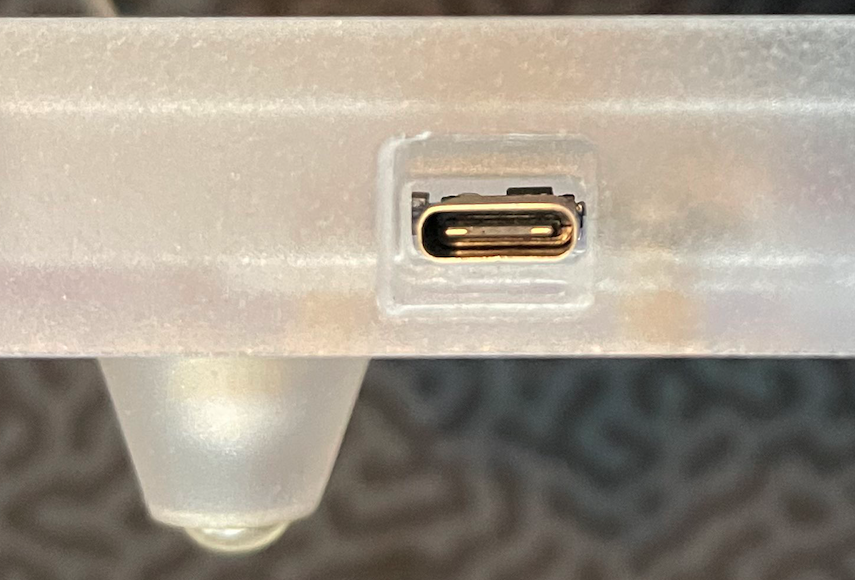

Installation Photos

Revisions

• 1.1 Lets not dwell on version 1.1 other than it paved the way for version 1.2 :)
• 1.2 Worked successfully with Novatouch and Norbatouch
• 1.3 Updated design to include extra size for manufacturing along with a dummy resistor on the backside
• 1.4 Removed extra rails manufacturing because they wanted to charge extra claiming 2 designs in one file

Manufacturing

• Files: /manufacturing
• 1mm thick (NOT Standard 1.6mm)
• SMD Assembly is Standard not economic due to USB connector
• Confirm Parts Placement: Yes

LCSC part #	Description	Value	Package	Amount
C67381	Connector (USB)		SMD	1
C136657	Connector(JST SH)	5 pin	TH	1
C7519	ESD		SOT23-6	1
C261942	Fuse		0805	1
C597300	Capacitor	4.7nF	0805	1
C212411	Resistor	5.1K	0805	1

Acknowledgments

• Nekotato for validating compatibility and requesting this
• Gouty for initial measurements from repo: https://github.com/Gouty/CM-Keyboard_USB-Breakout
• Pixelpusher for validating compatibility in Novatouch, Masterkeys Pro S & Rapid-i.
