Description

Custom FC660C controller with USB-C based on hasu's design

README

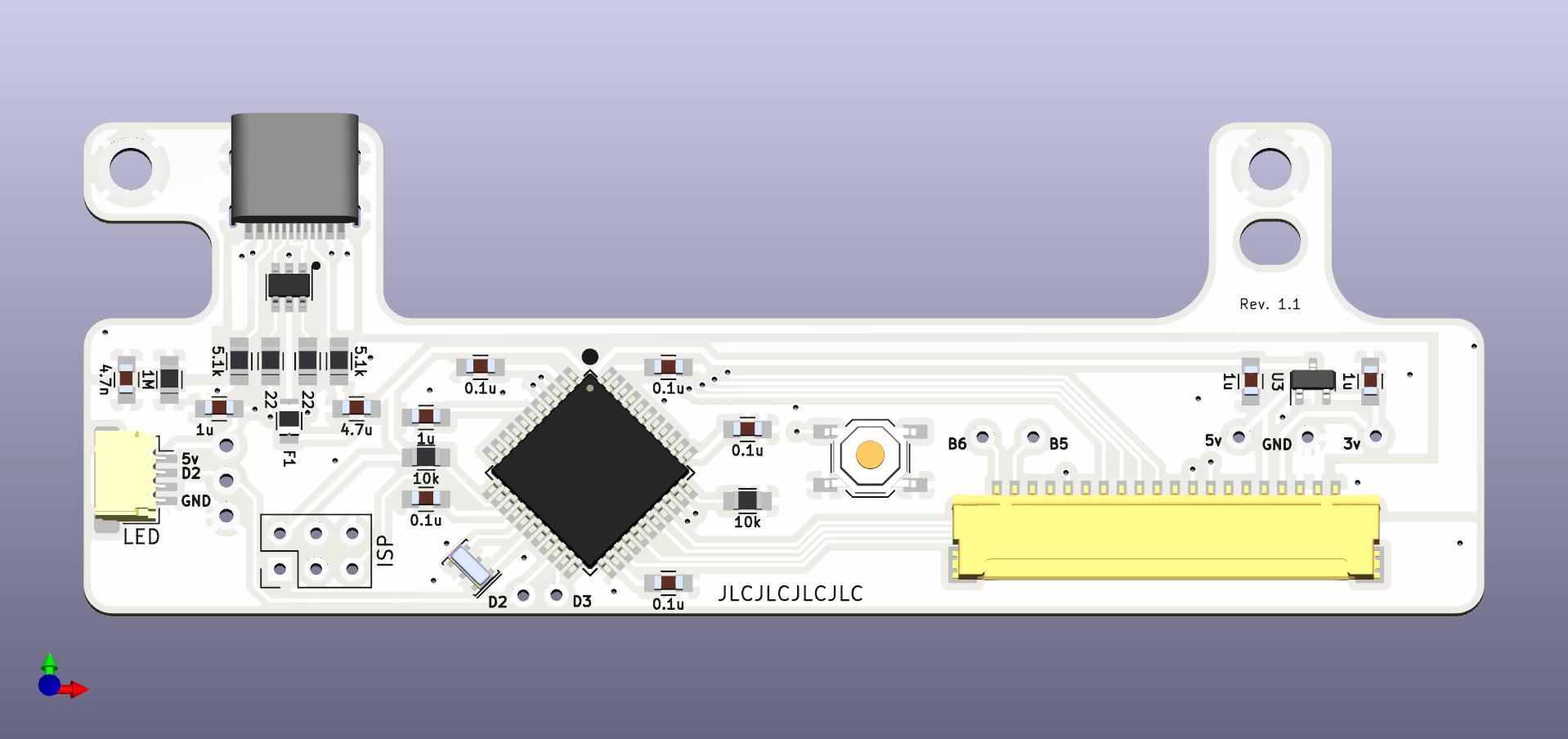

FC660C Controller with USB-C

This revision was designed to maximize RGB underglow in the Norbauer Heavy-6 polycarb case. To that end the reset button has been moved and is not accessible when installed in the case.

RGB underglow lights can be added via a JST connector. Rooski15 has a great how to guide here

Features

• Fully compatible with keymaps for Hasu's FC660C controller
• USB-C port (required small case modification)
• ESD protection circuit

Bill of materials (BOM)

Please have a look at the manufacuring files!

Ignore Rev1.0 it had problems with the LED connector. Leaving in the Repo incase someone needs to refer back to them.
