Description
Schematic and CAD files for my 68K based computer
README
CAD files for Y Ddraig
This repository contains the Schematics and any other relevant files for a Motorola 68000 computer in KiCAD format. The files for the main computer boards as well as any of the expansion boards are present in the repository.
The libraries used in the project are contained in the ddraig-libs folder inside the repo, to use them in KiCAD, go to Configure Paths and add a custom path DDRAIGLIB which points to the ddraig-libs folder.

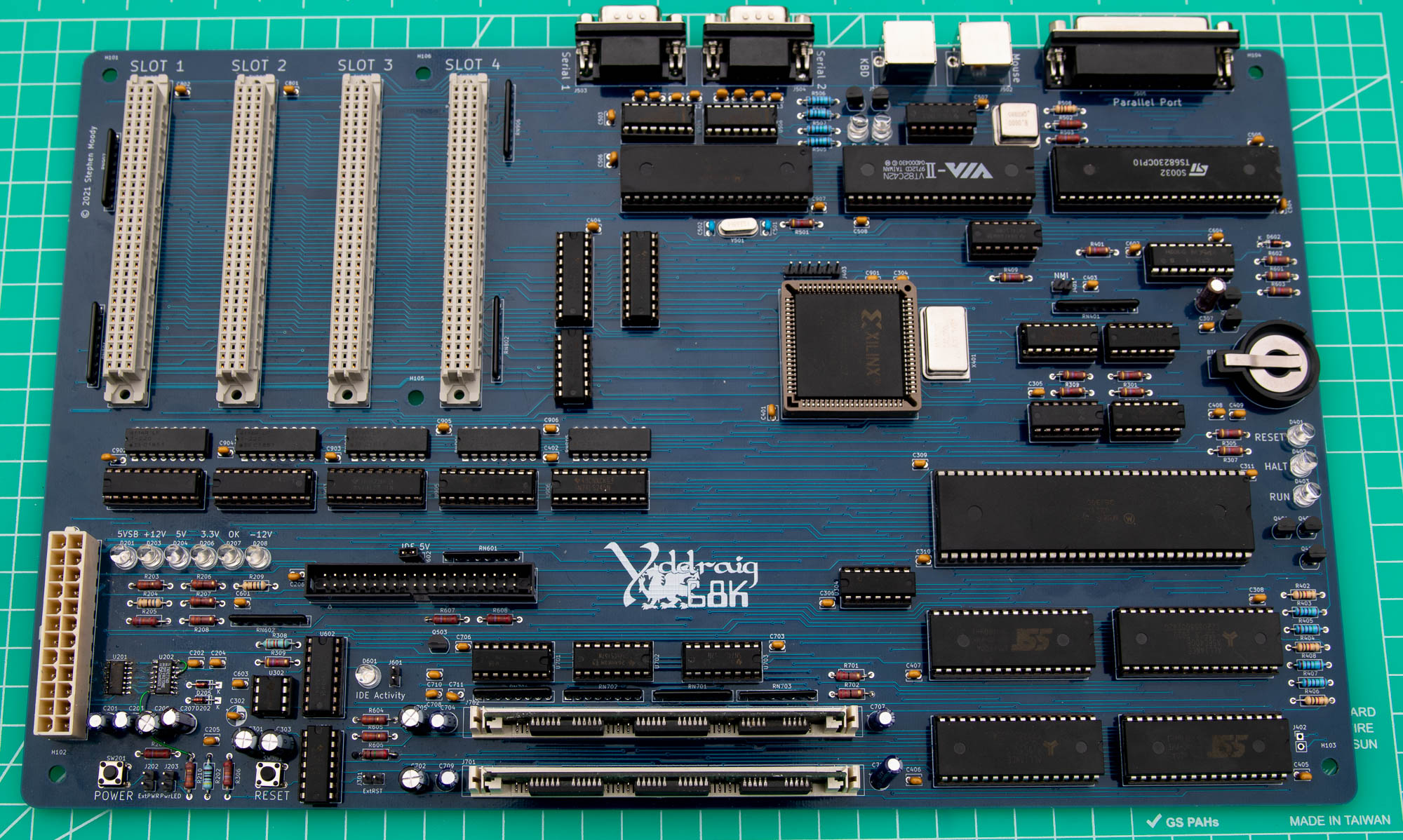

Y Ddraig
Welsh for The Dragon, Y Ddraig is my Motorola 68000 computer.
| Specifications |
|---|
| 68000 CPU running at 10Mhz. |
| 512K EEPROM |
| 1M of Static RAM |
| 8M Dynamic RAM |
| 2 Serial ports |
| Parallel port |
| PS/2 keyboard and mouse |
| IDE interface |
| Real-time clock |
| 4 Expansion slots |
Design Files
Expansion Cards
