README

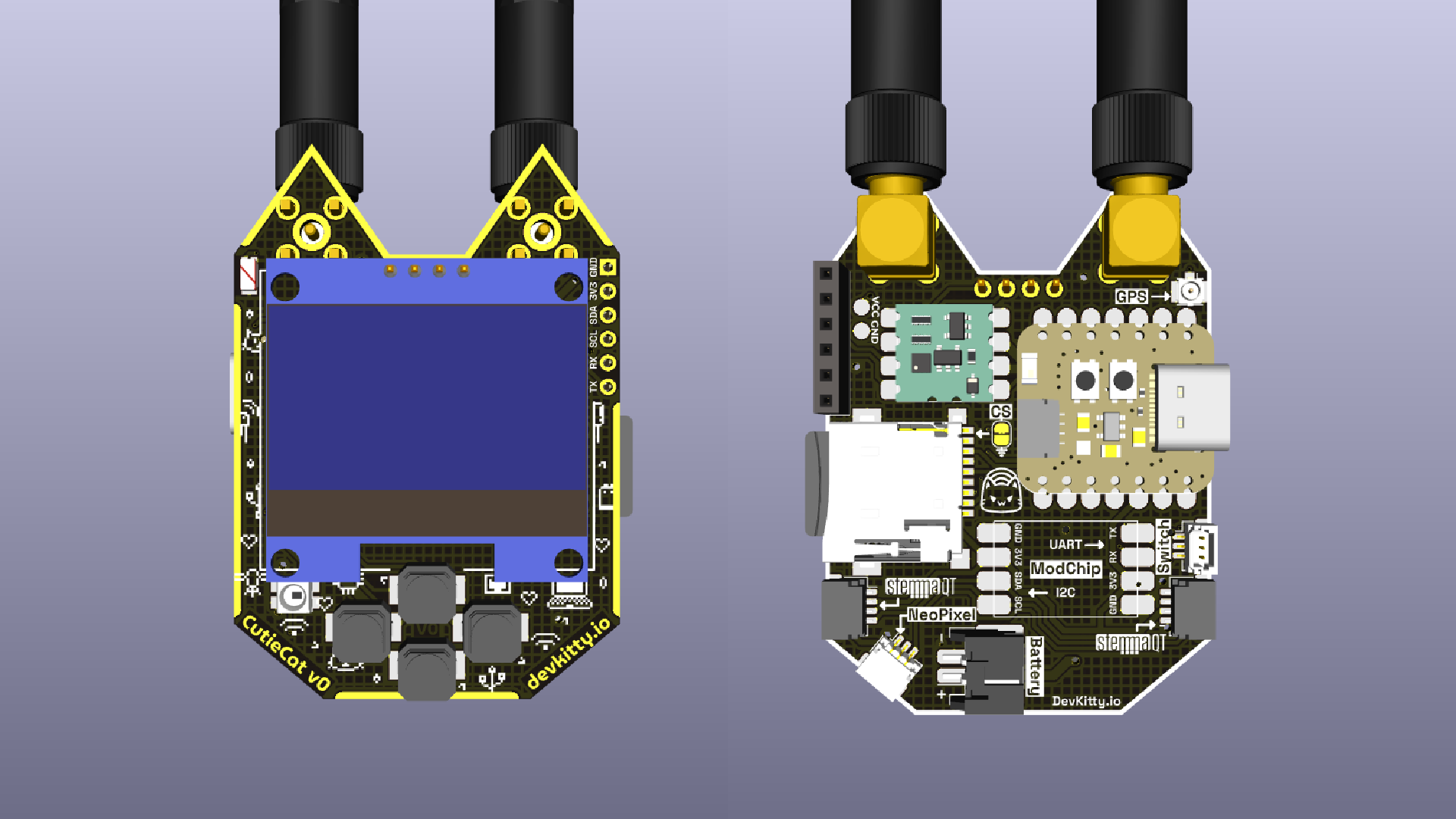

CutieCat

The Cat-Themed console for hacking & prototyping!
Learn more at DevKitty.io

Version

Current Version: v0.0

Components

NameDetailsNumber
ScreenSH1106 1.3" I2C OLED1
MicrocontrollerD1/S2/C3 Mini1
ButtonsD-Pad Style, 3x6x2.5 mm4
RGB LEDWS2181B "NeoPixel"1
Expansion Header8-Pin Female 2.54mm1
