Galaxy Light Projector Mod

Modification of a consumer night-light projector, converting it into a smart device with a custom PCB, powered by an ESP-32.

Features

• Alexa integration
• Complex color patterns
• Improved brightness
• Better circuit protection

Custom PCB

KiCad Render (Rev. 1.1)

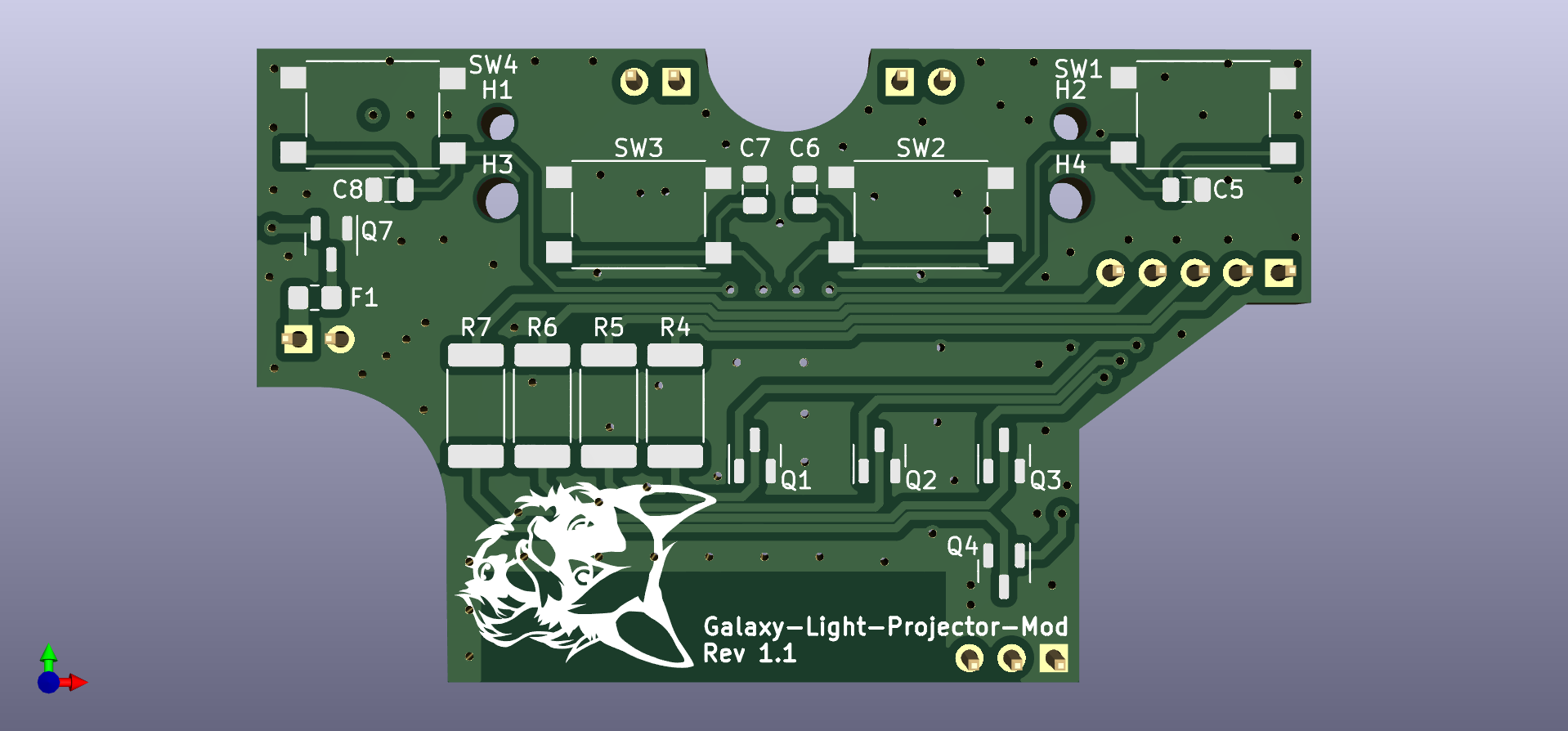

Front

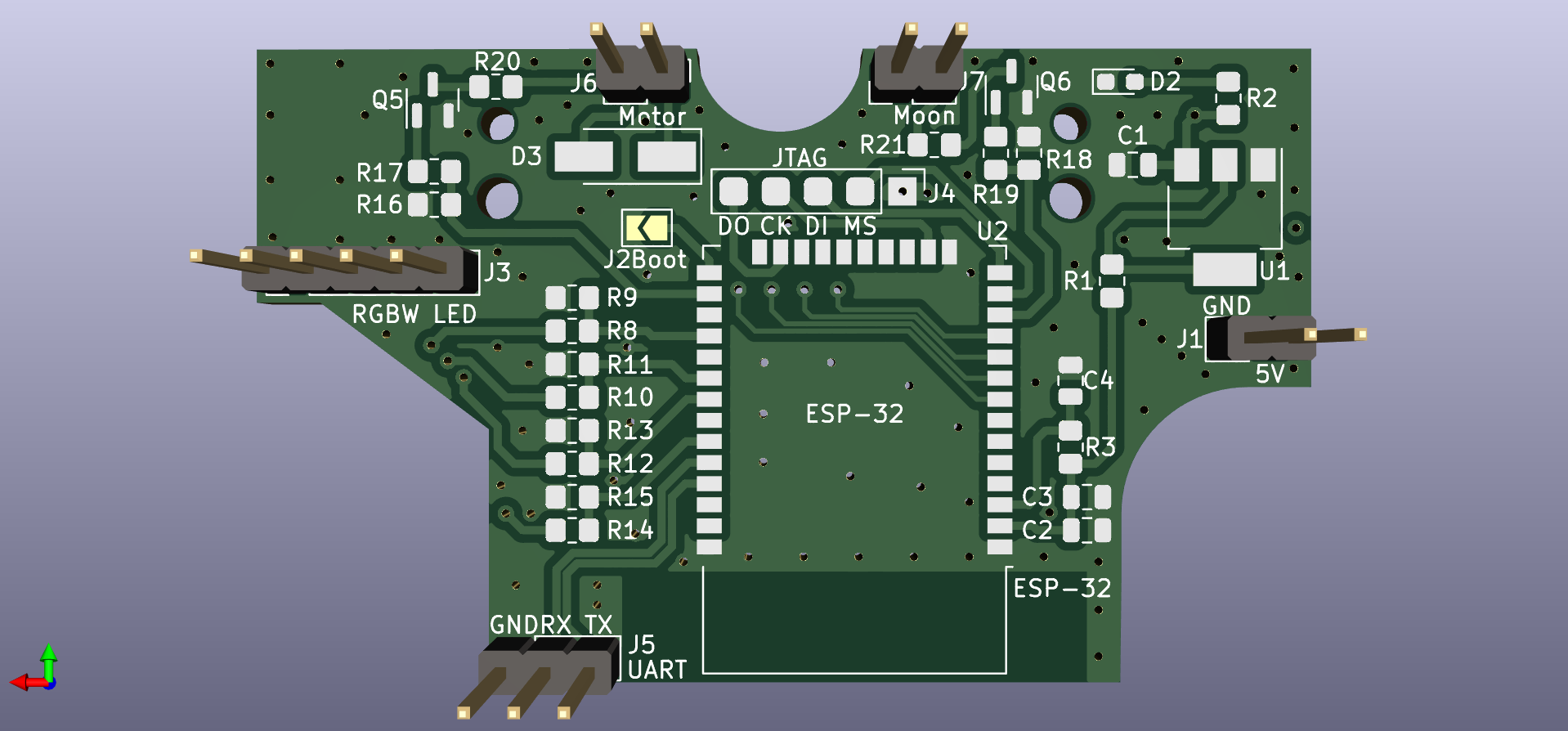

Back

Fabrication Render (Rev. 1.1)

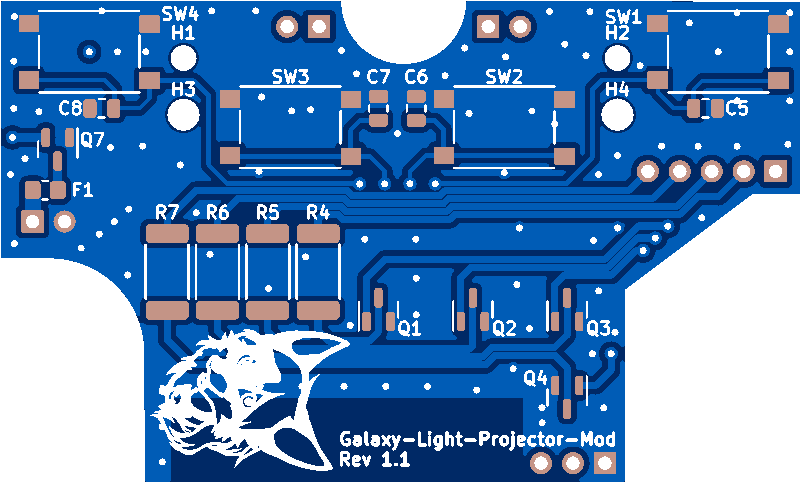

Front

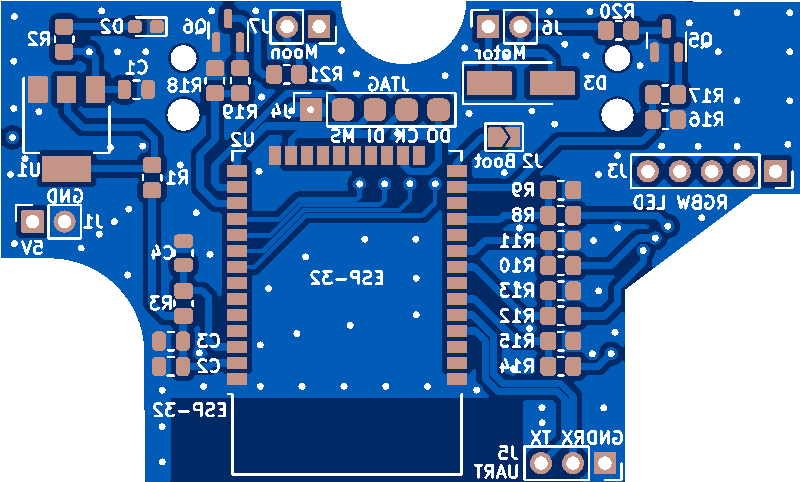

Back

Printed Circuit Board (Rev. 1.0)

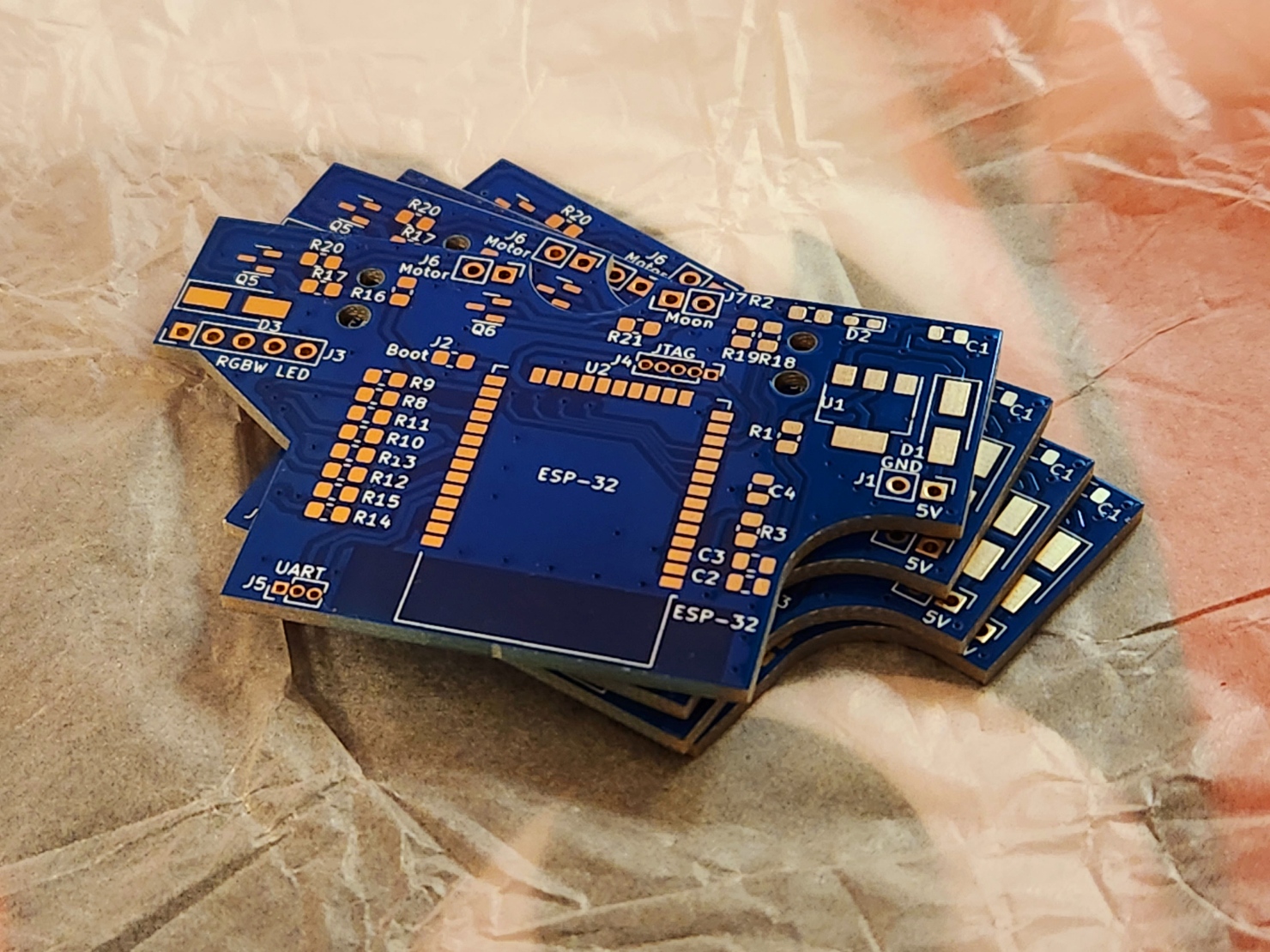

Bare

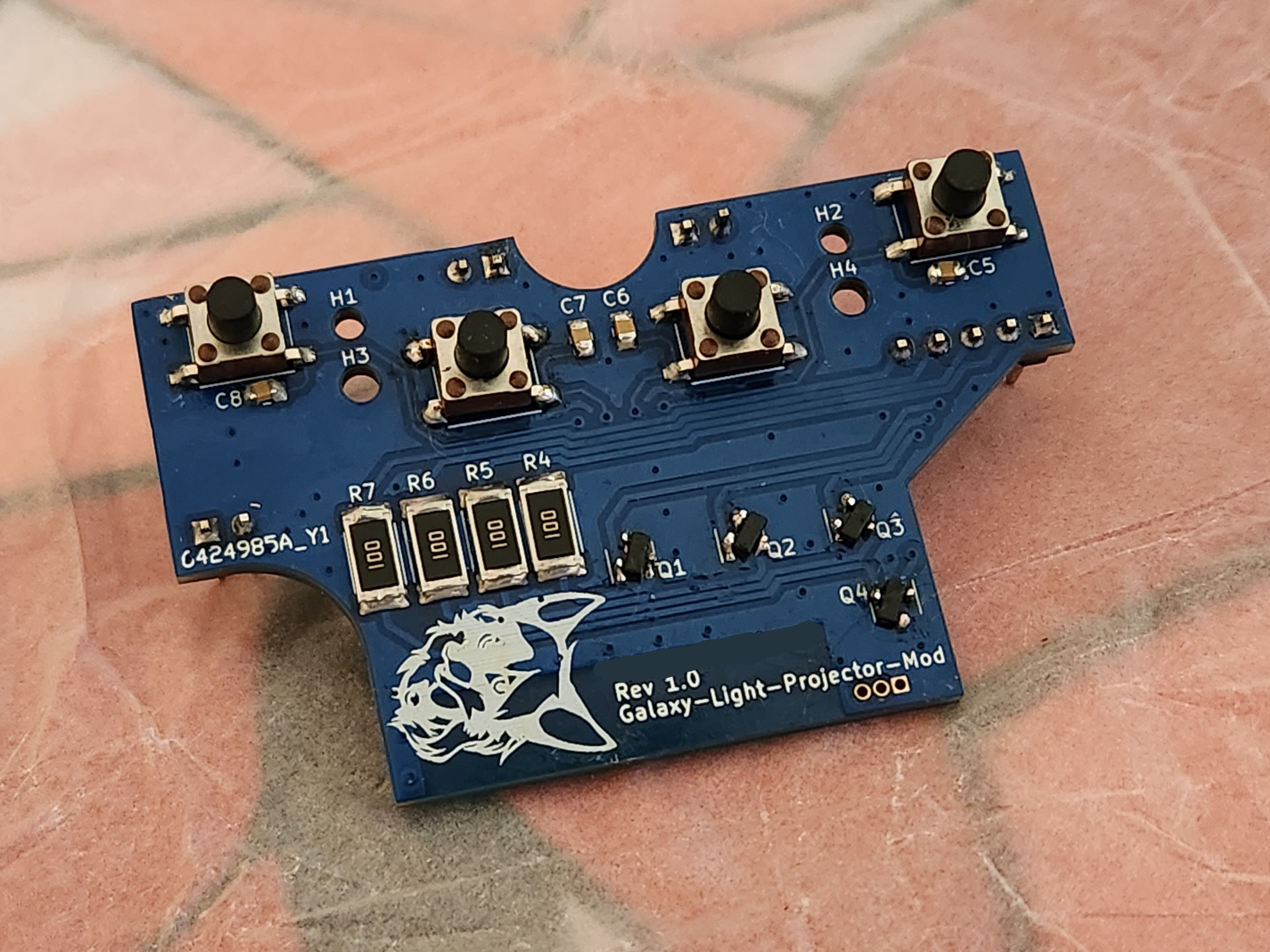

Assembled Front

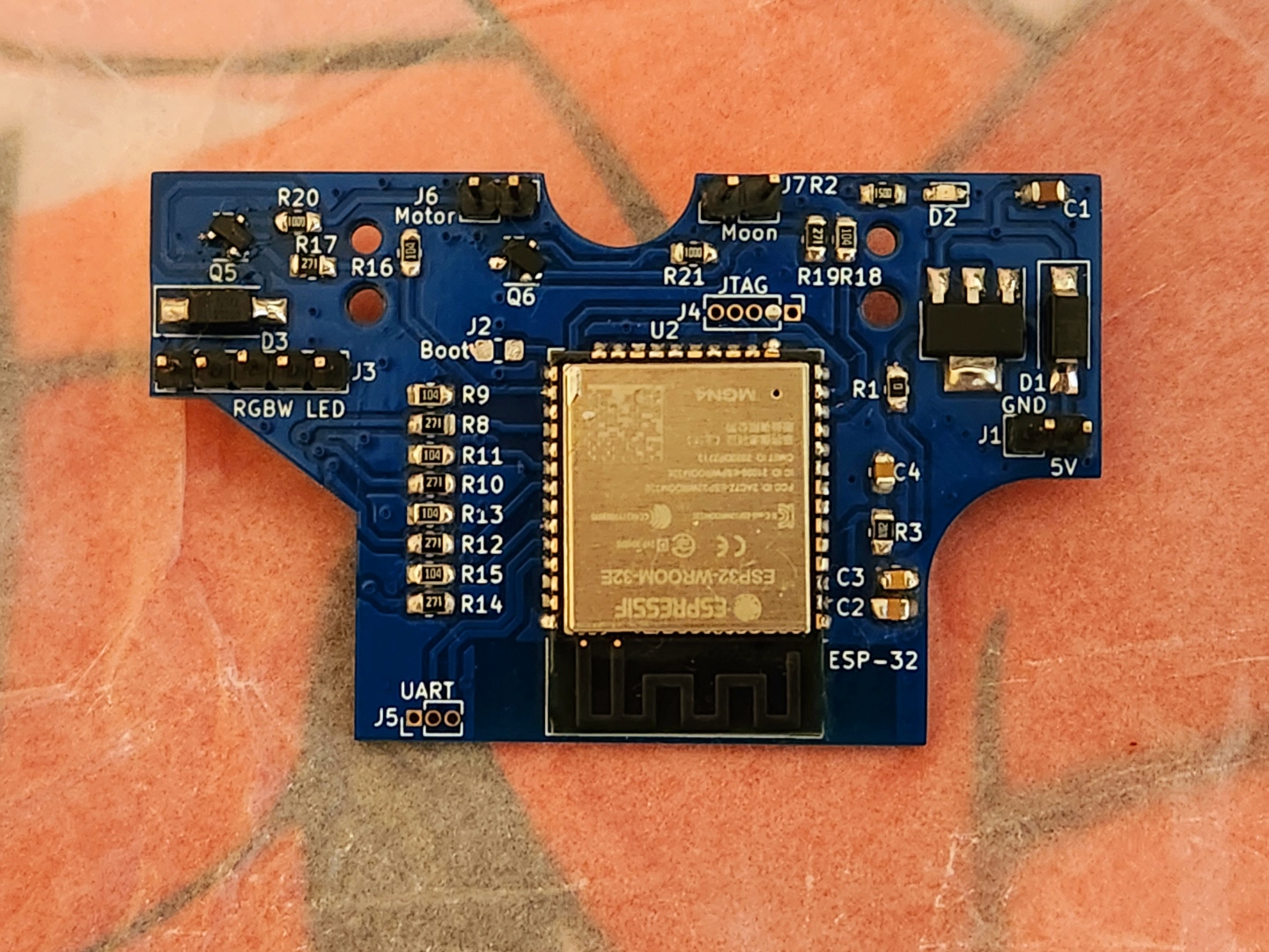

Assembled Back
