Imported from GitHub: DIYSynthMNL/Eurorack-Multi-Saturation-Module · commit 281ab92 · license GPL-3.0

Description

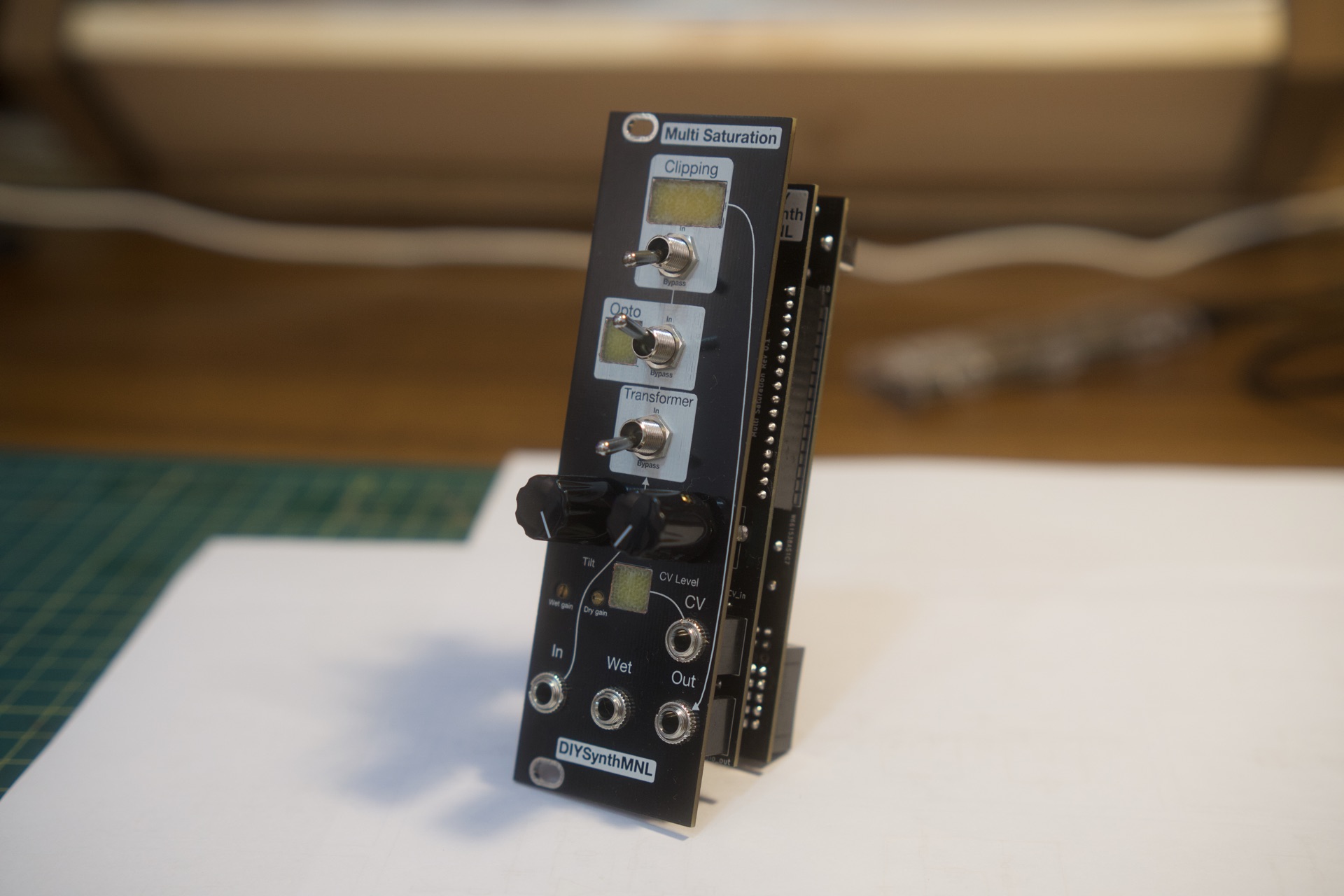

A multi saturation module with voltage controlled wet/dry mix

README

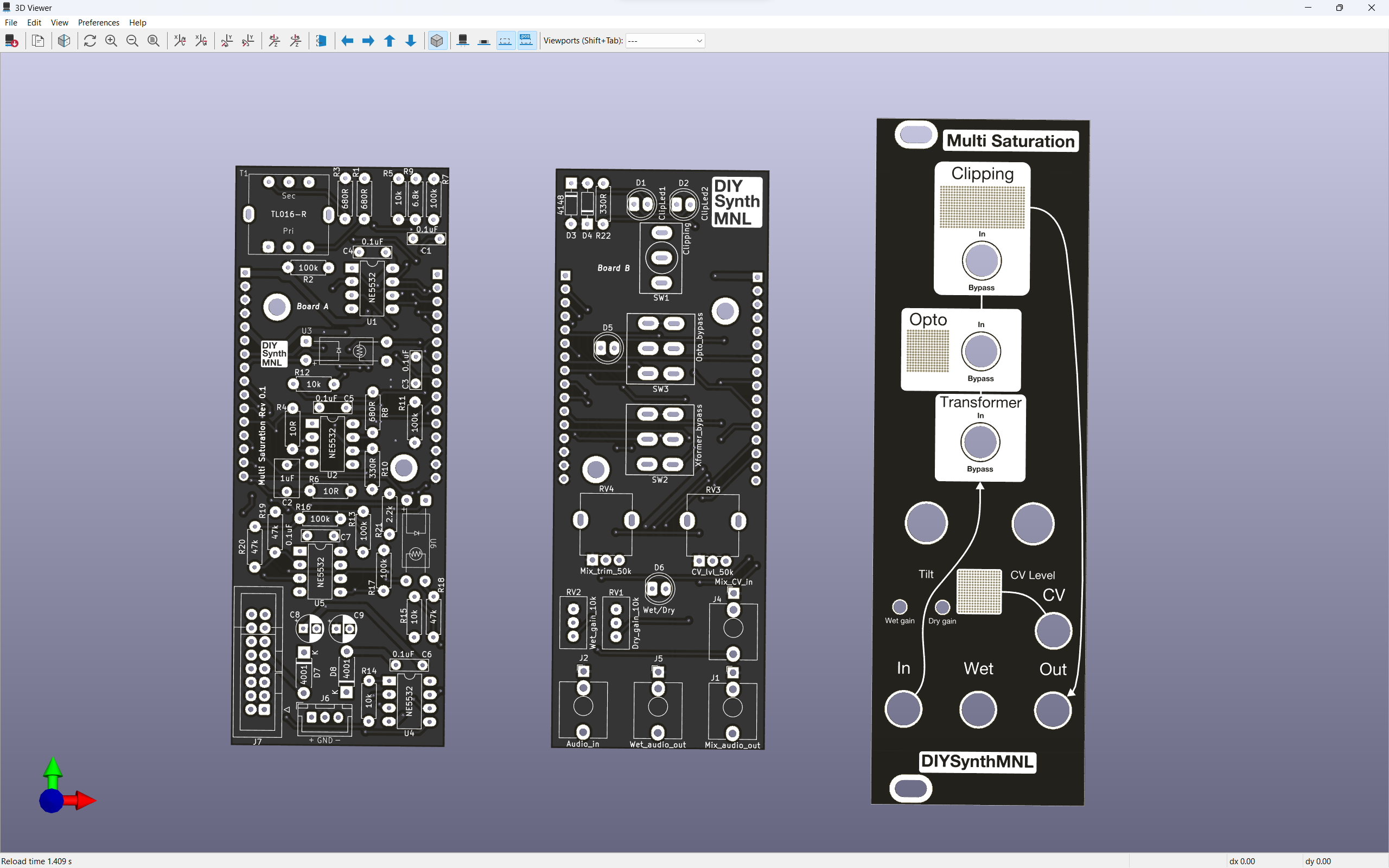

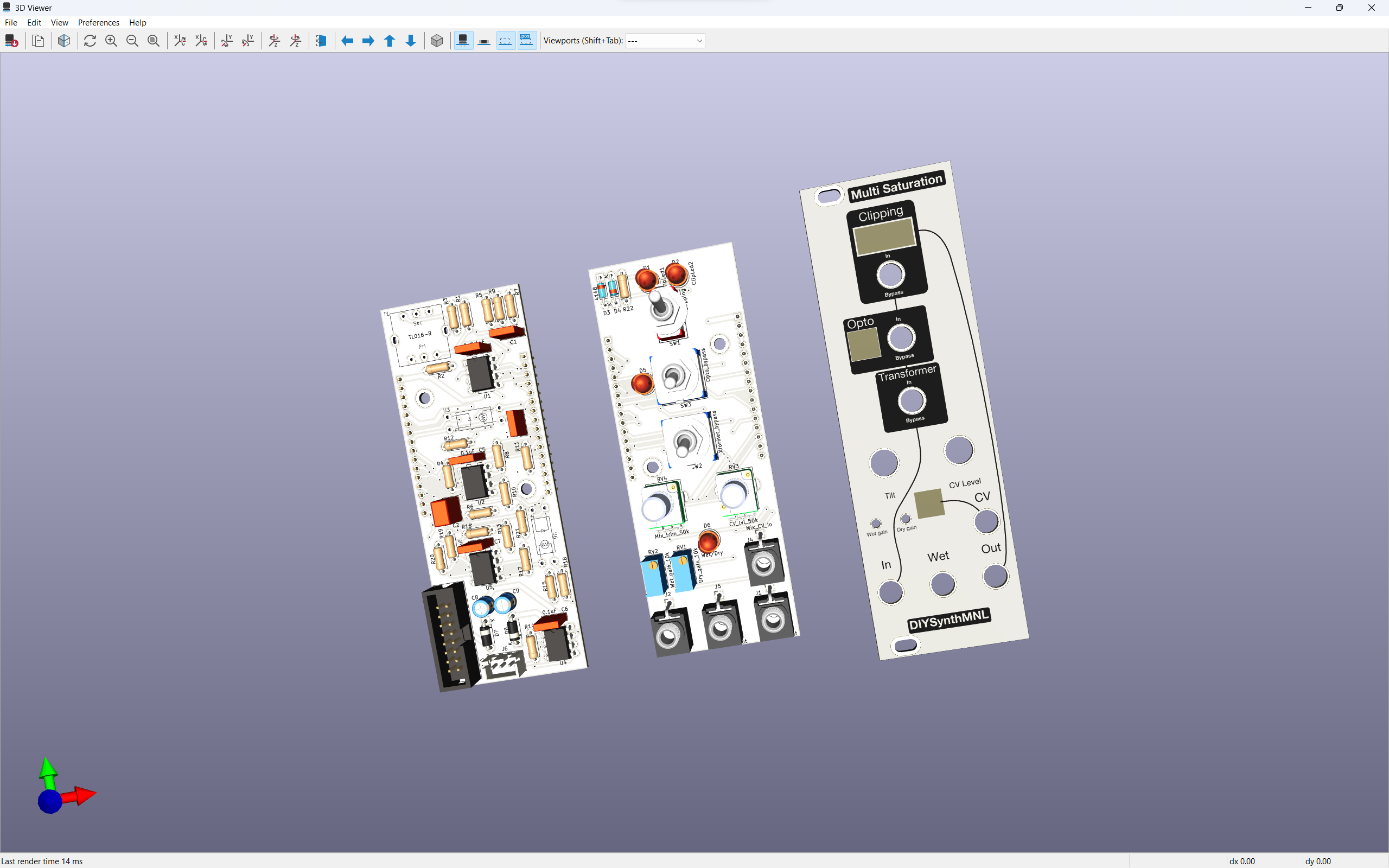

Separate Boards

Within each pcb manufacturing revision, separate boards are made by using KiKit. Then gerbers are generated inside their respective folders. I used PCBWay and their KiCad plugin that generate gerbers while simultaneously ordering them online.
