Description

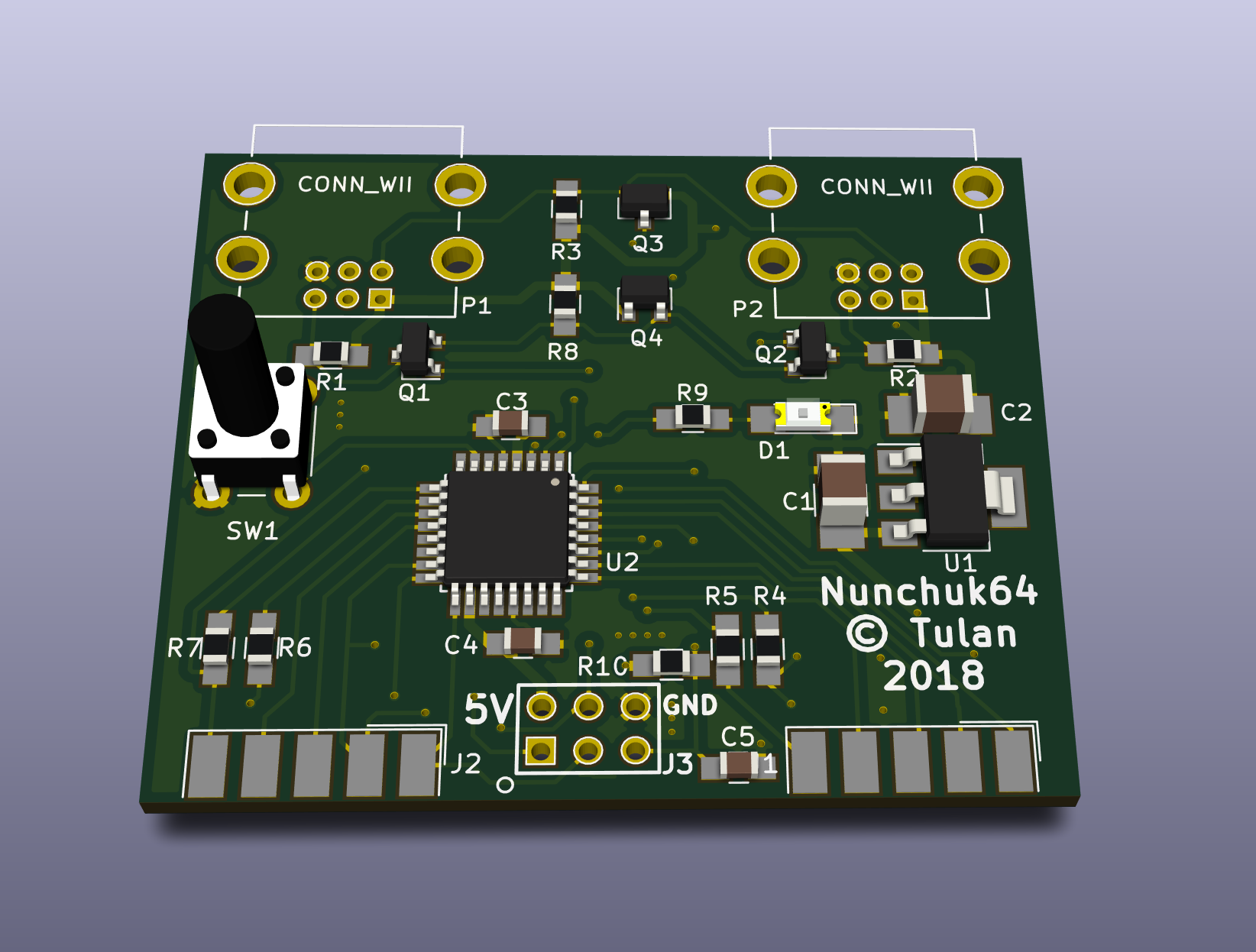

A Nintendo (Nunchuk) Controller Adapter for Commodore 64.

README

Supported Controllers

This is an overview of all tested controllers. Since they all mostly use the same datasets, it is very likely that other controllers will work too.

Modes

Pressing the pushbutton switches the Nunchuk64 to different modes.

• Mode OFF ... LED is OFF
• Mode ON ... LED is ON
• Mode F1 ... LED flashes 1 time
• Mode F2 ... LED flashes 2 times

Depending on the mode the controllers behaves differently.

Possible Controls

Nunchuk64 can perform these different controls on each individual C64 Control Port:

• UP (Joystick Up)
• DOWN (Joystick Down)
• LEFT (Joystick Left)
• RIGHT (Joystick Right)
• FIRE (Fire Button)
• AUTOFIRE (automatic Fire Button)
• PADDLE X
• PADDLE Y
• FIRE2 (5V on Paddle X)
• AUTOFIRE2 BUTTON
• FIRE3 (5V on Paddle Y)
• AUTOFIRE3

An extra function is SPACE, which triggers FIRE on controller port 1. This is very handy because you can use it to press the space bar. For FIRE2 / FIRE3 C64s analog paddle input X,Y are used, similar the Cheetah Annihilator Joystick. See https://www.c64-wiki.de/wiki/Joystick#Weitere_Feuerkn.C3.B6pfe

Joystick Swapping

A long press on the button changes the ports. Port 1 becomes 2 and Port 2 becomes 1. Another long press, changes them back. It is indicated by a two times flash or one time flash.

NES Classic Mini Clone

Wireless Controller for Nintendo NES Mini Classic Edition.

Seen here: https://www.ebay.com/itm/272765627224

Button A+ and B+ are same as A and B but with autofire!

Nintendo original NES Classic Mini is using the driver_wii_classic!

DRIVER: driver_wii_classic.c

Item	Mode OFF	Mode ON	Mode F1	Mode F2
Joystick UP	UP	UP	-	-
Joystick DOWN	DOWN	DOWN	-	-
Joystick LEFT	LEFT	LEFT	LEFT	-
Joystick RIGHT	RIGHT	RIGHT	RIGHT	-
A	UP	FIRE2	UP	LEFT
B	FIRE	FIRE	DOWN	RIGHT
A+	UP	FIRE2	UP	LEFT
B+	FIRE	FIRE	DOWN	RIGHT
SELECT	FIRE	FIRE	FIRE	FIRE
START	SPACE	SPACE	SPACE	SPACE

Original NESS Classic Mini

Wired Controller for Nintendo NES Mini Classic Edition.

DRIVER: driver_wii_classic.c

Item	Mode OFF	Mode ON	Mode F1	Mode F2
Joystick UP	UP	UP	-	-
Joystick DOWN	DOWN	DOWN	-	-
Joystick LEFT	LEFT	LEFT	LEFT	-
Joystick RIGHT	RIGHT	RIGHT	RIGHT	-
A	UP	FIRE2	UP	LEFT
B	FIRE	FIRE	DOWN	RIGHT
SELECT	FIRE	FIRE	FIRE	FIRE
START	SPACE	SPACE	SPACE	SPACE

SNES Classic Mini Clone

Wireless Controller for Nintendo SNES Mini Classic Edition.

Seen here: https://www.ebay.com/itm/162874713501

Wired Controller for Nintendo SNES Mini Classic Edition.

Seen here: https://www.ebay.at/itm/222674575659

DRIVER: driver_wii_classic.c

Item	Mode OFF	Mode ON	Mode F1	Mode F2
Joystick UP	UP	UP	-	-
Joystick DOWN	DOWN	DOWN	-	-
Joystick LEFT	LEFT	LEFT	LEFT	-
Joystick RIGHT	RIGHT	RIGHT	RIGHT	-
A	UP	FIRE2	DOWN	RIGHT
B	FIRE	FIRE	UP	LEFT
X	FIRE2	FIRE3	FIRE	FIRE
Y	AUTOFIRE	UP	AUTOFIRE	-
SELECT	FIRE	FIRE	FIRE	FIRE
START	SPACE	SPACE	SPACE	SPACE
L	LEFT	LEFT	FIRE	-
R	RIGHT	RIGHT	FIRE	-

Wii classic controller

Wii Classic Controller for Nintendo Wii Remote. (Wired)

Seen here: https://www.ebay.com/itm/291645811767

DRIVER: driver_wii_classic.c

Item	Mode OFF	Mode ON	Mode F1	Mode F2
Joystick UP	UP	UP	-	-
Joystick DOWN	DOWN	DOWN	-	-
Joystick LEFT	LEFT	LEFT	LEFT	-
Joystick RIGHT	RIGHT	RIGHT	RIGHT	-
A	UP	FIRE2	DOWN	RIGHT
B	FIRE	FIRE	UP	LEFT
X	FIRE2	FIRE3	FIRE	FIRE
Y	AUTOFIRE	UP	AUTOFIRE	-
SELECT	FIRE	FIRE	FIRE	FIRE
HOME	FIRE2	FIRE2	FIRE2	-
START	SPACE	SPACE	SPACE	SPACE
L	LEFT	LEFT	FIRE	-
ZL	-	-	-	-
R	RIGHT	RIGHT	FIRE	-
ZR	-	-	-	-
LX (Analog)	LEFT/RIGHT	LEFT/RIGHT	LEFT/RIGHT	PADDLE X
LY (Analog)	UP/DOWN	UP/DOWN	UP/DOWN	PADDLE Y
RX (Analog)	-	-	-	-
RY (Analog)	-	-	-	-

Wii Nunchuck

Wii Nunchuck Controller for Nintendo Wii Remote

DRIVER: driver_nunchuk.c

Item	Mode OFF	Mode ON	Mode F1	Mode F2
Analog Joy X	LEFT/RIGHT	-	-	PADDLE X
Analog Joy Y	UP/DOWN	-	-	PADDLE Y
Accel X	-	LEFT/RIGHT	PADDLE X	-
Accel Y	-	UP/DOWN	PADDLE Y	-
Accel Z	-	-	-	-
C	AUTOFIRE	AUTOFIRE	AUTOFIRE	AUTOFIRE
Z	FIRE	FIRE	FIRE	FIRE
