PCB for M0115/M3501/etc.

README

aek[2]

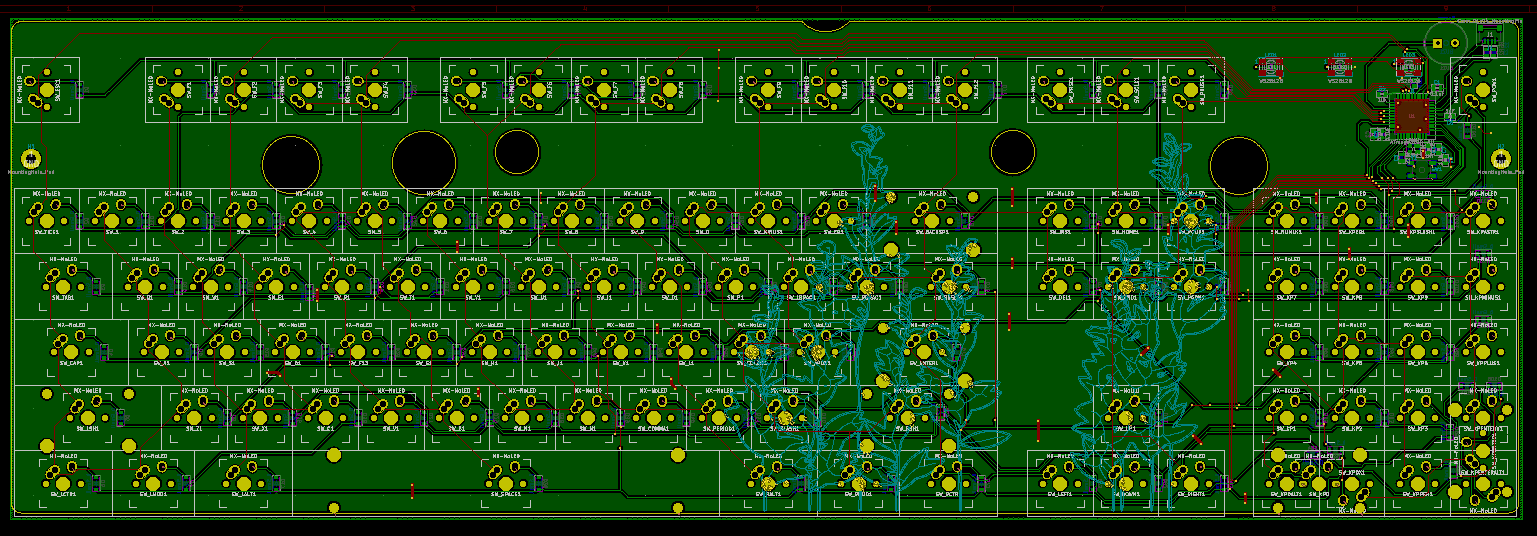

USB/QMK atmega32u4 pcb for M0115, M3501 and possibly others, with WS2812B addressable LED support.

Released without warranty, use at your own risk.

PRs & feedback welcome!

---

Dimensions: 437.896 x 141.732 mm

---

Keyboard-Layout-Editor of Matrix for Vial: http://www.keyboard-layout-editor.com/#/gists/c7bd3d0e6c43f816d1fdc86e6fad2cfd

Default keymap:

In Vial:

Some Photos:

Shield:

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
