FISC: An 8-bit TTL CPU with a Stack Register

Please note: The FISC design has some major flaws. Rather than fix them, I've incorporated the fixes into the next version of the design: .

FISC is an 8-bit microseqenced CPU wth a 64K address space built from discrete TTL-level components. It provides:

• recursive Functions,
• Indexed addressing and
• Stack operations

as well as the usual load/store and arithmetic operations, comparisons, branches and jumps.

The design uses 25 chips and has 8K of ROM, 56K of RAM and a UART.

Documentation

The overall design of the CPU is covered in Docs/arch_overview.md, and some details of the expected hardware implementation are in Docs/fisc_implementation.md.

Implementation

At present, I have:

• a Perl CPU simulator, csim
• an assembler, cas
• a simple compiler, clc
• example assembly and higher-level programs in Examples
• a Verilog design in Verilog
• a schematic in Kicad/schematic.pdf

Status of the CPU

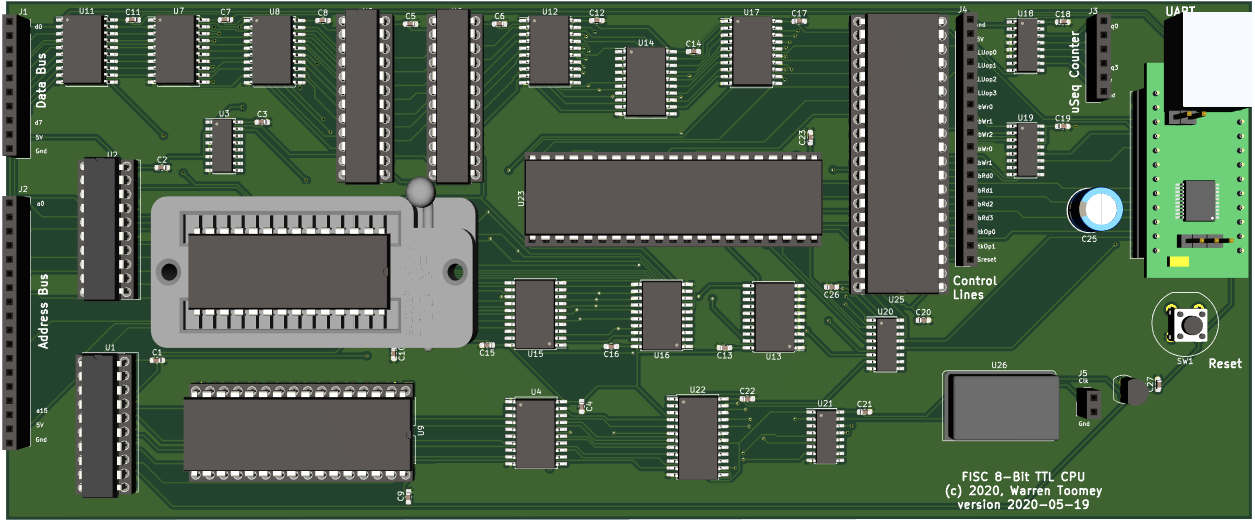

mid-June, 2020: I've ordered PCBs and they have arrived and I've soldered on all the components. The CPU passes most of the tests but I have an issue with addition that I am still working on.

For more detail on progress, you can read my journal.
