dpx_perfboard dpx_perv_5x10-smt view
Description

Imported from GitHub: dubpixel/dpx_perfboard · commit ebf864a · license CERN-OHL-W-2.0

Description

a series of permanent prototyping boards

README

Contributors Forks Stargazers Issues MIT License LinkedIn

About The Project

i needed to have a perfboard spacing to test in kicad for another project so naturally i decided to just finish it off. Nice to have some dpx perfboards with added busses, our logo, and all black .

author(s): // www.dubpixel.tv - [email protected] | other authors

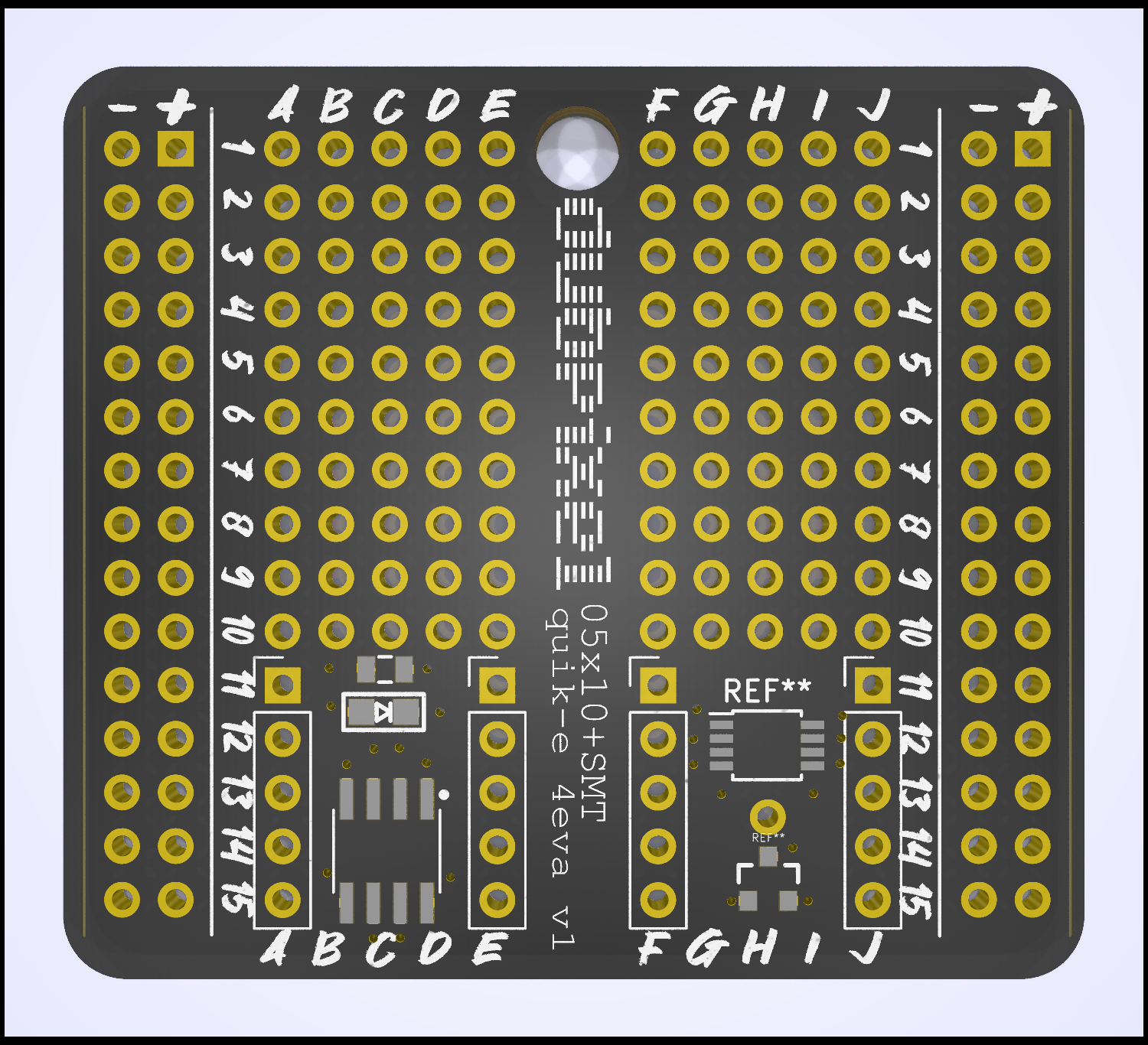

05x10+SMT

FRONT

05x15

FRONT

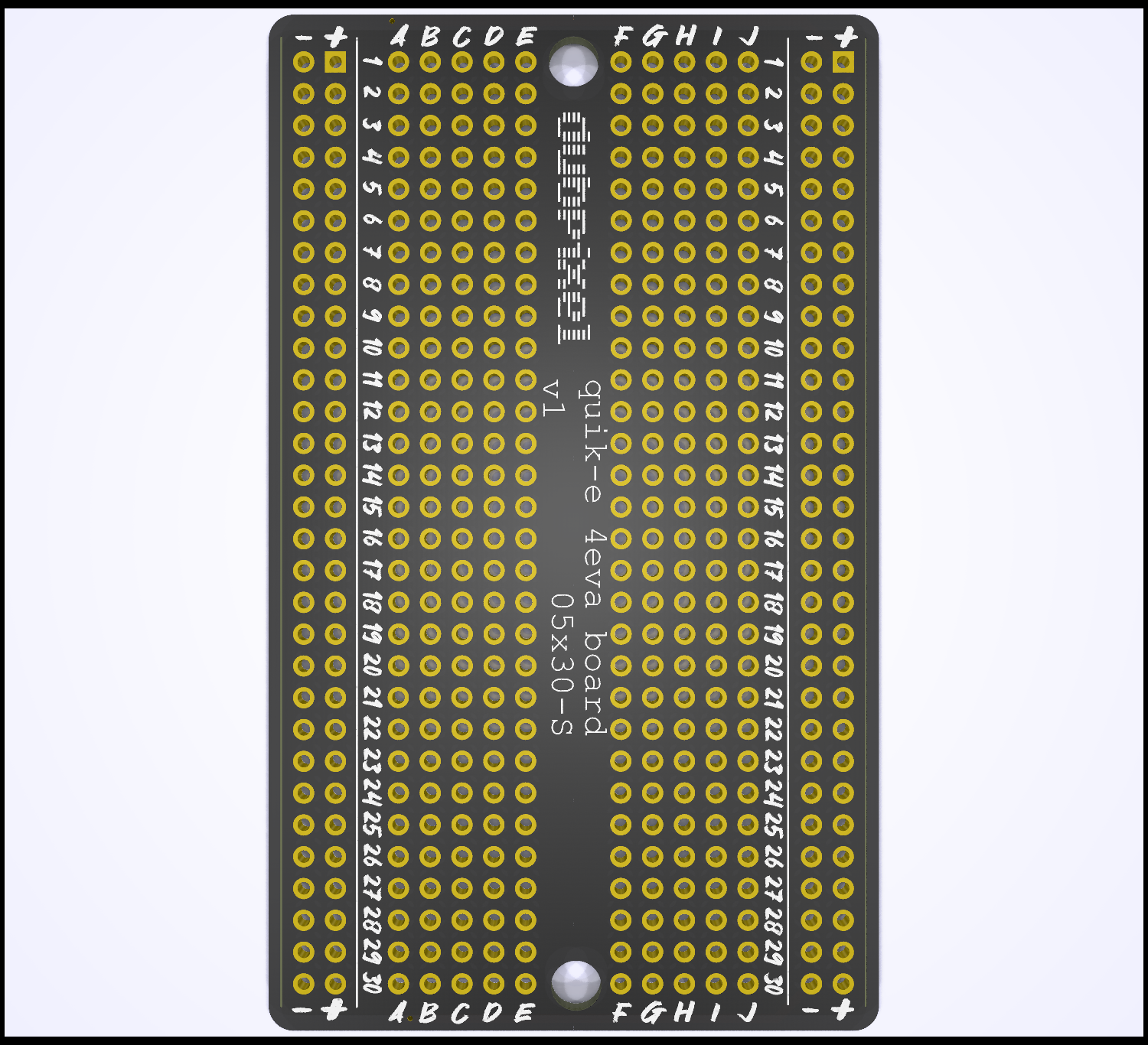

05x30-split
