Description

PCB design for Pixart PMW3360DM-T2QU

README

PMW3360DM-T2QU

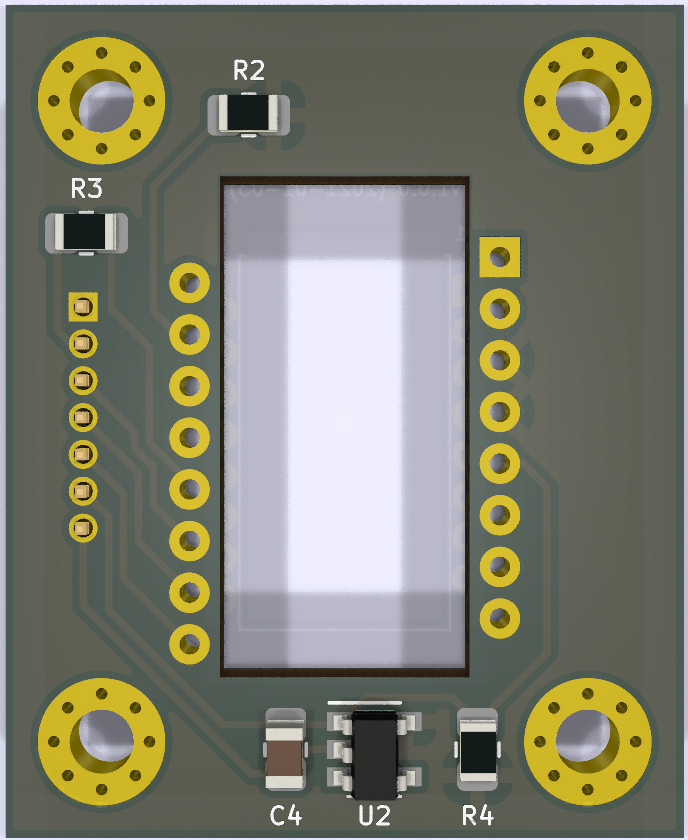

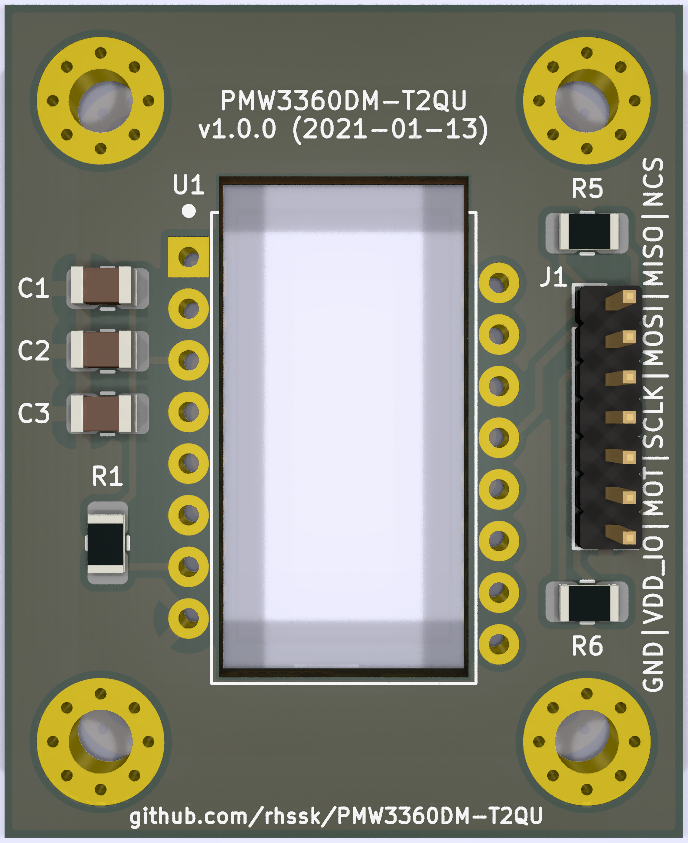

PCB schematic and design for the Pixart PMW3360DM-T2QU optical mouse sensor.

Components

• 1 x Pixart PMW3360DM-T2QU
• 1 x 4.7uF/10V
• 1 x 1uF
• 1 x 0.1uF
• 3 x 10K Ohm
• 1 x 130 Ohm
• 1 x 39 Ohm
• 1 x TLV70019DDCT 1.9V LDO
• 1 x 1x7 1.27mm pin header
