License: CC BY-SA 4.0

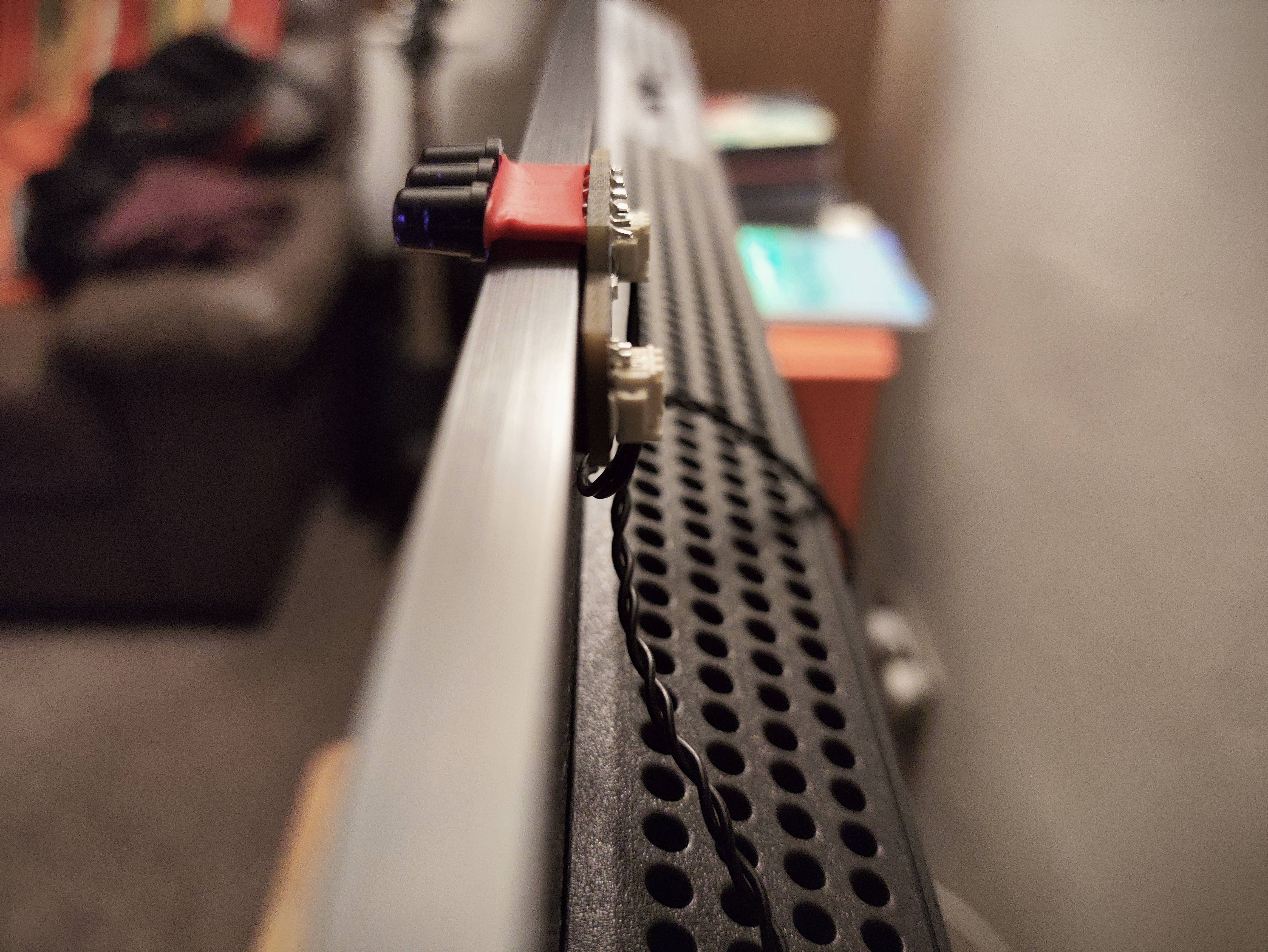

An IR LED emitter setup, for use with the Wii or IR-based light guns with a focus on remaining as slim as possible, with no components on the back of the board to allow mounting directly to a display
Grab the gerbers from the latest release and upload to your favourite PCB fab (OSHPark, Aisler, JLCPCB). Default settings should be fine - I wouldn't recommend getting the boards any thinner than 1.6mm as may restrict your mounting options.
HASL is a-ok to use and generally the cheapest option, so would recommend this as the surface finish.
Assembly is possible with just an iron, but be super sure to get the USB-C and Molex Picoblade connectors correctly aligned before you tin more than one pad - they're tricky to fix mistakes on without hot air or a hot plate.
There are a few options that will work for any given setup but I'll outline the ones most likely to be appealing
Wii / 2IR light guns only:
4IR light guns only (Gun4IR / OpenFIRE):
Wii / 2IR light guns and 4IR light guns in square layout (OpenFIRE):
Wii / 2IR light guns and 4IR light guns in diamond layout (Gun4IR):

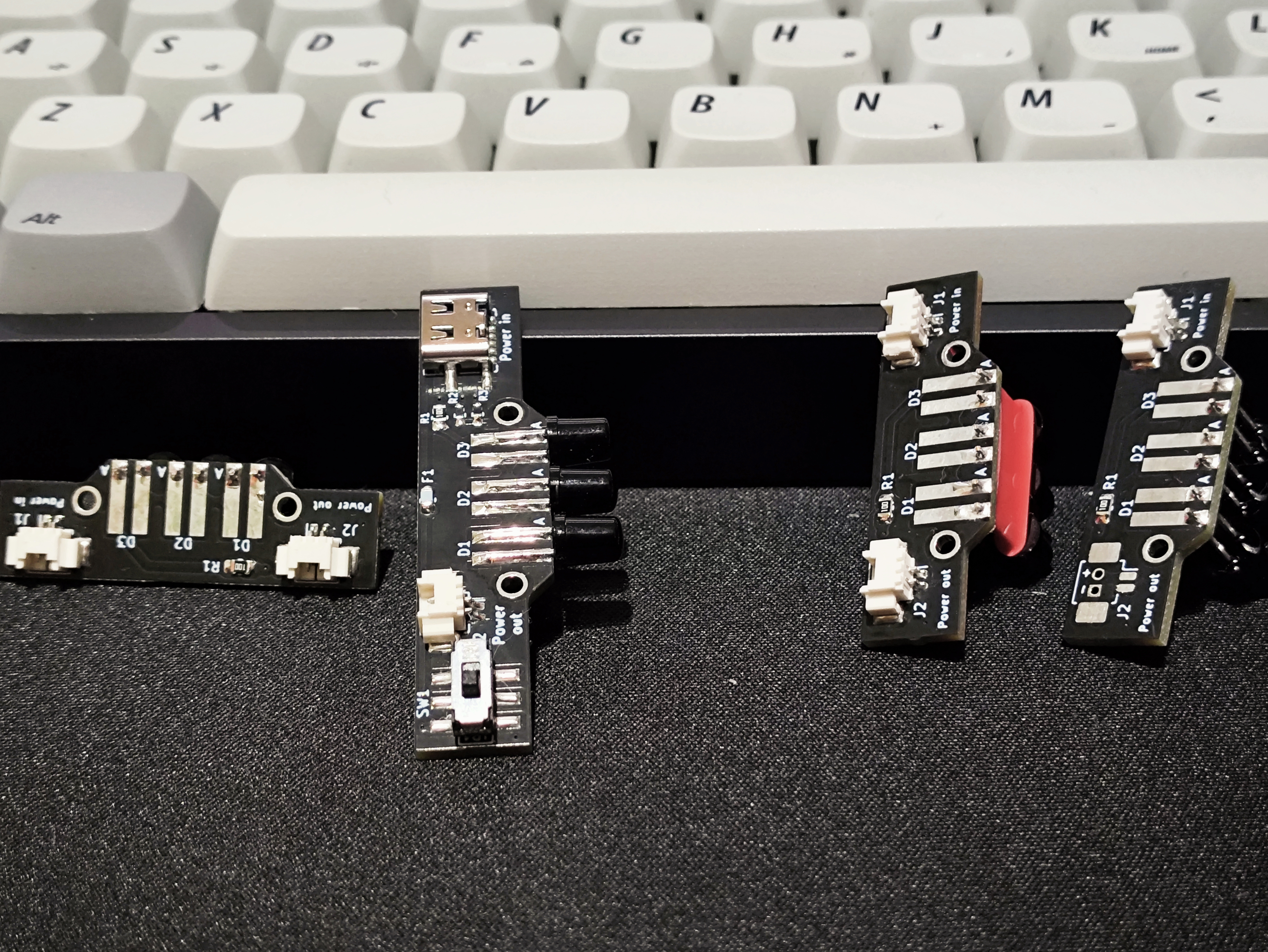

I swear I'll flesh this out later but here's how I'd go about soldering up the simplest setup of power-emitter + emitter. Any other setup is basically more of the same.
Once you're done, plug in your cable between the Power out of the power-emitter board and the Power in on the emitter anddddd fingers crossed, you have light! The IR LEDs in the BOM aren't visible to the naked eye, so you may want to use a phone to test (I've heard iPhones like to filter IR out, though)
If you want a nice enclosure to keep things looking tidy, RayneX has made some brilliant shells on Printables.

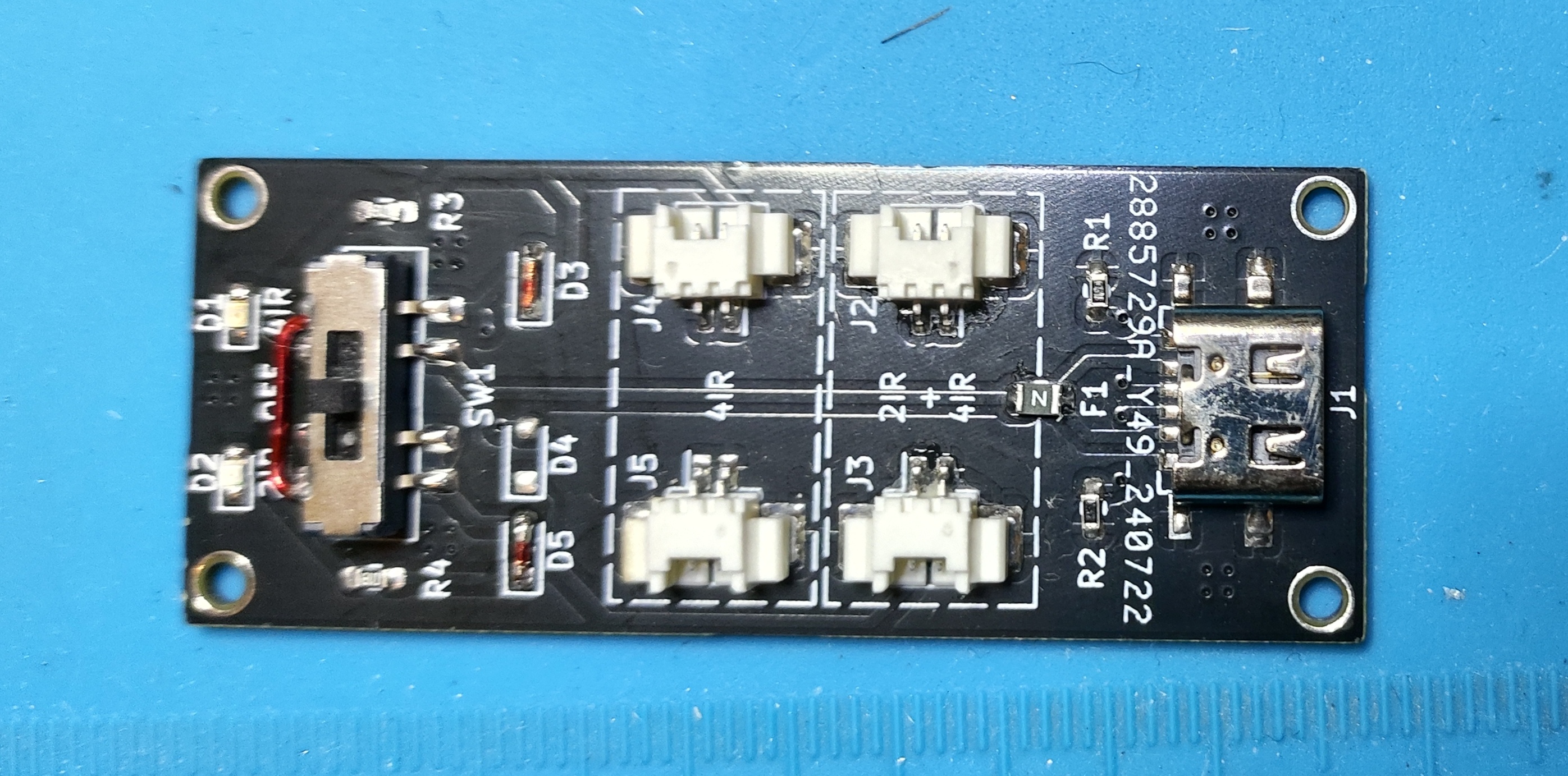

There are enclosures for the emitter boards and the power-42-square board (which should also fit the latest revision of the power-4ir board, but this is untested at present).
