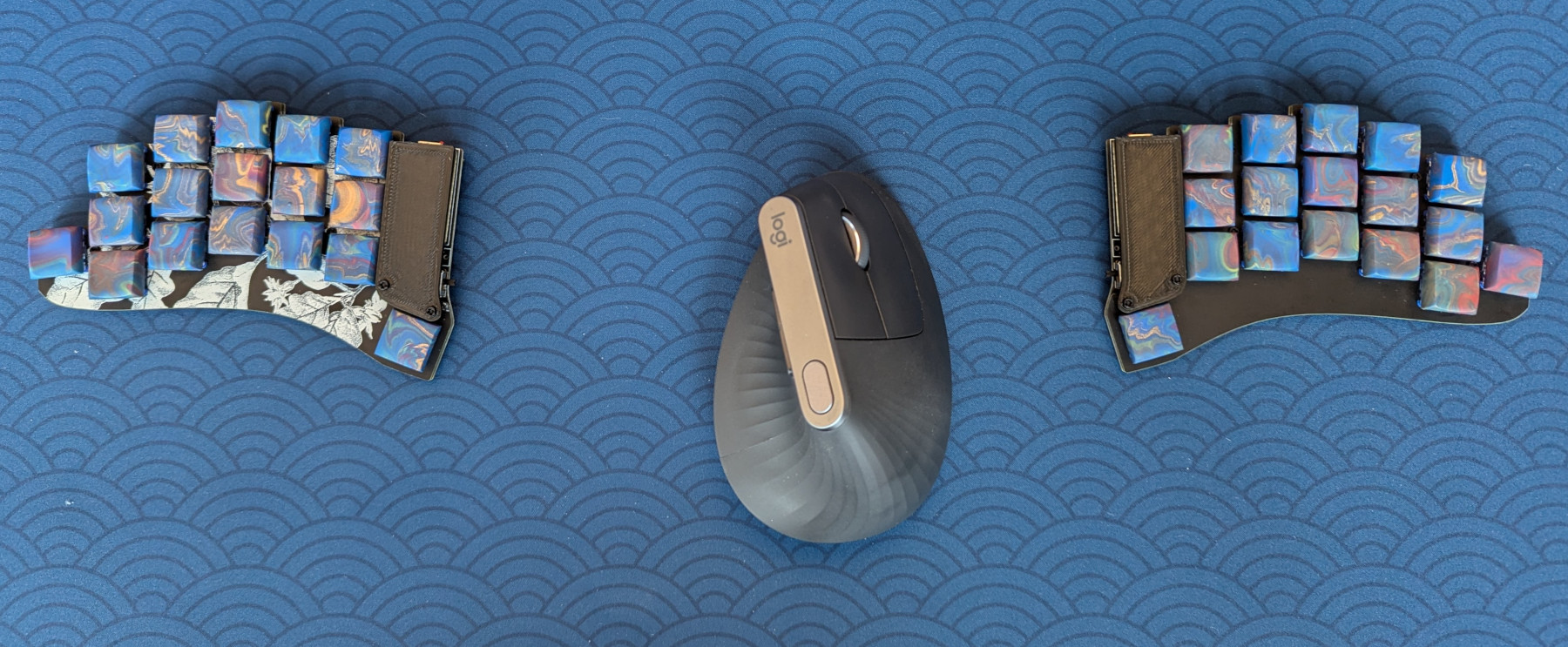

Solanum is a 34-key diodeless split keyboard based around Pro Micro compatible MCU modules. It features support for both wired and wireless builds and has been designed to be easily hand-assembled. The PCB is reversible and hotswap with support for Kailh Choc (v1) switches.
The layout of Solanum differs from the typical 34-key split in that it has only one thumb key, and a reachy pinky key. Nominal key spacing is 19x18mm. All columns features a slight splay; the pinky columns are splayed more aggressively.

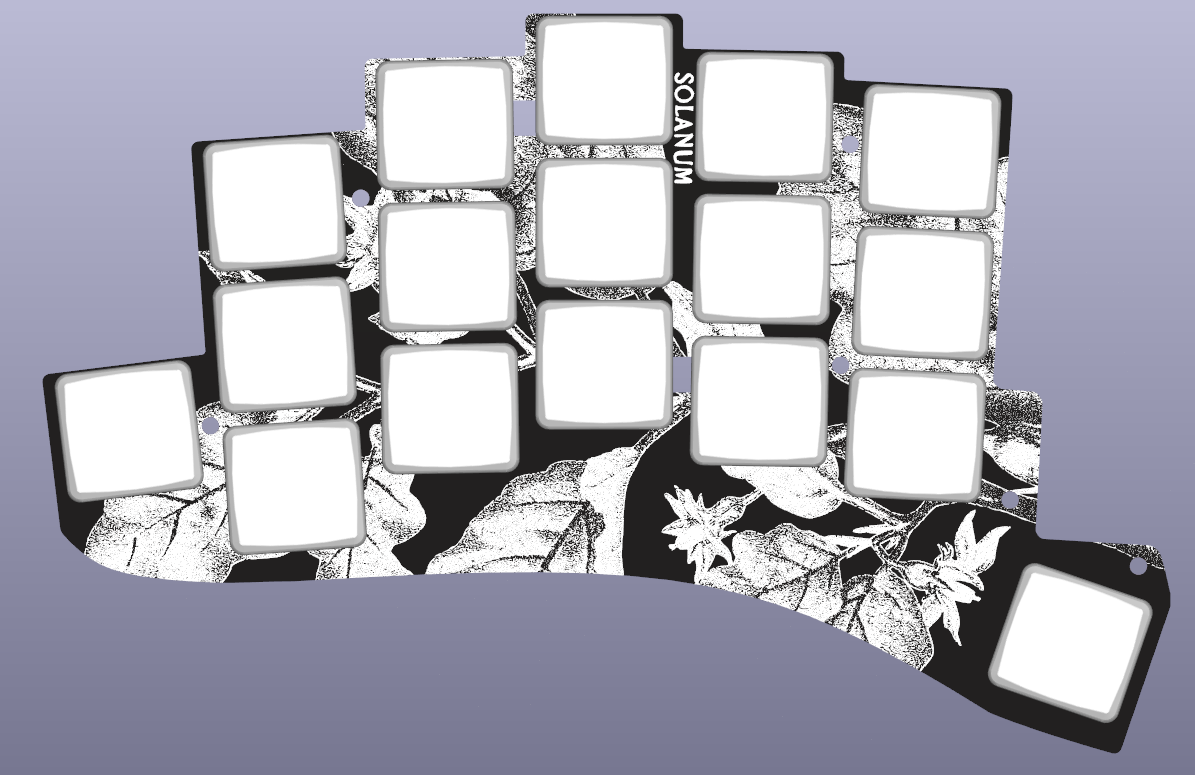

The top face of the switchplate (i.e., the face which is visible on the left hand side of the keyboard) features a botanical illustration of Solanum melongena, the eggplant.

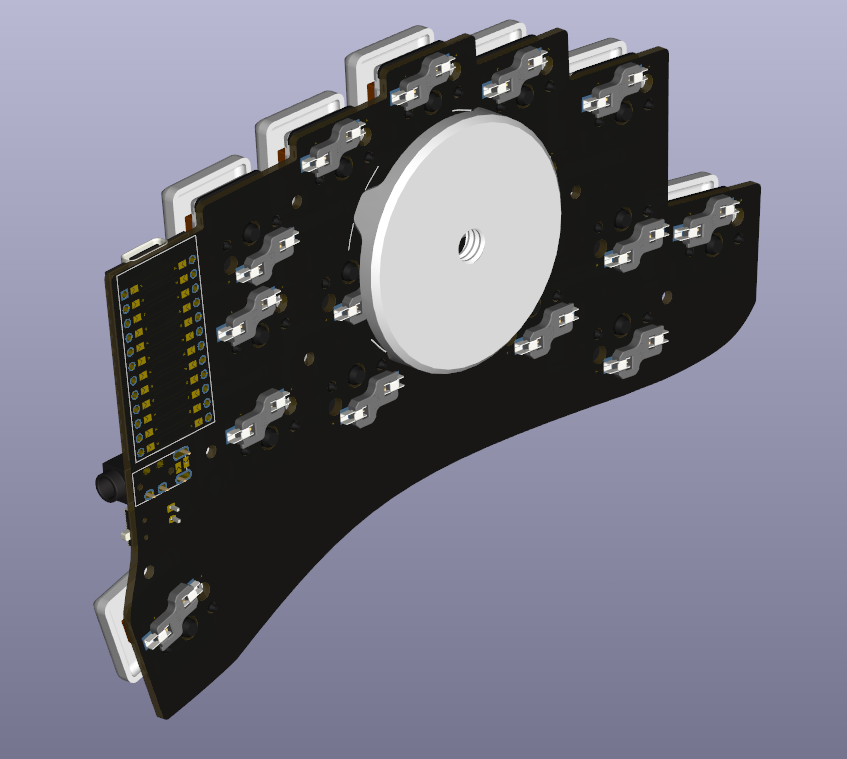

Solanum includes support for a splitkb.com tenting puck

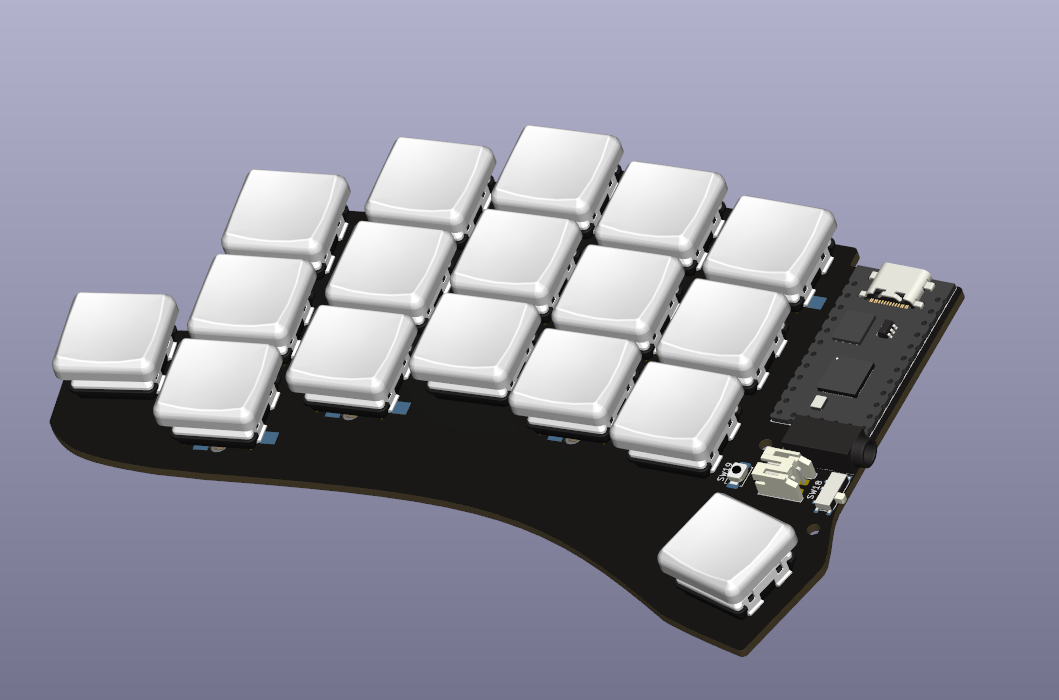

It features a TRRS port for wired builds, and a dedicated battery JST and power switch for wireless builds.
For wired build:
For wireless build:
Optional:
Solanum is provided under the terms of the GPL v3. The following portions are derived from other projects:
