ecgc-hardware

This repo contains all relevant documentation of the cartridge hardware.

The legacy directory contains legacy documentation. This is just a collection of documents I made waaaay back when I was just starting on the project. It is included here just as an archive so I don't plan on updating anything.

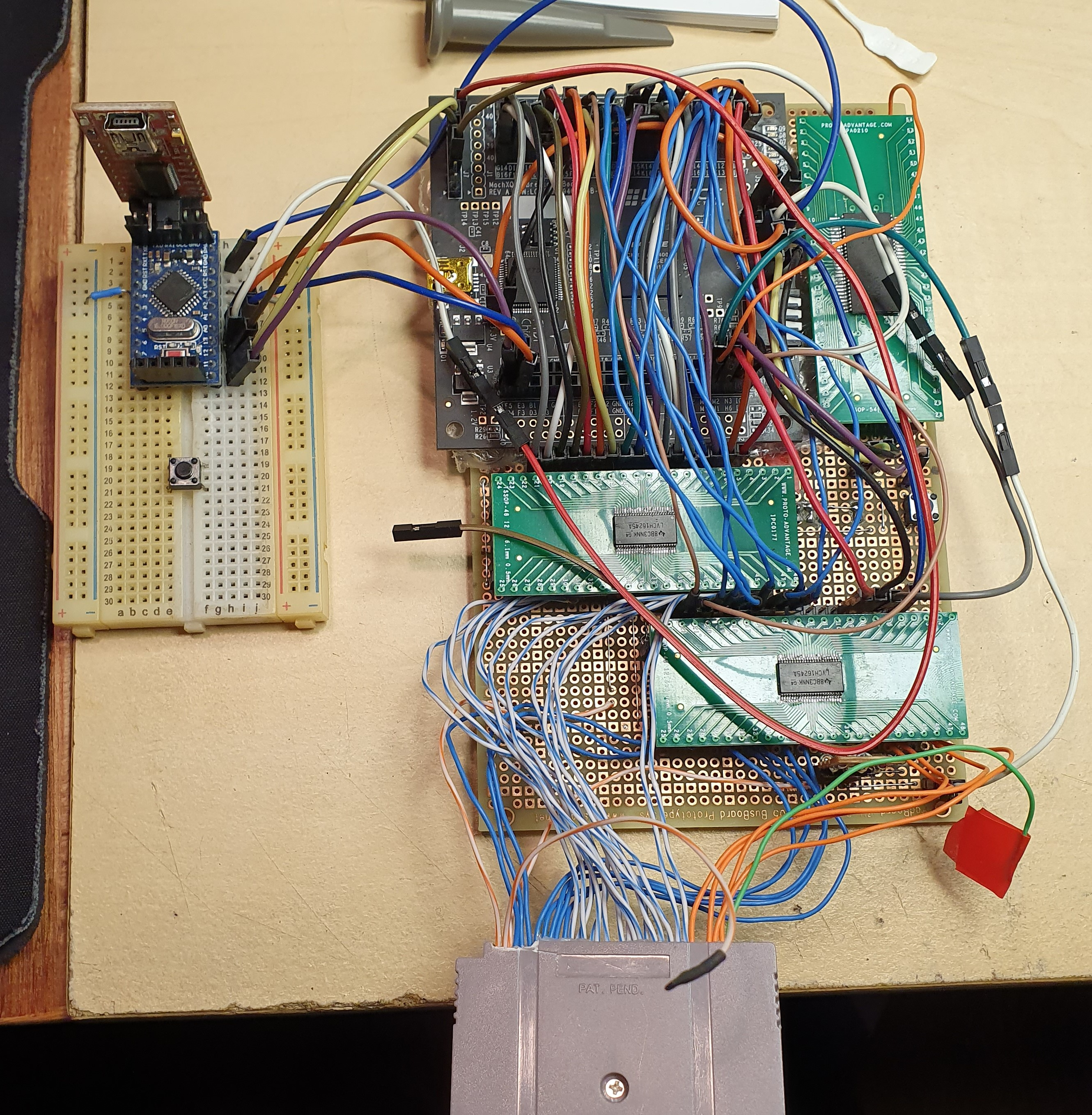

The CartGen3ProtoBoard directory contains the schematics for the first working prototype mentioned at my website. The photograph below is this prototype.

gen3prototype-photo

The CartGen4 directory contains the schematics for the next prototype. I've included some renders of it below.

gen4-render-front
gen4-render-back

Development tools

The tools used to make the schematics is KiCad. It can be used to open the *.kicad_pro file to open the schematic project.
