Barghest Keyboard

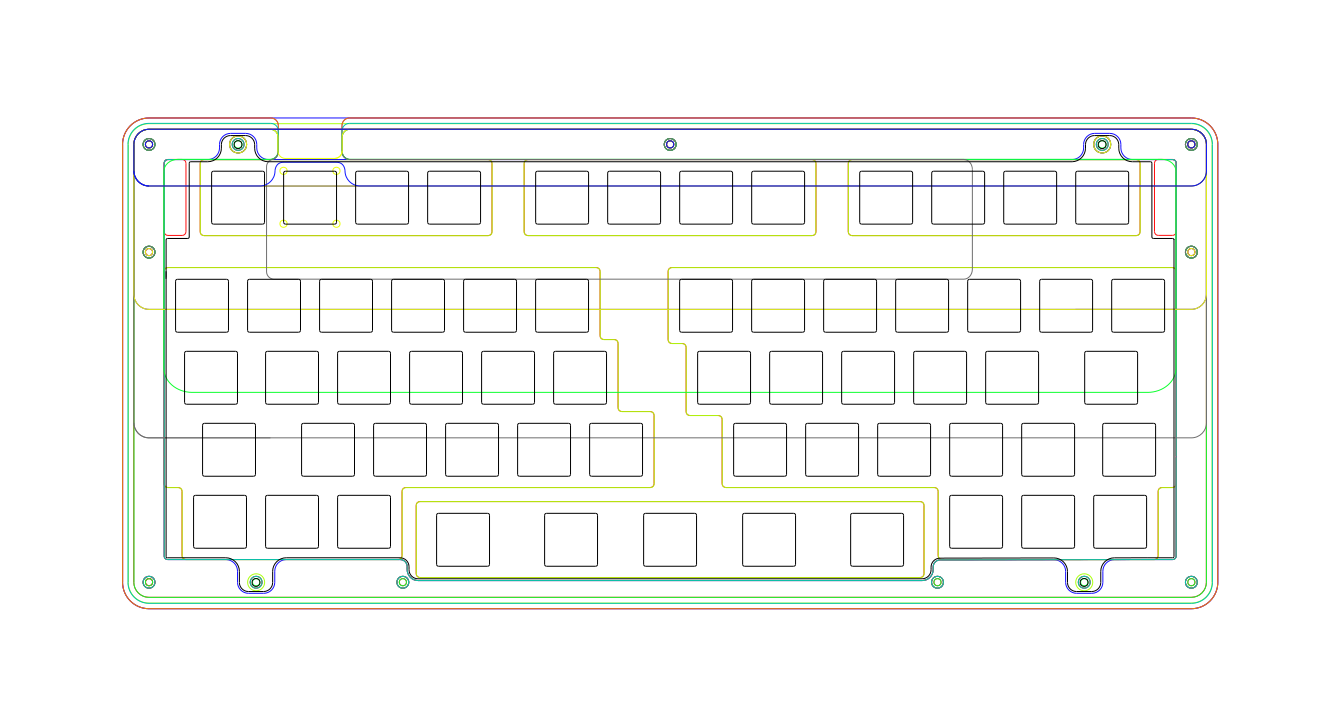

Stacked acrylic keyboard case designed for handwiring with a Waveshare RP2040-Tiny. Iterated from P3D Jake's Hydra Invisibolt case which was designed for MechVault's Hydra PCB. Thanks Jake for allowing me to open source this after I took his Hydra case designed and ruined modified it. Thanks Cain at MechVault for the layout inspiration. If you decide to make one of these then consider donating to Jake's coffee fund.

Feel free to do whatever you want with the files. If you have any questions just ask (Discord username elkinoflop) and if you make one then share a photo with me!

Differences from the original

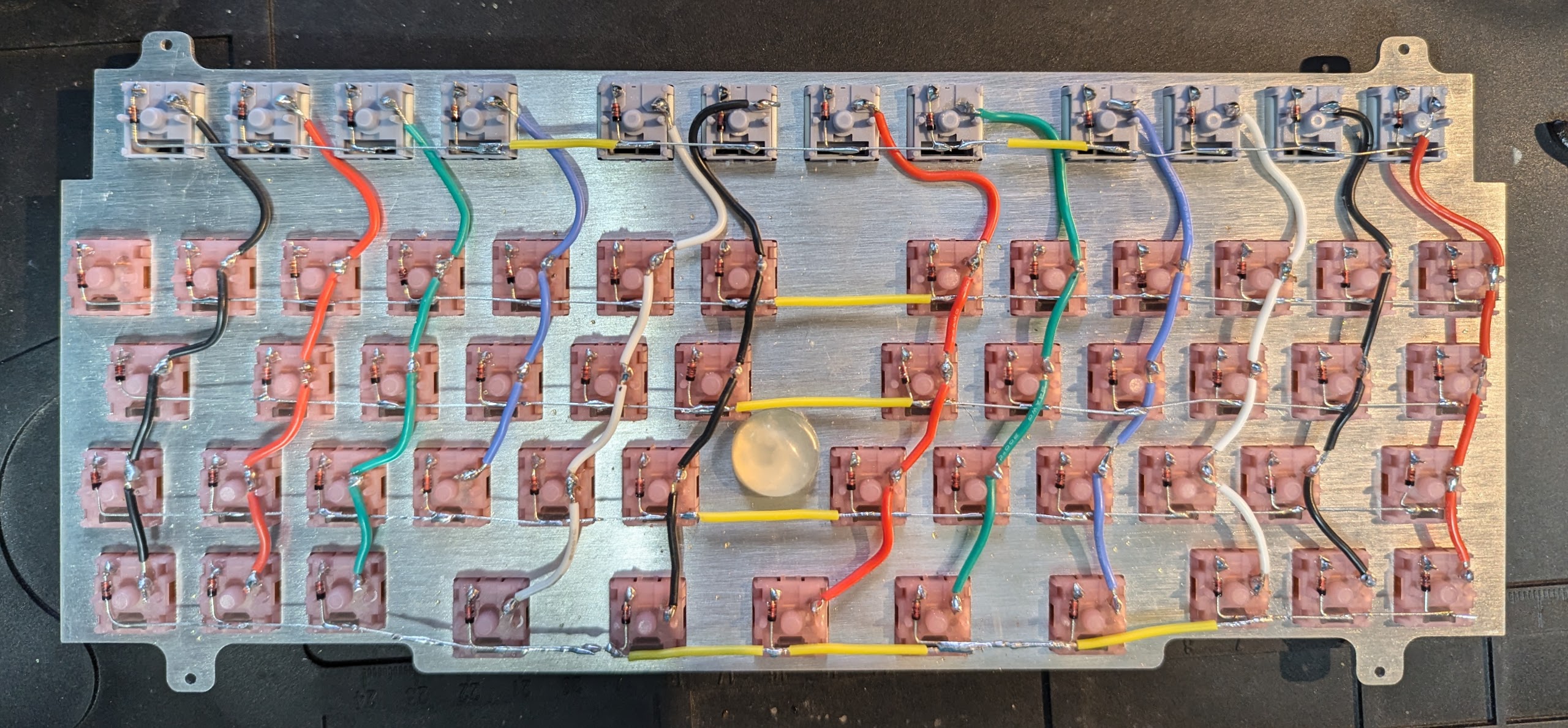

If you have wired up the matrix and connected it to the same controller pins as I have then you should be able to use my firmware. Install Circuit Python onto the controller first and then copy all the unzipped files from 'firmware' onto the drive.
