README

tobor_v00

Tobor (robot spelled backwards), was built to be the most versatile open-source robotics system

Find out more about this project, additional source files will be released here

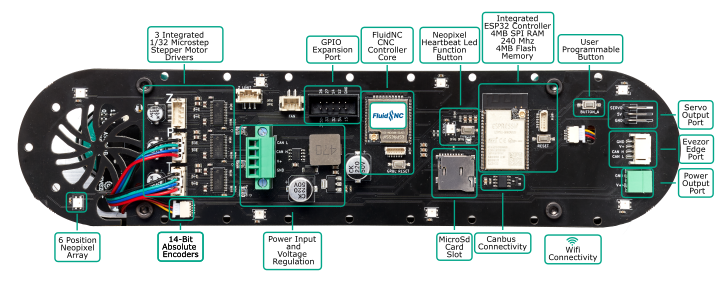

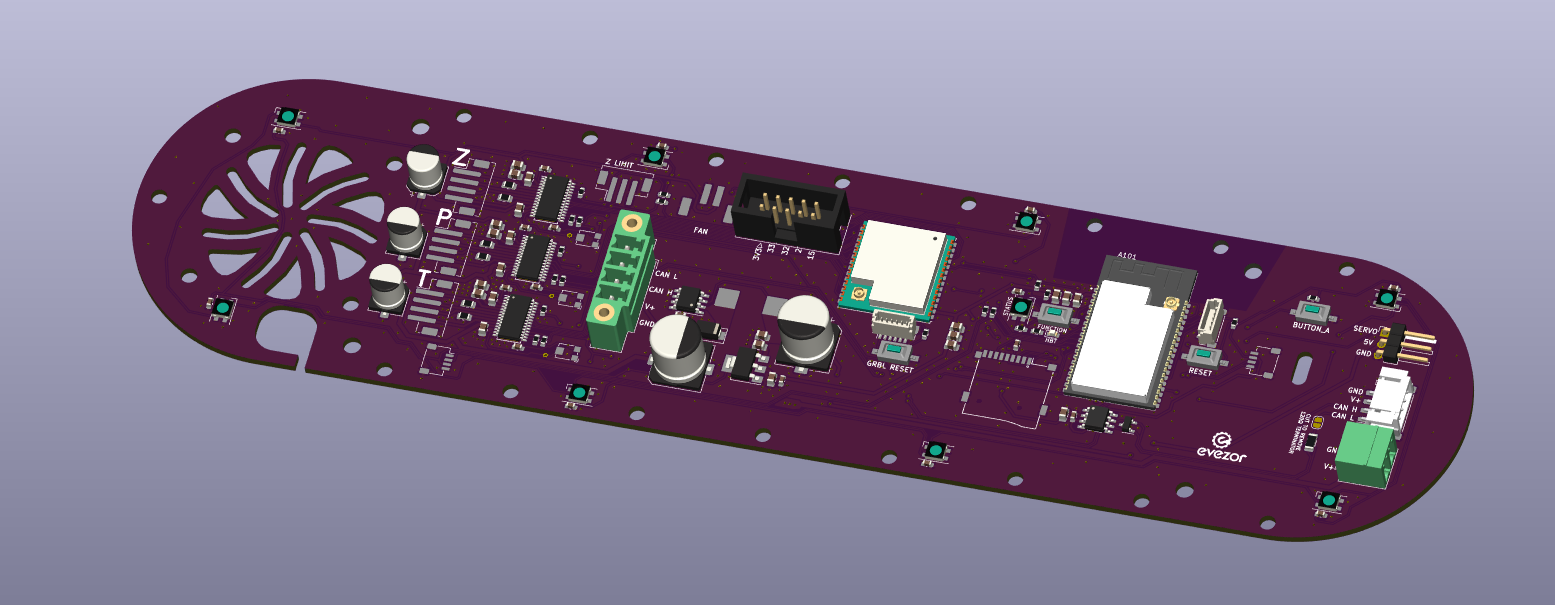

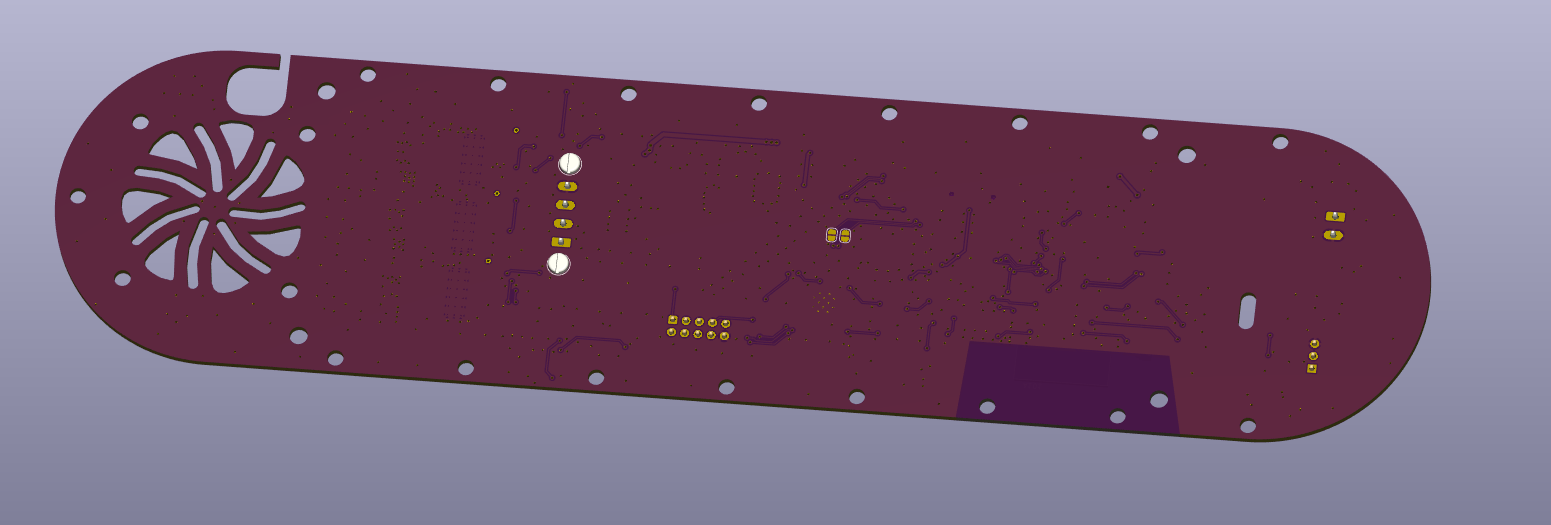

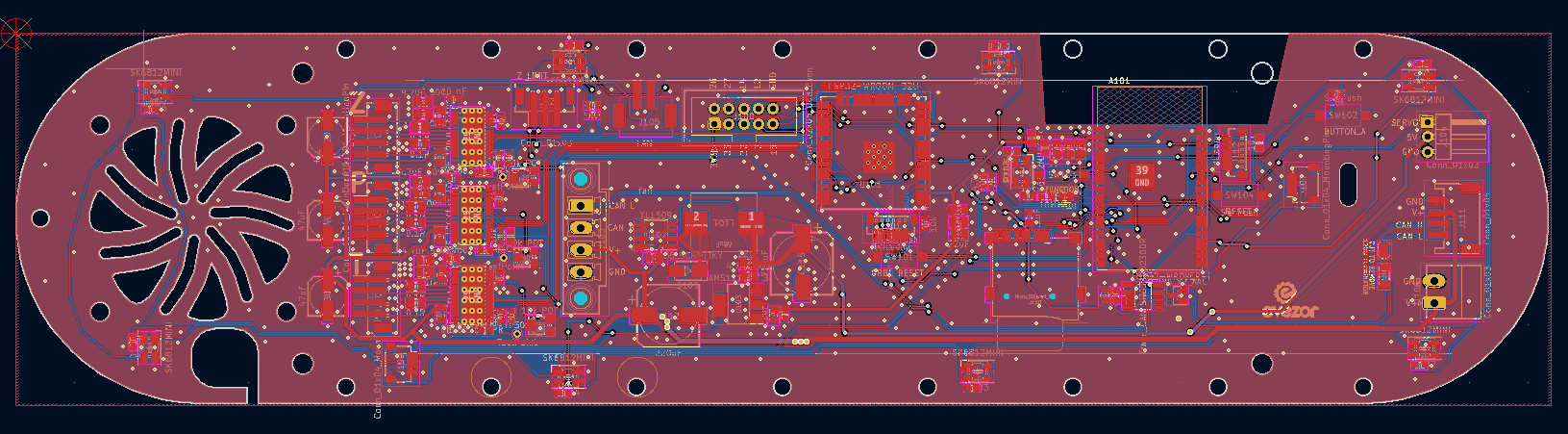

Tobor Robot Arm Features

  • ESP32 microcontroller with 4 MB SPIRAM
    • Runs Micropython
  • 3 DRV8825 stepper motor drivers
  • 2 AS5048B 14-bit absolute encoders
    • Allows for low/no motion homing
    • Collaborative programming
  • 8 position addressable LED ring
    • Can be used to display states of motors or the machine
  • External stepper driver and peripheral port
  • CNC controller powered by Fluid NC with dedicated FTDI and reset switch
  • Micro-SD card slot
  • WiFi enabled
  • CANbus Edge Board Interface
  • Servo header
  • 24 VDC power input
  • 1 user programmable tactile button
  • Reset button
  • FTDI port
  • Edgeboard standards
    • Heartbeat LED
    • Function button
    • Status addressable LED

Find out more about this project, additional source files will be released here
