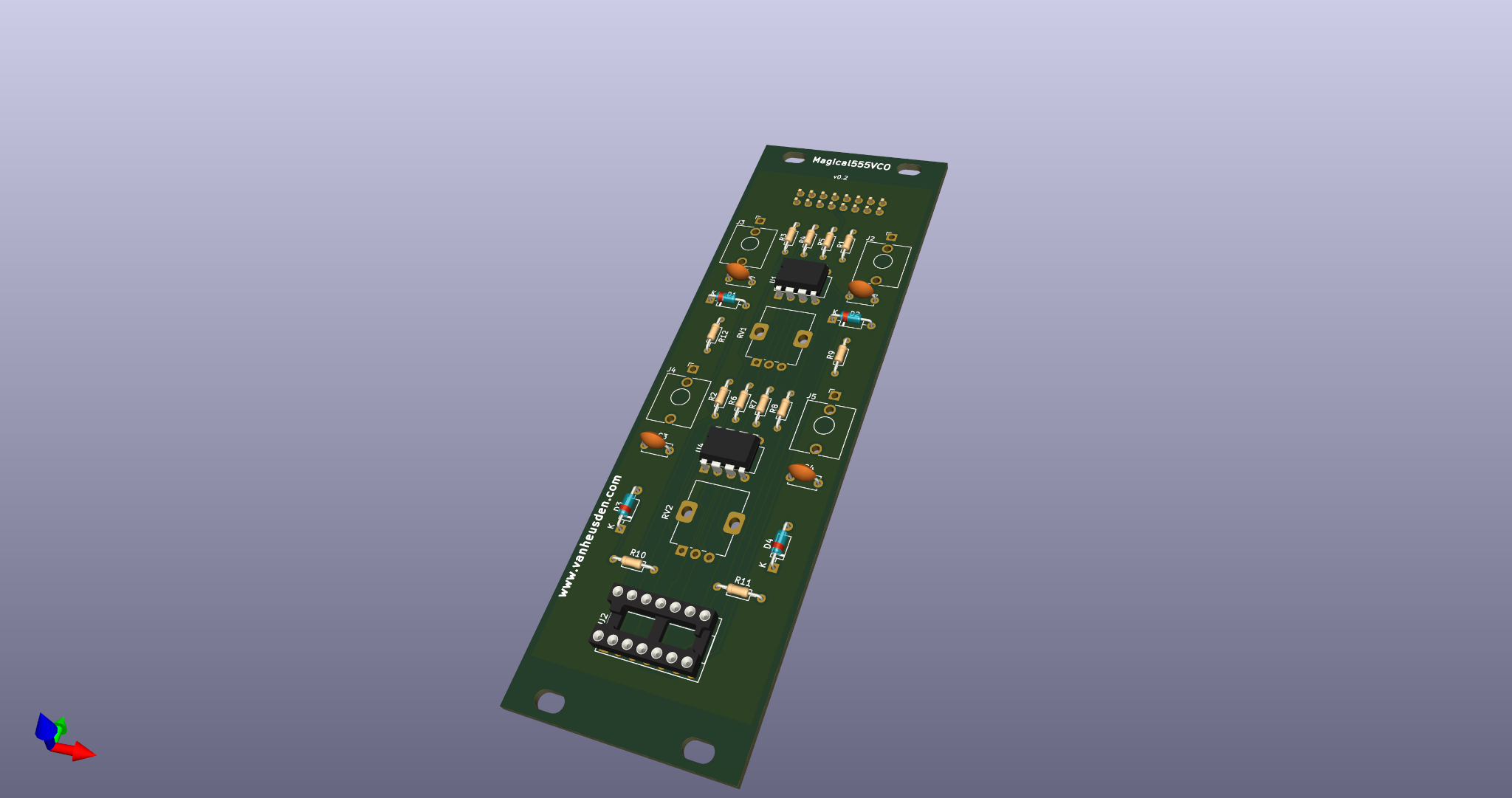

KiCad projectAll 7 files, ready to open in KiCad144 KBSchematic PDFEvery sheet, to read or print85 KB3D modelThe board with its parts, for an enclosure (GLB)3.4 MB
Browse all files

Share magical555vco

Check access before sharing the link.

Who can open this board

Anyone can open this board. No sign-in is required.

https://boardrepo.com/folkertvanheusden/magical555vco

This link opens the latest version. Copying it does not grant additional access.

Loading 3D model… large boards can take a moment.

README

Magical555VCO

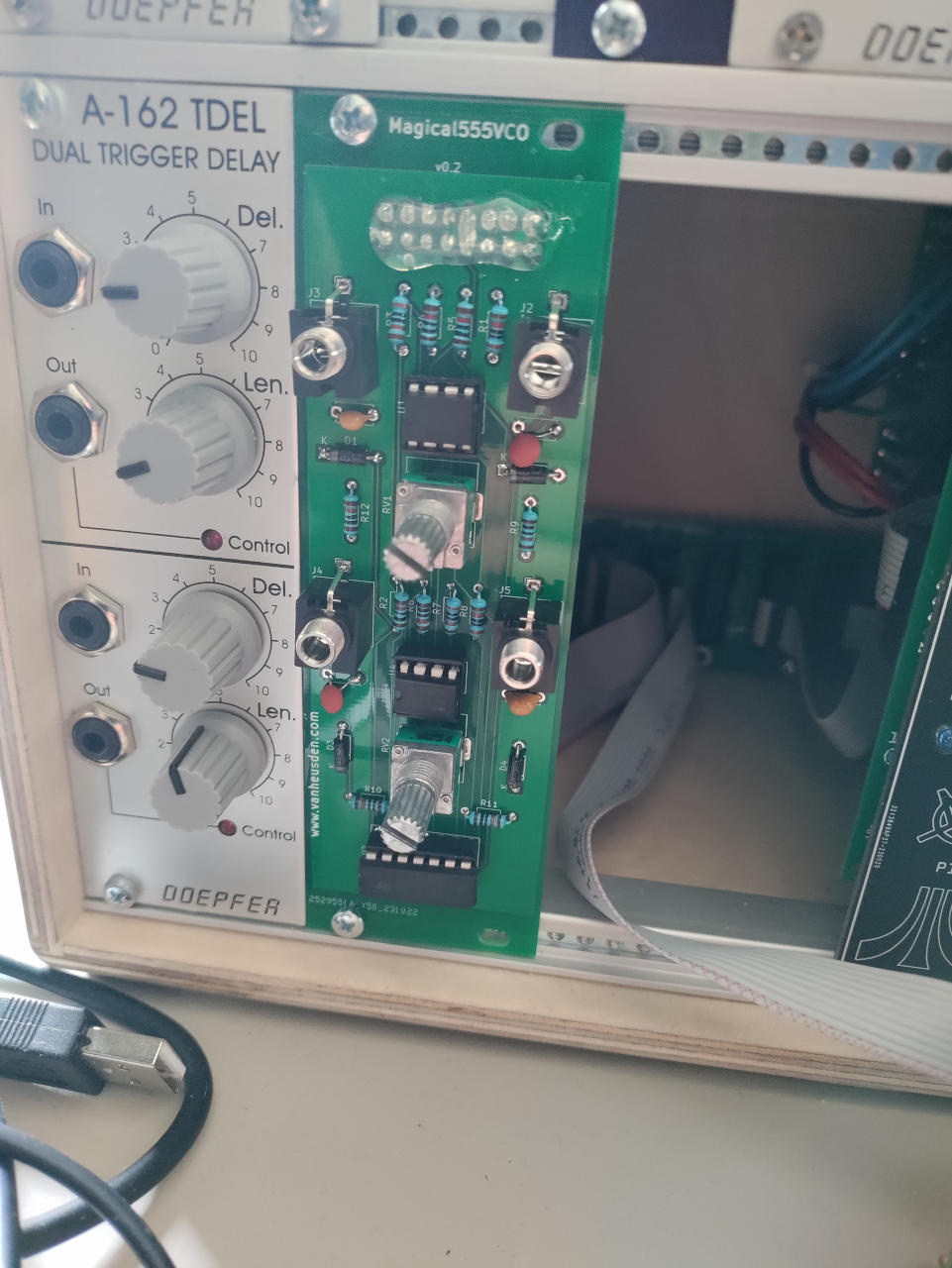

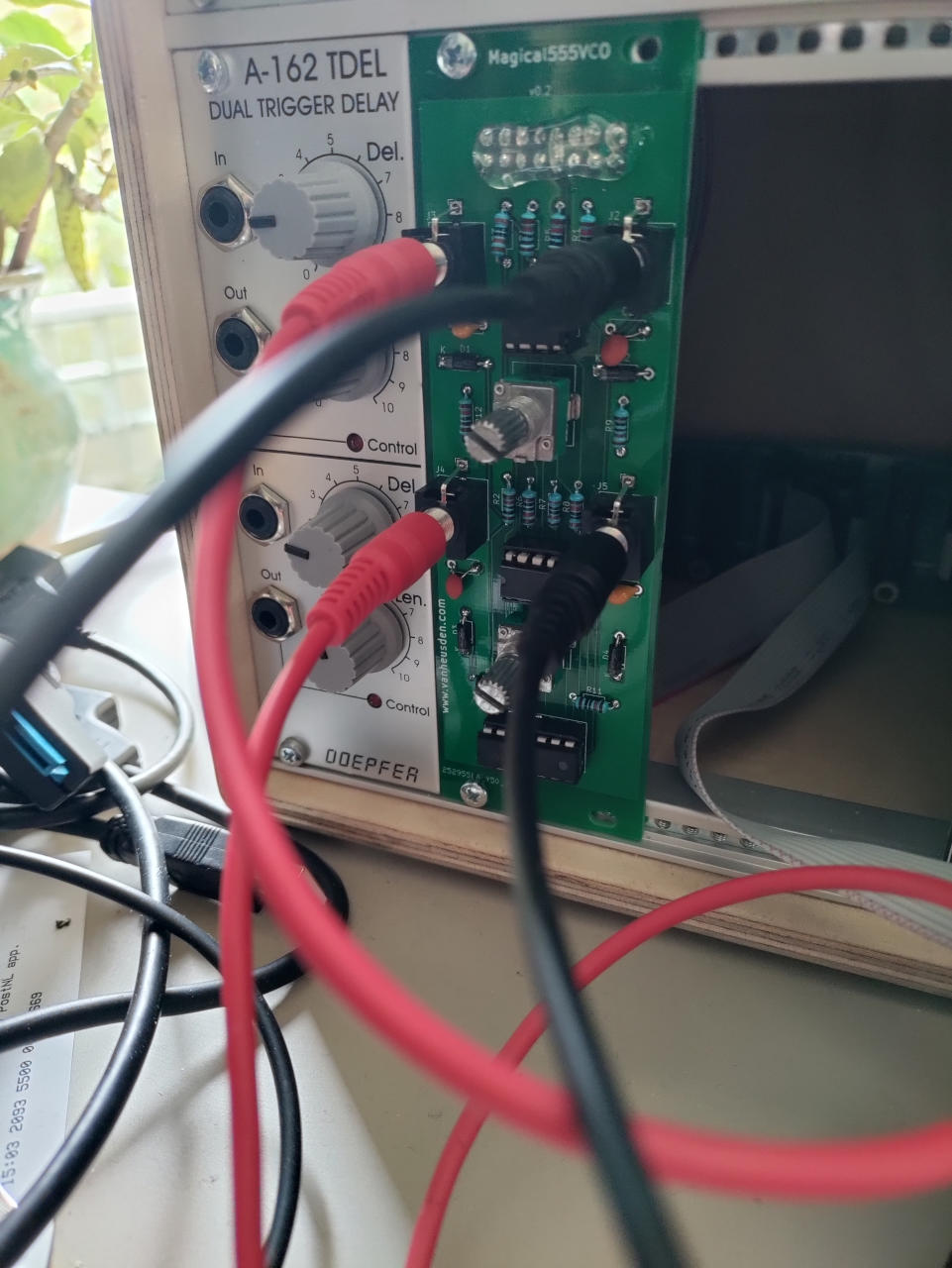

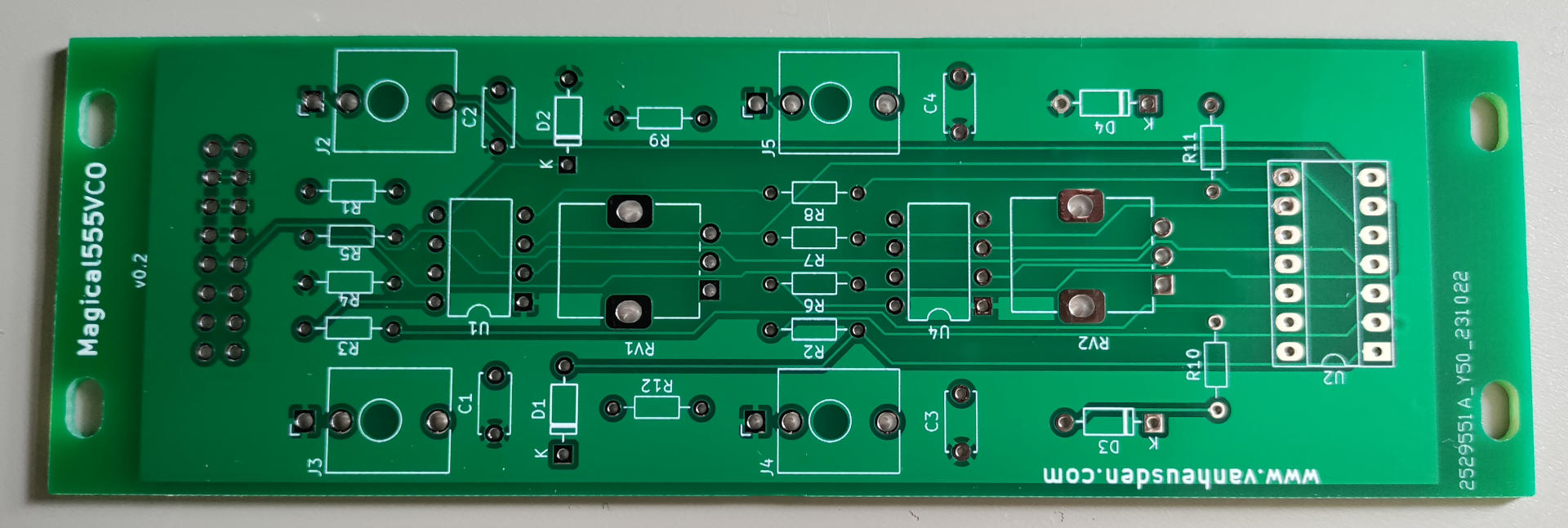

This is a very simple 555 timer based dual VCO. It fits nicely in any eurorack.

Sample output: https://vanheusden.com/permshare/magical555vco-v0.2.flac or listen in your browser at: https://vanheusden.com/electronics/Magical555VCO/audio-player.php

  • schematics are under media/magical555vco.pdf

Folkert van Heusden [email protected]
