PSLab Grove Shield

The Grove shield for the Pocket Science Lab.

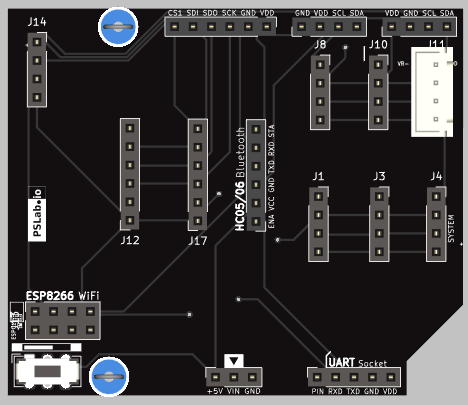

This repository hosts the schematics of the Grove Shield for the Pocket Science Lab open hardware platform (PSLab).

The goal of PSLab is to create an Open Source hardware device (open on all layers) and software applications that can be used for experiments by teachers, students and scientists. Our tiny pocket lab provides an array of instruments for doing science and engineering experiments. It provides functions of numerous measurement tools including an oscilloscope, a waveform generator, a frequency counter, a programmable voltage, current source and even a component to control robots with up to four servos. The website is at: https://pslab.io

The Grove open hardware project was started by Seeed Studio. The goal is to make it easier to connect, experiment, and simplify the prototyping process. No jumpers or soldering required. There are more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs. The documentation for Grove shields is here: https://wiki.seeedstudio.com/Grove/

Buy

• You can get a Pocket Science Lab device from the FOSSASIA Shop. The PSLab Grove shield will be available here in future as well.
• More resellers are listed on the PSLab website.

Communication

• Please also join us on the PSLab Mailing List.

Content of Repository

• /docs: Supplement materials, schematics as PDFs, images of PSLab
• /schematics: PCB layout of device

Hardware Specifications

• [to be added]

Development Platform

• [to be added]

Features

• Grove pins
• Connect sensors easily

Parts List

• [to be added]

Dependencies

The shield needs the Pocket Science Lab hardware.

License

The library is free and open source software licensed under the Apache v2.0. The copyright is owned by FOSSASIA.
