Electrical CAD Files for the LMN-3 Project

README

LMN-3-ECAD

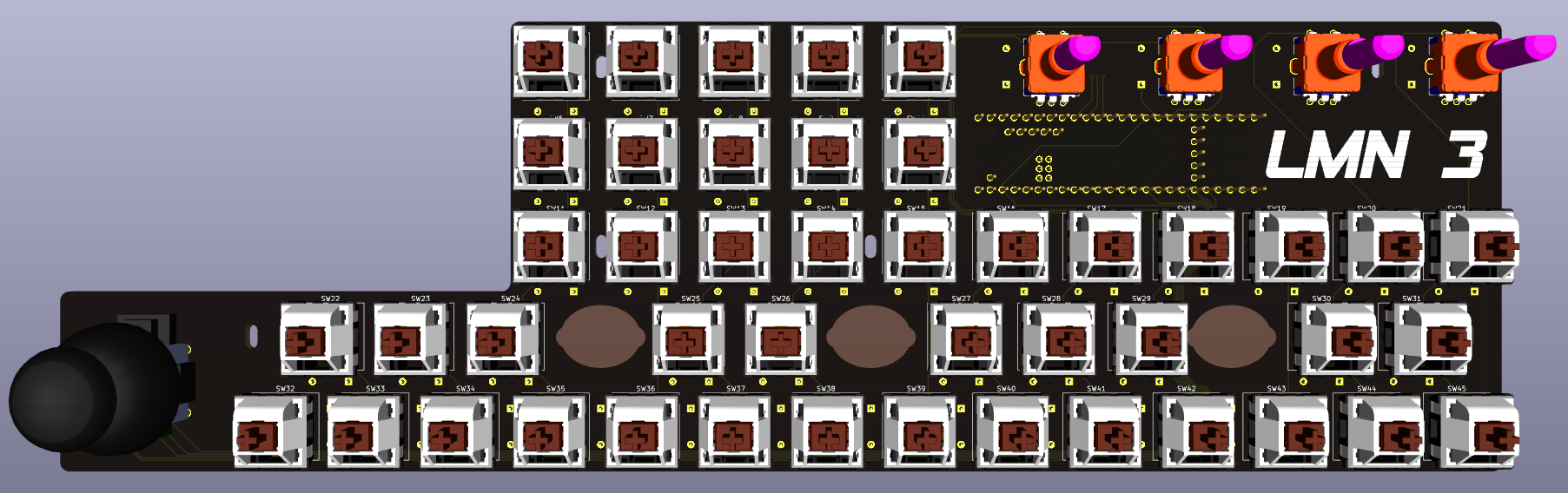

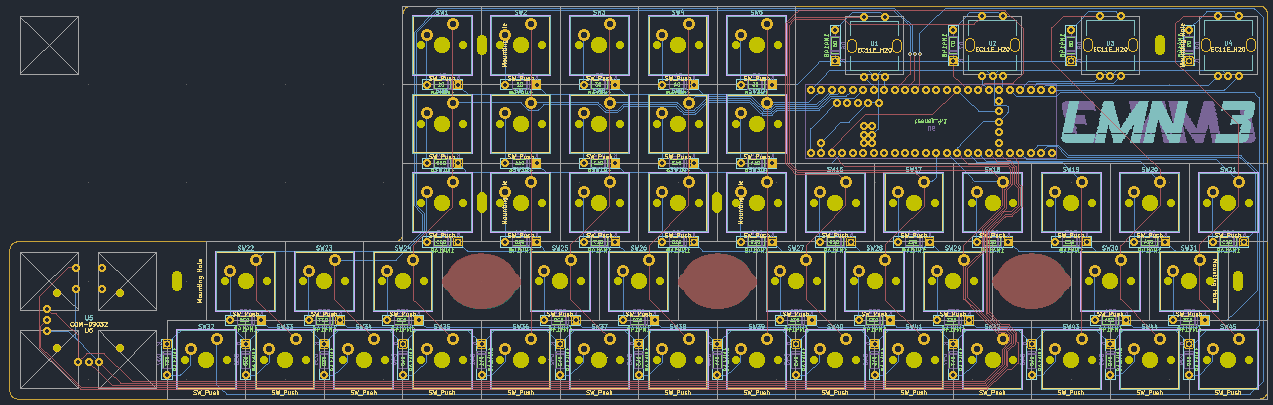

This repository contains the KiCad 6 project files for the LMN-3 PCB.

If you would like to support the project, please consider becoming a sponsor.

Bill of Materials

Description	Model	Quantity	URL
Diode	1N4148	49	https://www.amazon.com/McIgIcM-1n4148-switching-Standard-Through/dp/B06XB1R2NK
Rotary Encoder	EC11	4	https://www.amazon.com/WayinTop-Encoder-Potentiometer-Electronics-Projects/dp/B08728K3YB?psc=1
Switch	5 pin mechanical keyboard switch	45
Joystick	COM-09032	1	https://www.sparkfun.com/products/9032
Microcontroller	Teensy 4.1	1	https://www.pjrc.com/store/teensy41.html
Arduino Header Strip		2	https://www.amazon.com/gp/product/B07PKKY8BX?psc=1

Gerbers

Gerber files are available here if you would like to have a board house manufacture the PCB.

Thanks

This project would not be possible without the following free and open source projects:

• KiCad
• Keyswitch Kicad Library

Sources for Footprints, Symbols, 3-D Models, and Other Resources

Encoders (Alps EC11E09244AQ)

• Product Page
• Datasheet and Mechanical Drawing
• 3-D Model

Teensy 4.1

• Product Page
• 3-D Model

Thumbstick (SparkFun COM-09032)

• Product Page
• Datasheet
• 3-D Model
• Eagle Library

Keyboard Switches (Keyswitch Kicad Library)

• Footprints, Symbols, and 3-D Models

License

Licensed under the CC-by-SA 4.0 license.
