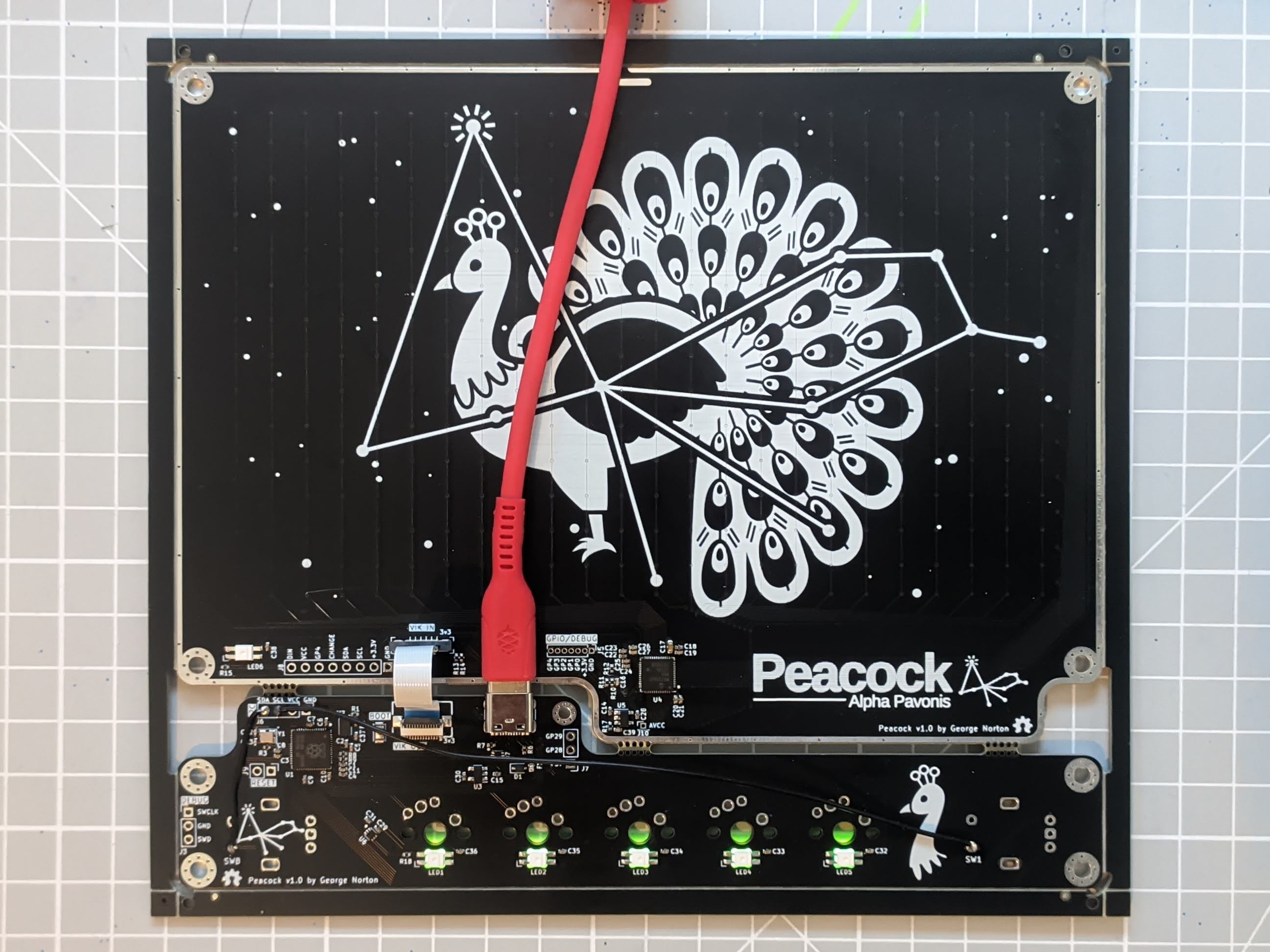

Peacock is an RP2040 powered trackpad running QMK. It features an integrated Microchip MaxTouch sensor IC which is connected to a 7" capacitive sensor. I also designed some little trackpads which you can integrate into your own keyboards, see Procyon.
The Ploopy trackpad is like a more polished Peacock, with a higher resolution sensor. It runs code build from the same QMK/ZMK branches, and is easier to buy.

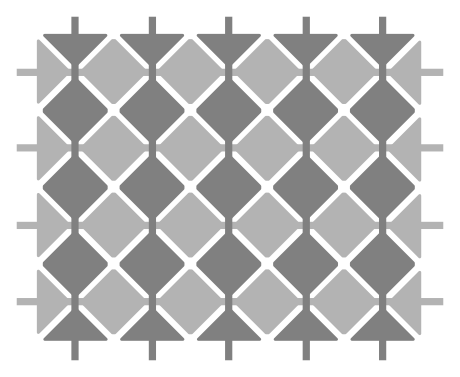

The capacitive sensing IC is wired to a grid of diamond shaped electrodes. The diamonds are connected to form rows and columns. The IC scans the matrix by applying a small voltage to the rows in turn, and then measuring voltage on the columns. Any conductive objects nearby (like your finger) will distrupt the electrical field and can be detected.

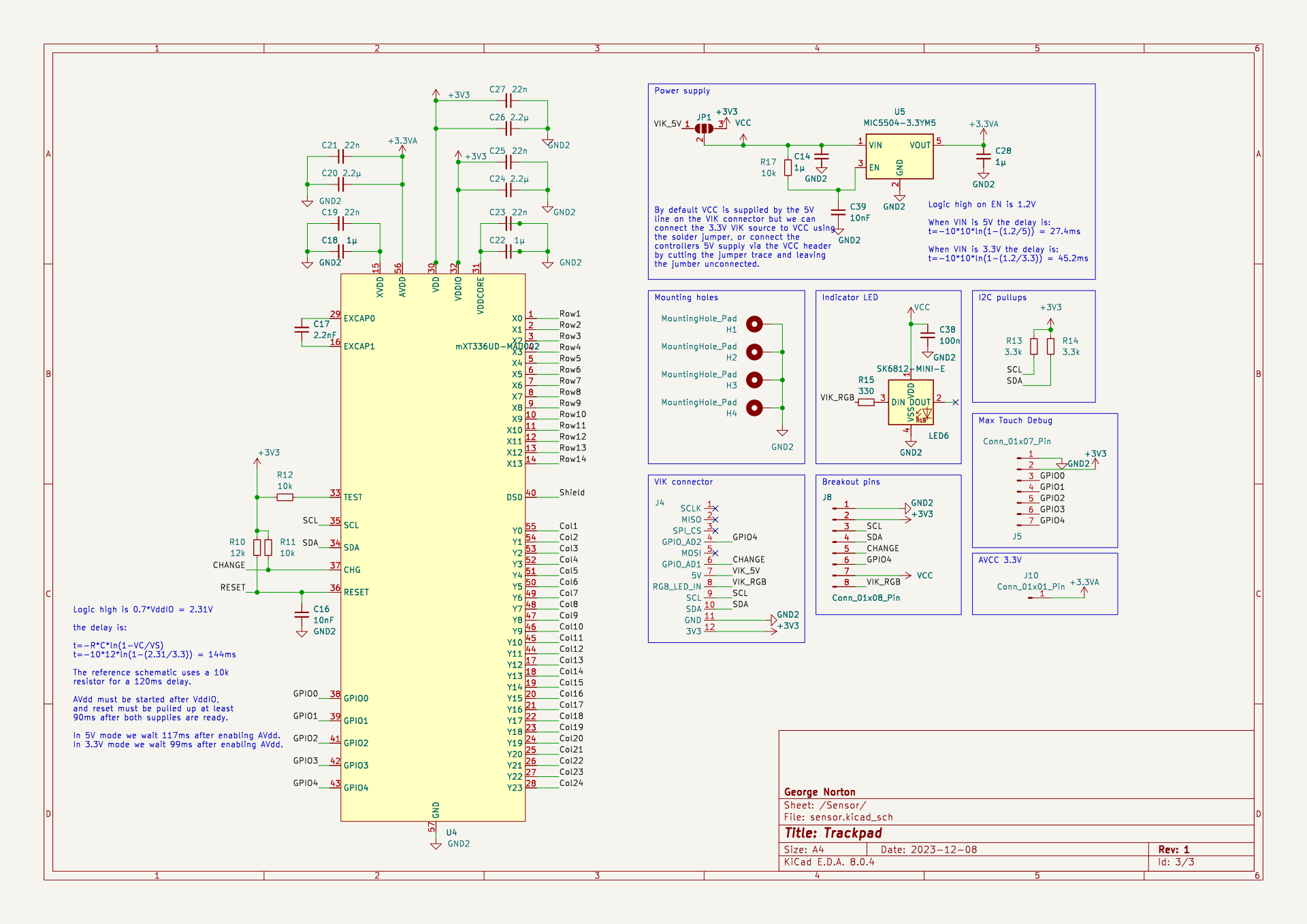

The mXT336UD-MAU002 sensor IC used in this design is in fact a touchscreen controller rather than a trackpad controller. I have chosen to use a touchscreen controller as they tend to be designed for much larger sensor areas than touchpad controller. This sensor can:
Currently there are experimental QMK and ZMK branches with Peacock support.
The QMK multitouch_experiment branch exteneds the QMK digitizer feature to implement real trackpad support. On this branch, the MaxTouch driver reports 5 separate finger positions to the host and it detects gestures. You should get all the same gesture support you would expect from a modern trackpad. This branch is a large changeset which will likely take some time to get merged into QMK. There are some pre-built QMK firmware images in my userspace.
The ZMK Maxtouch module builds against Petes feat/pointers-move-scroll-ptp ZMK branch. It is currently missing LED support, and fallback to mouse emulation (so no MacOS support).
The sensor sensitivity may require tuning depending on the type of surface you use on your build. This can be done by adjusting the touch threshold, and if required the transmit gain. If your sensor is not detecting touches well, reduce the touch threshold. If your sensor is jittery, or is detecting spurious touches increase the touch threshold, or if there is any ungrounded metal by the sensor, move it. Increasing the transmit gain will require a larger touch threshold, but it should enable you to use thicker overlays and it will give you more room to adjust the touch threshold.
The mouse emulation gestures are implemented in software, they rely on various parameters that can be tuned by defining macros.
If you flash the QMK debug firmware, you can use the Maxtouch debug tool to adjust the sensor tuning in real time and see how it works.
To build a Peacock you will need:
Use the gerbers files in the releases, most options are not critical although a thicker PCB is probably best so it does not flex too much when you press against the sensor. I have tested with 1.6mm thickness, lead free HASL from JLCPCB.
The sensor IC is not available from LCSC, you will need to use JLCPCB's global parts sourcing service to order chips from Digikey, the digikey part number is 150-ATMXT336UD-MAU002-ND, expect a lead time of 1-2 weeks. You may also find the flash memory and LED parts go in and out of stock, so it might also be worth preordering those. The LEDs are optional, if the are not available you can always hand solder some at a later time.

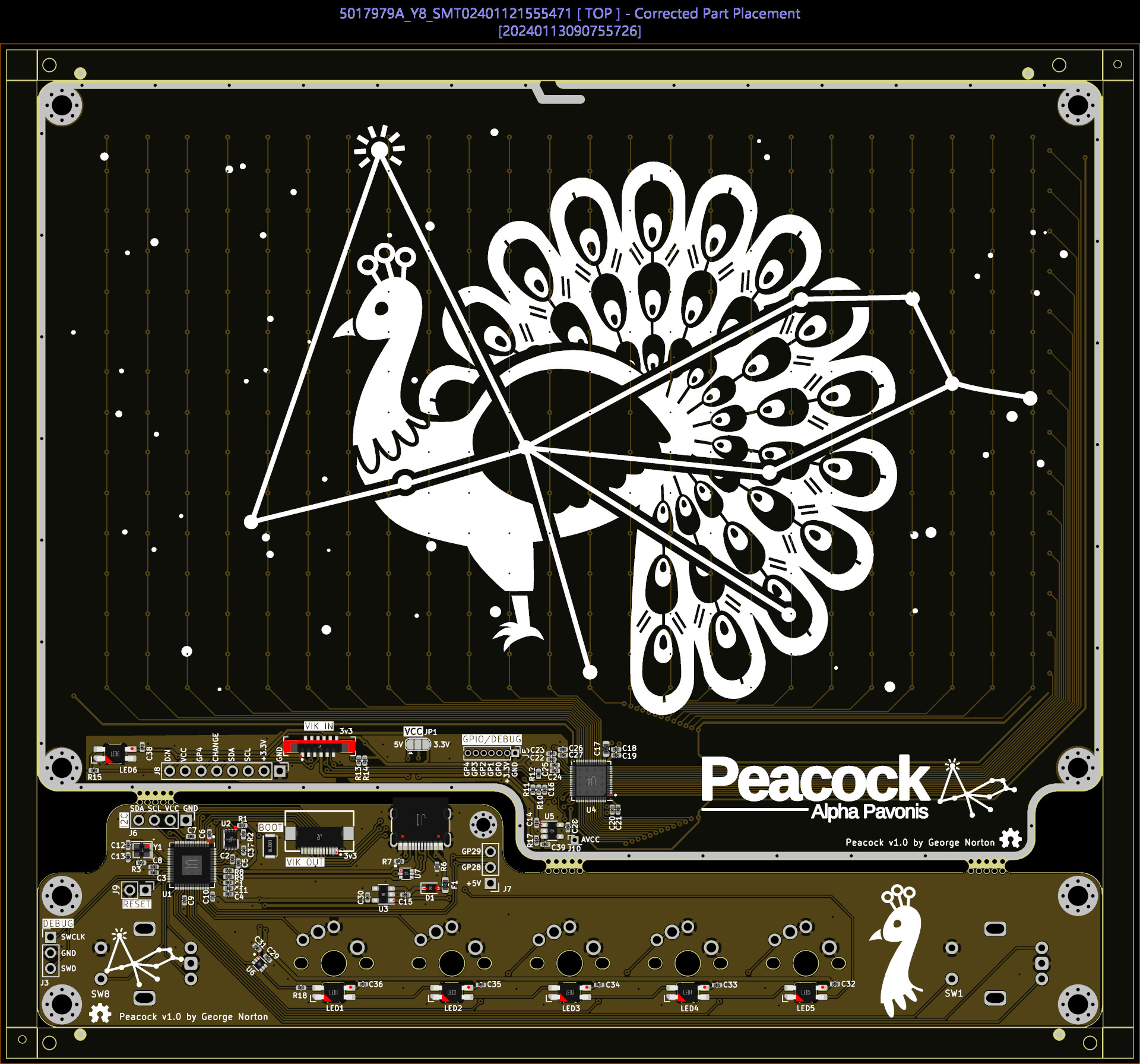

You can see the correct part orientation here, when ordering ensure that all parts are correctly rotated:
The v1.0 release has been tested and it works, but there is an issue with the I2C pin allocation. As a result it requires two additional bodge wires, and the encoder switches will not work.
The v1.01 release has the issue fixed, you should order this version.

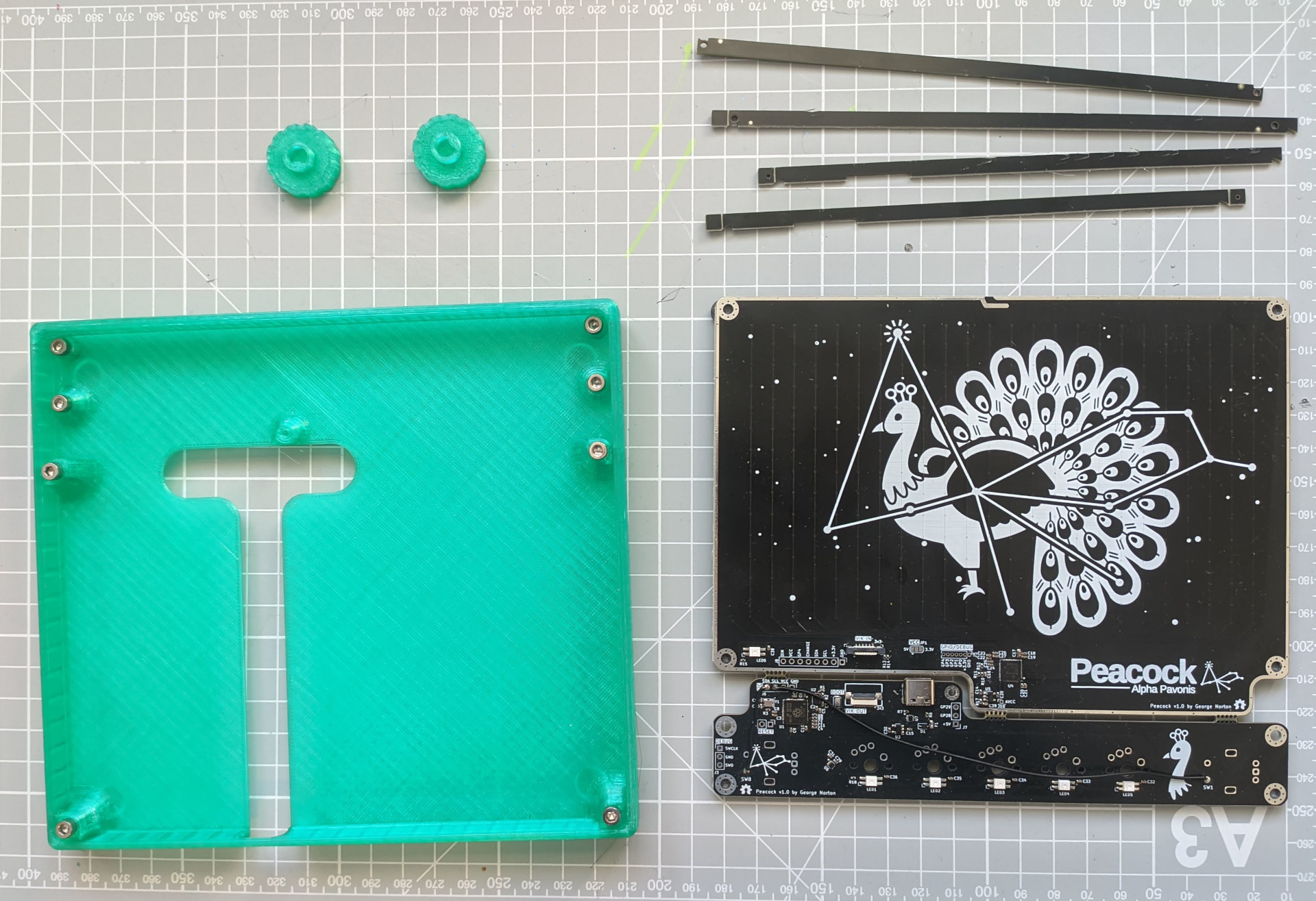

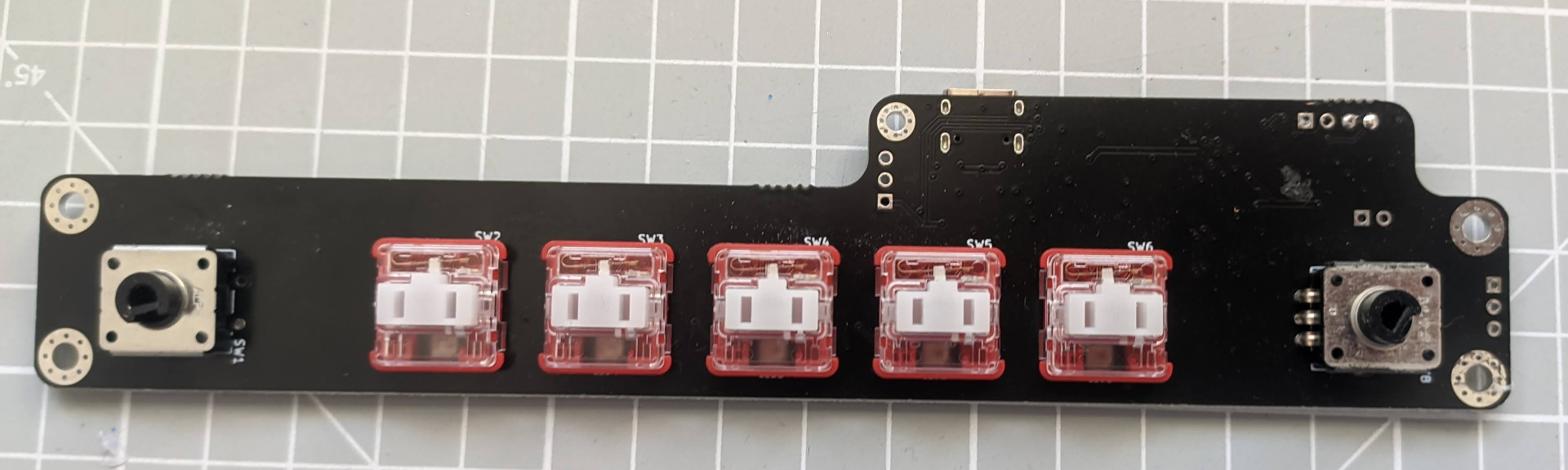

Assembly is simple as the majority of the work is done by the manufacturer. You will need to:

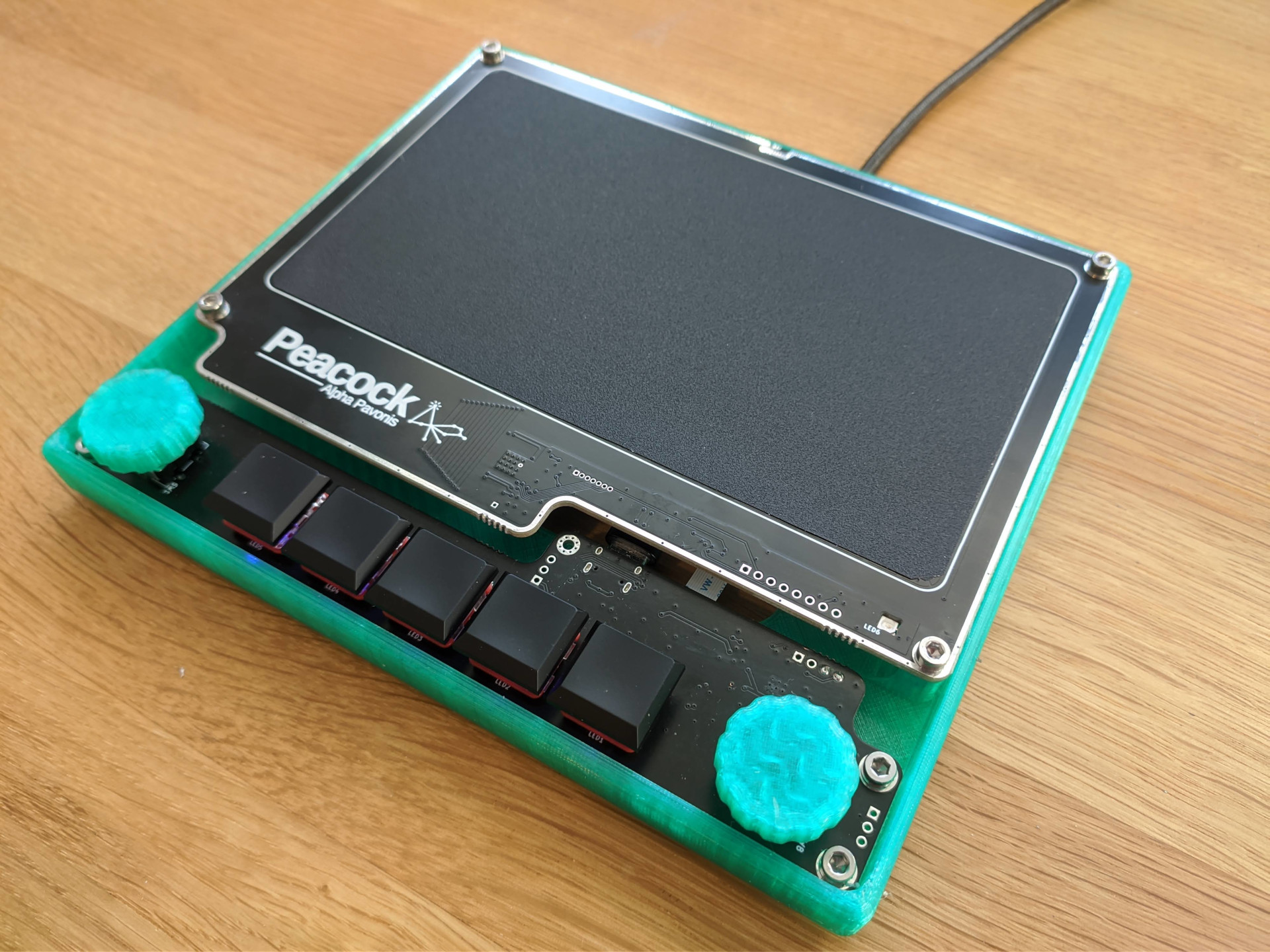

If you build a Peacock, please post a picture in the show and tell.
Peacock support has not yet been merged back to QMK. You can find a branch with pointing device support here or the multitouch branch here Note, this branch currently does not work with MacOS.

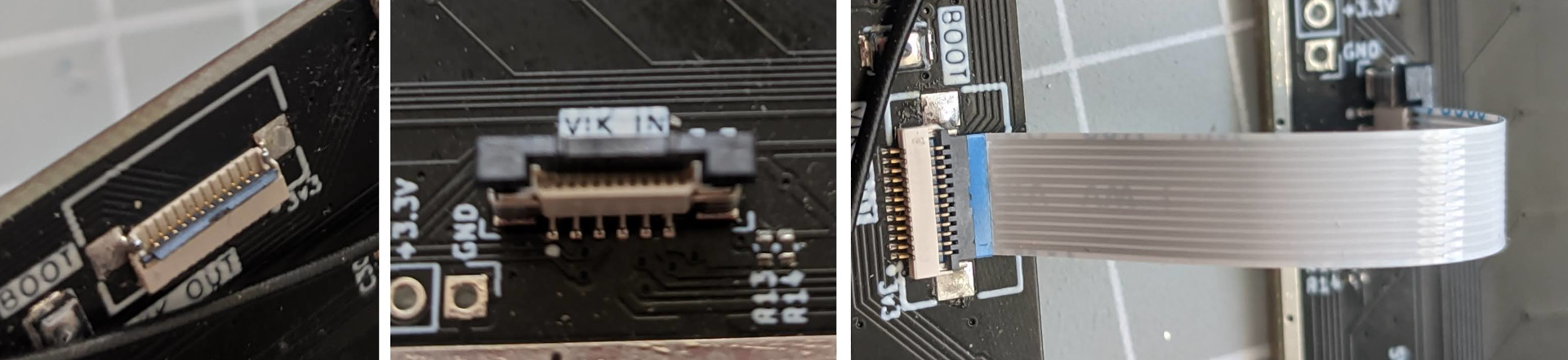

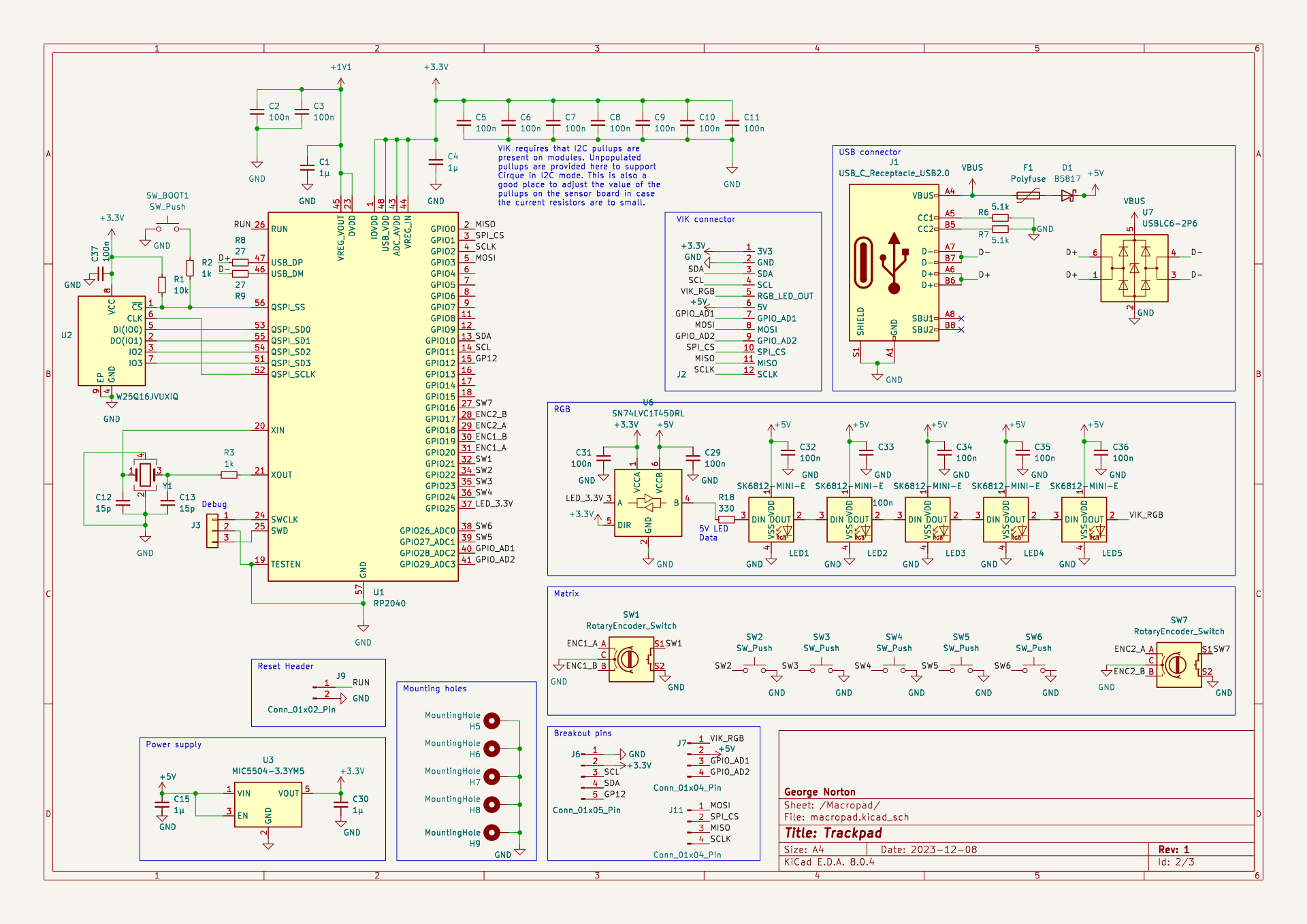

This trackpad is a VIK device, so you should be able to discard the controller portion of the build and wire the trackpad directly to a different VIK enabled controller (such as those sold by fingerpunch and splitkb). You could also replace the controller board with one of your own design.
Trackpad module
| Category | Classification | Response |
|---|---|---|
| FPC connector | Required | :heavy_check_mark: |
| Breakout pins | Recommended | :heavy_check_mark: |
| Uses: SPI | Optional | :x: |
| SPI used for SPI only | Strongly recommended | N/A |
| Uses: I2C | Optional | :heavy_check_mark: |
| I2C used for I2C only | Strongly Recommended | :heavy_check_mark: |
| I2C pull ups | Required | 3.3k |
| Uses: RGB | Optional | :x: |
| Uses: Extra GPIO 1 | Optional | :heavy_check_mark: |
| Uses: Extra GPIO 2 | Optional | :x: |
| Standard PCB Size/Mount | Strongly recommended | :x: |
Peacock controller
| Category | Classification | Response |
|---|---|---|
| FPC connector | Required | :heavy_check_mark: |
| Breakout pins | Recommended | :heavy_check_mark: |
| Supplies: SPI | Required | :heavy_check_mark: |
| Supplies: I2C | Required | :heavy_check_mark: |
| I2C on main PCB | Discouraged | :x: |
| I2C pull ups | Informative | N/A |
| Supplies: RGB | Required | :heavy_check_mark: |
| Supplies: Extra GPIO 1 | Required | Analog/Digital |
| Supplies: Extra GPIO 2 | Required | Analog/Digital |
