Remote Relays Board

README

Electra

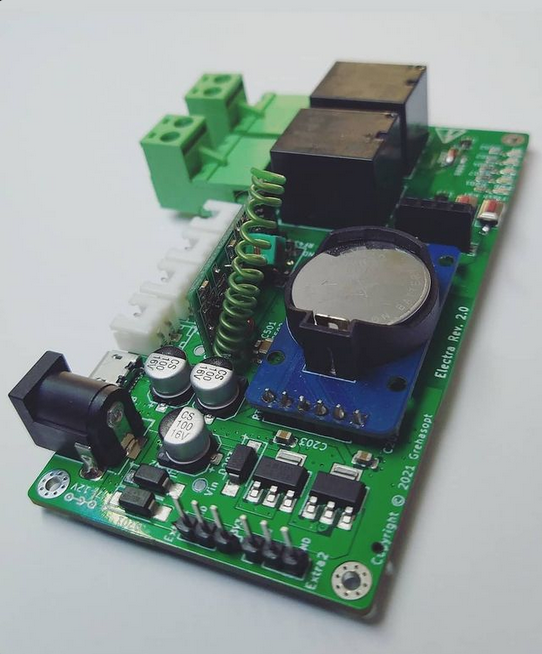

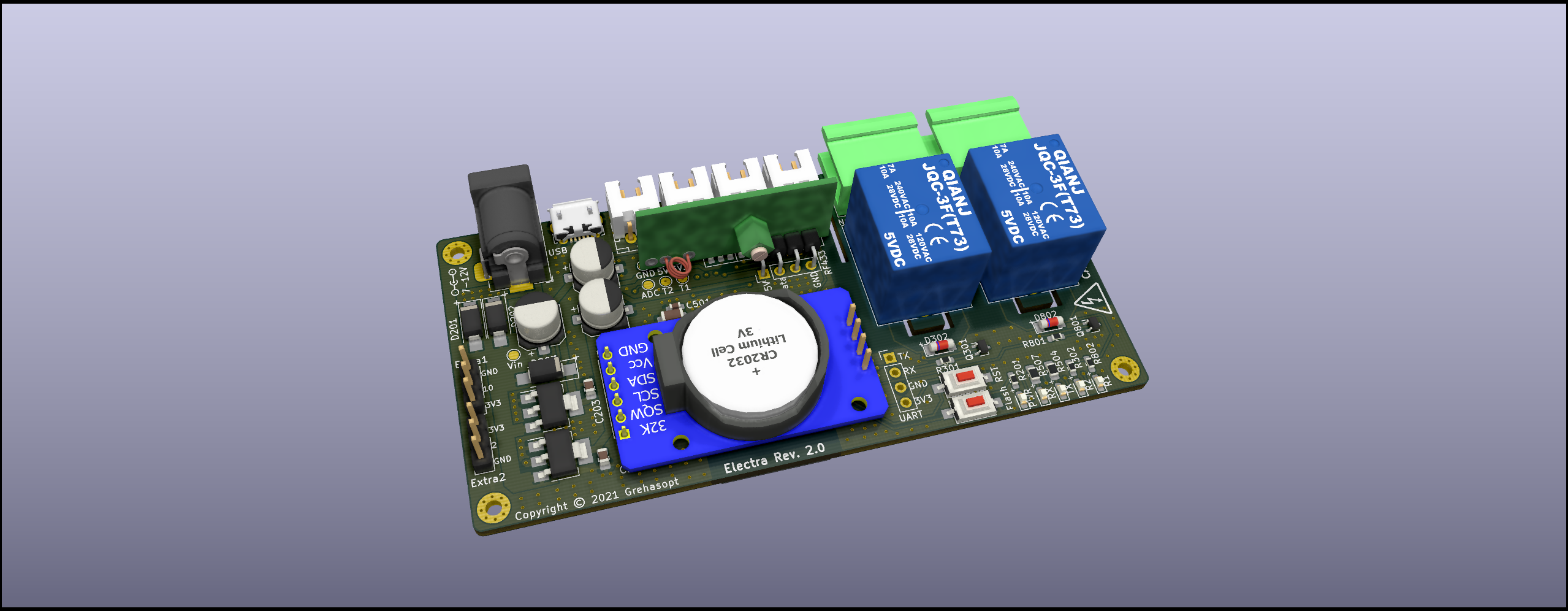

Remote Relays Board

Electra

[!CAUTION]

This project involves the use of 230V AC mains power and contains high-voltage components. Working with mains electricity can be extremely dangerous and may result in serious injury, death, or property damage if not handled correctly.

This design is provided "as-is" and for educational purposes only. Only individuals with the appropriate electrical expertise and experience should attempt to reproduce or work with this project. You are solely responsible for ensuring that your work with this hardware complies with all applicable safety standards, laws, and regulations.

---

Schematic

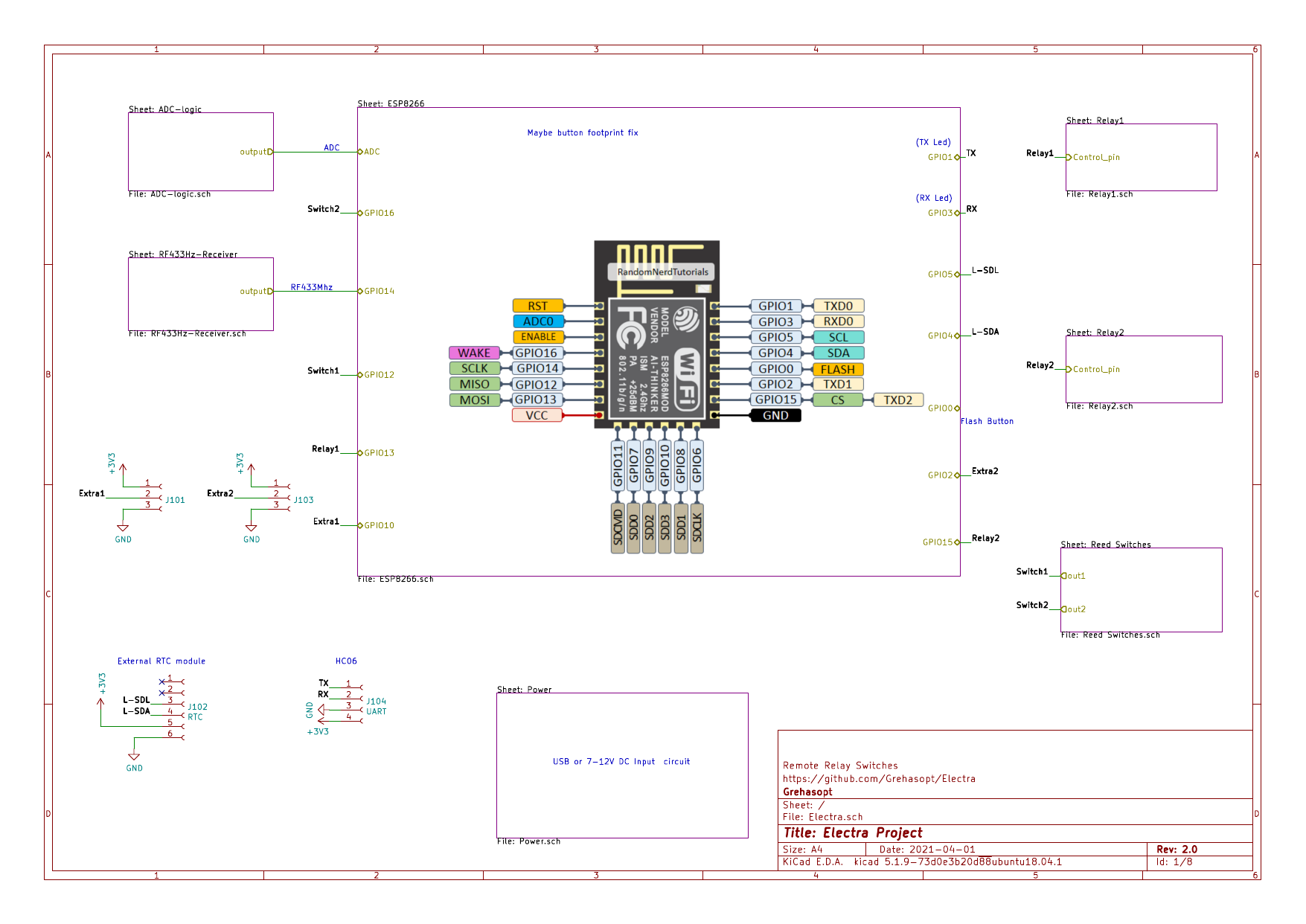

Page 1

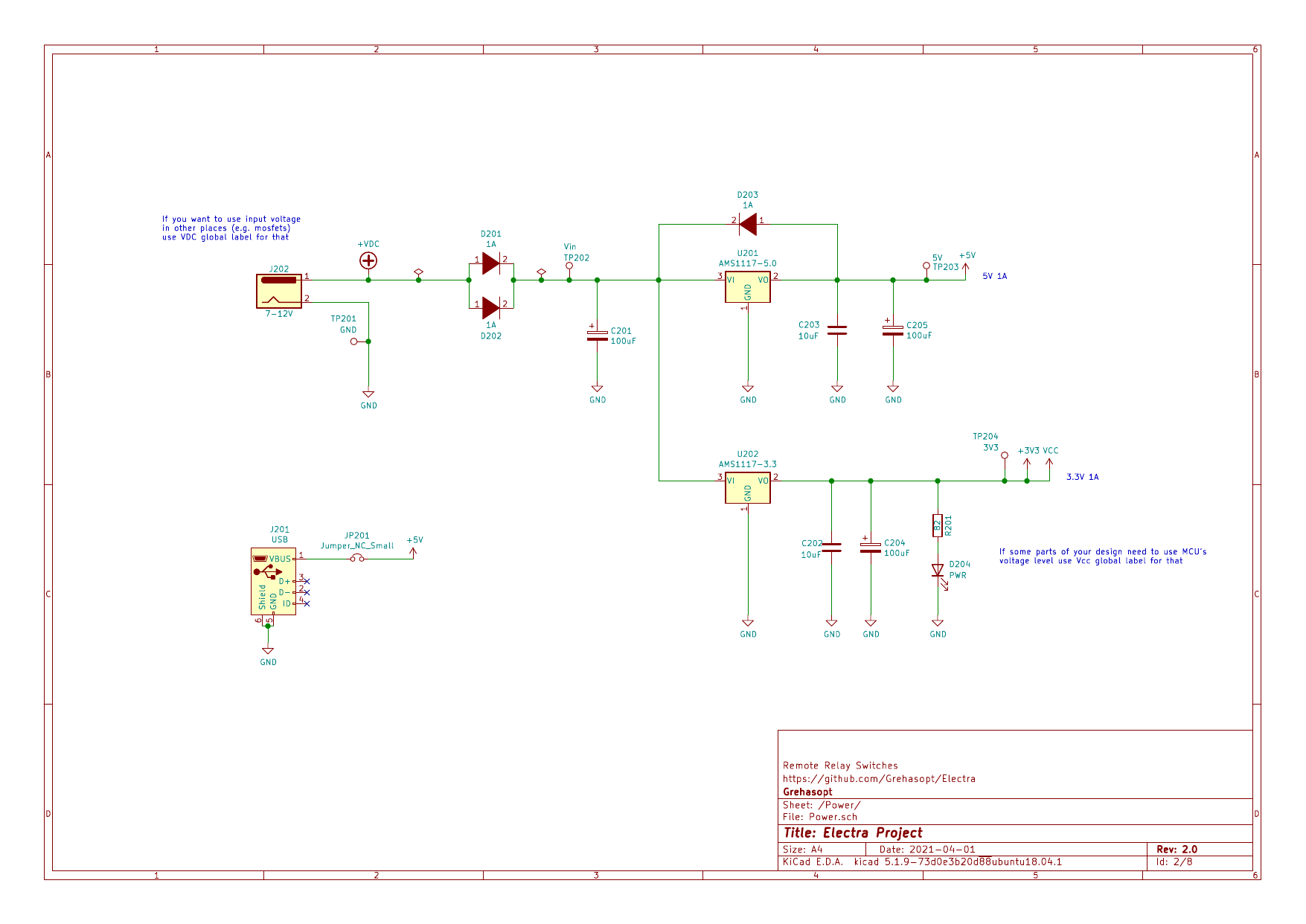

Page 2

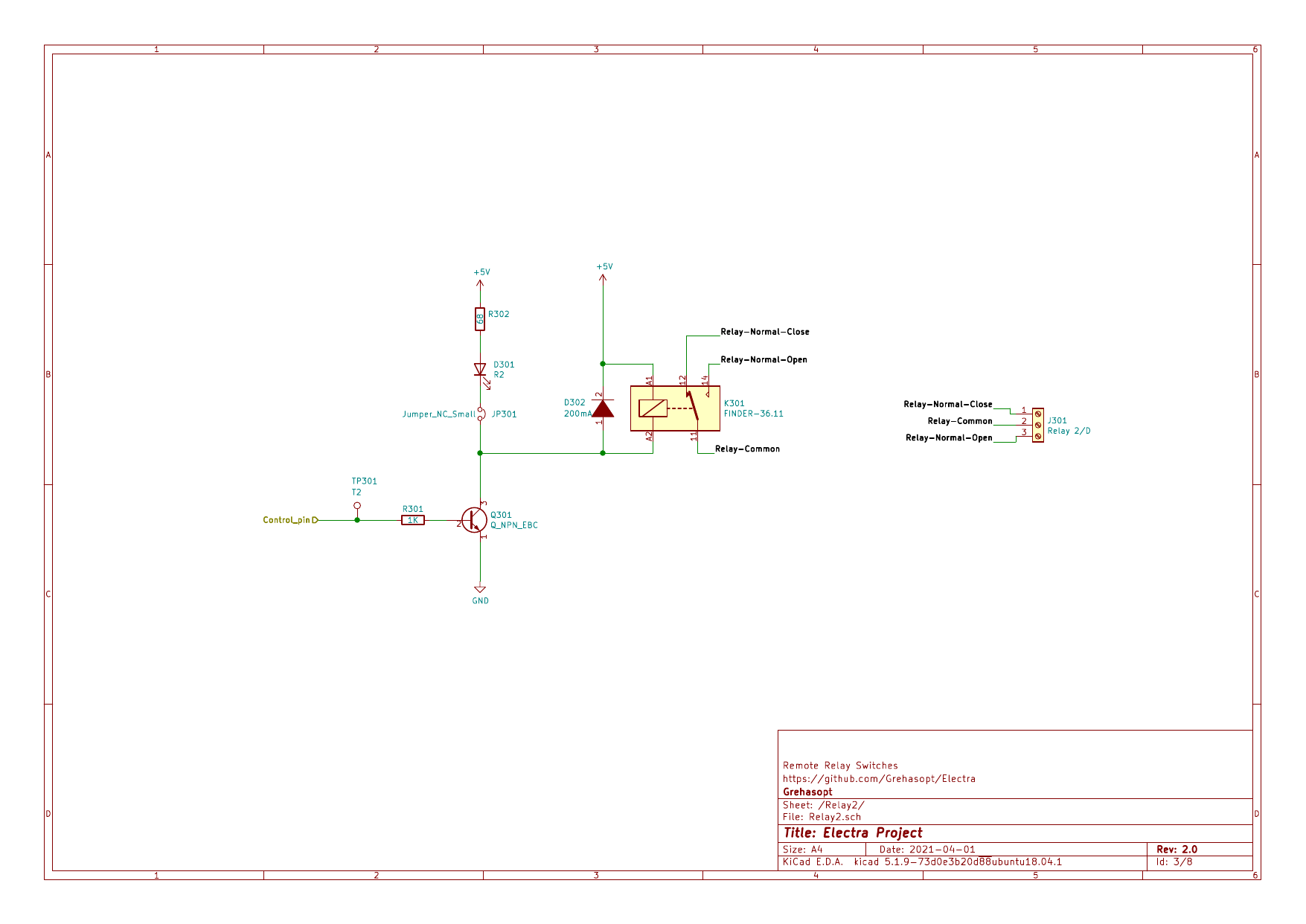

Page 3

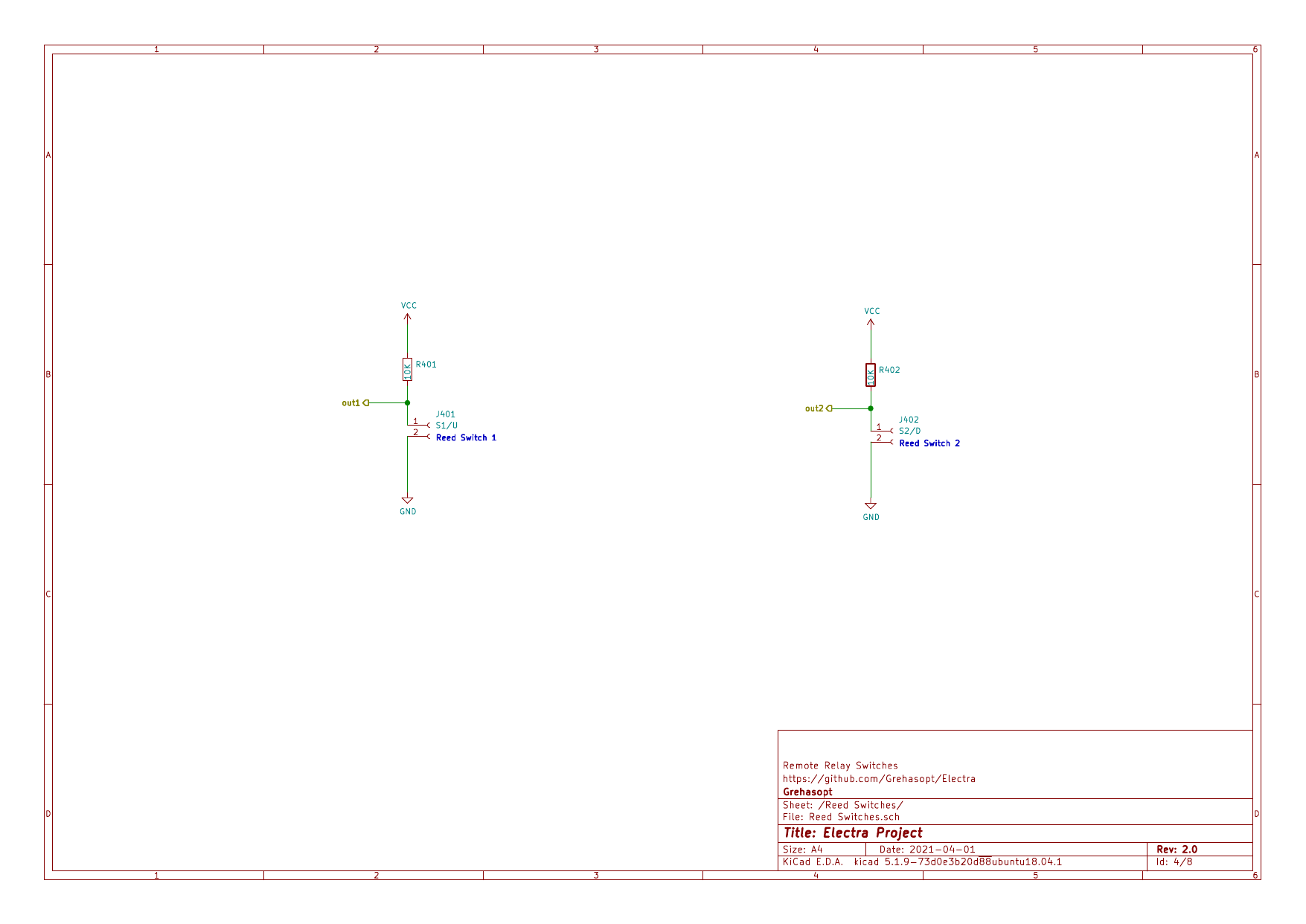

Page 4

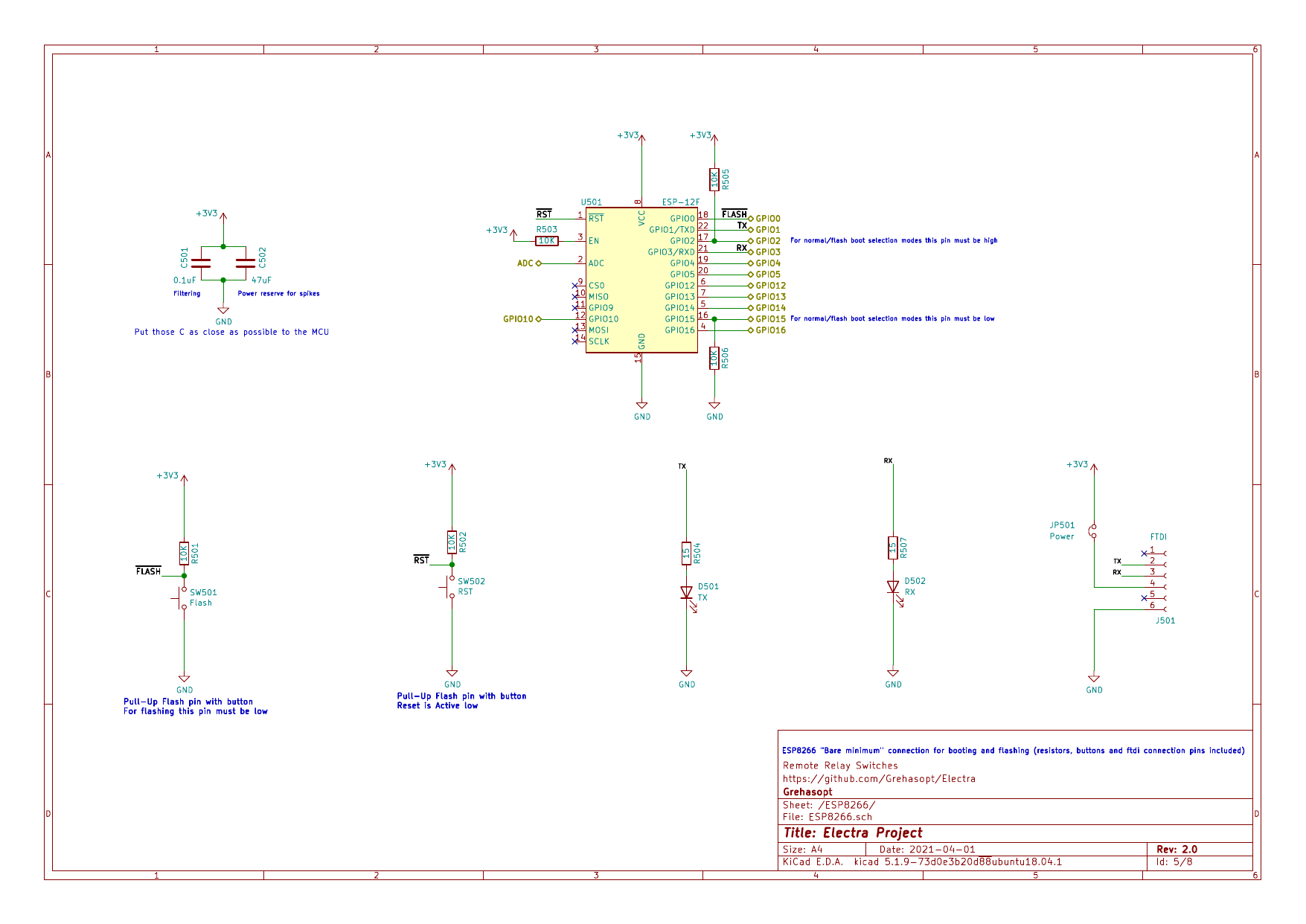

Page 5

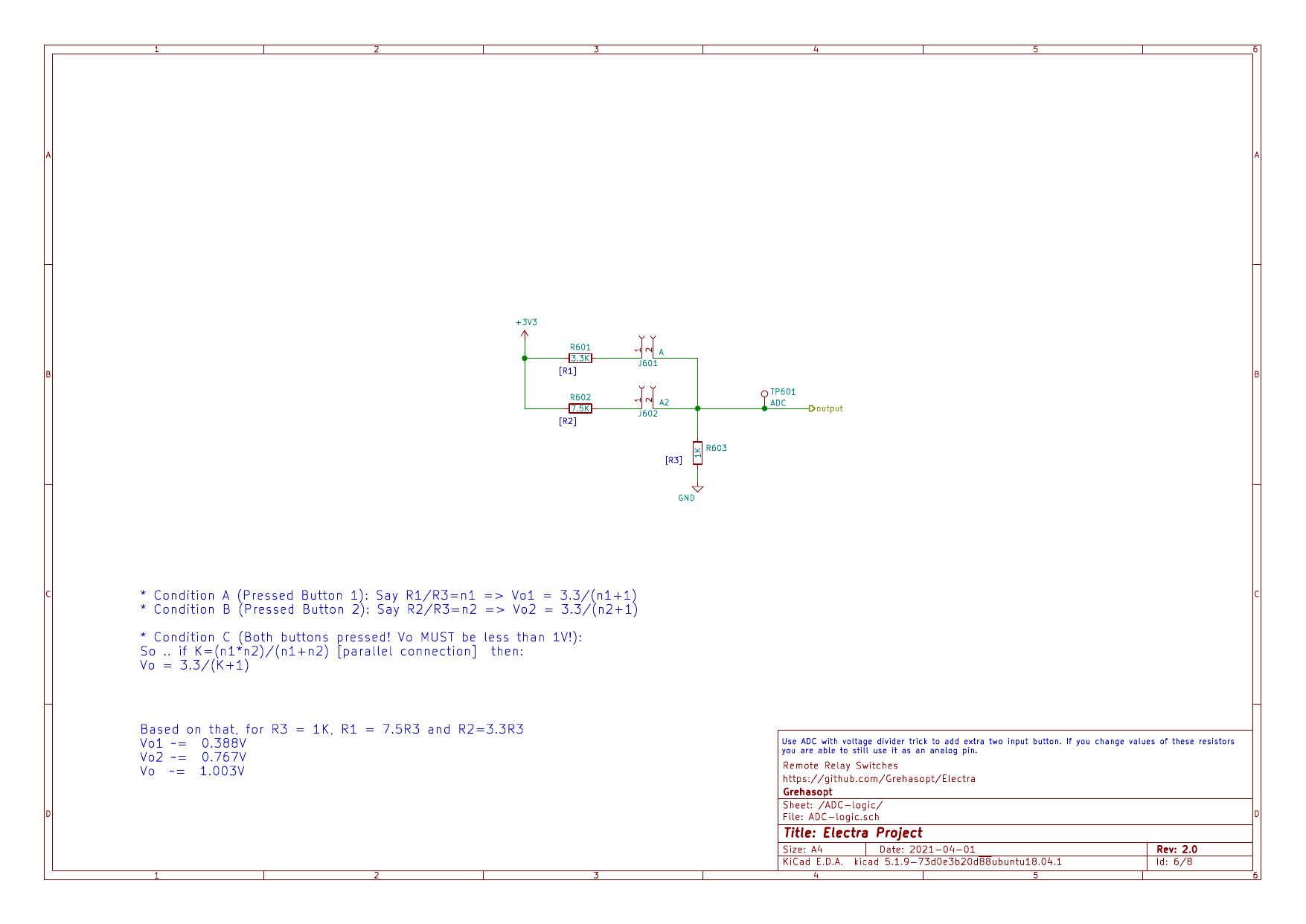

Page 6

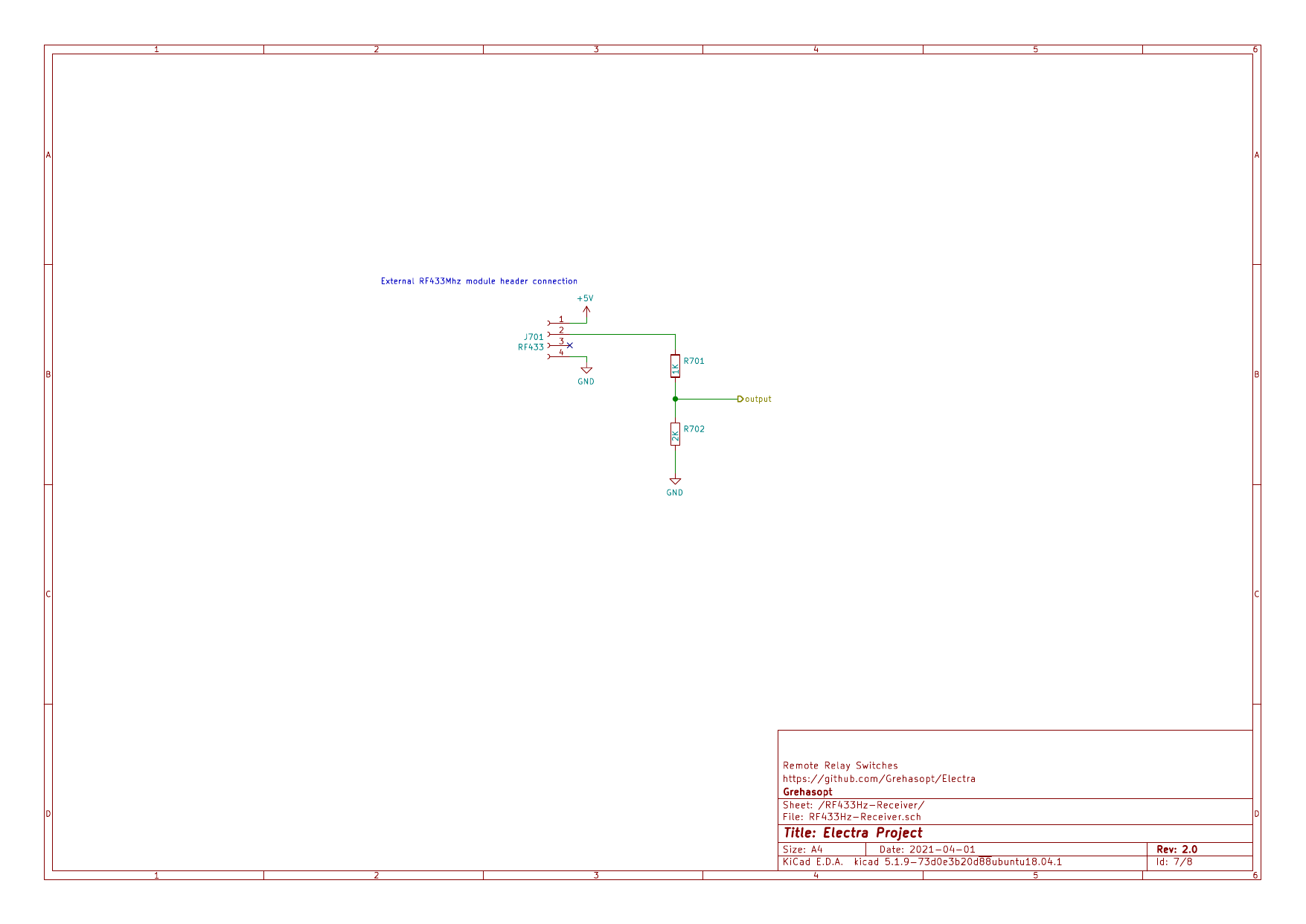

Page 7

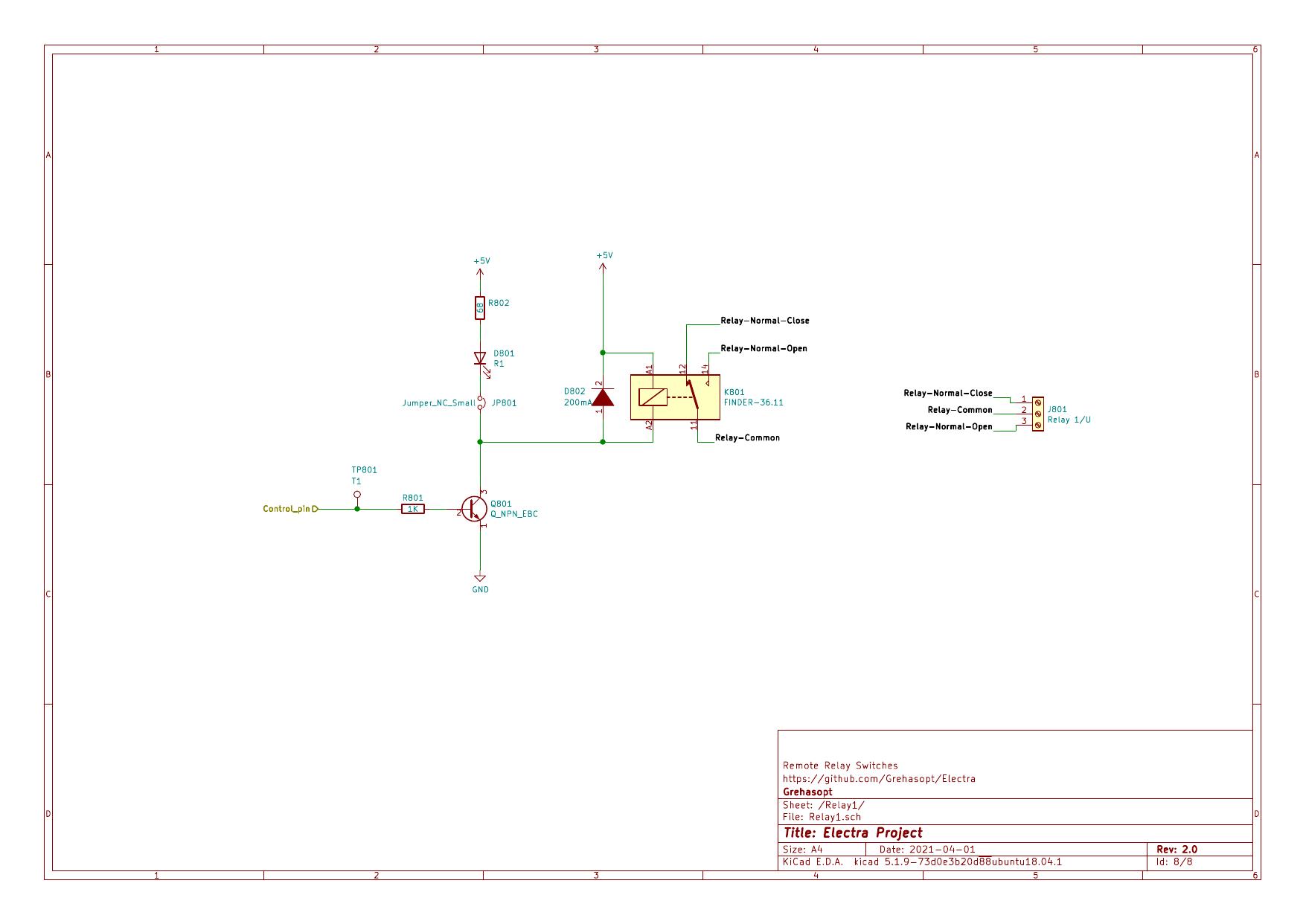

Page 8

License

This project is licensed under the CERN-OHL-S-2.0 (applies from the very first commit on Mar 7, 2021) with the added condition that it may not be used for commercial purposes without prior permission from the license holder.
