README

beartag

A low cost, open source BLE device tracker.

Compatible with macless-haystack

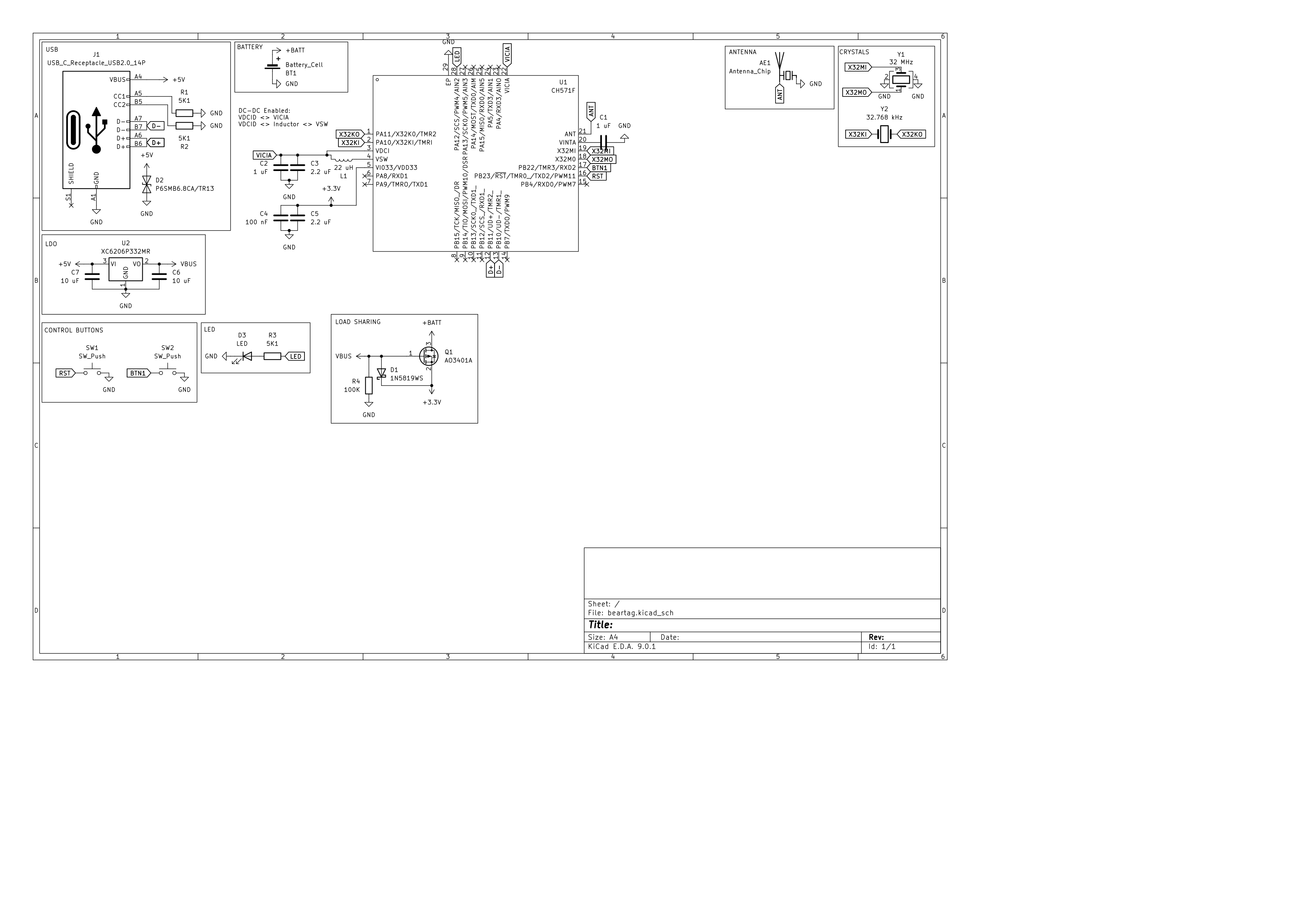

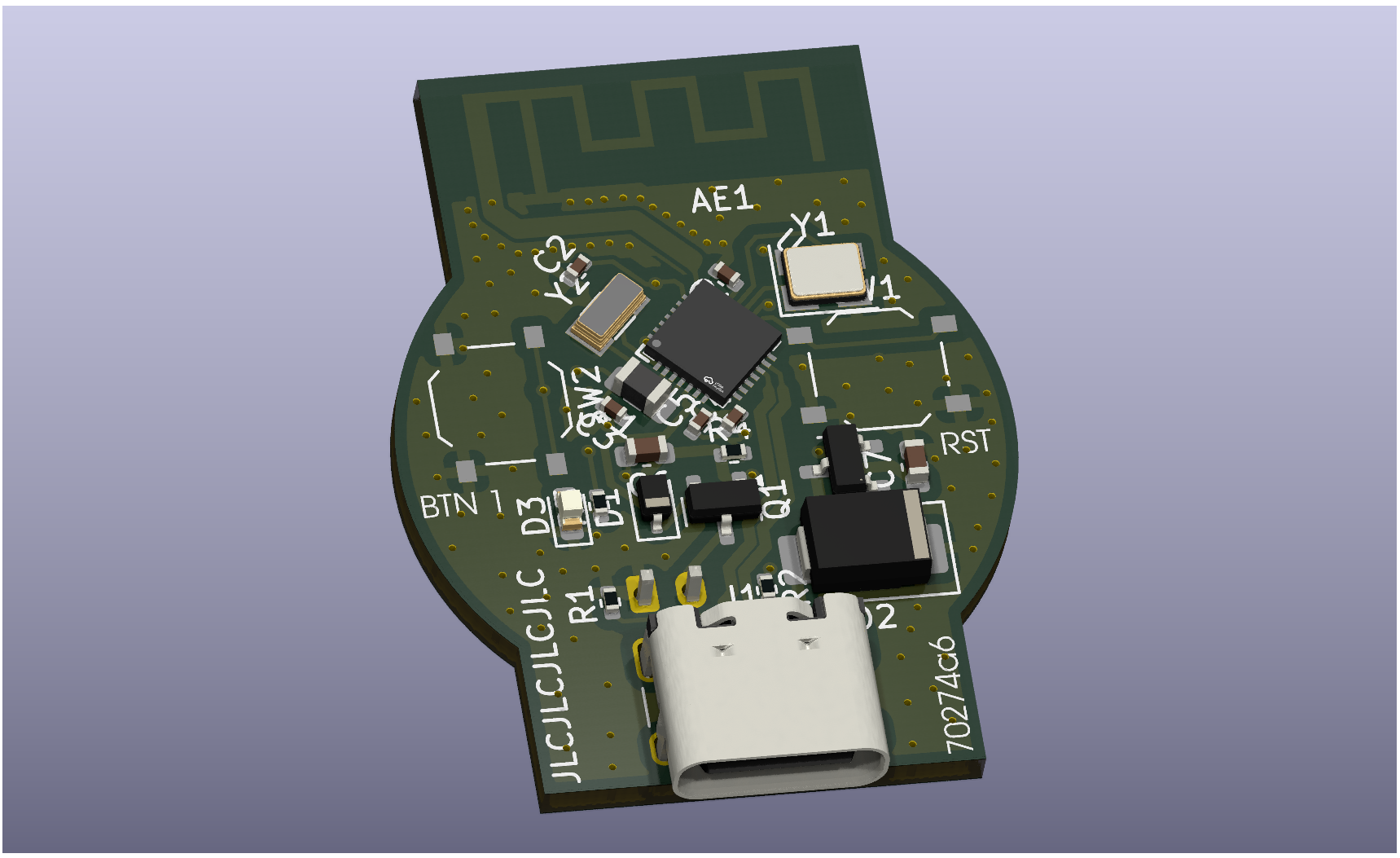

PCB

The board is based on a WCH CH571 MCU. (Low cost BLE mcu)

It can be powered off of a single CR2032 battery, which should last at least a couple months (and potentially as long as a year)

The board includes one customizable button as well as a status LED.

Firmware

Firmware is coming soon
