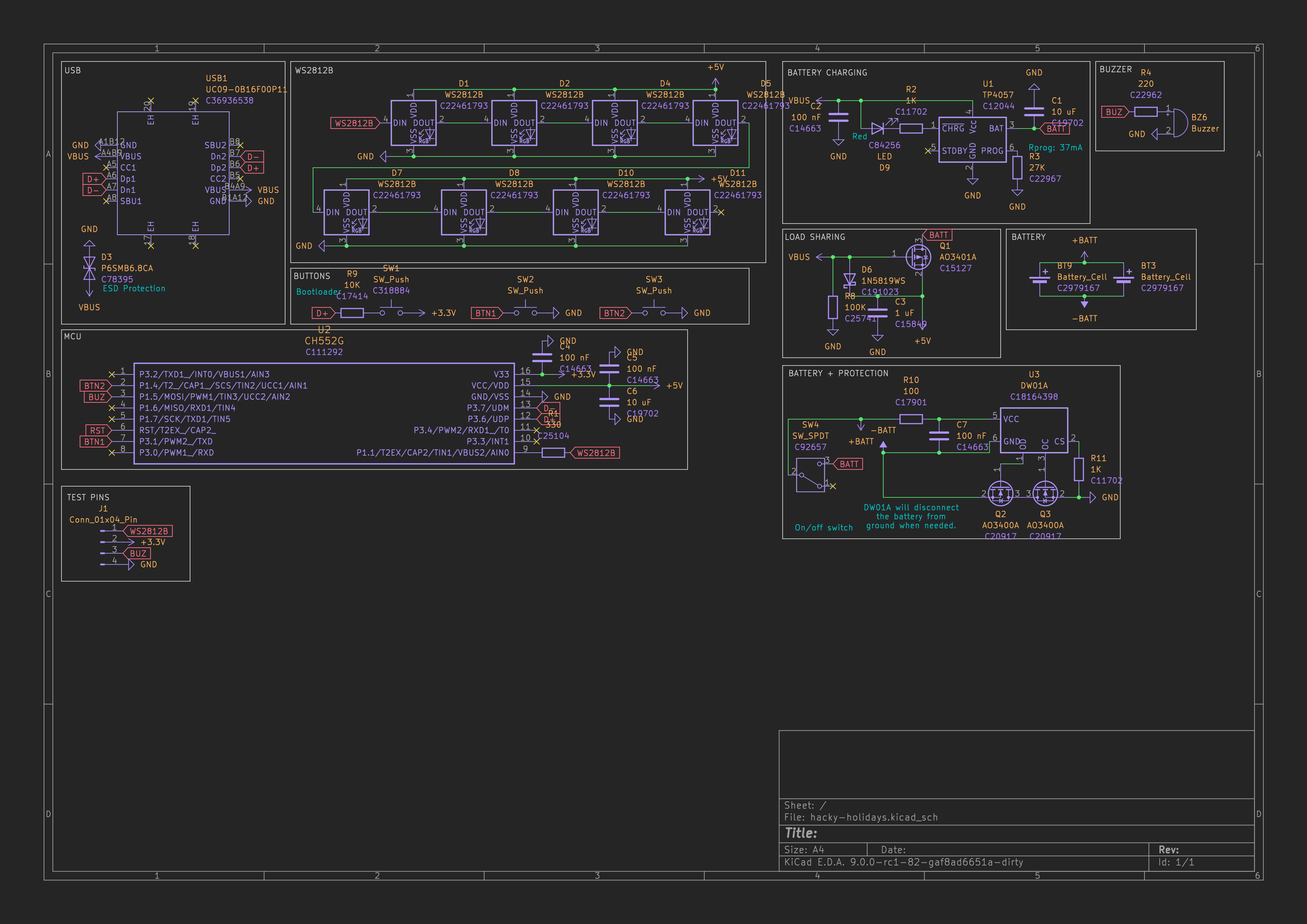

KiCad projectAll 15 files, ready to open in KiCad192 KBSchematic PDFEvery sheet, to read or print108 KB3D modelThe board with its parts, for an enclosure (GLB)2.2 MB
Browse all files

Share pixel-clock

Check access before sharing the link.

Who can open this board

Anyone can open this board. No sign-in is required.

https://boardrepo.com/grimsteel/pixel-clock

This link opens the latest version. Copying it does not grant additional access.

Loading 3D model… large boards can take a moment.

README

The Pixel Clock

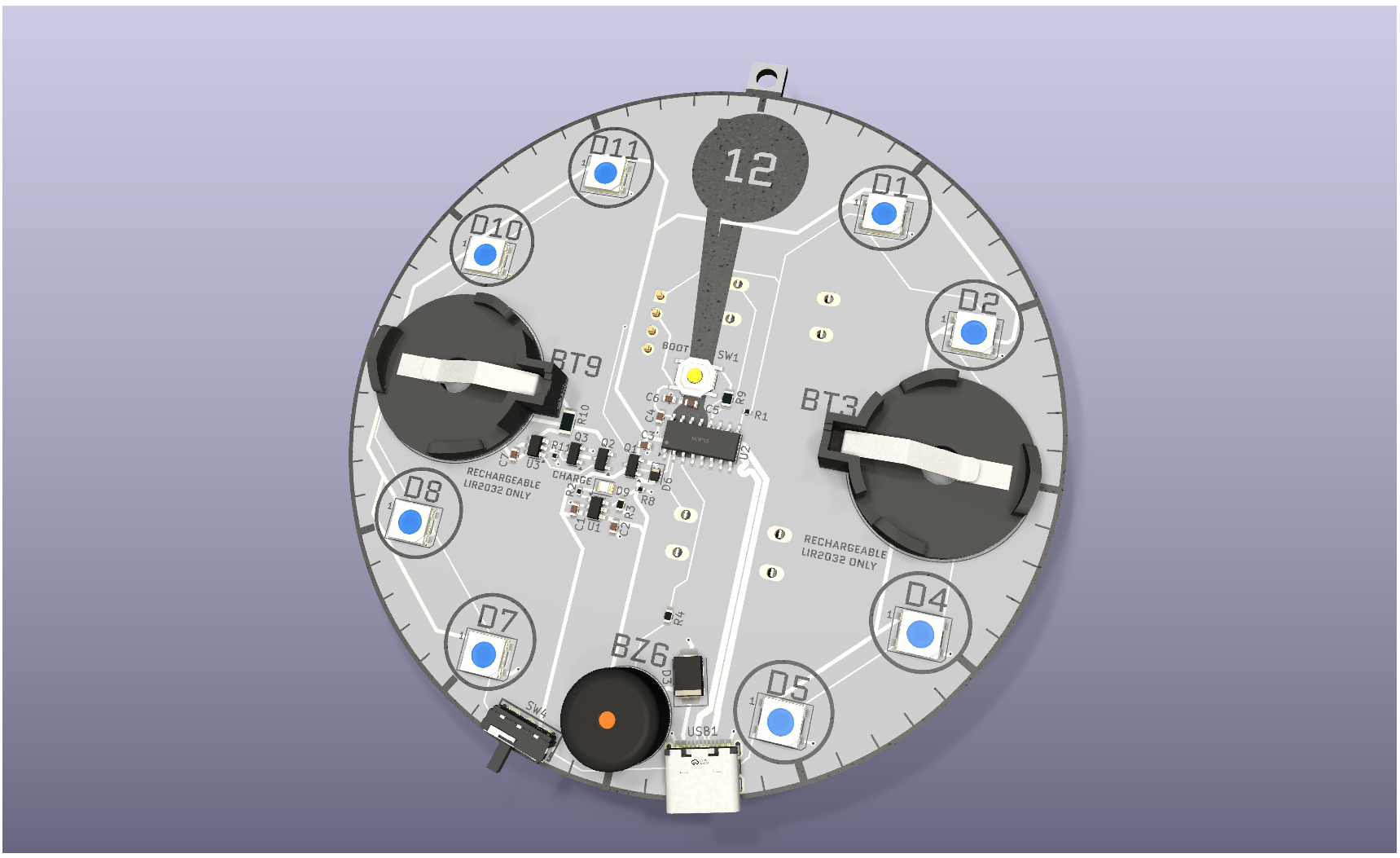

A clock-shaped PCB with 8 Neopixels and a buzzer. Built on a CH552 MCU. Powered by two rechargeable LIR2032s.

Although this cannot actually be used as a clock, it can be used to play songs, with the neopixels flashing in sync.

Firmware using ch554_sdcc is in the firmware directory.
