CY8CPROTO-063-BLE-PSoC-6

A KiCad project that has the schematic and PCB design for the CY8CPROTO-063-BLE-PSoC-6-BLE-Prototyping-Kit

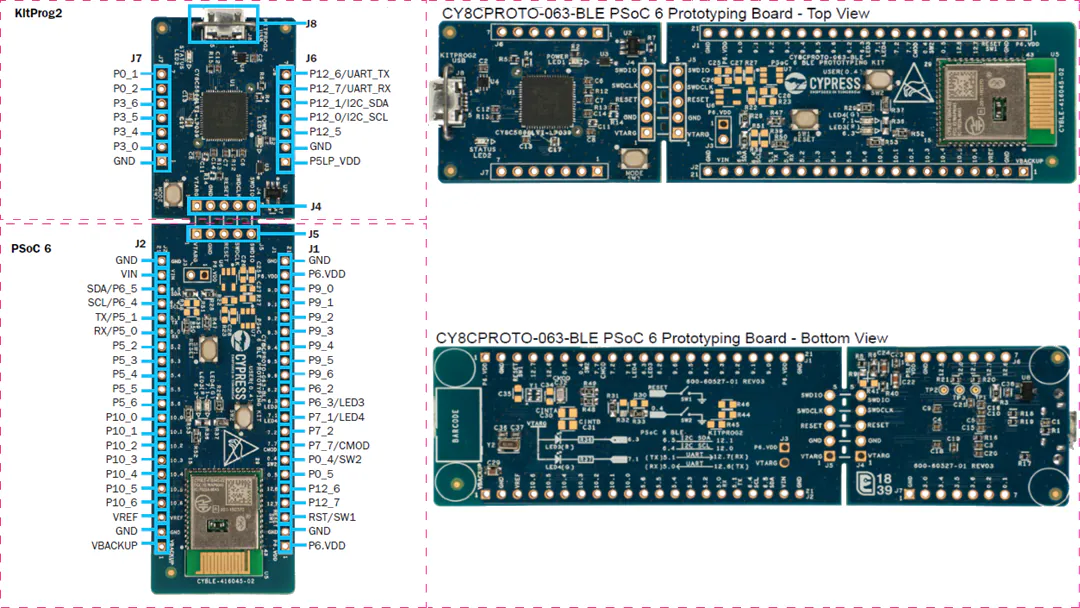

Original Image of CY8CPROTO-063-BLE-PSoC-6

Tools Used

The electronic design and development were done using KiCad, an open-source EDA software. The version used for this project is KiCad 9.0.0.

Schematic

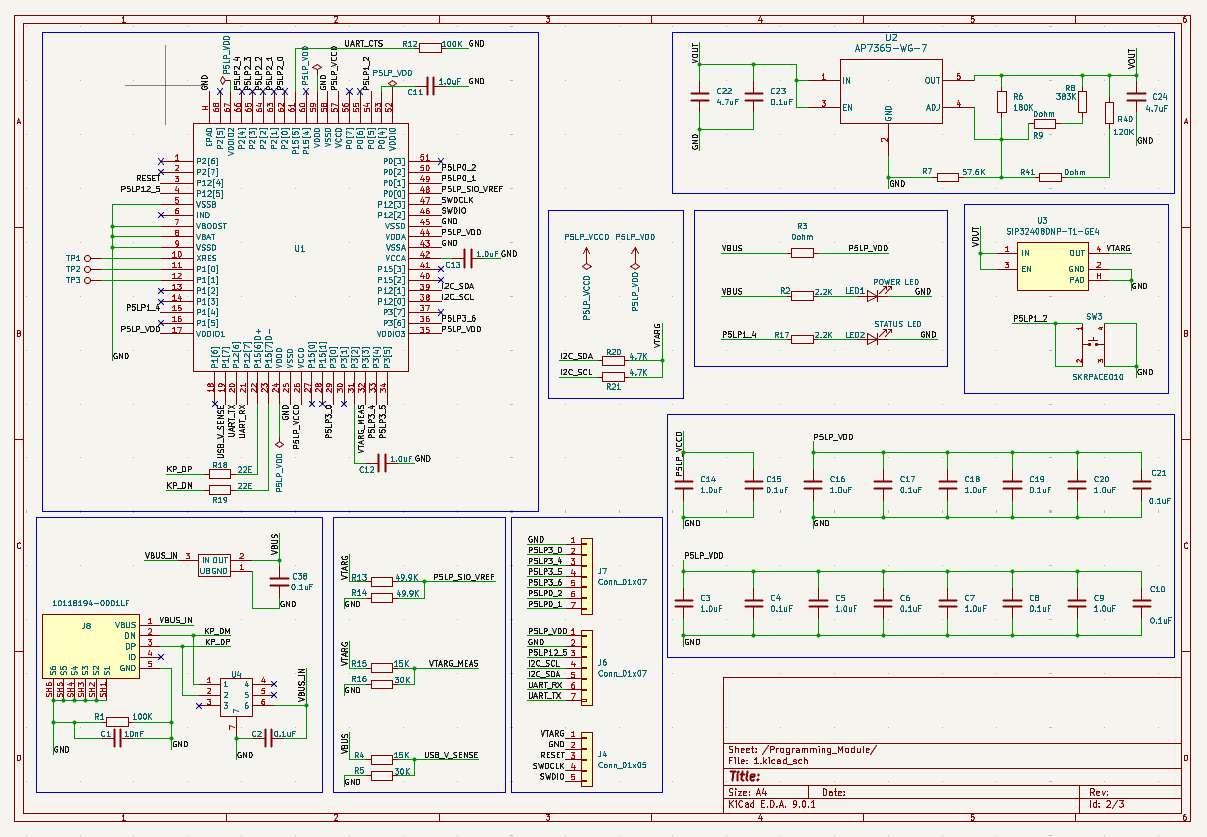

Programming Module

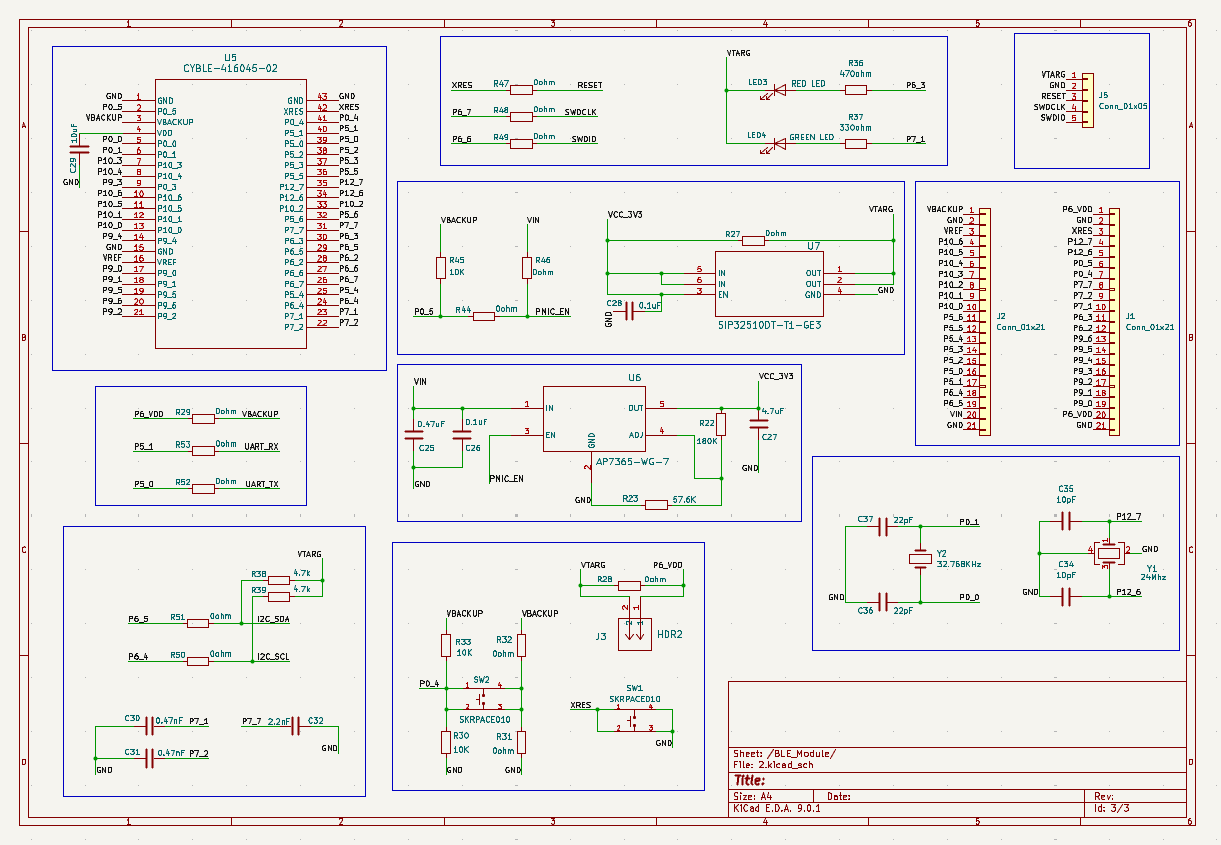

BLE Module

PCB Layout

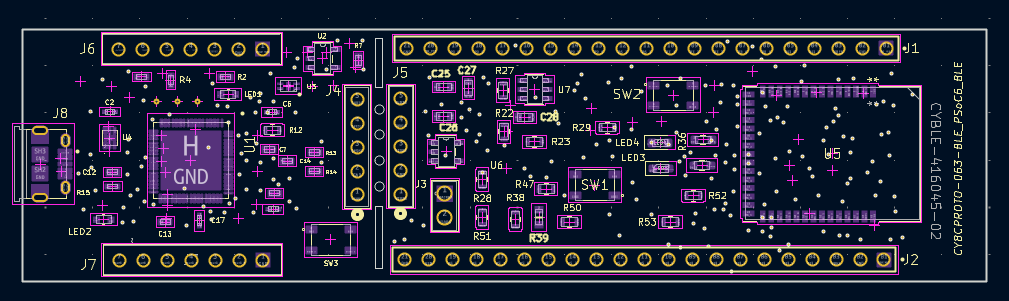

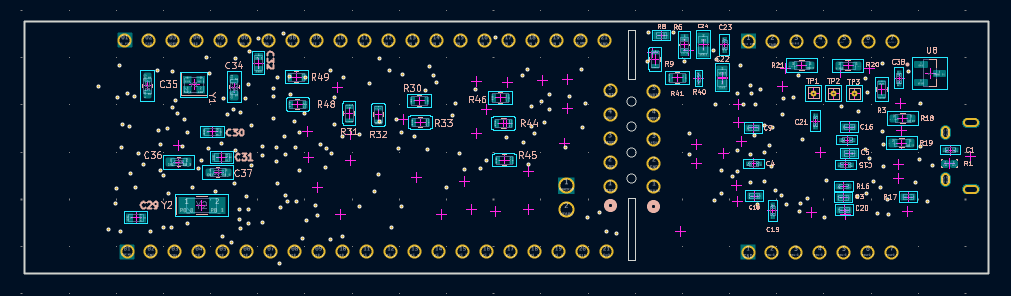

Placement of Components

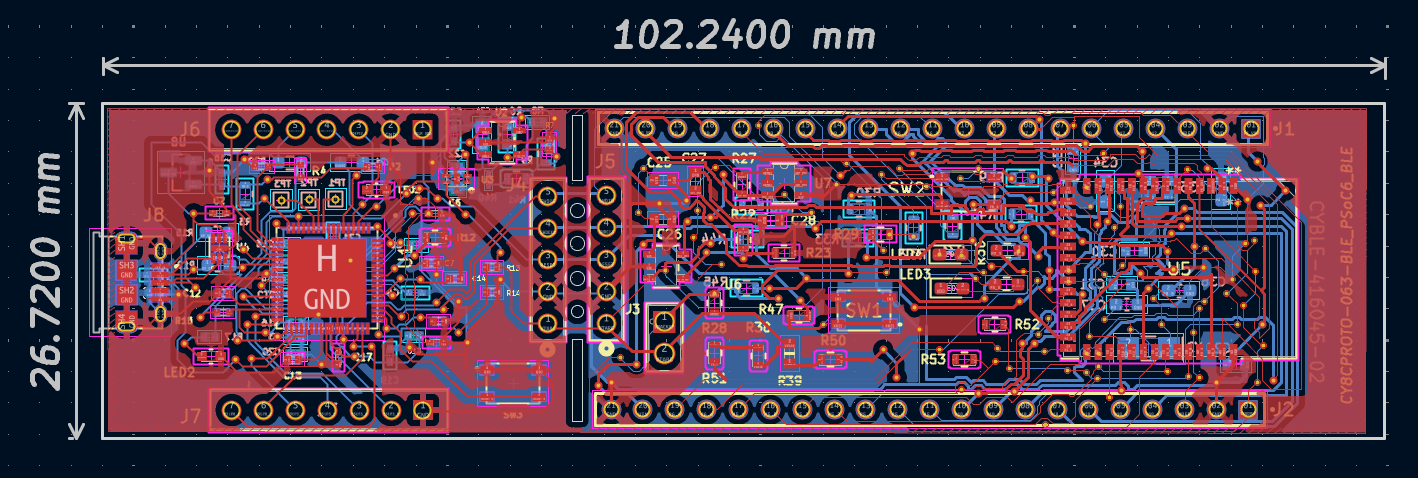

Overall PCB Layout

3D View

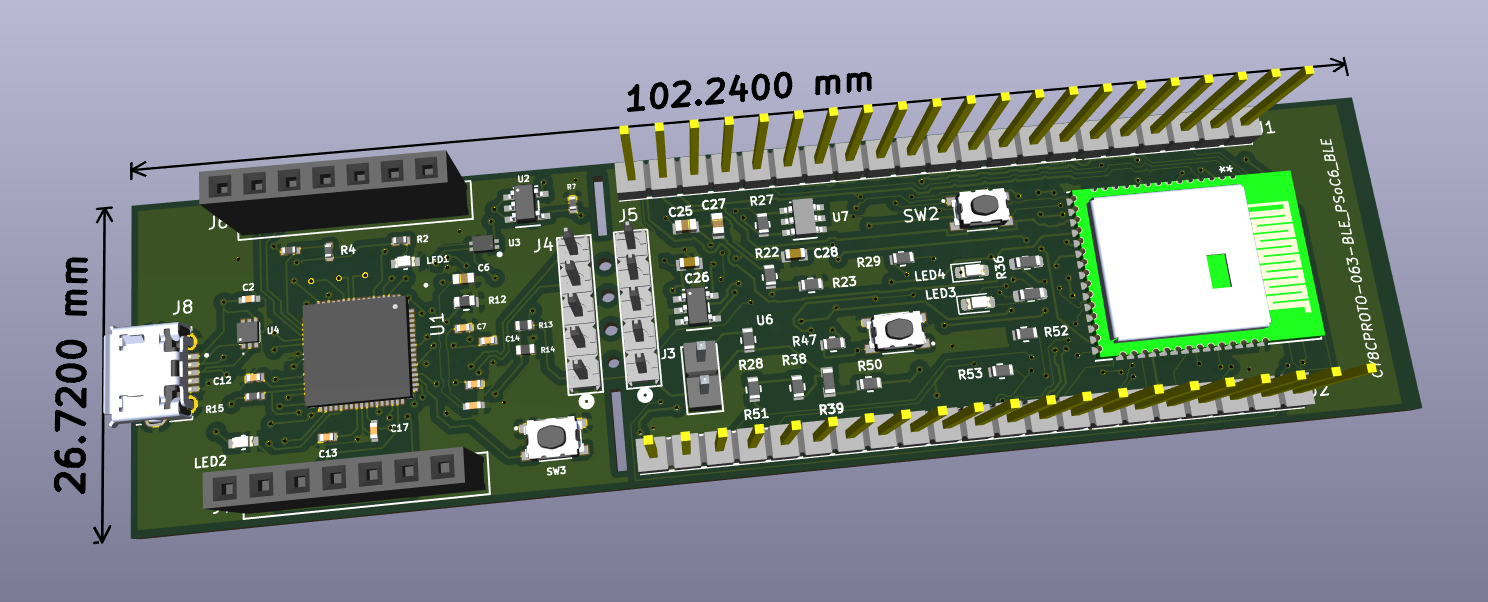

Top View

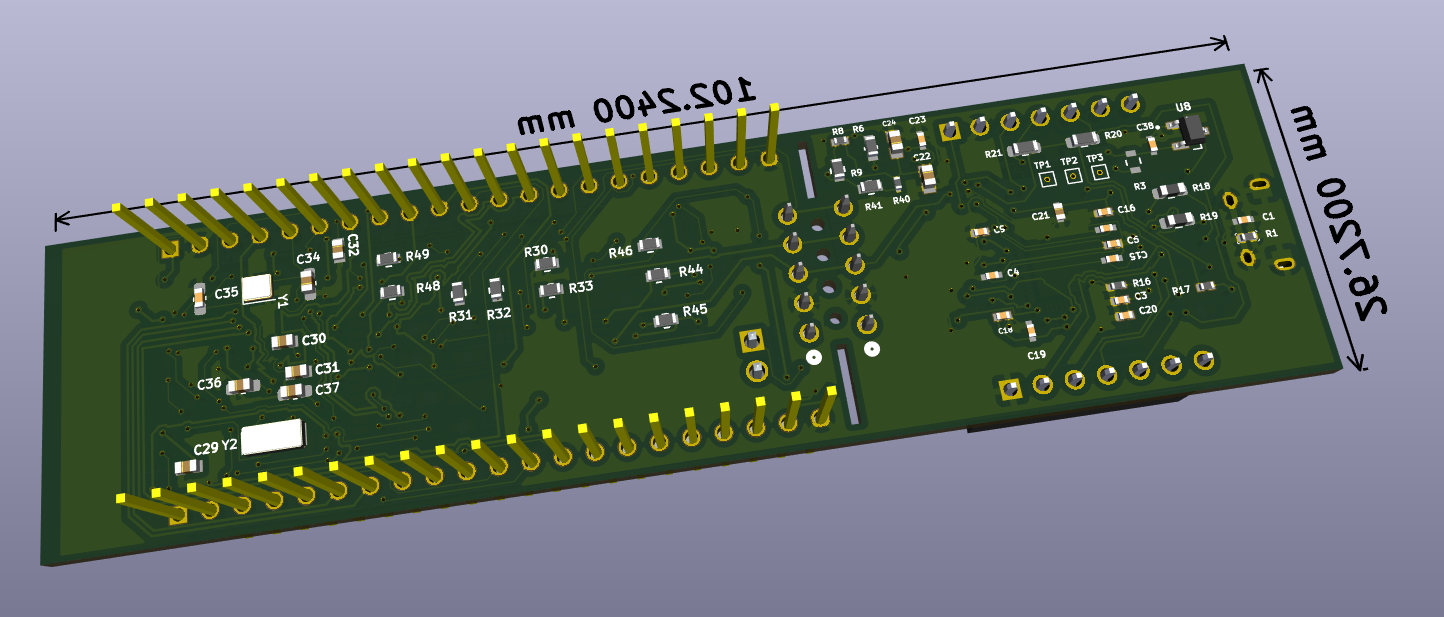

Bottom View

License

This project is licensed under the MIT License. See the LICENSE file for details.
