Description

Low Profile, Choc Spaced QAZ-alike

README

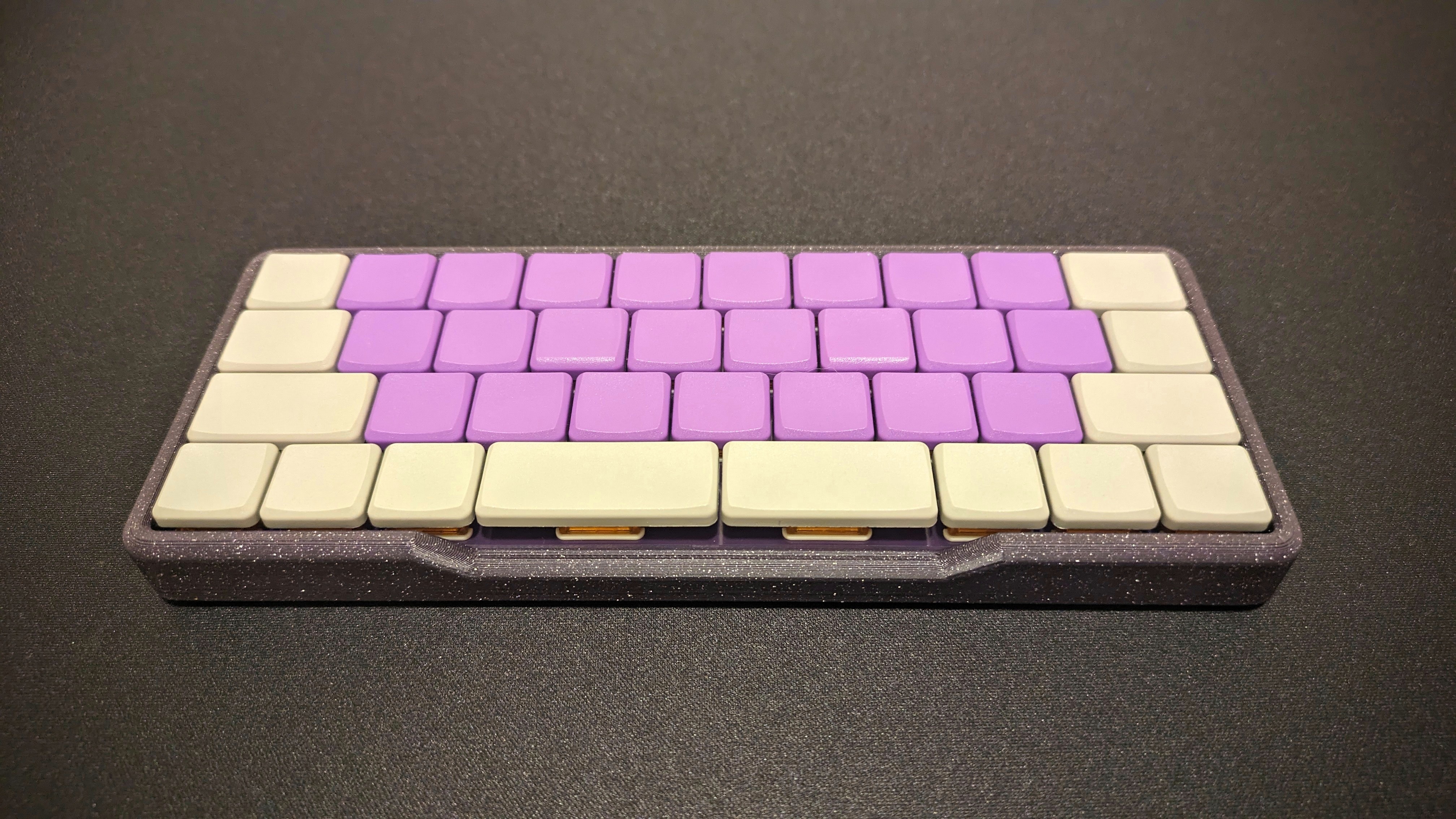

Chaz

Low profile, choc spaced QAZ-alike

Features

• QAZ Layout
• Choc Spaced
• ProMicro Style Controllers
• Battery support
• Open Source

Materials

• 1x ProMicro Compatible Controller
• 1x PH3.5 12P Socket
• 1x PH3.5 7P Socket
• 37x Kailh Choc v1 switches
• 37x Keycaps
  • 31x 1u
  • 2x 1.25u
  • 1x 1.75u
  • 1x 1.5u
  • 1x 2u
  • 1x 2.25u
• 37x SOD-123 1N4148 Diodes
• 1x SKHLLCA010 Reset Button
• 1x OS10201MA1QN1 Power Switch (optional)
• 2x Kailh Choc 2u Stabalizers
• 4x 9mm M2 Standoffs
• 8x 4mm M2 Screws

Build Guide

• Solder Diodes
• Solder Controller Headers
• Solder Reset Switch
• Solder Power Switch and Battery (Optional)
• Install Controller
• Flash Firmware
• Test matrix works
  • use metal tweezers to short the connections for each switch on the PCB
• Insert Switches and Stabalizers into Switchplate
• Solder Switches to PCB (remove controller first)
• Attach Backplate to Switchplate with Standoffs and screws
• Done.

Case Build Guide

• Print Case
• Install 4x heatset inserts.
• secure switchplate to heatset inserts with Male/Female Brass Standoff
• 8mm-ish screw through Backplate into Brass Standoff
