README

Kurp

36 Key unibody split ortholinear

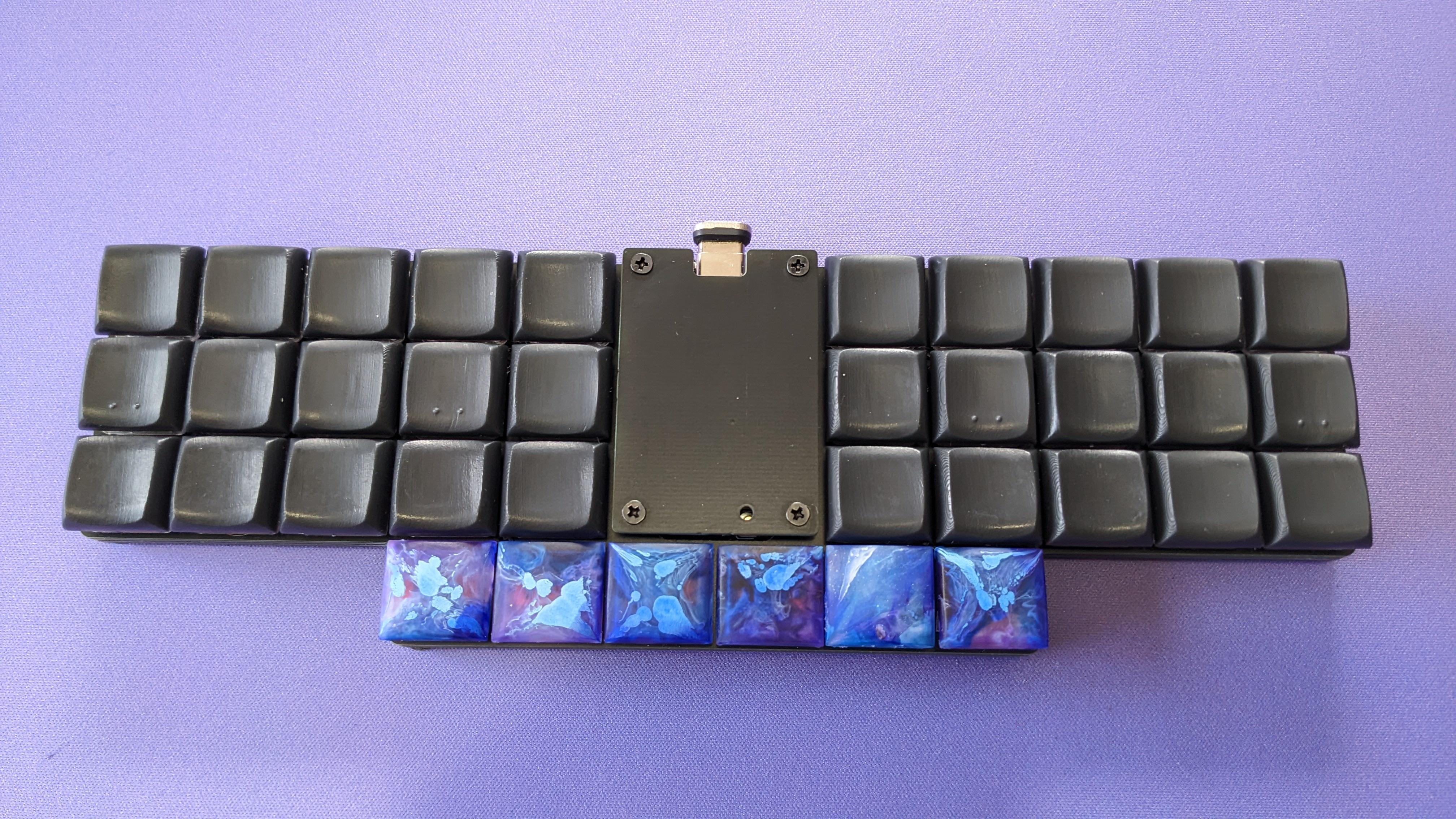

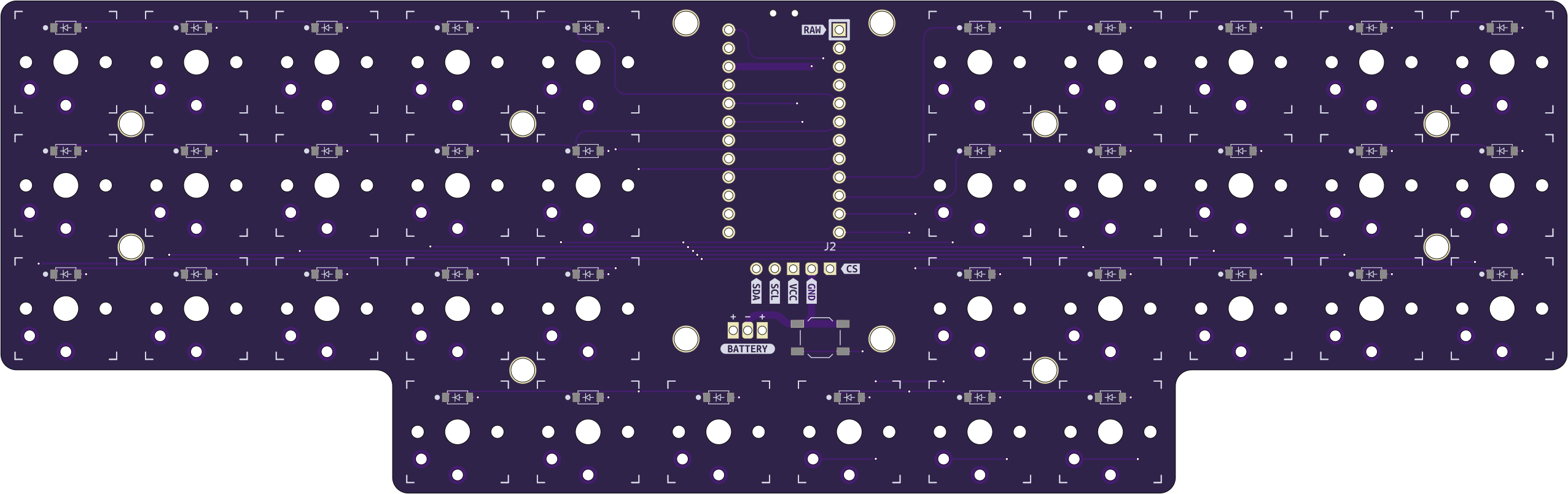

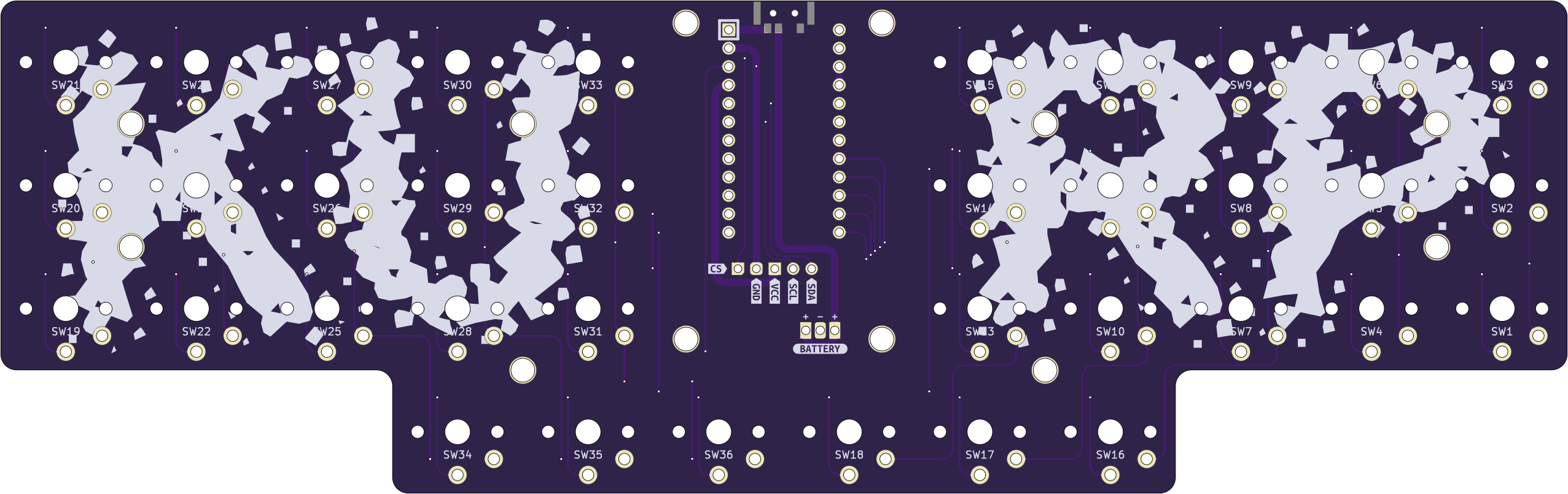

PCB Render

Kurp is a choc-spaced unibody split ortholinear keyboard.

Materials

DescriptionPartCountNotes
PCBsMain1
Switchplate1Optional
Backplate1Optional
Centerplate1Optional
ControllerProMicro footprint1
Diodes1N4148 SOD-12336
SwitchesChoc v136
Keycaps1u36
ResetTL3342F260QG1
DisplaySSD13061Optional
nice!viewWireless Only
Power SwitchMSK-12C021Wireless Only
Battery ConnectorTBD1Optional, Wireless Only
BatteryTBD1Wireless Only
3mm M2 Standoff8
9mm M2 Standoff4
3mm M2 Screw24

Firmware

QMK : https://github.com/hazels-garage/qmk_firmware/tree/hazel/kurp

ZMK: https://github.com/hazels-garage/zmk-kurp
