ZMK firmware for the Pipar PCBs.
Pipar is a collection of different keyboards and keypads that I have designed. Each PCB in the series has unique features tailored to different needs and preferences.
The Pipar keyboards run ZMK firmware. Board definitions, custom drivers (LED indicators, caps-word events, a recovery watchdog), keymaps, and shields live in the zmk-keyboard-pipar ZMK module — included here as the zmk-keyboard-pipar submodule.
Build firmware locally with the build.sh helper (requires Docker):
git clone --recurse-submodules https://github.com/RasmusKoit/pipar.git
cd pipar
./build.sh right # Pipar Point central half (with trackpoint)
./build.sh left # Pipar Point peripheral half
./build.sh all # every target
Firmware is written to .build/<target>/zephyr/zmk.uf2. Builds can also be run through the Build Pipar products GitHub Actions workflow.
PCB Files for each keyboard/project has been seperated into their own folders. The PCBs are designed in KiCad v9.x
Currently, the following PCBs are available:
[!TIP] Get your own Pipar & Sool from my Etsy Store.

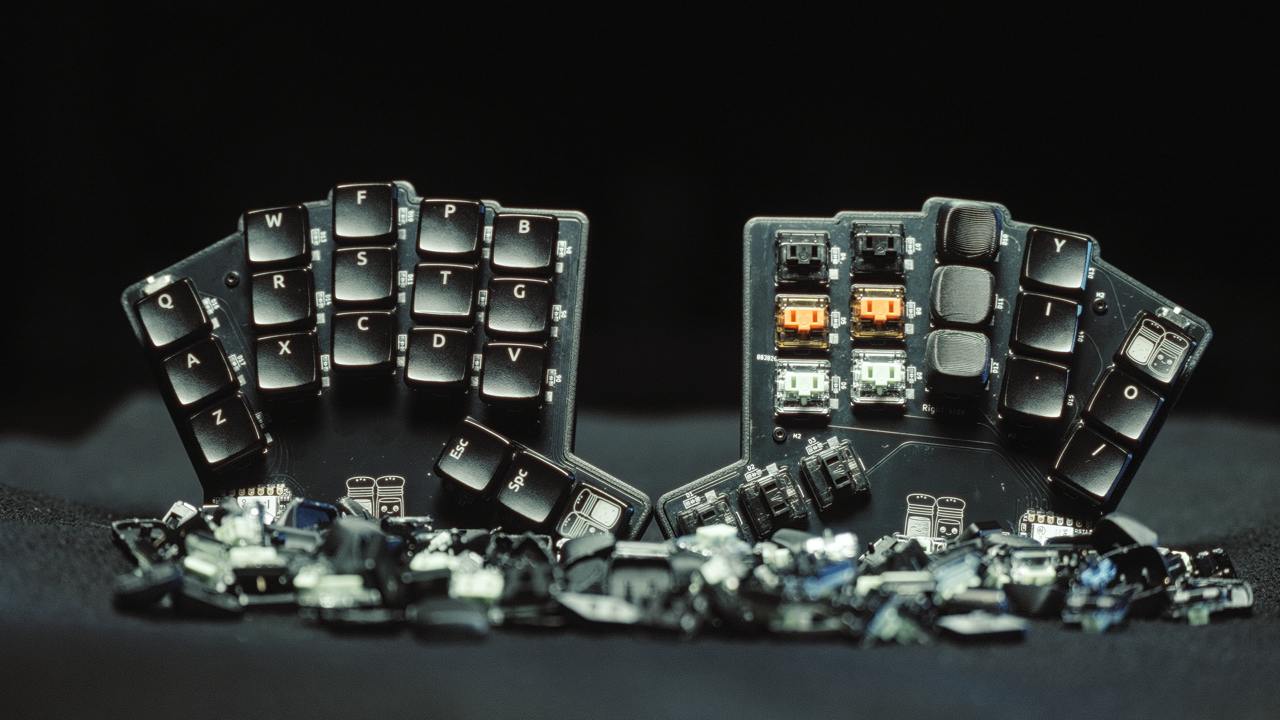

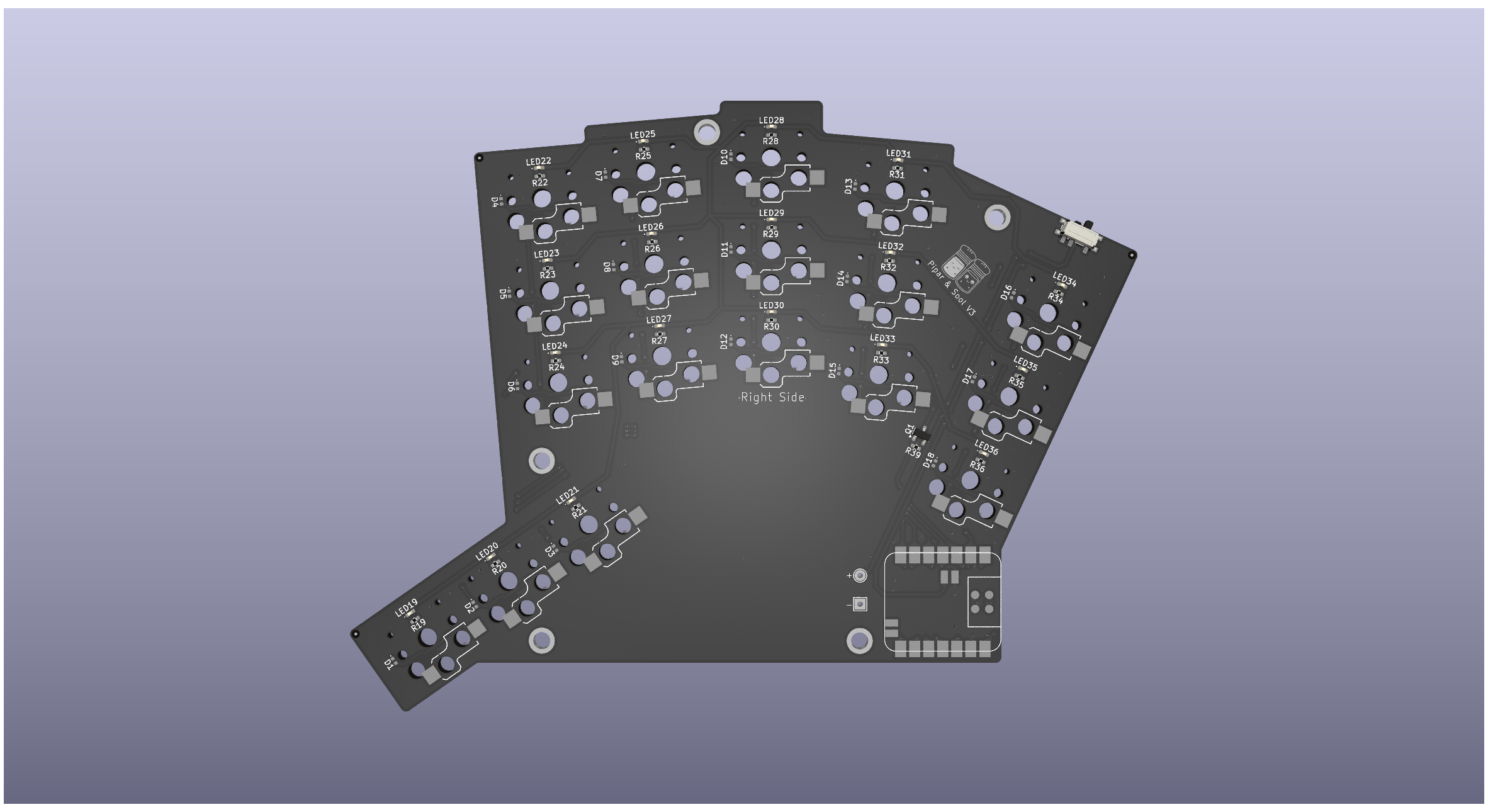

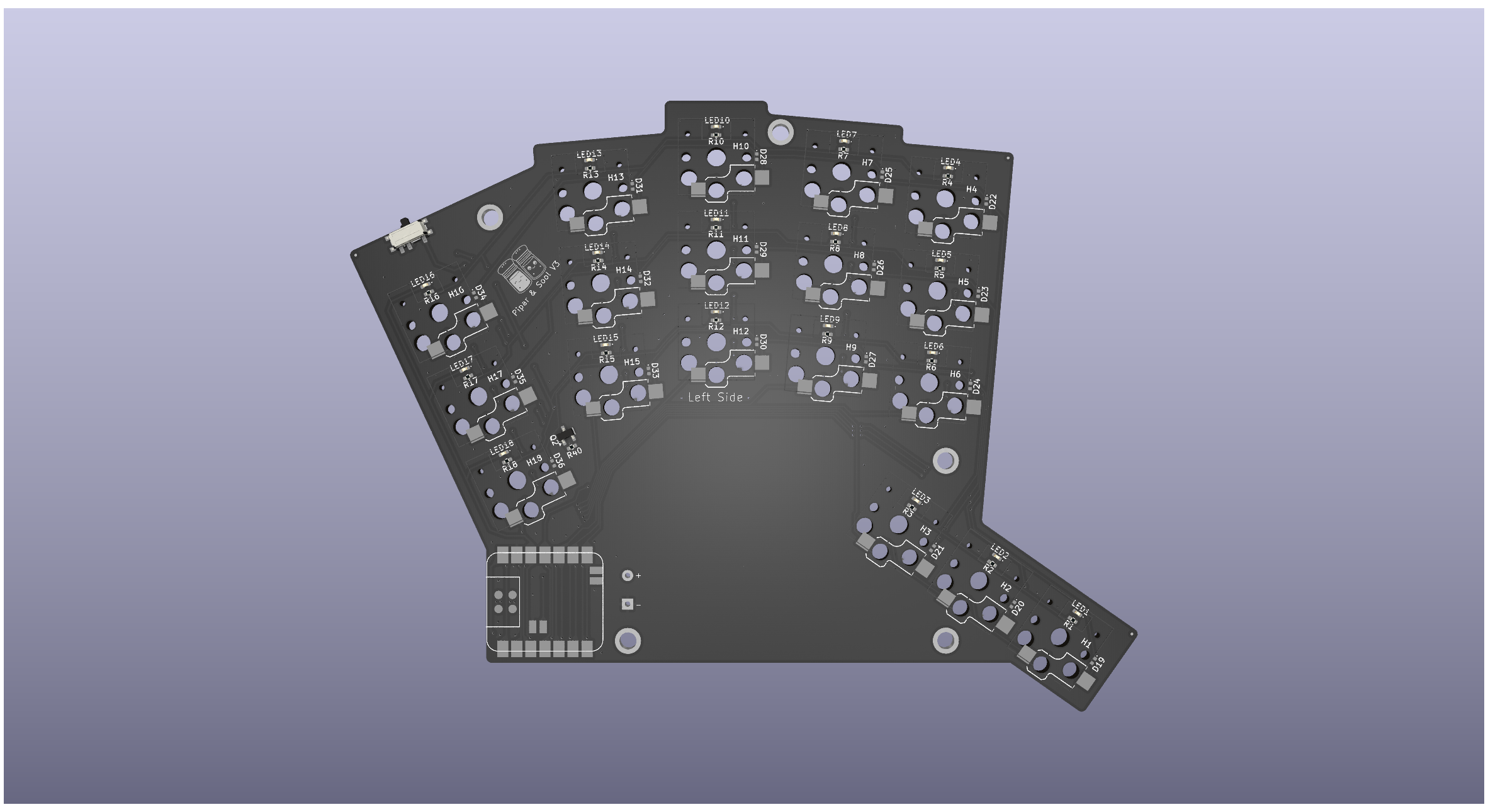

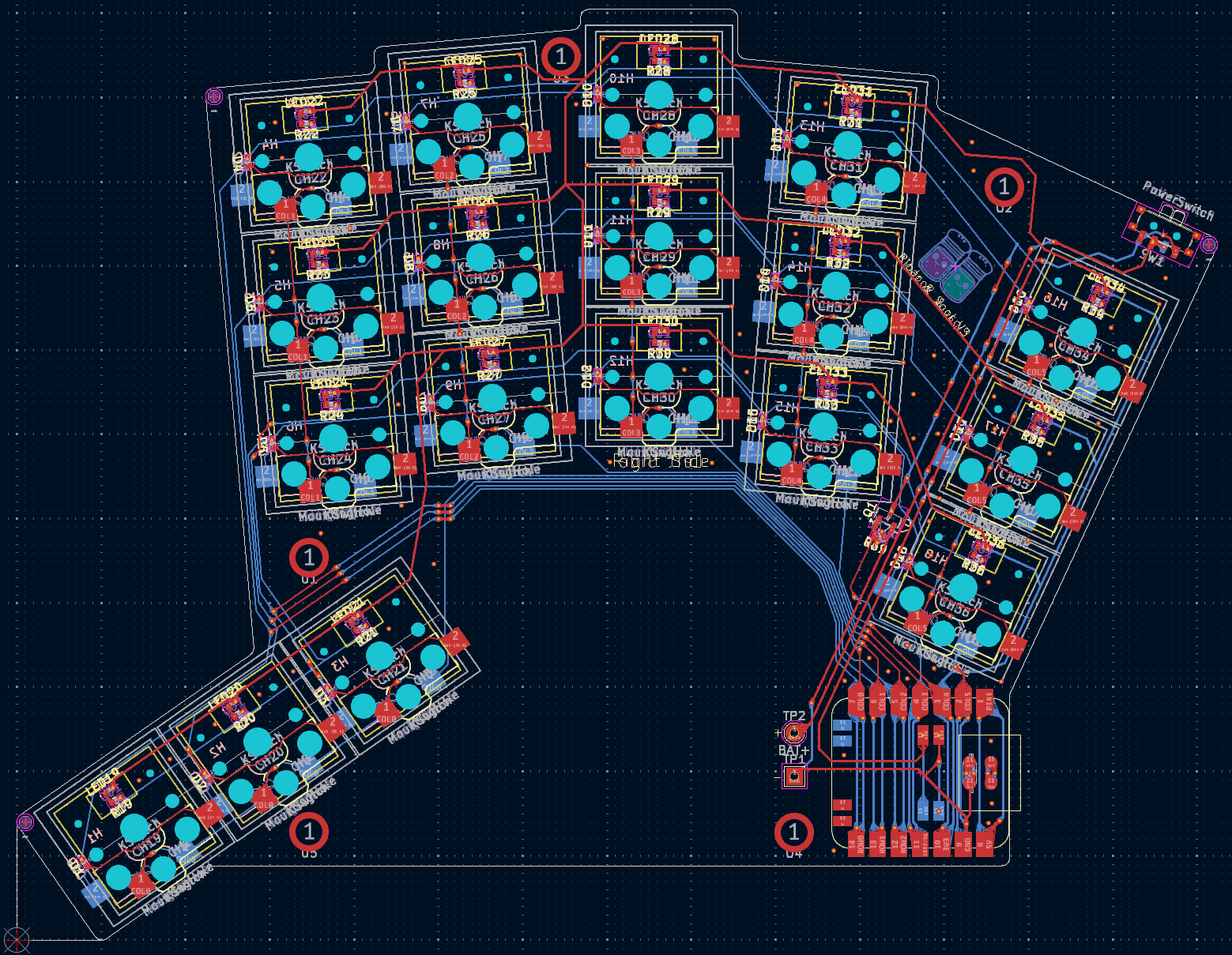

The is a 36-key split wireless keyboard with a 3x5+3 layout with a dongle. It features:

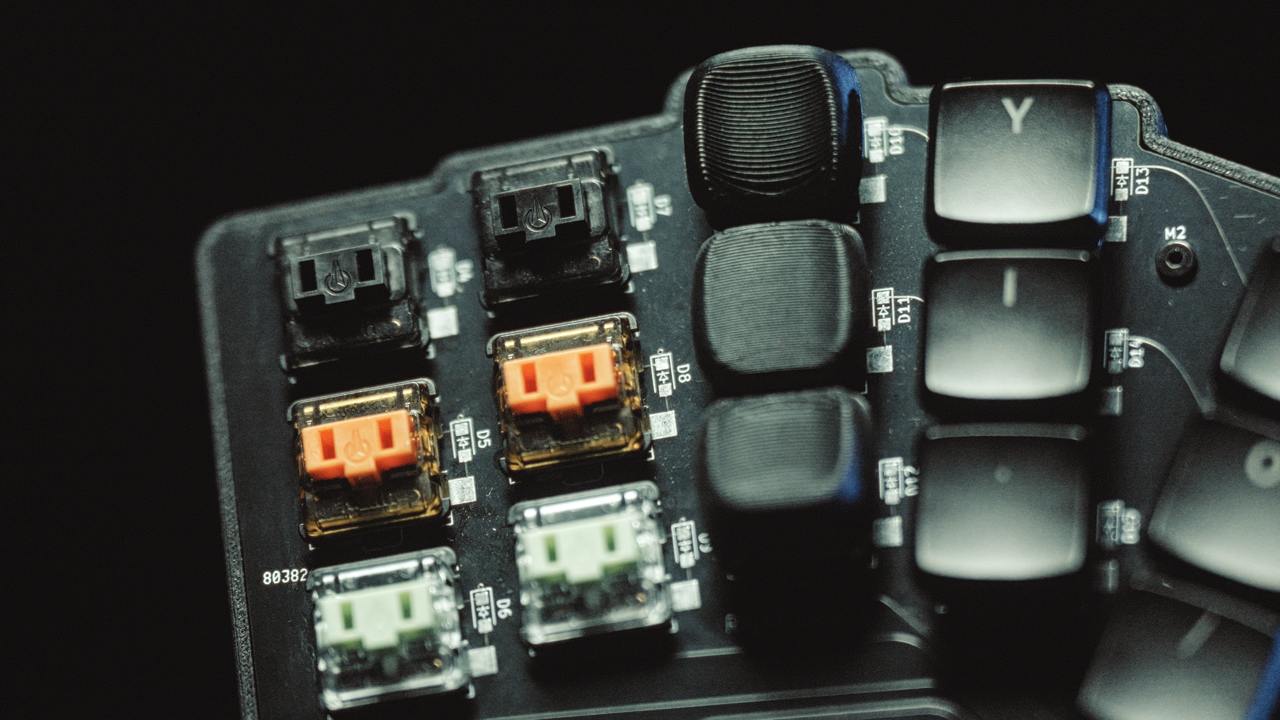

Pictures from version V1

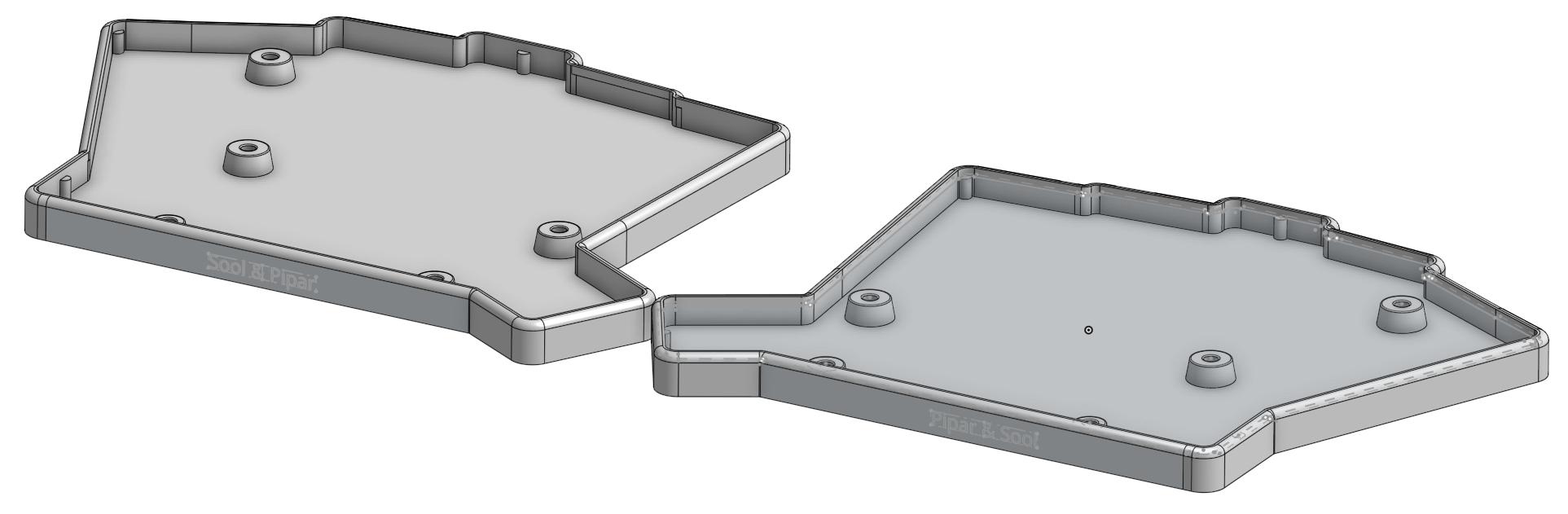

[!NOTE] The V3 design is compatible with the V2 case.
Changenotes:
V3 version has went with the route of using smaller components with the 0403/SOD-323 package for resistors and diodes. The design is also compatible with the V2 case, so the case can be used with the V3 PCB. V3 also has the added benefit of using solder nuts for mounting the PCB to the case, instead of just holes for M2 screws. This adds more possibilities for mounting the PCB to the case.
Consider supporting me by purchasing Pipar & Sool V3 Kit from my Etsy Store.
The components list is for V2 version of the Pipar & Sool which uses larger components in 0805/SOD-123 package. V3 version uses smaller components in 0403/SOD-323 package.
If you are interested in building the V2 version, here is a list of components you will need:
[!NOTE] I am happy to announce that for the Pipar Point project, I have partnered with PCBWay to provide the PCBs for the project. PCBWay is a professional PCB manufacturer with over 10 years of experience in the industry. They offer a wide range of services, including PCB manufacturing, PCB assembly, and PCB design. I am excited to be working with PCBWay on this project, and I am confident that they will deliver high-quality PCBs that meet my specifications.

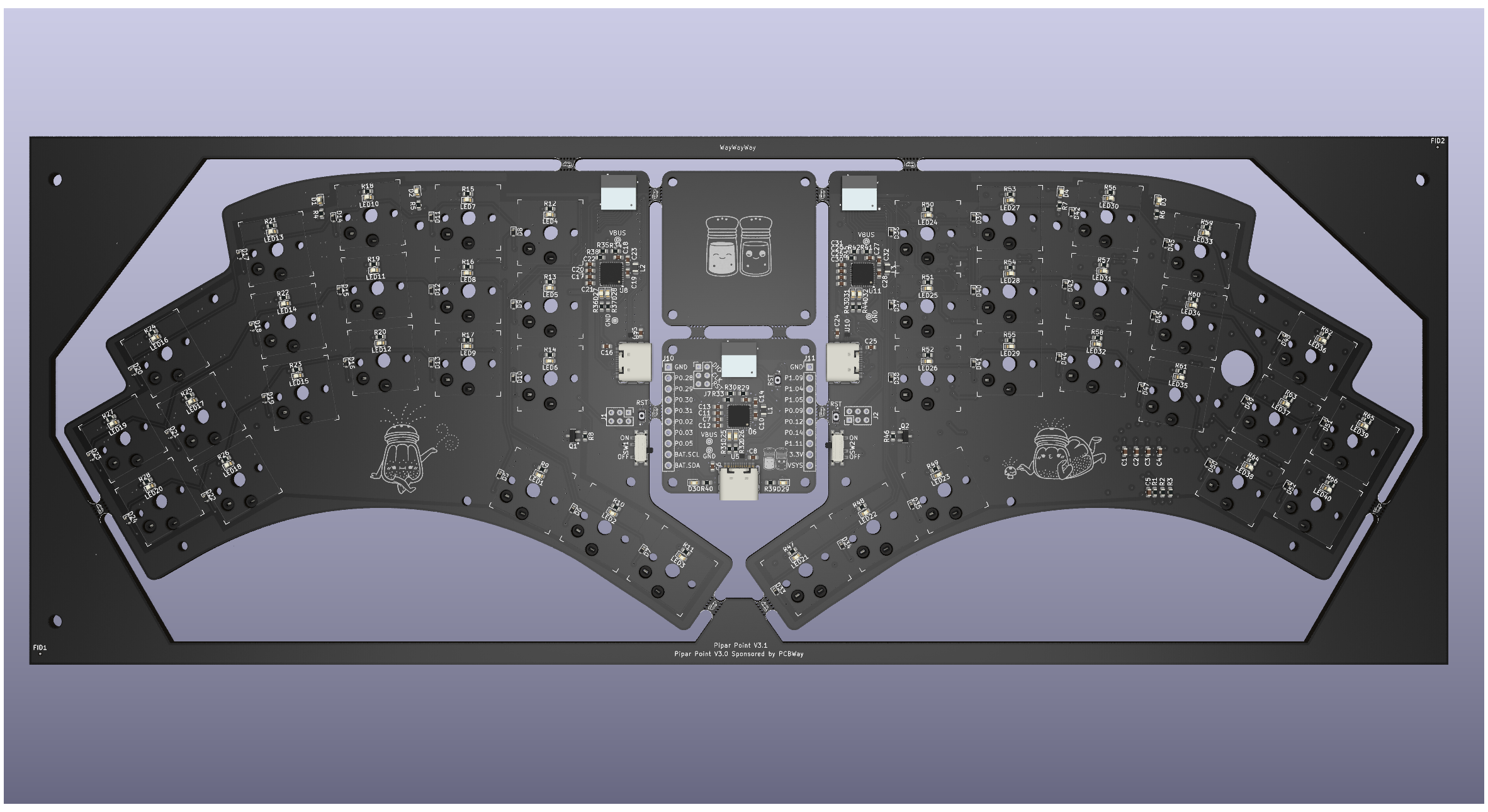

Current PCB revision: v3.1 In regular use — firmware actively maintained.

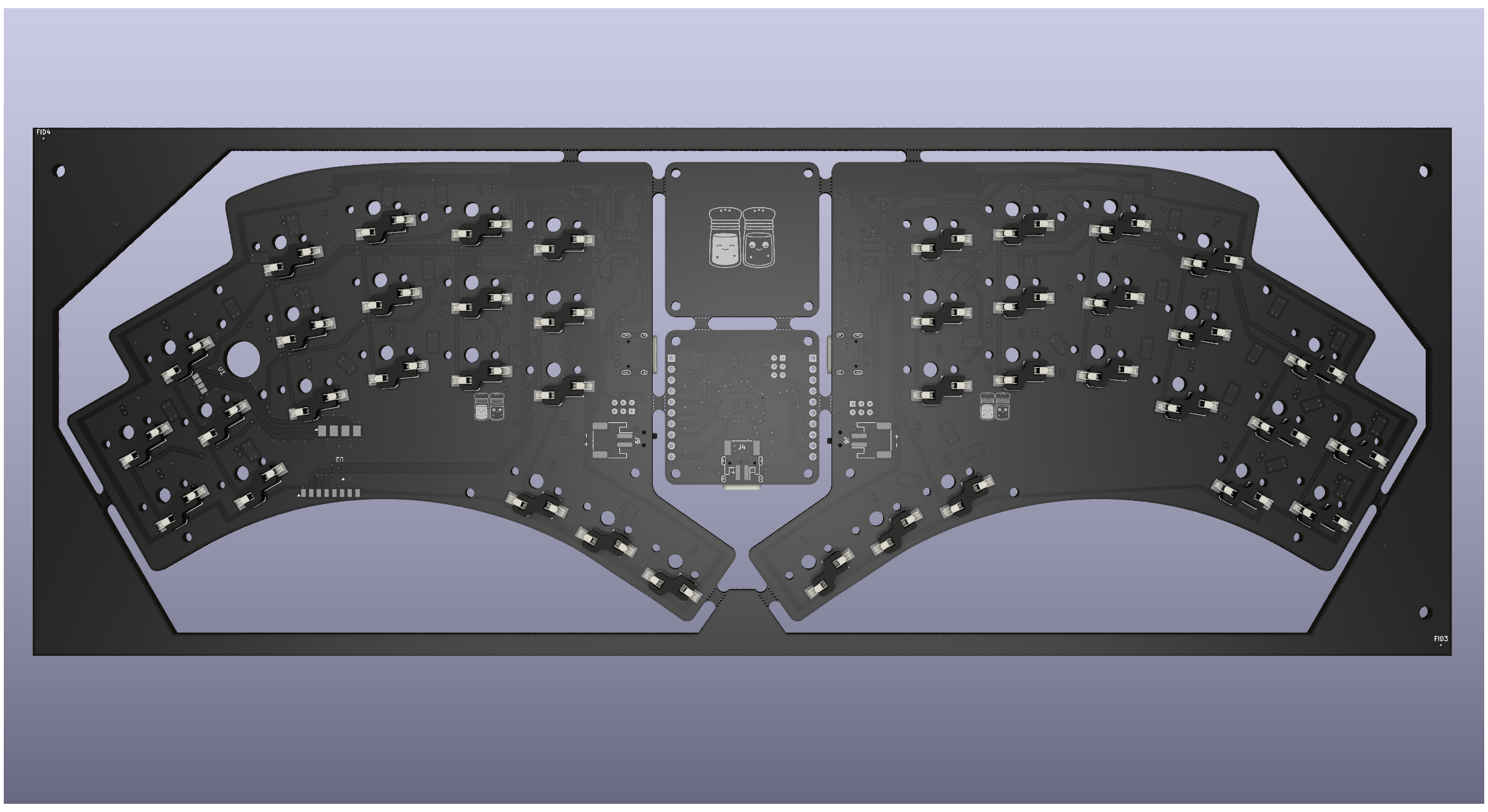

Idea was to iterate on the Pipar ja Sool design and add a trackpoint for mouse control. The design is still in the early stages and will be updated as the project progresses. Because of the trackpoint, LEDs and the battery size has been increased to 2500mAh to compensate for the power draw of the trackpoint and LEDs. With this design, I am aiming to challege myself to design a more complex PCB by using more components which will also be smaller in size. The design will also include a top plate to make the build more rigid and also to hide the trackpoint mounting cleaner.
I want to thank zhiayang/Mikoto and Hello9999901/laptop for making this project possible. Thank you Eden for helping me understand more about Zephyr and getting me started.

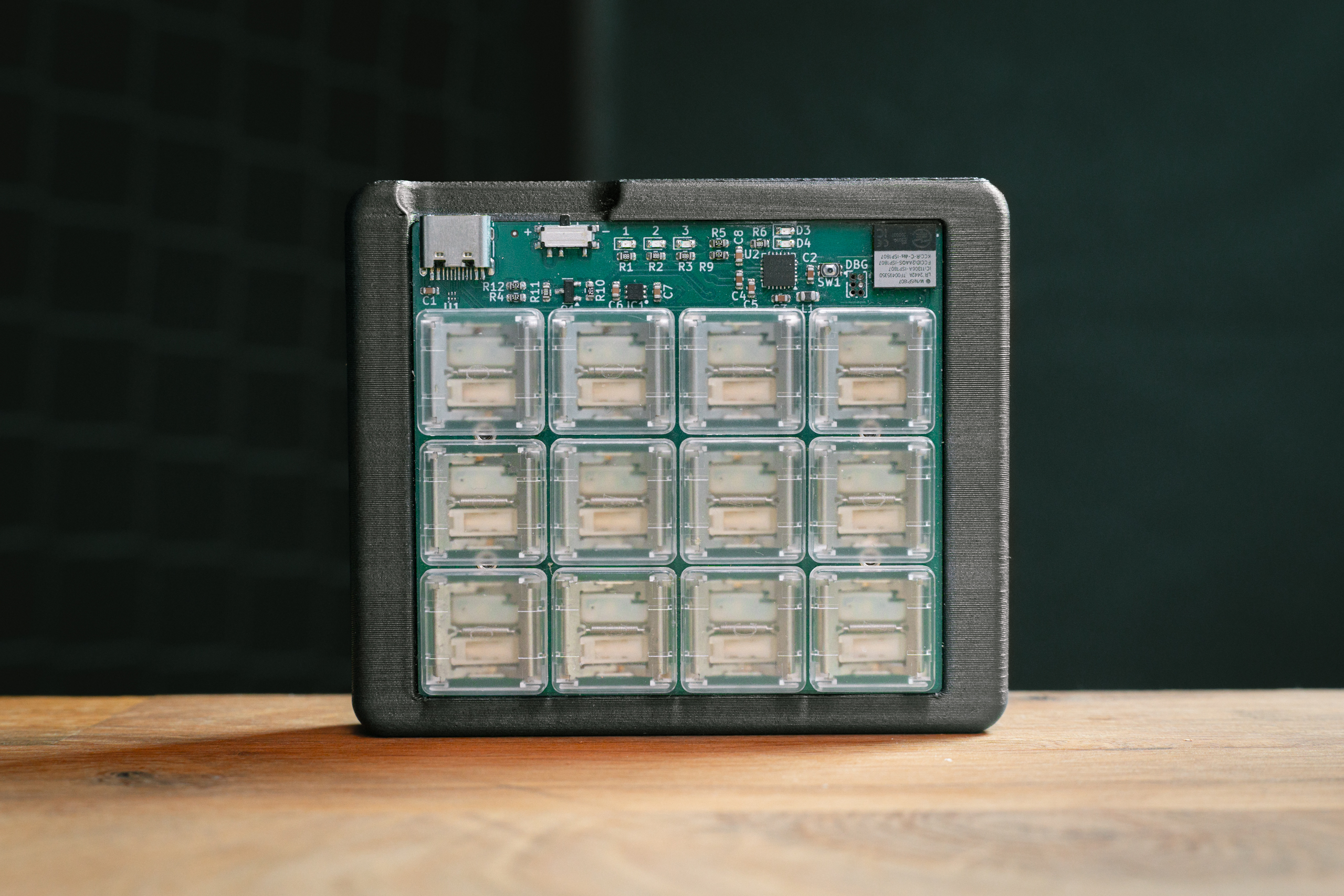

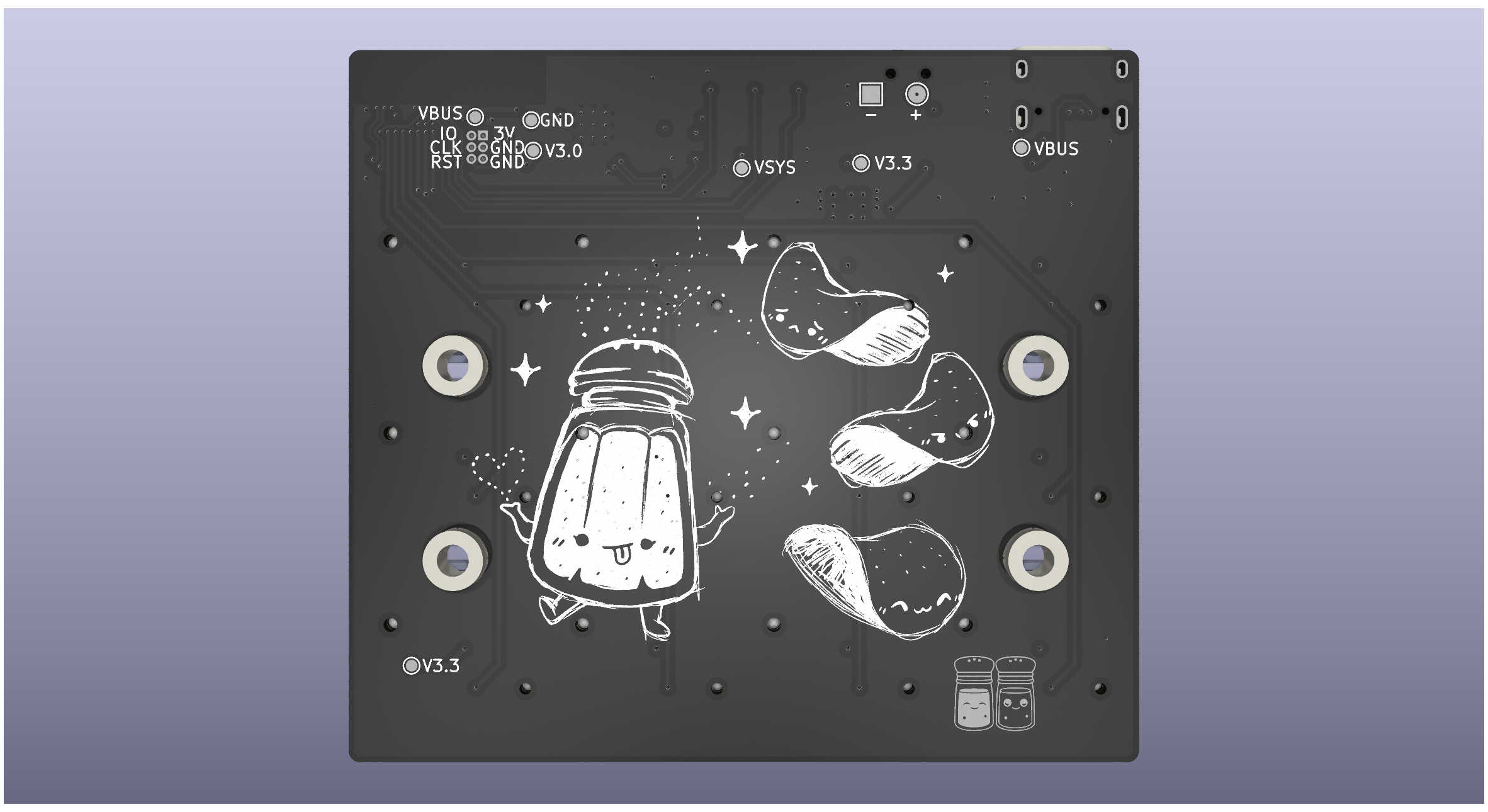

Pipar Chip is a 12-key wireless keypad with Kailh PG1316S switches and LEDs.
Pipar Chip features:

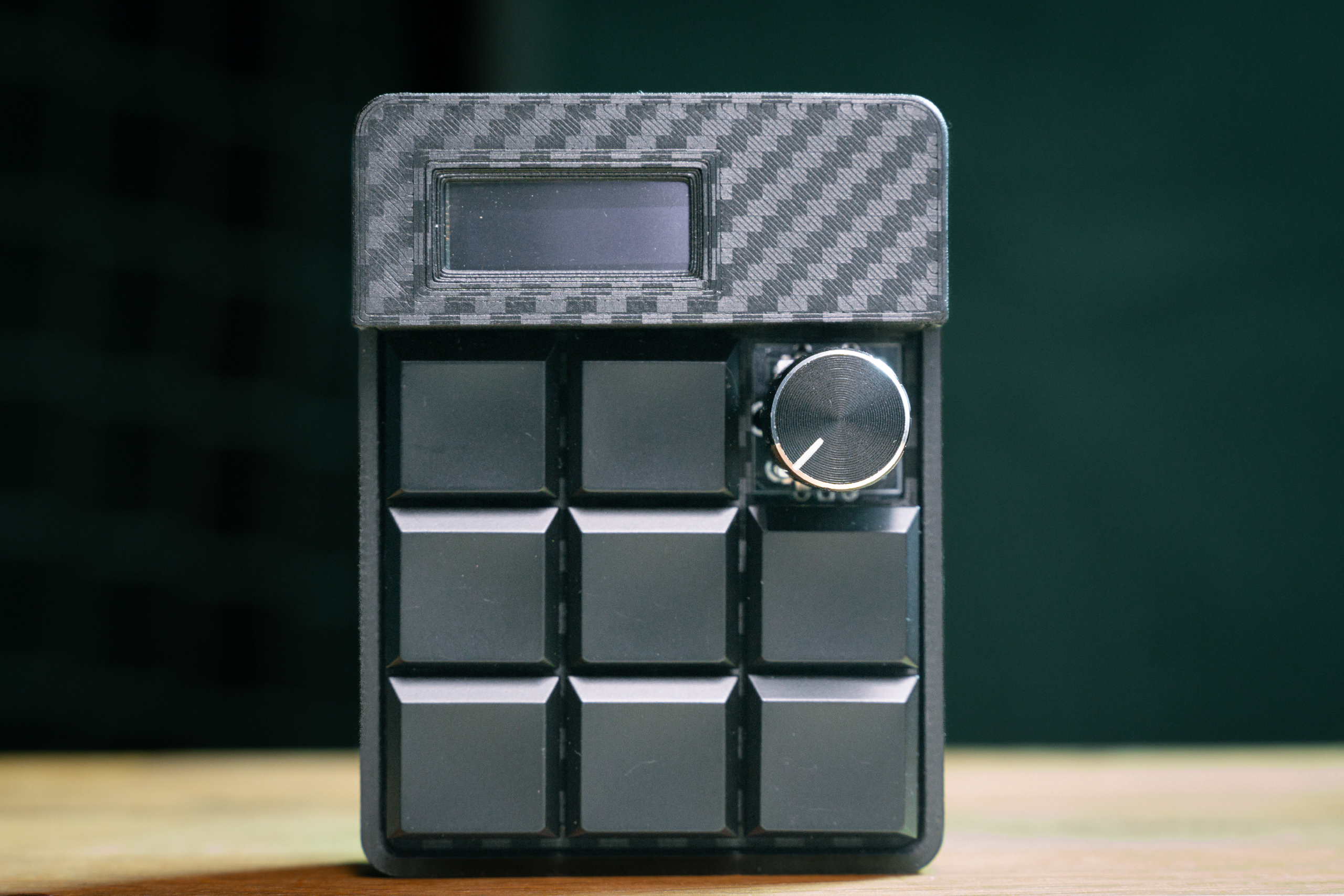

The Pipar Flake is an 8+1 key wireless keypad with a rotary encoder (optional) and a screen. It includes:
