README

nPM1300 Module

Overview

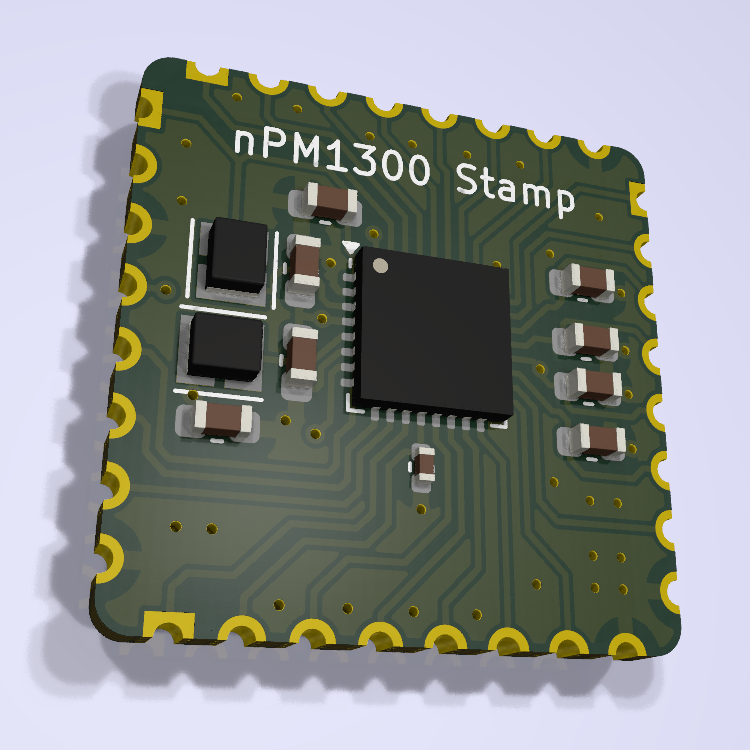

Compact module integrating Nordic Semiconductor's nPM1300 PMIC with all necessary passive components. Designed for easy integration into Bluetooth Low Energy embedded systems.

Key Features

  • 800 mA battery charger
  • Dual 200 mA buck DCDC regulators
  • Fuel gauge functionality
  • System-level watchdog
  • I2C control interface
  • USB-C compatible

Design Resources

  • Schematic symbol available
  • PCB footprint available

Requirements for Design

  • VSET1 and VSET2 resistors must be provided externally
  • VDDIO must be provided externally, but could also be an output from one of your bucks or LDOs on the nPM1300
  • If you use the LDOs, please include the recommended decoupling capacitors outside of the stamp.
  • I2C pull-ups are required externally
  • ESD protection must be provided externally

For detailed specifications, visit Nordic Semiconductor's nPM1300 page.
