Hossein Naderi's Musical Solid-State Tesla Coil

This repo contains all the circuitry and part designs used in this project. It's still a work in progress, but works nevertheless.

Software Requirements

• FreeCAD
• KiCAD
• Nix (optional, but if you have it, you don't need any further explanation of course.)

Build

Visit project's website

Download

You can either use the website or this branch

Customize parts

All parts are designed parametrically, so you can change dimensions in the sheet's values to create custom ones.

Gallery

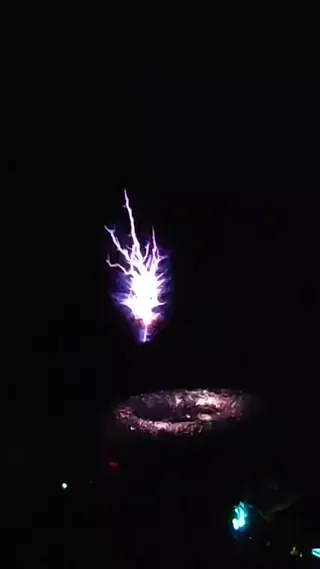

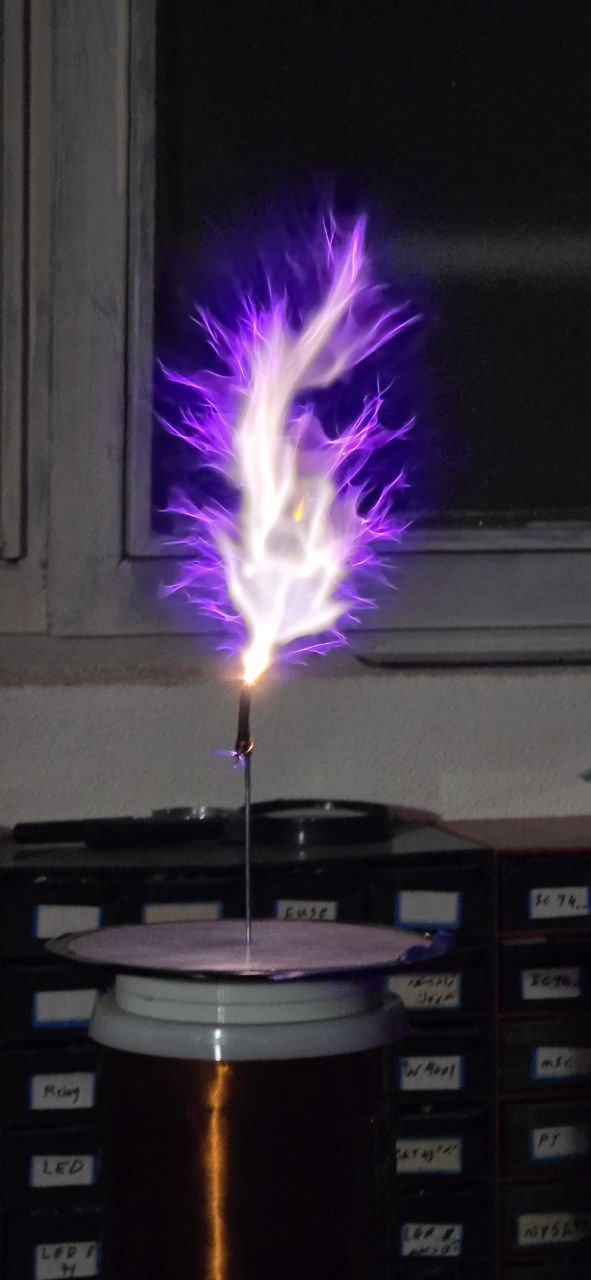

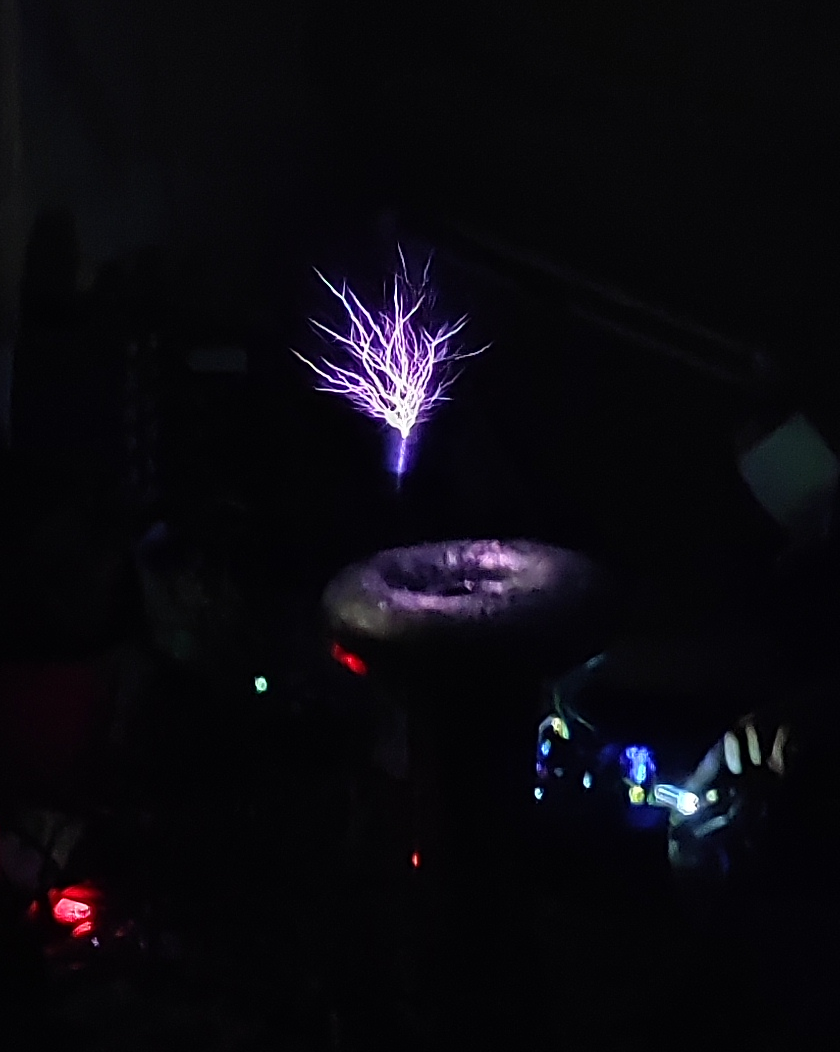

SSTC v3 running CW mode with FM music modulation at 2.5KW SSTC v2 running at 110v CW mode with FM music modulation SSTC v2 running at 110v interrupted mode
