Here I will publish finished and "Work-in Progress" Shields Designs for the MorphESP 240 by @ccadic. The MorphESP 240 is available after a successful campaign here on Crowdsupply.
NB: I don't supply the firmware, I am busy with electronics :))

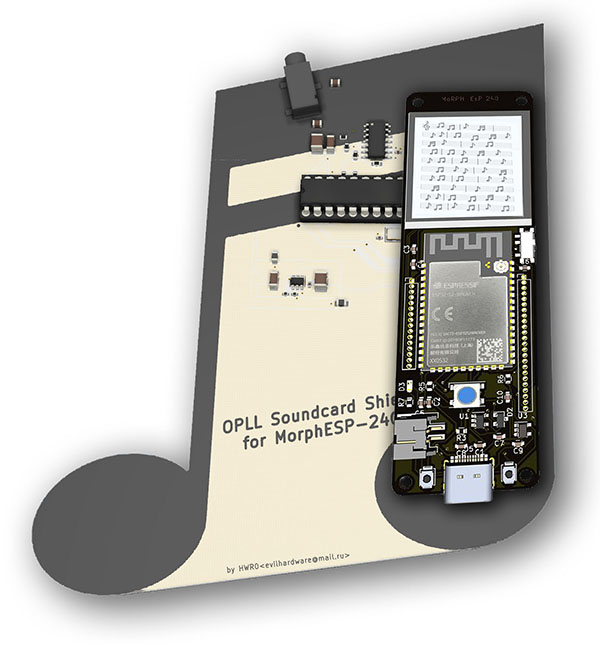

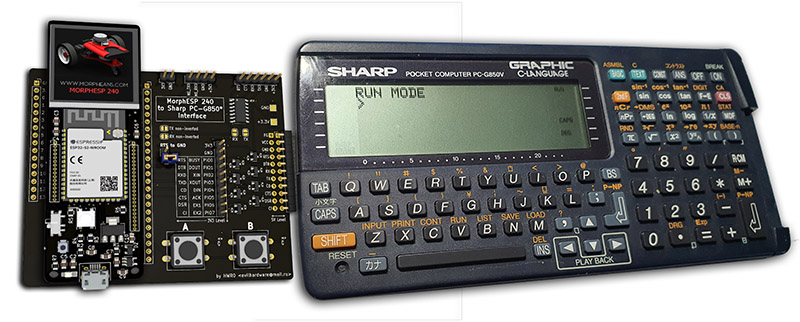

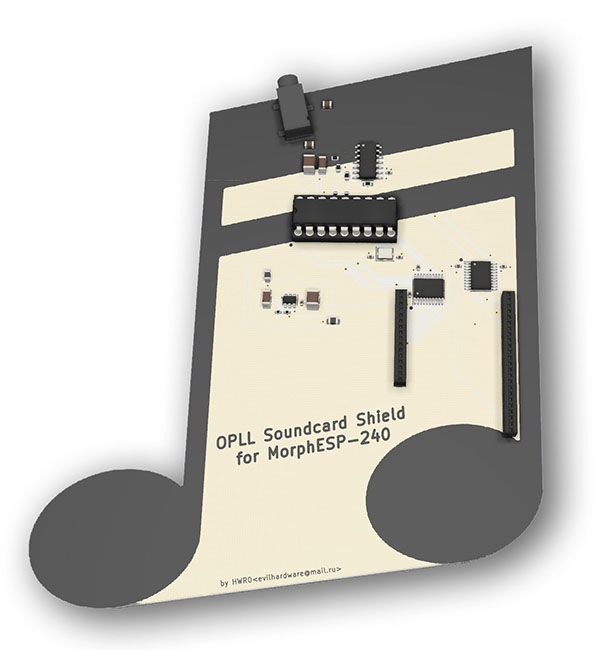

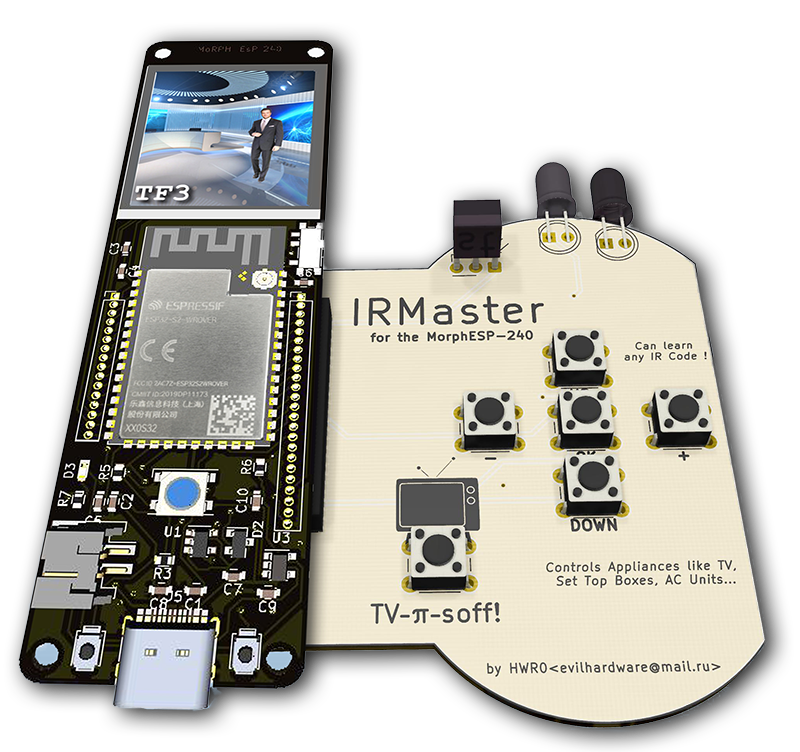

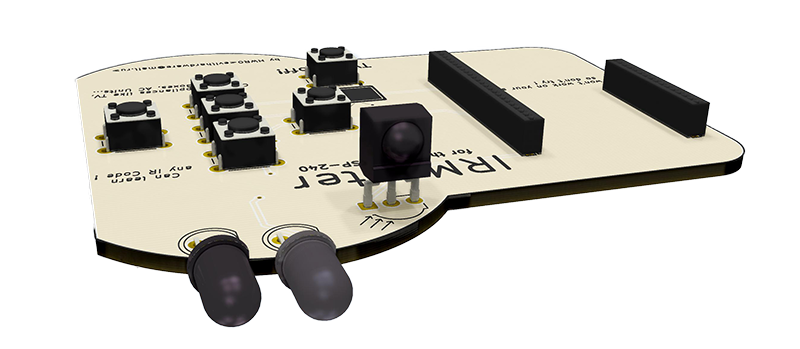

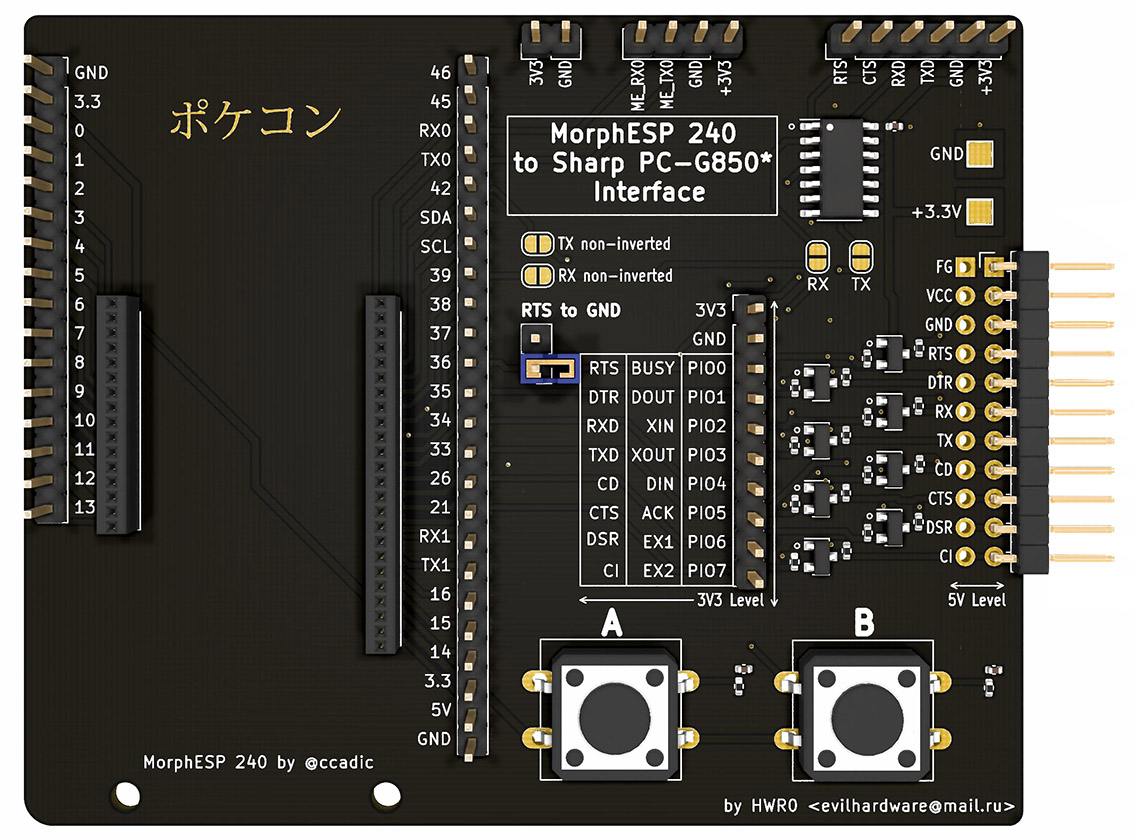

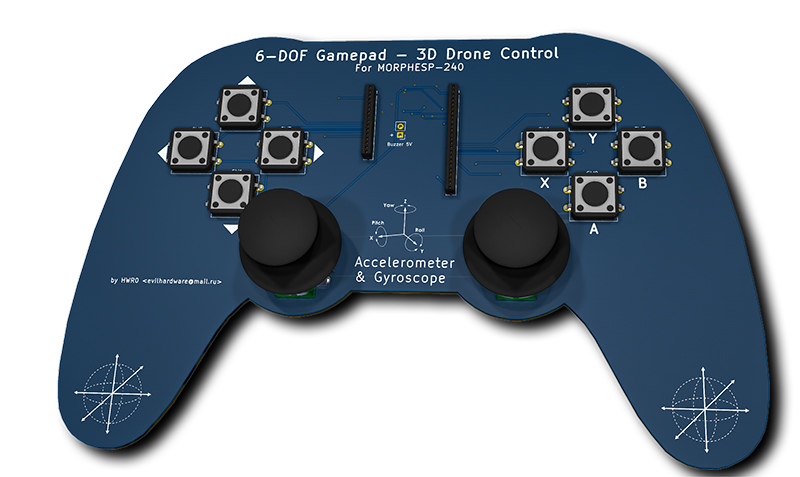

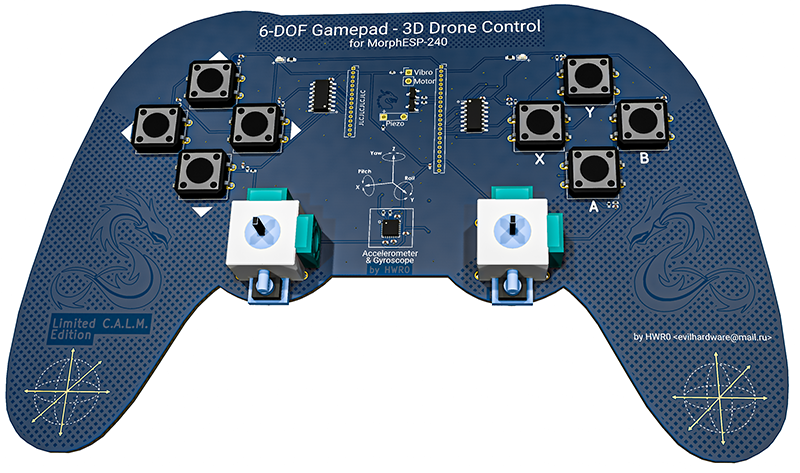

Next evolution of the Gamepad Shield in a new design with two additional analog josticks and a I2C Gyroscope + Accelerometer integrated circuit for Position & Inertia capture.

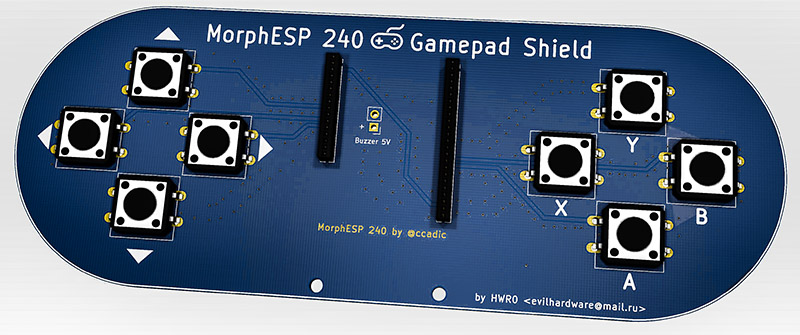

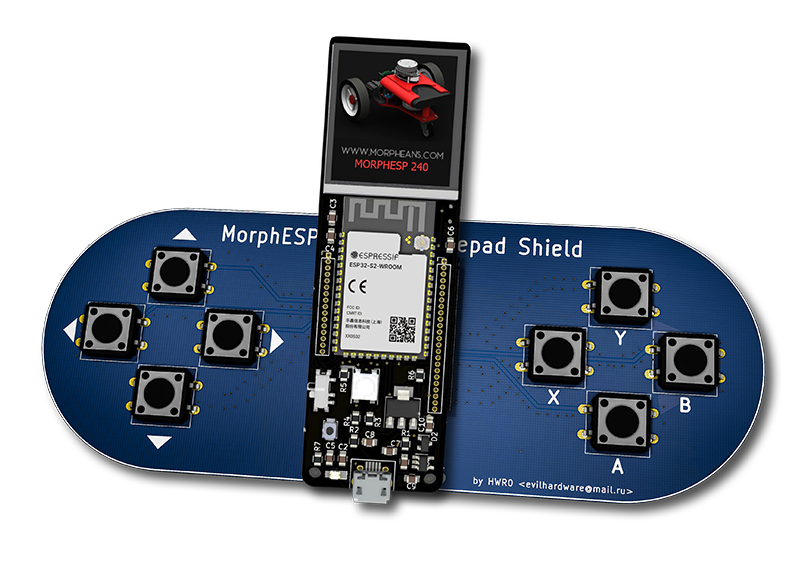

2x4 Button Gamepad Shield and connection to optional Buzzer ready to be fabricated and assembled by the PCBA service of your choice. It can also be soldered by hand as I used only 0805 and SOT-23 footprints for the passives and the transistor (on the backside). Pushbuttons are classic, comfy 12mm x 12mm x 4.3/5mm units, that won't use that much your fingertips.
UPDATED: Moved all parts to front side. Changed strategy to factory assemby, therefore changed all passives to mainly 0402, at max 0603. Changed Accelerometer + Gyro to MPU6050, the Alps thumb joysticks to 3D161 from Korean Hroparts Elec (what was available @ JLCPCB/Parts for PCBA).
Removed the stupid 5V Connection. Added hardware debounce with RC-lowpass & Schmitt-Trigger on all buttons.
Added connection to +3.3V vibration motor. Added 2 LEDs Added 4 Pads (GND, +3.3V, SDA, SCL) on the backside of the PCB to be able to connect independently with the I2C BUS (gyro)
Gerber files, BOM and CPL Files for Assembly (JLCPCB Format) and Project archive (Kicad 5.99 nightly only Format!) are available too.

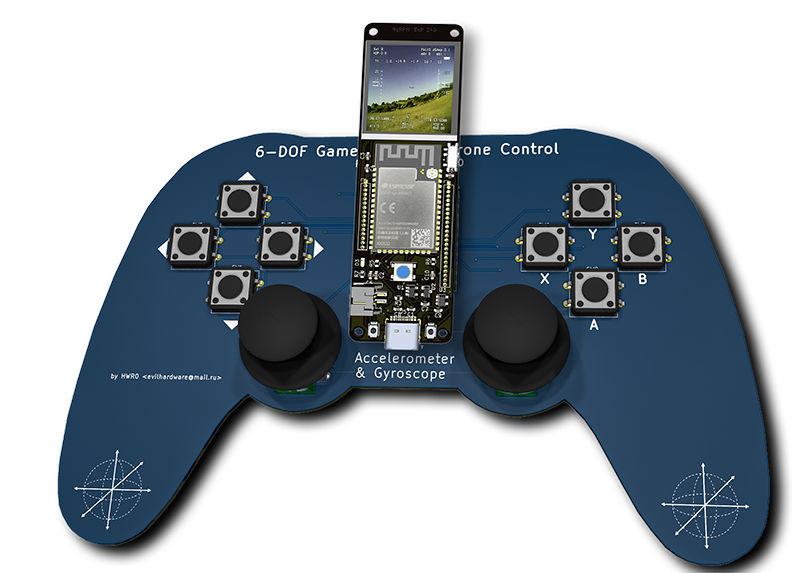

New Model:
Old photos:

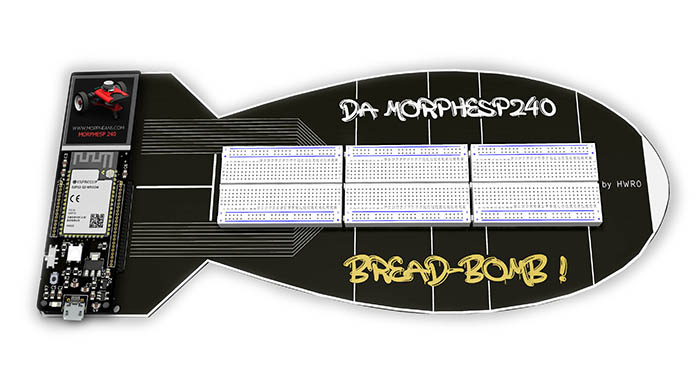

- Da Bomb!
... in the early design stage ...
