Description

音游灯 RGB LED PCB for rhythm game buttons

README

音游灯

BOM:

1 ATTINY13A-SSU
1 100nF SMD cap 0805
1 schottky diode (MFG# UPS115UE3)
1 4x4x1.5mm tactile SMD tactile push button

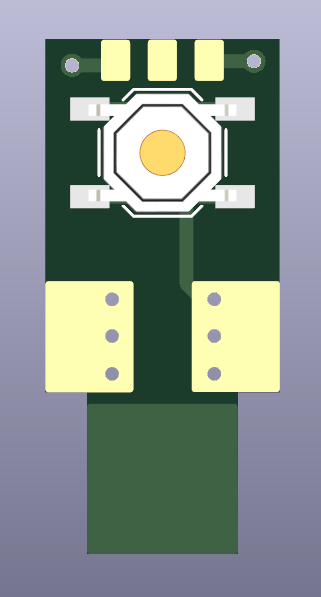

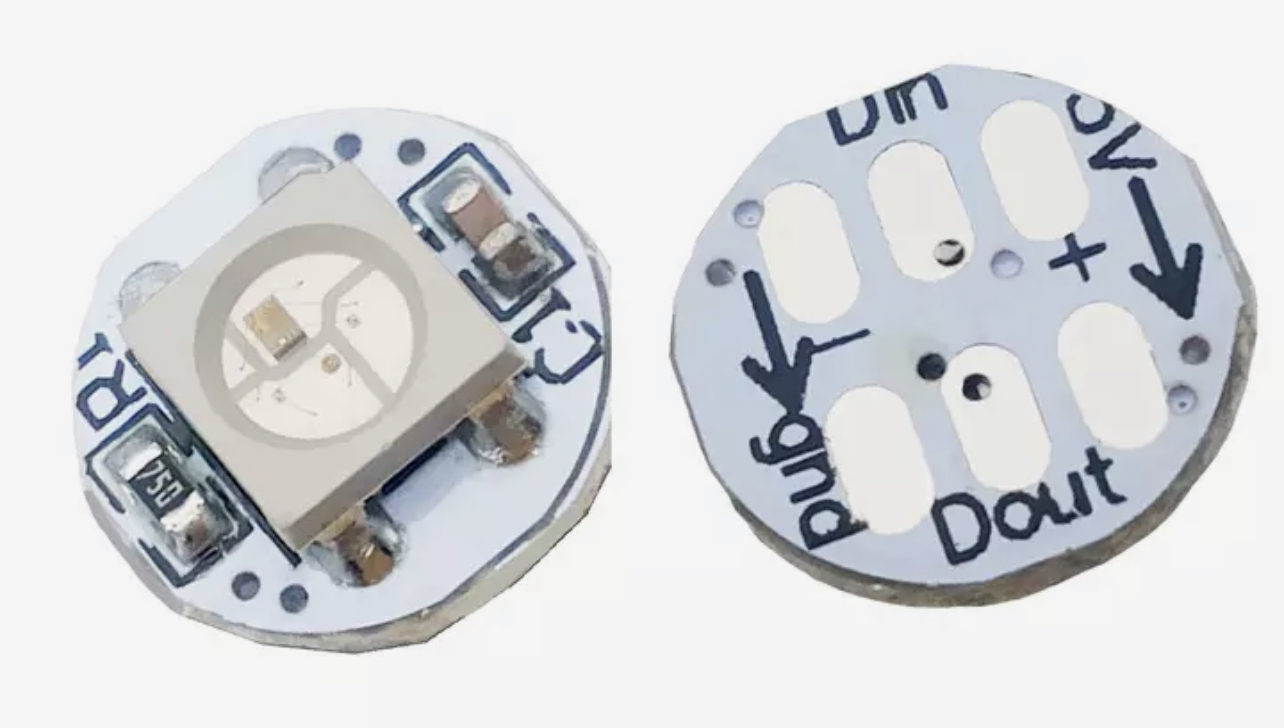

1 WS2812 LED on PCB with res+cap

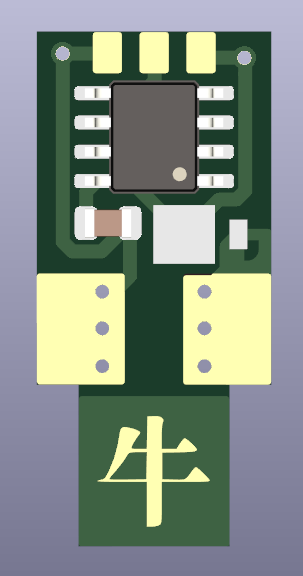

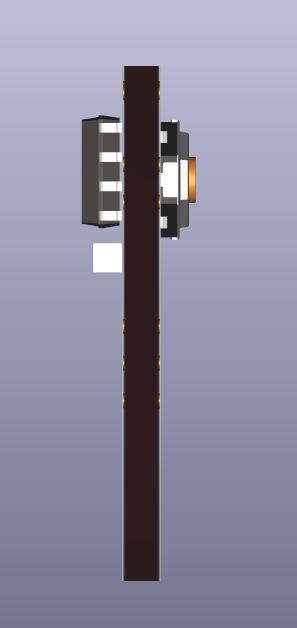

PCBs should be manufactured at 2.0mm thickness instead of standard 1.6mm. Soldering the WS2812 module on to the PCB can be a bit tricky, so I designed a jig which simplifies the alignment of the parts. The model is available in jig/jig.stl.

Special thanks to Tim (cpldcpu) for the implementation of the WS2812 protocol.

享受音游 享受生活
