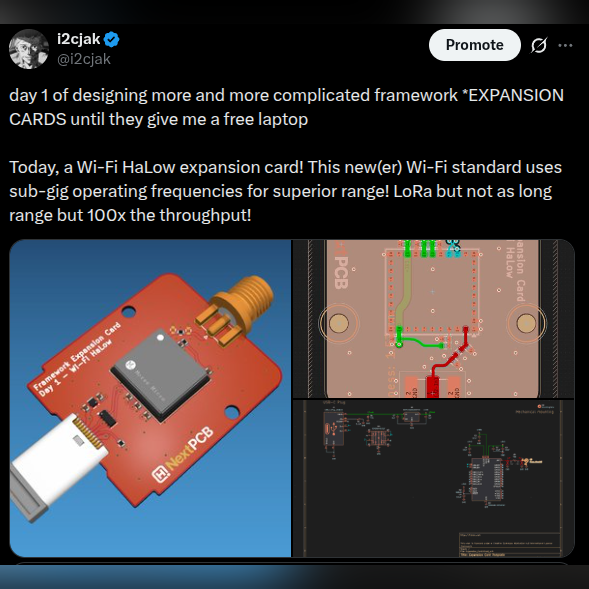

framework_expansion_cards Day_01_Wi-Fi-Halow view

Imported from GitHub: i2cjak/Framework_Expansion_Cards · commit 06a5d4a · license CERN-OHL-P-2.0

Description

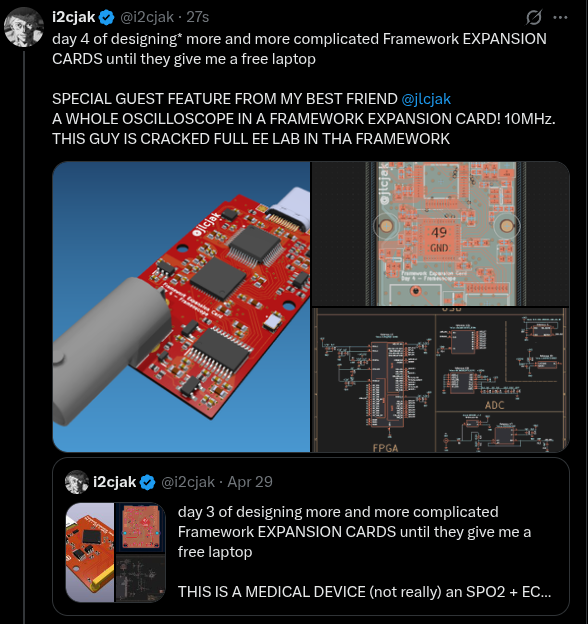

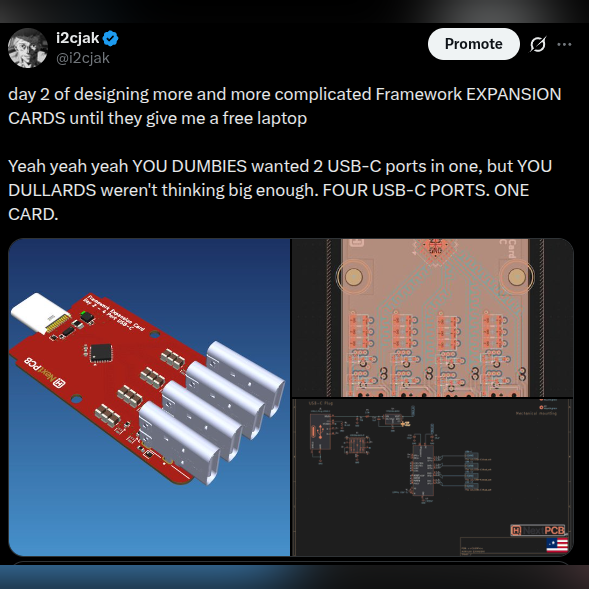

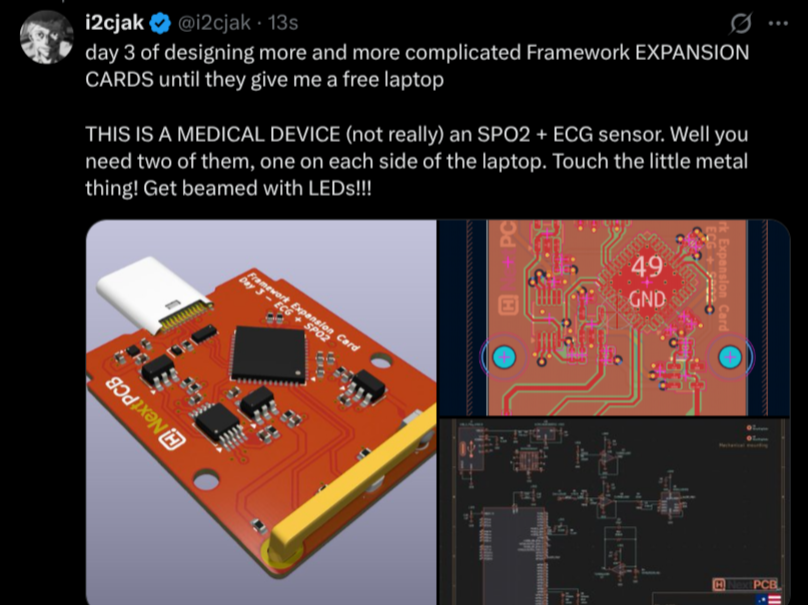

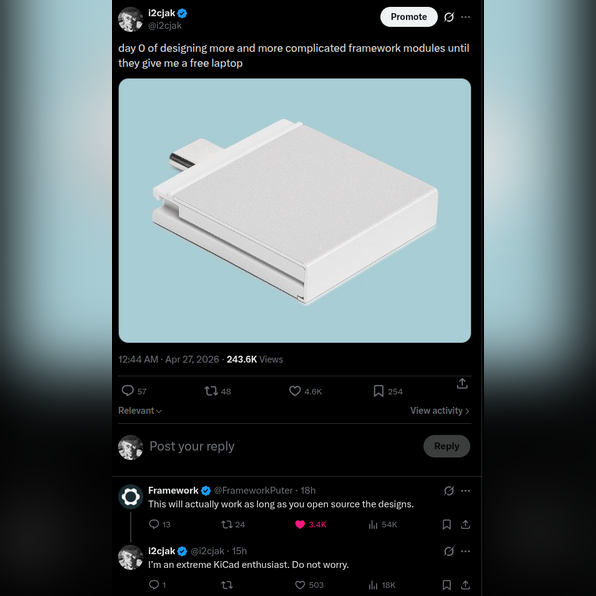

In which i2cjak creates a new expansion card design every day until he is given a NICE Framework laptop

README

American Embedded KiCad Template

This repository contains a KiCad project template provided by American Embedded. It is designed to be a starting point for new electronic designs, pre-configured with common settings, layers, and manufacturing outputs.

Features

  • Manufacturing Outputs: Includes a Build.kicad_jobset file for generating common manufacturing data for JLCPCB, NextPCB
  • Build Script: A build.sh script is provided to automate the process of running the jobset and formatting the component placement file.

Usage

Use this repository as a template directly in KiCad.

  1. In the KiCad project manager, select File > New Project from Template...
  2. Navigate to the directory containing this repository.
  3. KiCad will prompt for a project name and handle all file renaming automatically.
  4. You can then begin your design work as usual.

Building

To generate all the output files, run the provided shell script:

./build.sh

This script will:

  1. Execute the KiCad CLI to run the jobs defined in Build.kicad_jobset.
  2. Place all generated files into the build/ directory.
  3. Convert the raw component placement file into supported format

The Build.kicad_jobset is configured to output:

  • ERC and DRC reports
  • PDF of the schematic
  • BOMs for JLCPCB and NextPCB
  • Gerbers and drill files (in a zip archive)
  • 3D model (STEP file)
  • Component position files
