README

CC BY 4.0

Nano Expander

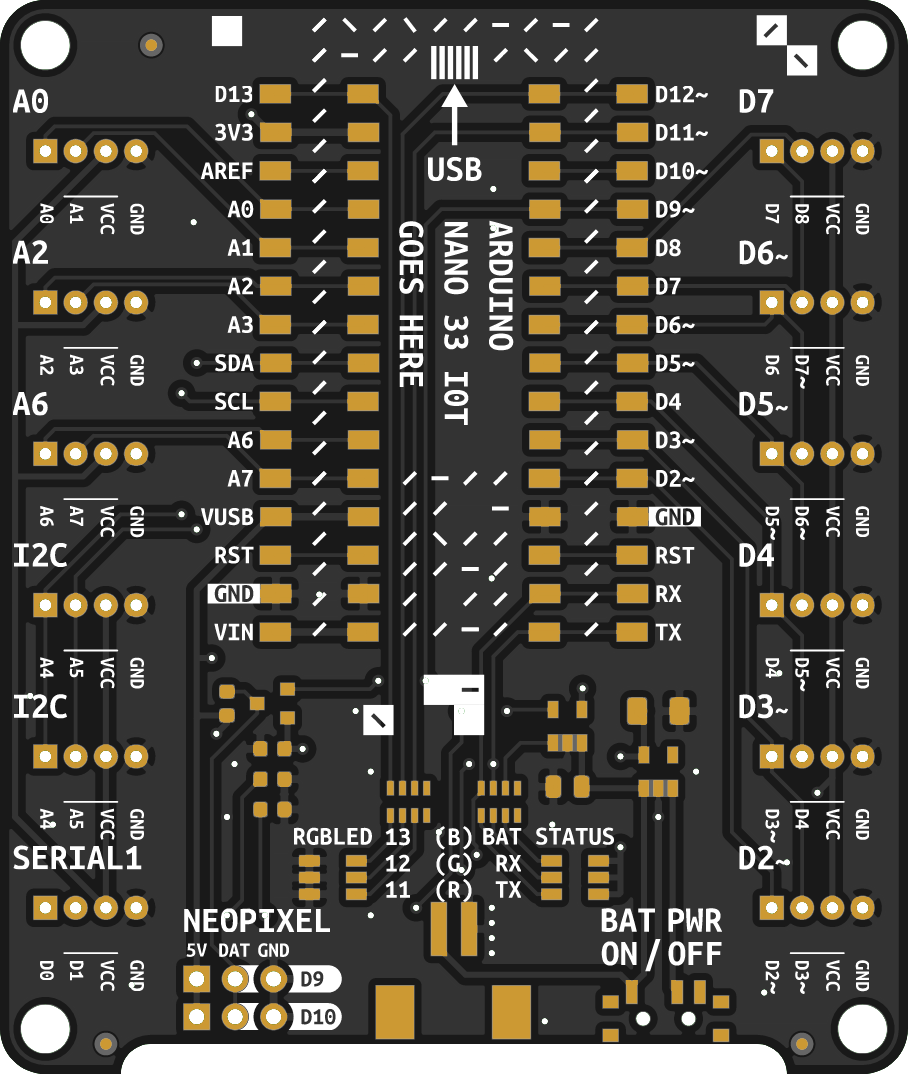

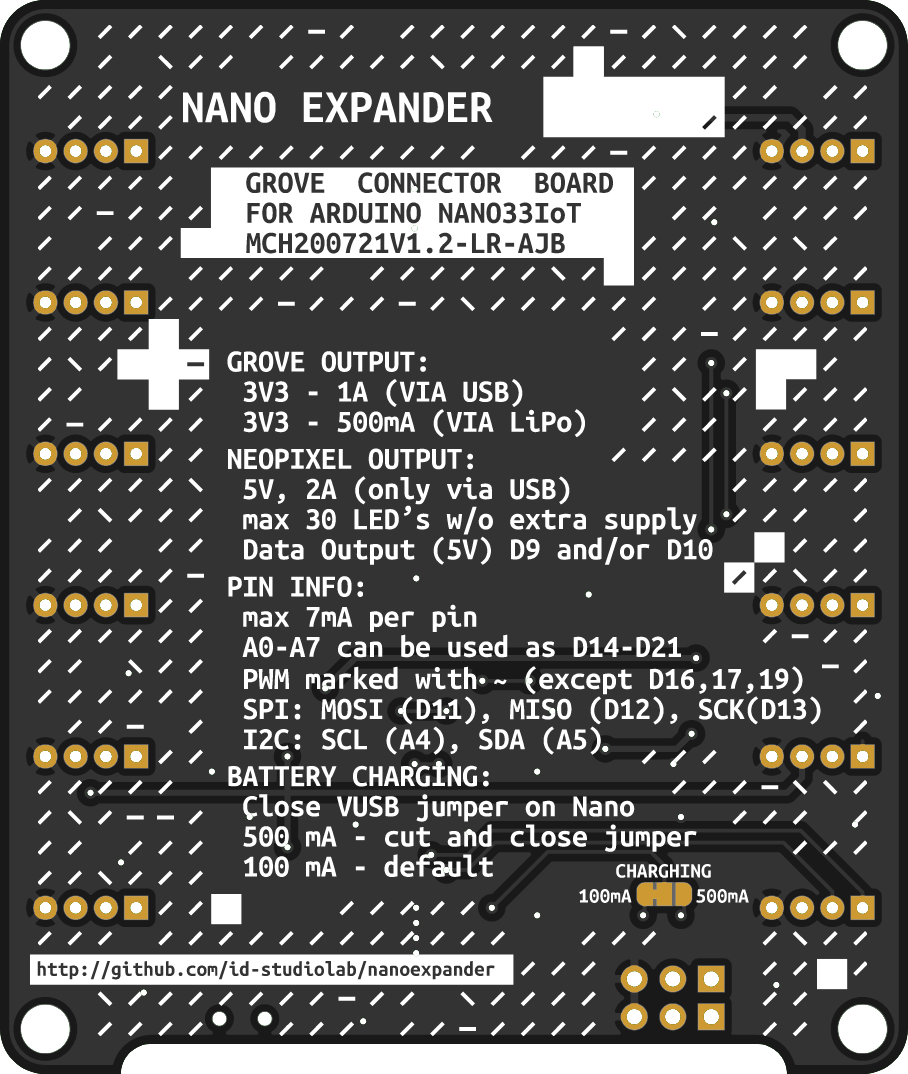

Grove Breakout board for Arduino Nano 33 IoT.

This is the sibling of the Bitsy Expander, a Grove Breakout board for Adafruit's ItsyBitsy M4 Express.

This work is licensed under a Creative Commons Attribution 4.0 International License.

CC BY 4.0
