Voltage regulator with protection diodes

README

Voltage Regulator LM317T

Interactive BOM

Alt text

Alt text

Schematic

Alt text

Comments

Sign in to comment

No comments yet. Be the first to ask about this board.

publicGPL-3.0

voltage-regulator-lm317t

@igonzalezb

Voltage regulator with protection diodes

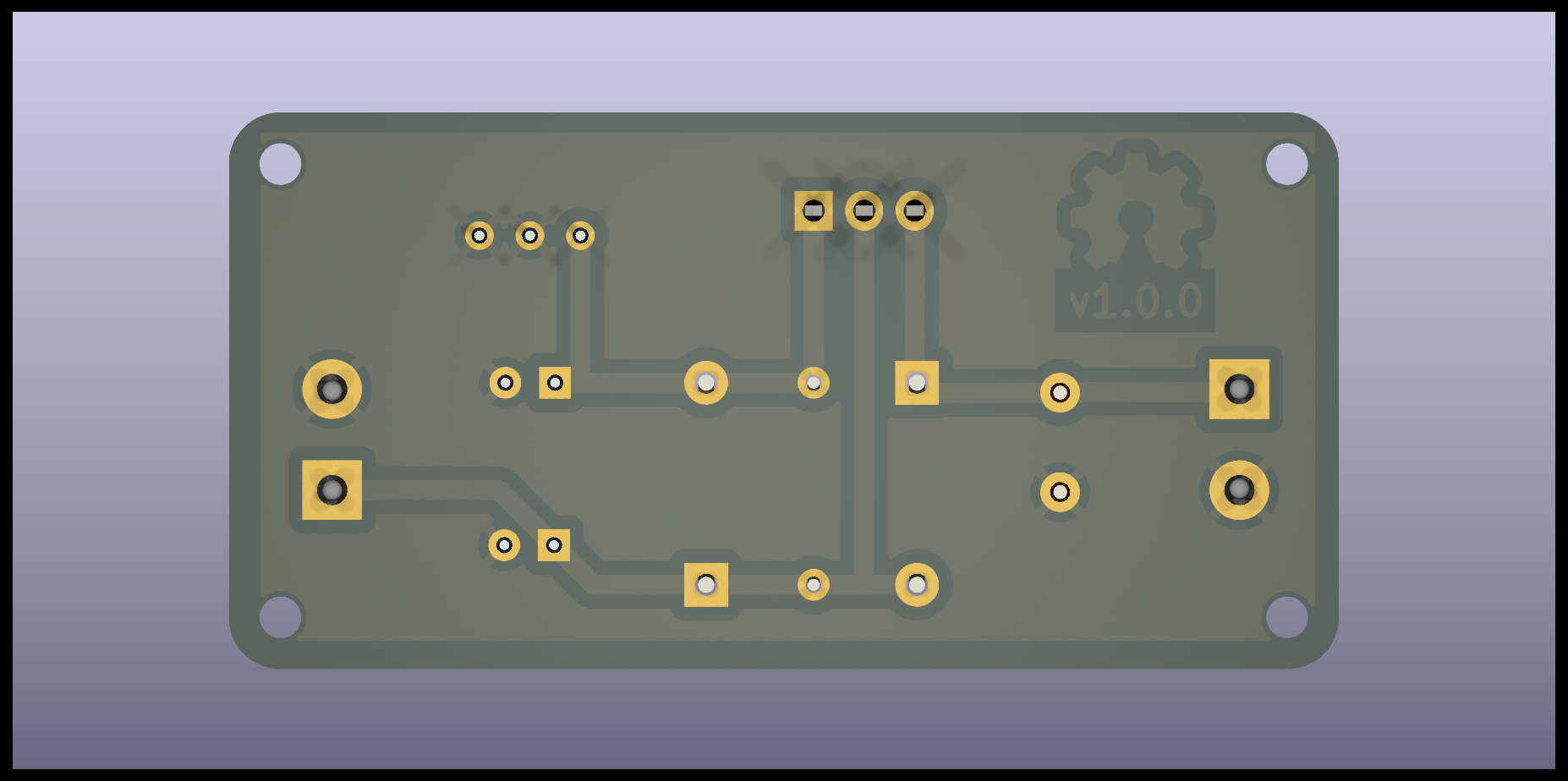

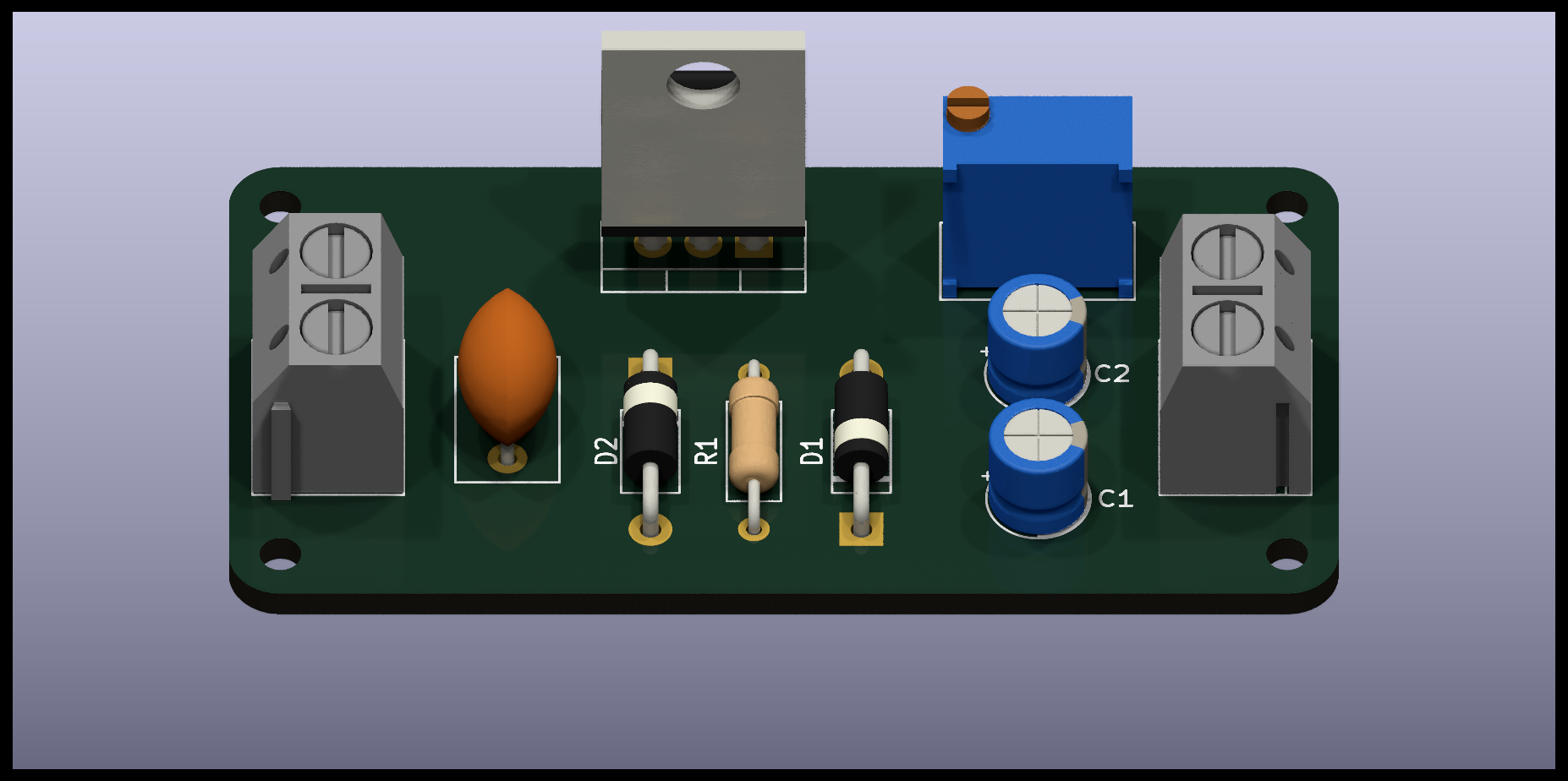

55.8 × 28 mm · 1.6 mm · 2 layers · rev 1.0.0

Tags

kicad voltage-regulator capacitor diode resistor connector regulator mounting hole

000Sign in to save

Project info

Files4

Source60 KB

Extracted265 KB

Source formatKiCad KiCad project format 2

GitHub stars0

Imported fromGitHub

Saves0

Downloads0

UpdatedJul 9, 2026

Downloads

Source packageOriginal hardware design source archive

Original KiCad project zip

60 KB

Fabrication packageGerbers and drill, pick-and-place, DRC report, and the 3D model

Gerbers and drill zip

56 KB

Pick and place (CSV)

869 B

3D model (GLB)

728 KB

Review packageSchematics, PCB views, BOM, and extracted files

Schematic PDF

54 KB

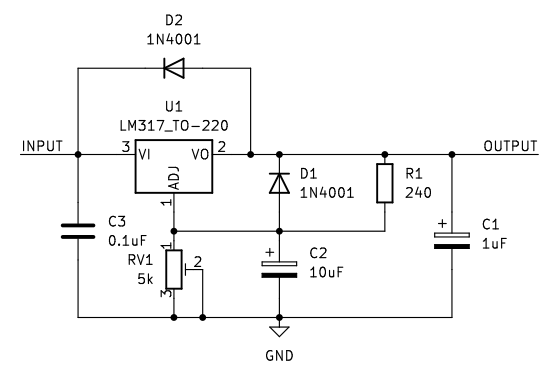

Schematic, Voltage Regulator LM317t sheet
