Description

Complete design files for a 2x6 LED metrix, created using KiCad.

README

LED Matrix

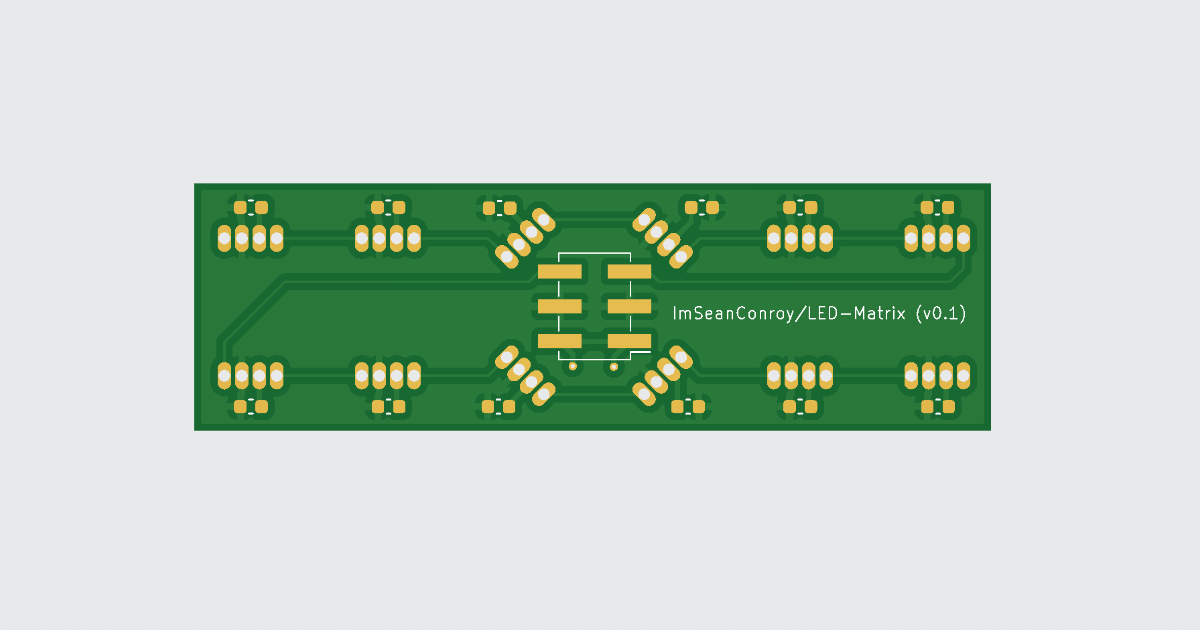

This project is a minimal, compact 12-pixel LED matrix (2 rows × 6 columns), based on WS2812D addressable LEDs and created using KiCad.

Getting Started

1. Open the Project - Open the .kicad_pro file in KiCad to view the project.
2. Review the Design - Inspect the schematic and PCB layout to ensure it meets your needs.
3. Customize or Export - Make any modifications and export the Gerber files for fabrication.
4. Order the PCB - Submit the Gerber files to your preferred PCB manufacturer.
5. Get the Components - Purchase the components from the BOM and a compatible board.
6. Assemble the Hardware - Solder the components and assemble the board.
7. Upload the Firmware - Connect the board via USB and upload the firmware.

Required Components

The following are the required components to build the 2x6 LED Matrix:

Quantity	Component	Description	Source
12	WS2812D 8mm LEDs	Individually addressable RGB LEDs	AliExpress
1	2×03 Pin Header	2-row, 3-pin male header	AliExpress

Contributing

Contributions are welcome. Please open an issue or submit a pull request for any enhancements or bug fixes.

License

This project is Distributed under the MIT License - see the LICENSE file for information.

Support

If you are having problems, please let me know by raising a new issue.
