Description

A tiny and low power dev board for the ESP32-C6

README

C6dev

A tiny and low power dev board for the ESP32-C6 with 10 GPIO pins, microSD card slot, 64Mbit (8MB) of Quad SPI Flash, USB C 2.0, a step-down converter for efficiency, 2.4 GHz ceramic chip antenna and very cool silkscreen. All pins are labeled with their number, actual GPIO and even other functions.

---

I've been wanting to make a devboard for a while now so i decided to make one with a RISC-V, low power MCU while breaking out a bunch of useful stuff while still keeping an acceptable amount of GPIO.

It was quite a lot harder than I expected with all the datasheet searching and looking up everything to make sure it works but atleast the routing was quite fun.

---

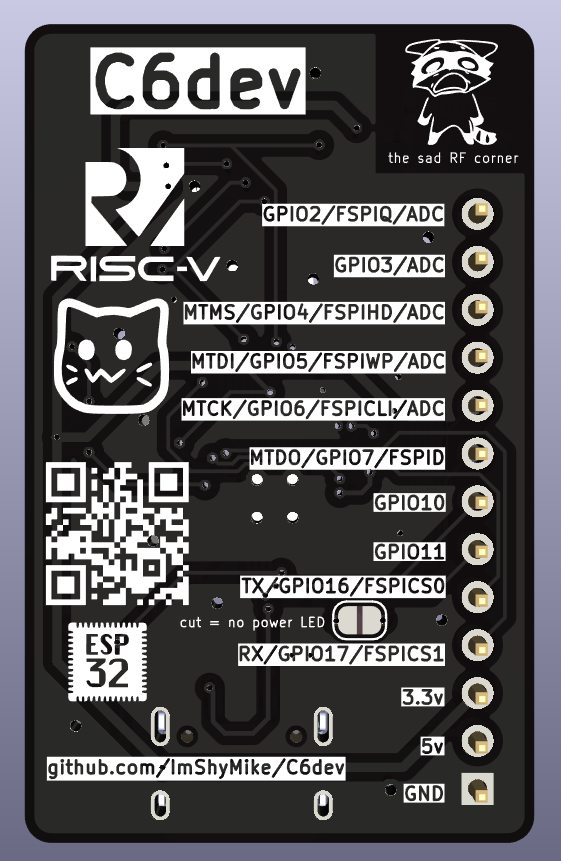

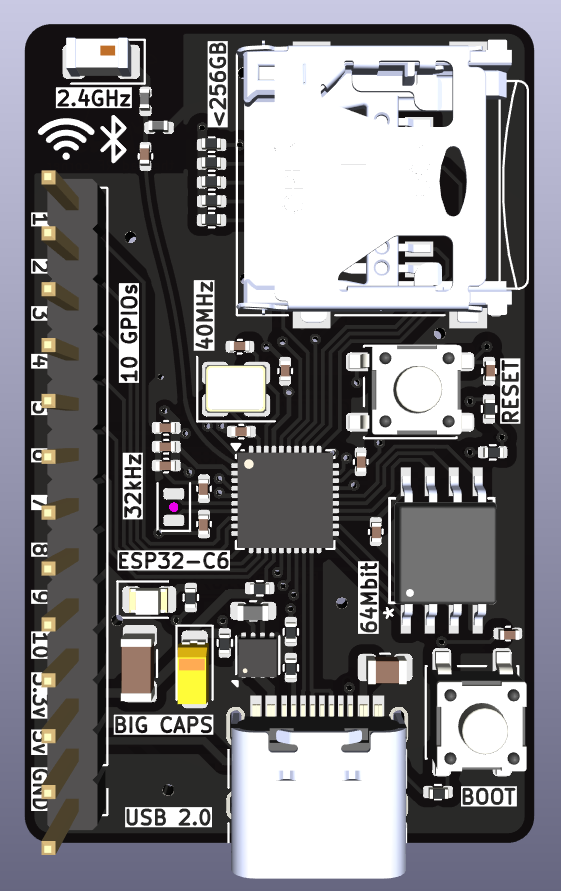

PCB front	PCB back

---

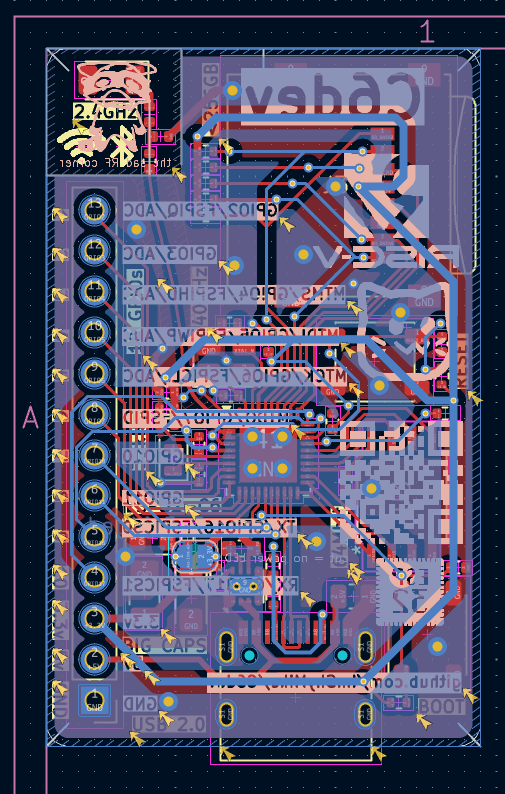

PCB

---

BOM

Item	Quantity	Price (USD)
PCB	1	$77

---

3D Model

STL (renders on GitHub)

STEP

WRL (best)
