Inoa Satellite

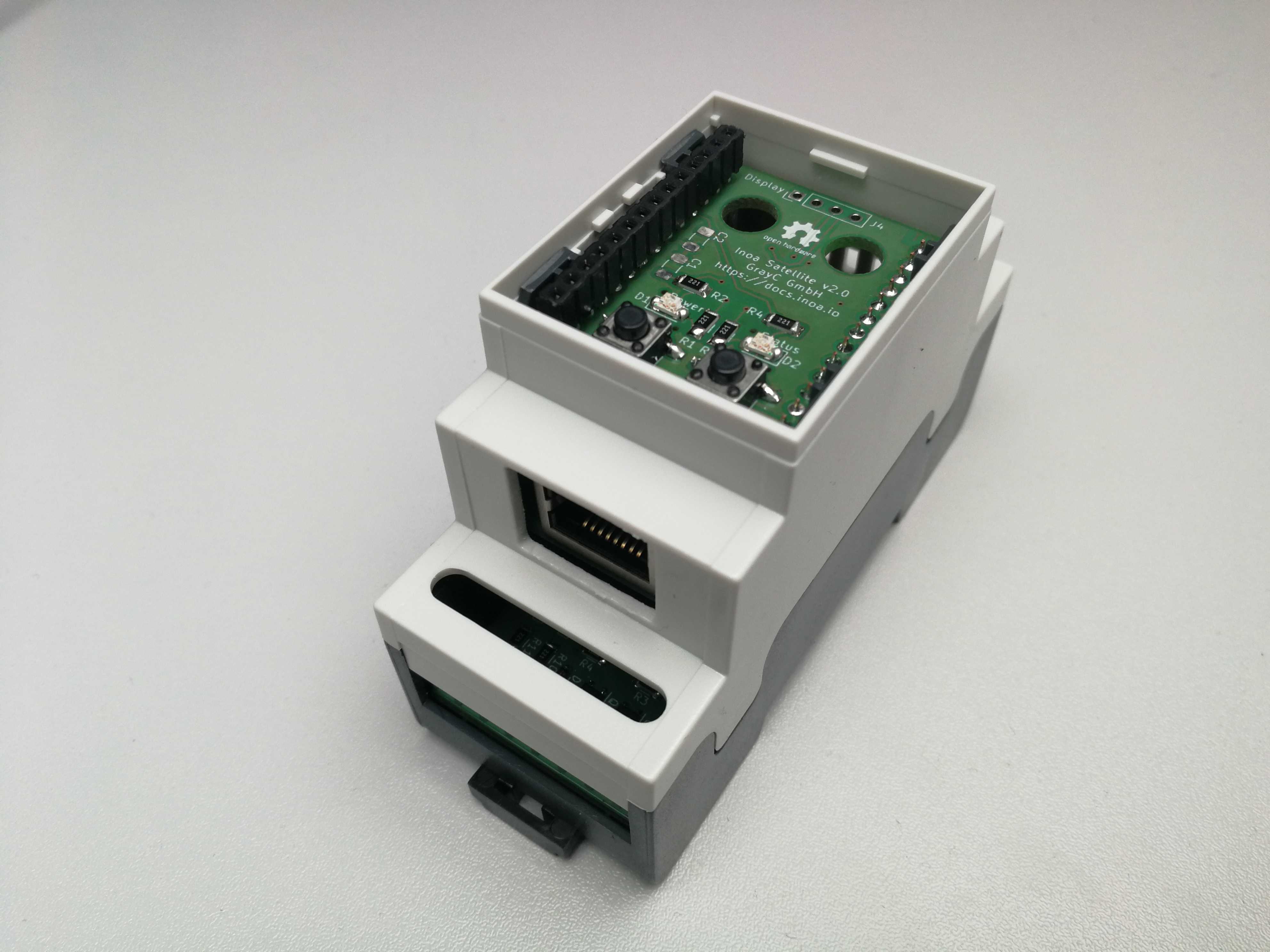

The Inoa Satellite is a lightweight and secure gateway for your fuse box or industrial environment.

Please see our Project Pages for details.

Why?

There is a huge amount of IoT gateways out there, but none of these fulfill completely all of our design goals:

• Usage in a rough industrial environment
• Hardware driven security (HSM)
• Inexpensive hardware to be able to finance a huge fleet of devices
• Low energy consumption
• Fuse box casing (DIN rail)
• Small (2 FE / 36 mm) to allow mounting in existing fuse boxes
• Extendable design to be future proof
• Modular design to adapt hardware to use cases and keep costs low

How?

We use KiCad for our PCB designs, Parts Community and SnapEDA for symbols, footprints, models 'n stuff...

To meet our design goals, we decided to:

• Use the ESP32
• Use the ATECC family of chips as HSM
• Choose industrial proof parts, shielding and ESD protection
• Pick a certified DIN rail casing
• Cut the design to several stacked modules

Modules

General

The Satellite comes with a stacked design allowing to interchange the modules on each level of the stack to fit the needs of its planned duty.

This allows quick and cheap adjustment of single devices, ensures expandability, keeps costs low and offers replacement of defect modules with spare parts.

The Satellite consists of up to 4 levels (level 1 is the bottom). Level 3 is an optional level and may be left out.

• Level 1 holds the power supply and metering / control peripheries.
• Level 2 is the main module for the micro controller
• Level 3 is the network / communication level (Ethernet, NB IoT, LoRa, ...)
• Level 4 is meant for the user panel

Metering Modules

Electric Metering Module

The electric metering module is dedicated to be used for interacting with electric meters, inverters, batteries and so on. It is a base module on level 1 of the stack. Its features are:

• 5V-24V power input
• PE / Shield pin
• 2x RS485 interface (used for e.g. ModBus, ...)
• 2x pulse interface (S0, Photoelectric barrier, ...)
• 2x relay driver

CT Metering Module

The CT module is dedicated to be used for EMS use cases. Current transformers (split core) with voltage output may be used (e.g. SCT-013).

It is a base module on level 1 of the stack. Its features are:

• 5V-24V power input
• 3x CT
• 1x Analog in (ADC)
• 1x Digital in (e.g. S0 meters)
• 1x RS485 interface (ModBus RTU meters)

MBus / WMBus Metering Module

The M-Bus module is dedicated to be used for interacting with different meters via RS485 or M-Bus. The module acts as M-Bus master, but a separate power supply is needed. Because the size of this power supply depends on the amount of connected meters, we decided to give the ability to choose a fitting, external power supply.

The M-Bus module is a base module on level 1 of the stack. Its features are:

• 5V-24V power input
• 1x M-Bus interface
• 1x RS485 interface (ModBus RTU meters)
• 2x pulse interface (S0 meters)
• PE / Shield pins for bus connections

SoC Module

The SoC module is the heart of the satellite and home of the microprocessor, flash memory and HSM (hardware security module). It is the main module on level 2 of the stack. Its features are:

• ESP32 MPU (32 Bit, Dual Core, 240 MHz)
• 8 MB RAM
• 16 MB flash
• µSD Card slot for external storage
• HSM (ATECC608)

Ethernet Module

The Ethernet module connects the Satellite to Ethernet. It is a network module on level 3 of the stack. Its features are:

• W5500 Ethernet chip (MAC+PHY)
• ESD protection
• Shielded RJ45 plug

NB IoT Module

Coming soon

LoRa Module

Coming soon

Panel Module

The panel module is the "user interface" and home of all user input output devices of the Satellite. It is the top module on level 4. Its features are:

• Power and status LED
• Reset and setup button
• 128x64 OLED display (optional)
• RS232 Debug interface
• External WiFi antenna (optional)

Casings

We use a DIN rail mounted casing in 2 FE width. See Datasheet for details.

Development

Building the Project

You will need:

• Python >= 3.8
• KiBot (see installation instructions)

Clone this project and run ./build.sh. You will get a selection of the possible modules to be built. Tests will be executed and the build result is placed in the out folder.

Project structure

Folder	Purpose
./casing	Construction files for the casing
./configs	KiCad-Export configuration
./development-board	Design for the development board
./docs	Documentation
./ethernet-extension	Design for the Ethernet module
./libraries	Electric symbols, footprints and 3D models
./metering-module	Design for the metering module
./nbiot-extension	Design for the NB IoT module
./out	Build output folder
./panel-module	Design for the panel module
./soc-module	Design for the SoC module

Conventions

Markings

• Each PCB has an etched label for "TOP" and "BOT" marks
• Each PCB has an etched label for the product serial following the pattern: SR-XX-NNN (e.g. SR-SM-021)
• The product serial start with "SR" for "Satellite Rail", the next two characters are reserved for the module, the 3 digits represents the version

Serial	Module / Part	Current Version
SR-SC-XXX	SoC Module	v2.0
SR-EM-XXX	Electric Metering	v2.0
SR-CM-XXX	Current Loop Metering	v2.0
SR-MM-XXX	MBus / WMBus Metering	v2.0
SR-ET-XXX	Ethernet Module	v2.0
SR-NB-XXX	NB IoT Module	v2.0
SR-LR-XXX	LoRa / LoRa WAN Module	v2.0
SR-PN-XXX	Panel Module	v2.0

Tracks / Vias / Grids

Despite of the low energy consumption of the MCU itself, we are planning with a maximum current of 1A to be future proof for extra extensions that have a higher energy demand (LoRa, NB IoT, ...).

We chose two different of track widths for main power and for data lines (0.25 mm / 0.5 mm) and planned a minimum temperature of 0°C. See the table below.

Track (mm)	Track (mil)	10°	20°	30°	40°	50°	60°
0.1mm	4mil	0.4A	0.6A	0.8A	0.9A	1.0A	1.1A
0.2mm	8mil	0.7A	1.0A	1.2A	1.4A	1.6A	1.7A
0.3mm	12mil	0.9A	1.3A	1.6A	1.8A	2.0A	2.2A
0.4mm	16mil	1.1A	1.5A	1.9A	2.2A	2.4A	2.7A
0.5mm	20mil	1.3A	1.8A	2.2A	2.5A	2.8A	3.1A
0.6mm	24mil	1.4A	2.0A	2.4A	2.8A	3.1A	3.4A

We chose a 0.1mm grid for all PCB designs, because our casings and mechanics are also measured in millimeters.

We chose 0.8mm 0.4mm vias.

Pin Out

Pin ESP	Pin Satellite	Pin Name	Standard Purpose
1	East 1	GND	Ground
2	West 1	3V3	Power supply
3	West 2	EN3	Reset
4	West 3	I36	I2C Interrupt
5	West 4	I39	UART 1 RX
6	West 5	I34	SPI 2 MISO
7	West 6	I35	UART 2 RX
8	West 7	IO32	SPI 2 MOSI
9	West 8	IO33	SPI 2 CLK
10	West 9	IO25	UART 1 TXE
11	West 10	IO26	UART 1 TX
12	West 11	IO27	SPI 2 CS (Ethernet)
13	West 12	IO14	Ethernet Reset
14	West 13	IO12
15	NC	GND	Ground
16	West 14	IO13	Status LED
17	NC	NC	Internal Flash / RAM
18	NC	NC	Internal Flash / RAM
19	NC	NC	Internal Flash / RAM
20	NC	NC	Internal Flash / RAM
21	NC	NC	Internal Flash / RAM
22	NC	NC	Internal Flash / RAM
23	East 13	IO15	UART 2 TX
24	East 12	IO2	UART 2 TXE
25	East 11	IO0	Setup Button
26	East 10	IO4	Ethernet Interrupt
27	NC	NC	Internal Flash / RAM
28	NC	NC	Internal Flash / RAM
29	East 9	IO5	SPI 1 CS (SD)
30	East 8	IO18	SPI 1 CLK
31	East 7	IO19	SPI 1 MISO
32	NC	NC	Internal Flash / RAM
33	East 6	IO21	I2C SDA
34	East 5	URXD0	UART 0 RX
35	East 4	UTXD0	UART 0 TX
36	East 3	IO22	I2C SCL
37	East 2	IO23	SPI 1 MOSI
38	East 1	GND	Ground
NC	East 14	Shield	Shield / PE
