README

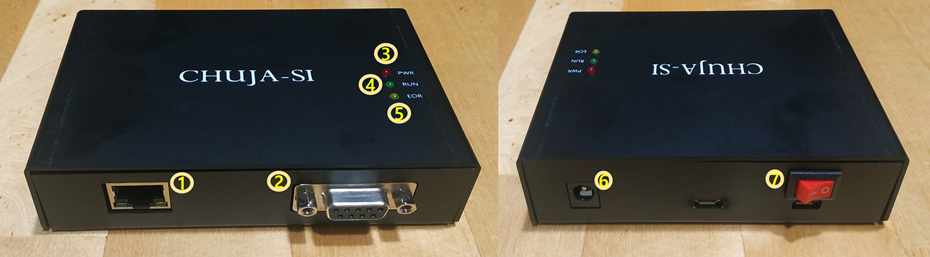

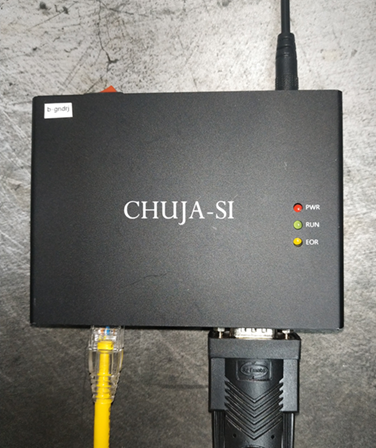

TCP/IP packet encoder based on Raspberry Pi Pico W + W5500-EVB-Pico

  • Raspberry Pi Pico W for serving a device configuration web page
  • W5500-EVB-Pico from Wiznet for TCP/IP relay

Sponsorship from PCBWay

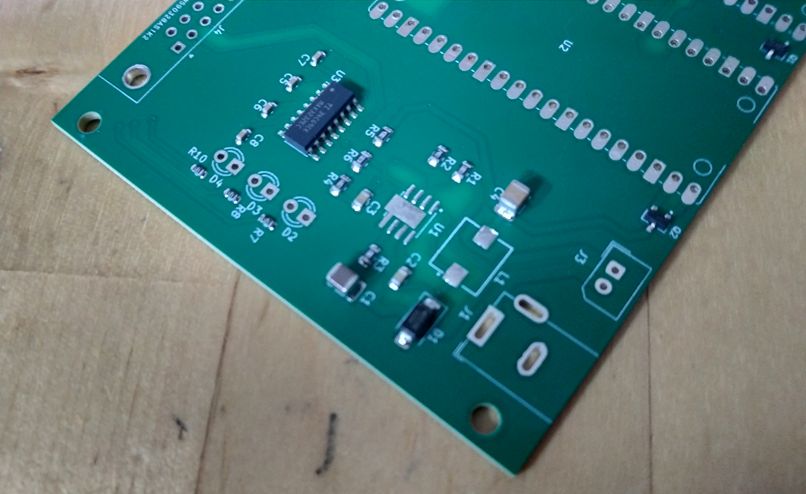

  • PCBWay kindly provided PCB of this device. This is my first time using the company's service.
  • My honest impression is that their service is well-streamlined with web-based ordering process with good support of instant chat assistance. I could quickly make my order on the comprehensive web page.
  • It took about a week to receive the assembled PCB at home in Korea. It was good to see that each PCB was separately packaged. The quality of the final product was excellent.
  • I want to thank PCBWay again for their support. Highly recommend PCBWay. Try their excellent service at https://www.pcbway.com/ .

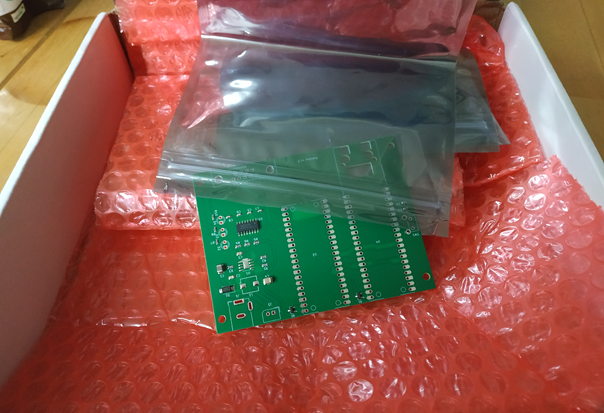

Package arrived!

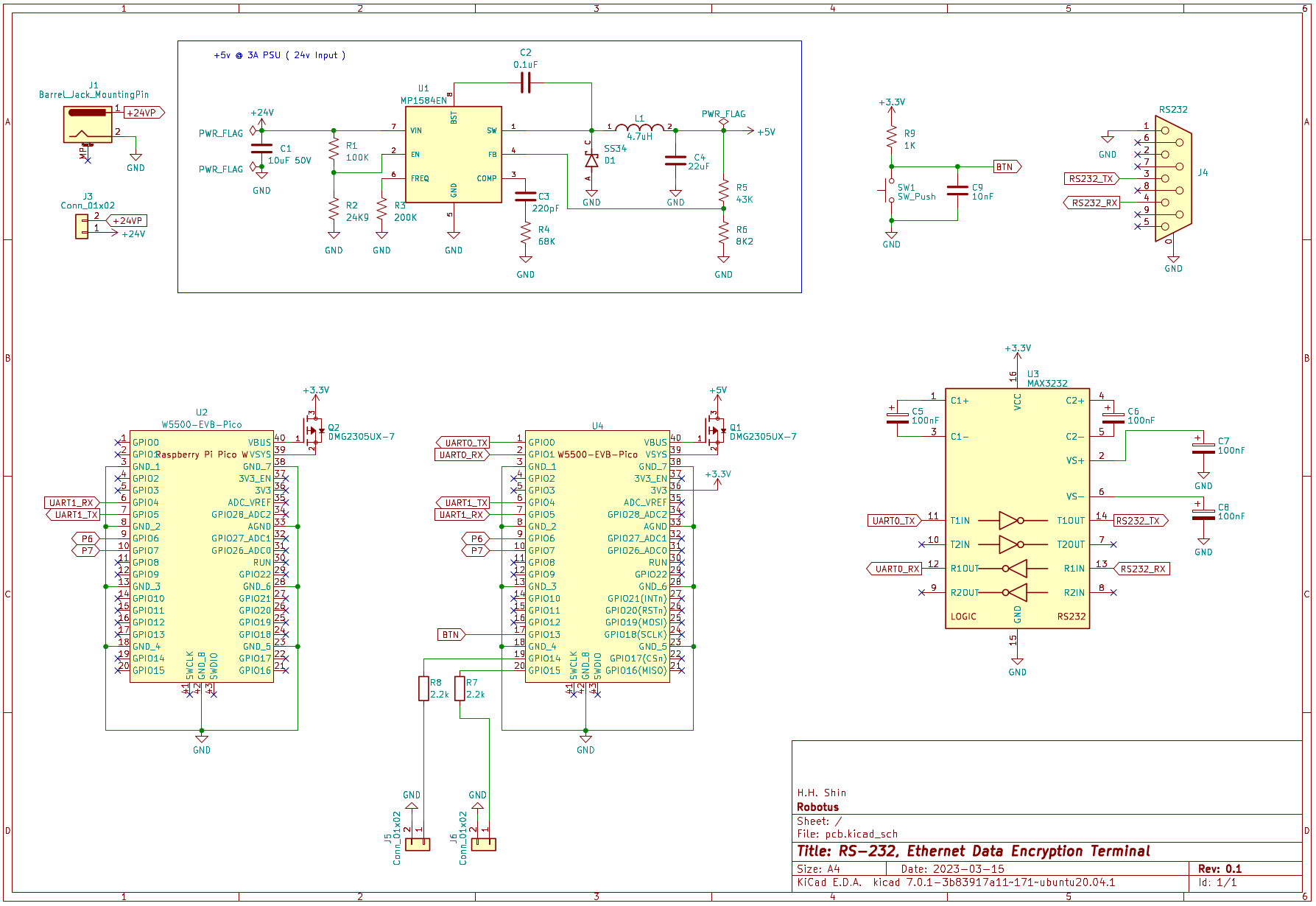

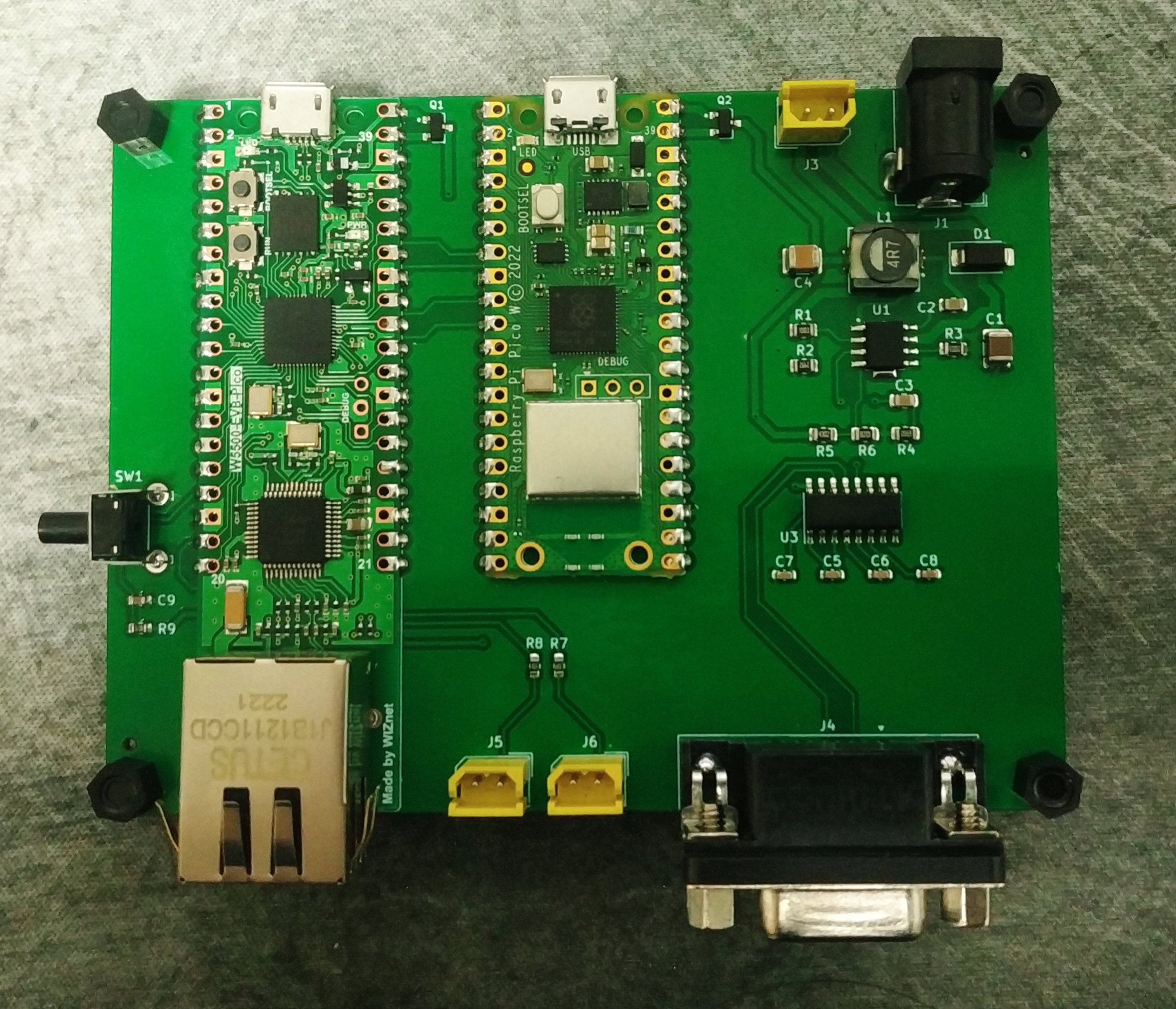

KiCad schematics & pcb

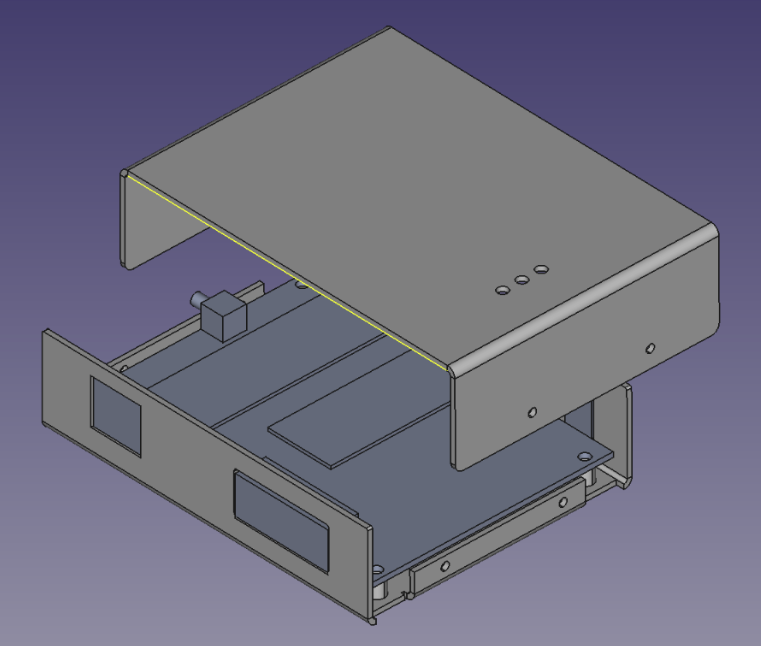

FreeCAD design & enclosure
